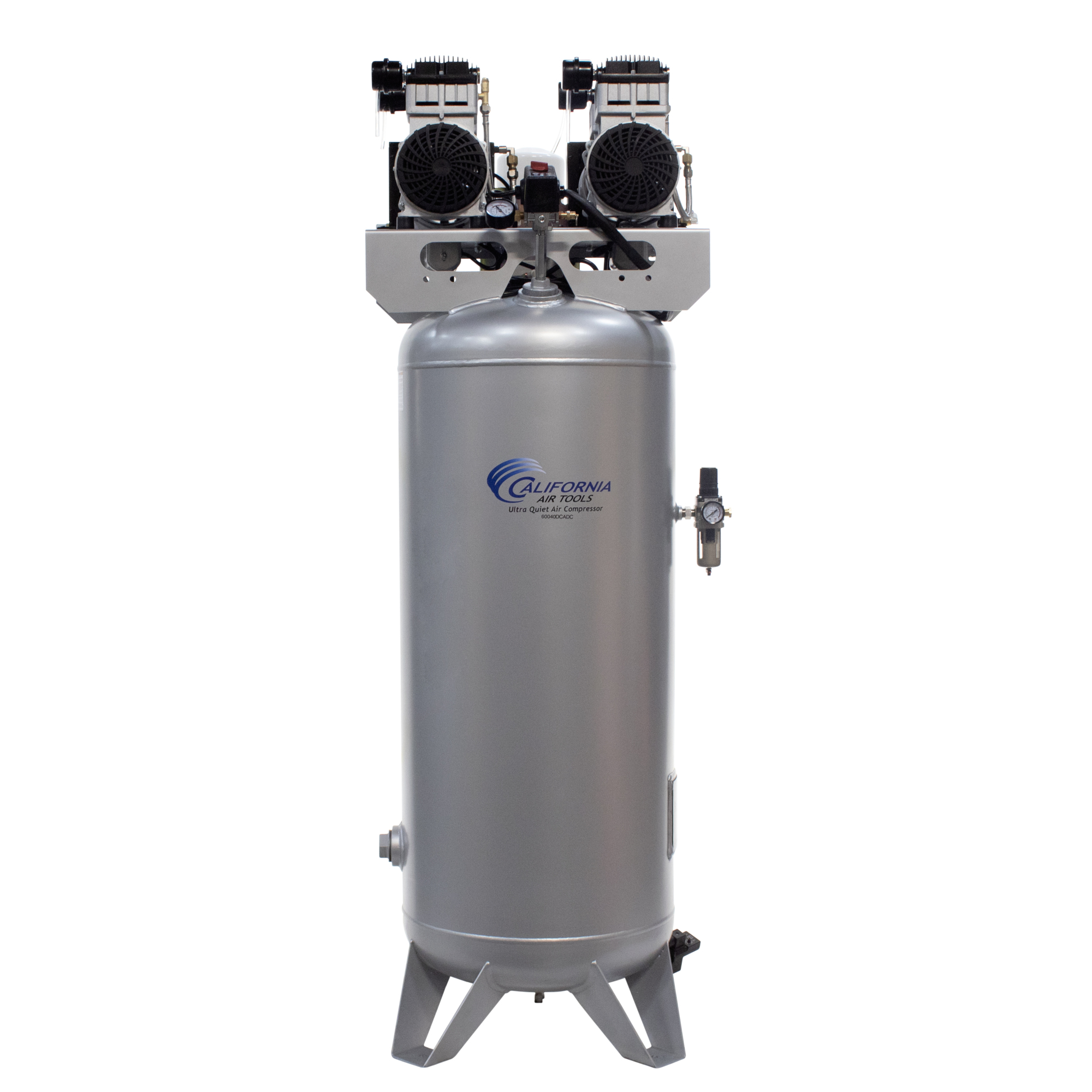

California Air Tools, CAT 60040DSMADC 60Gal 4Hp AirCompressor, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Model# CAT-60040DSMADC

Item# 7342169
New
California Air Tools, CAT 60040DSMADC 60Gal 4Hp AirCompressor, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Model# CAT-60040DSMADC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, CAT 60040DSMADC 60Gal 4Hp AirCompressor, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Model# CAT-60040DSMADC

Click or Tap image to Zoom

$5295.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet  -  Only 75  decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Regulated output pressure gauge
  • Two (2) 0.01 Micron Prefilters

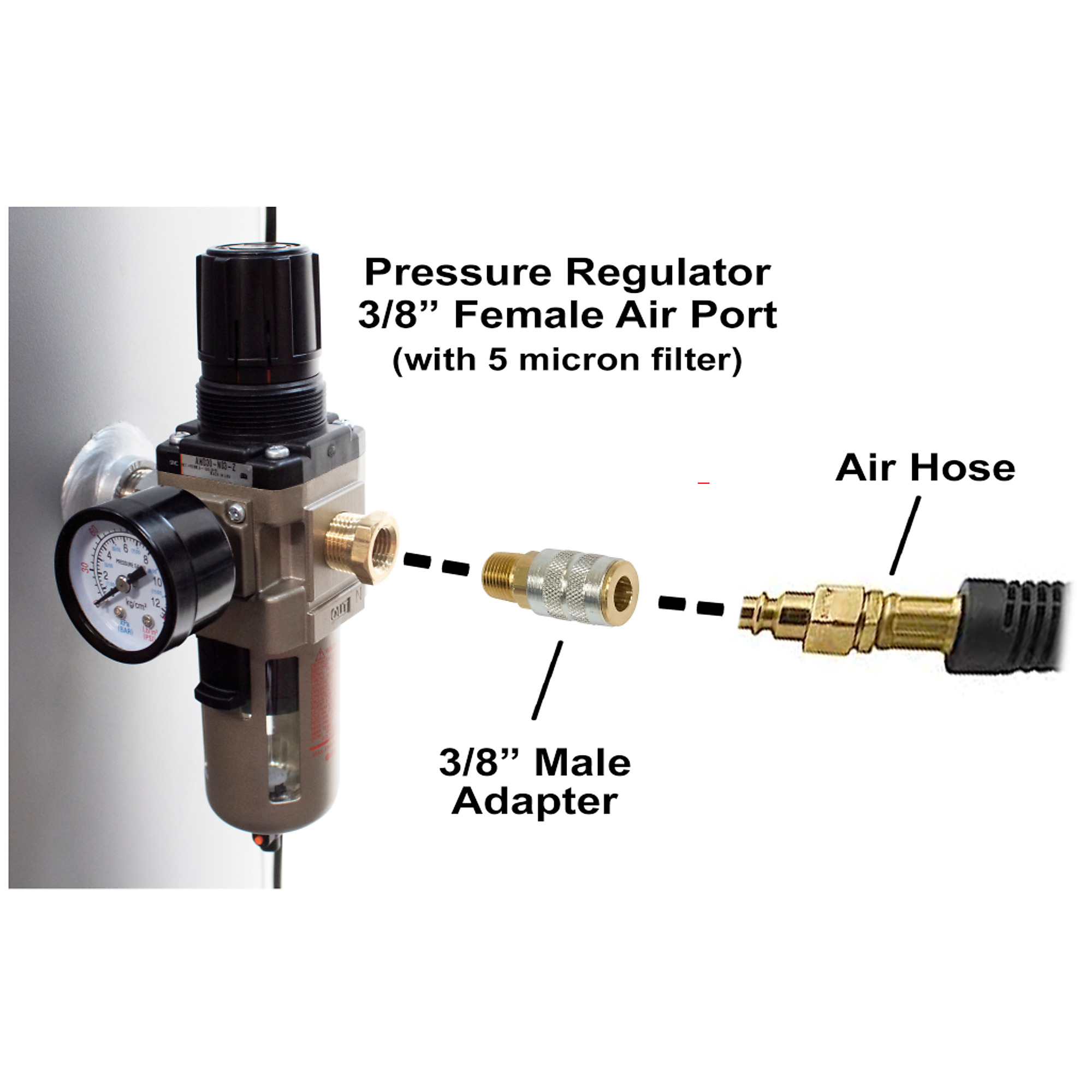

  • 5 Micron Air Filter & Regulator with 3/8" Female Air Port

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

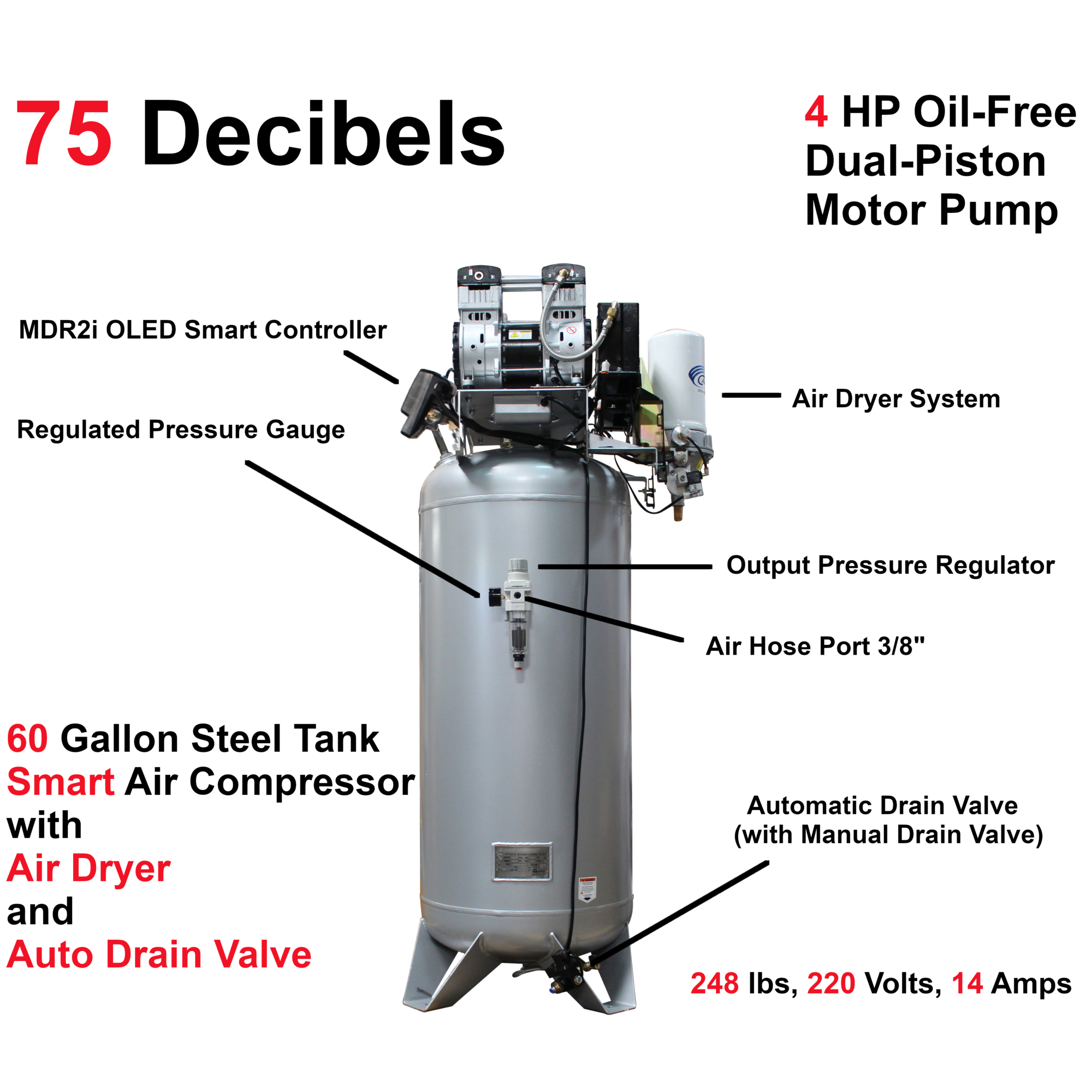

The CALIFORNIA AIR TOOLS 60040DSMADC Ultra Quiet 4 Hp Oil-Free 60-Gallon 98% Dry Air Compressor, with Automatic Drain Valve, is designed to be one of the quietest 4.0 horse power air compressors in the industry having only 75 decibels of sound. The MDR2i OLED Smart controller may be connected to mobile phones, tablets, notebooks, or computers. The controller can be used as an access point or can be connected to a Wi-Fi network. Compressor features and parameters may be entered and controlled comfortably along with remote monitoring. The Powerful Twin 2.0 HP (SP-9421-22060) motors operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The SP-9421 Motor/Pump is tested for a minimum pump life of 3000 hours before service. 30% more life before repair. The 98% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery. PDP performance range (-20ft. F. to -51ft. F.) Air Quality: ISO 8573 - Class 2.3.1 To dry the air from the air compressor an Aftercooler and 98% Air Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air. This cartridge dryer has a life of 2-years before replacement. The large 60 Gallon Steel ASME Certified Air Tank is just the right size for shop or garage. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. Designed for the person looking for Power, 98% Dry Air and Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Bio-Tech, Manufacturing, Packaging, Restaurant and General Engineering Applications.

What's Included

    (1) Owners Manual

Features + Benefits

  • Ultra Quiet  -  Only 75  decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Regulated output pressure gauge
  • Two (2) 0.01 Micron Prefilters
  • 5 Micron Air Filter & Regulator with 3/8" Female Air Port
  • Air Hose Port, Female, 3/8" NPT

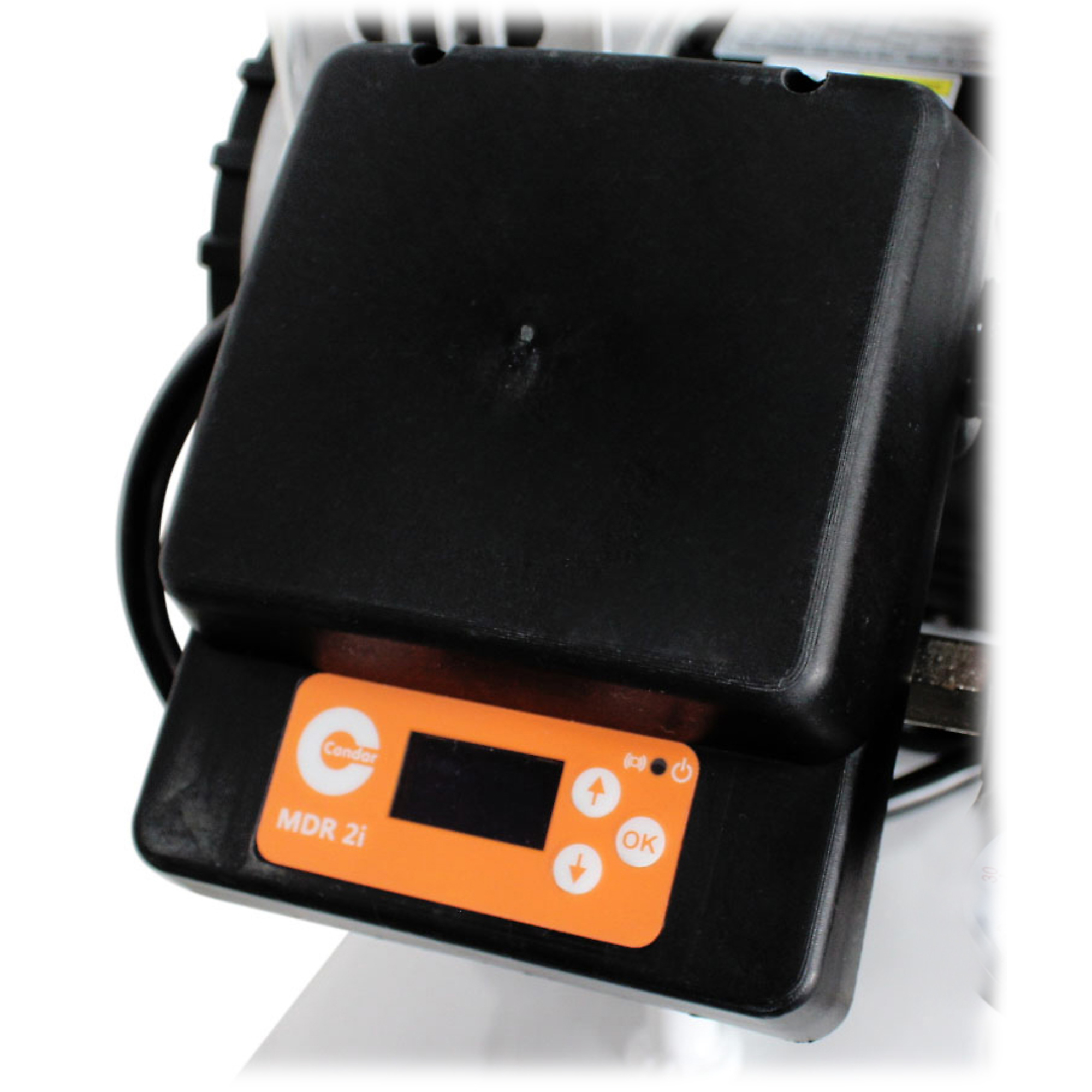

  • MDR2i OLED Smart pressure controller for remote monitoring and control
  • Thermal Overload Protector
  • Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
  • 220 Volt / 60 Hertz / Single Phase - (No 208 Volts - if necessary, obtain 208 to 230 voltage booster). Acceptable Range: 215v - 240v.
  • Low Amp Draw - 14 Amps
  • Easy Start Valves (2) - For Less Starting Amperage
  • Time to fill tank from empty to full - 6:30 Minutes
  • Recovery time from 95 PSI to 125 PSI - 2:00 Minutes
  • Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant Easy to remove (spin off) and replace every 2 years
  • Aftercooler (condenser)
  • PDP performance range (-20' F. to -51' F.)
  • Air Quality: ISO 8573 - Class 2.3.1
  • Duty Cycle - 70/30* Less heat which dissipates more efficiently 60 Gallon Steel ASME Certified Air Tank L (21") x W/D (28.5") x H (66") 213 lbs EZ-1-2301 Automatic Drain Valve (with manual drain valve) The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. Comes complete (4) Air Filters Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R electrical receptacle) 1 Year Limited Warranty Manufactured in Mexico-USA. Assembled in USA using global components. Commercial Use: Refer to State & City Codes

Key Specs

AttributeSpecification

item#

7342169

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

295.0 LB

Air Tank Size

60 Gal

Volts

220

CFM at 90 PSI

10.6

Tank Orientation

Vertical

Horsepower

4 HP

Max. PSI

120

Air Outlets (qty.)

1

Amps

14

Duty Cycle

70 %
AttributeSpecification

Engine Start Type

Electric

Pump Life

3,000 hr

Air Outlet Size

3/8 in. NPT

CFM at 40 PSI

12.8

CFM at Max. PSI

10.6

Noise Level

75 dB

Oil Required

No

Lubrication System

Oil-Free

Drain Type

Automatic

Engine Brand

OEM

Product Weight

248.0000 lb

Dimensions L x W x H (in.)

25.5 x 29.0 x 66.5 in
