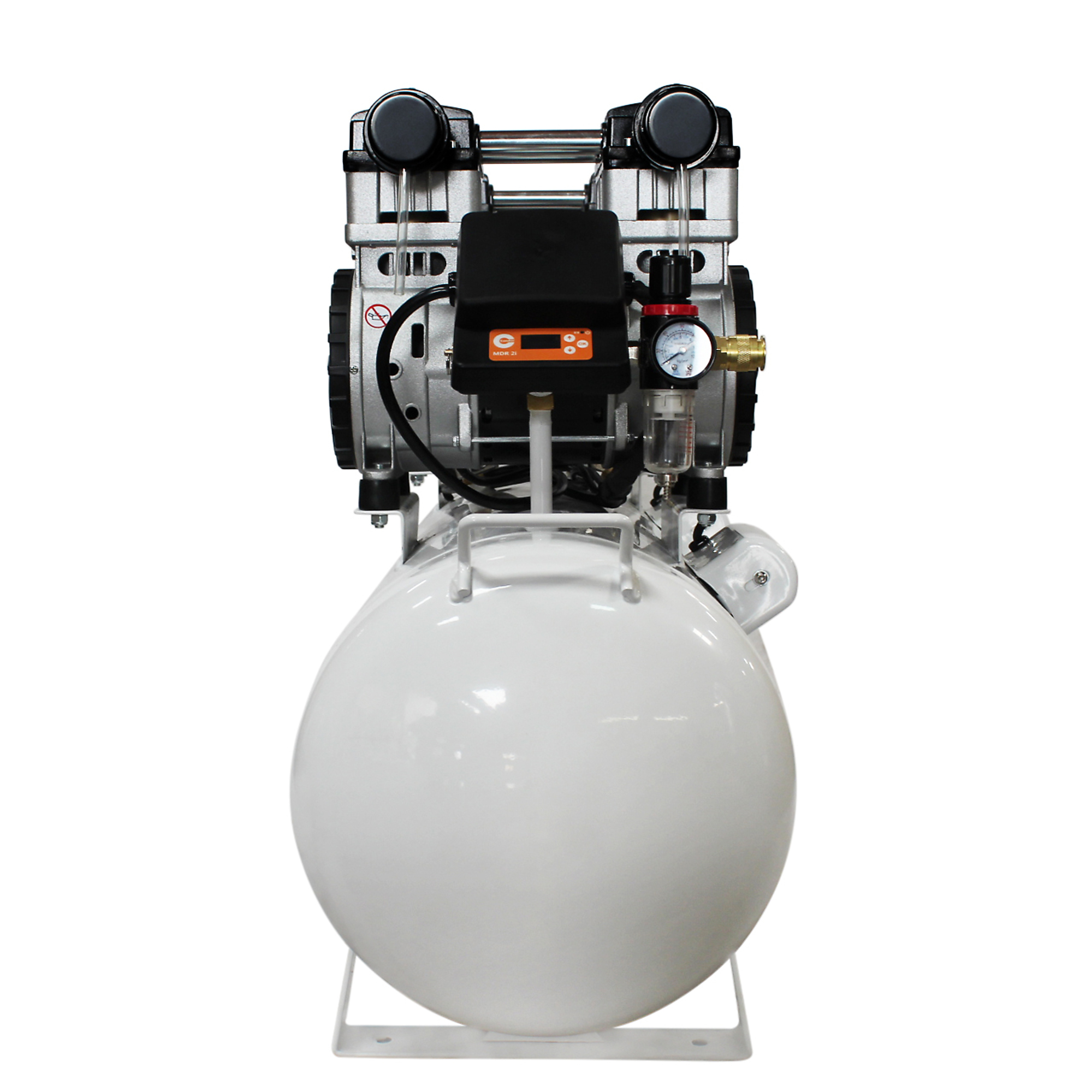

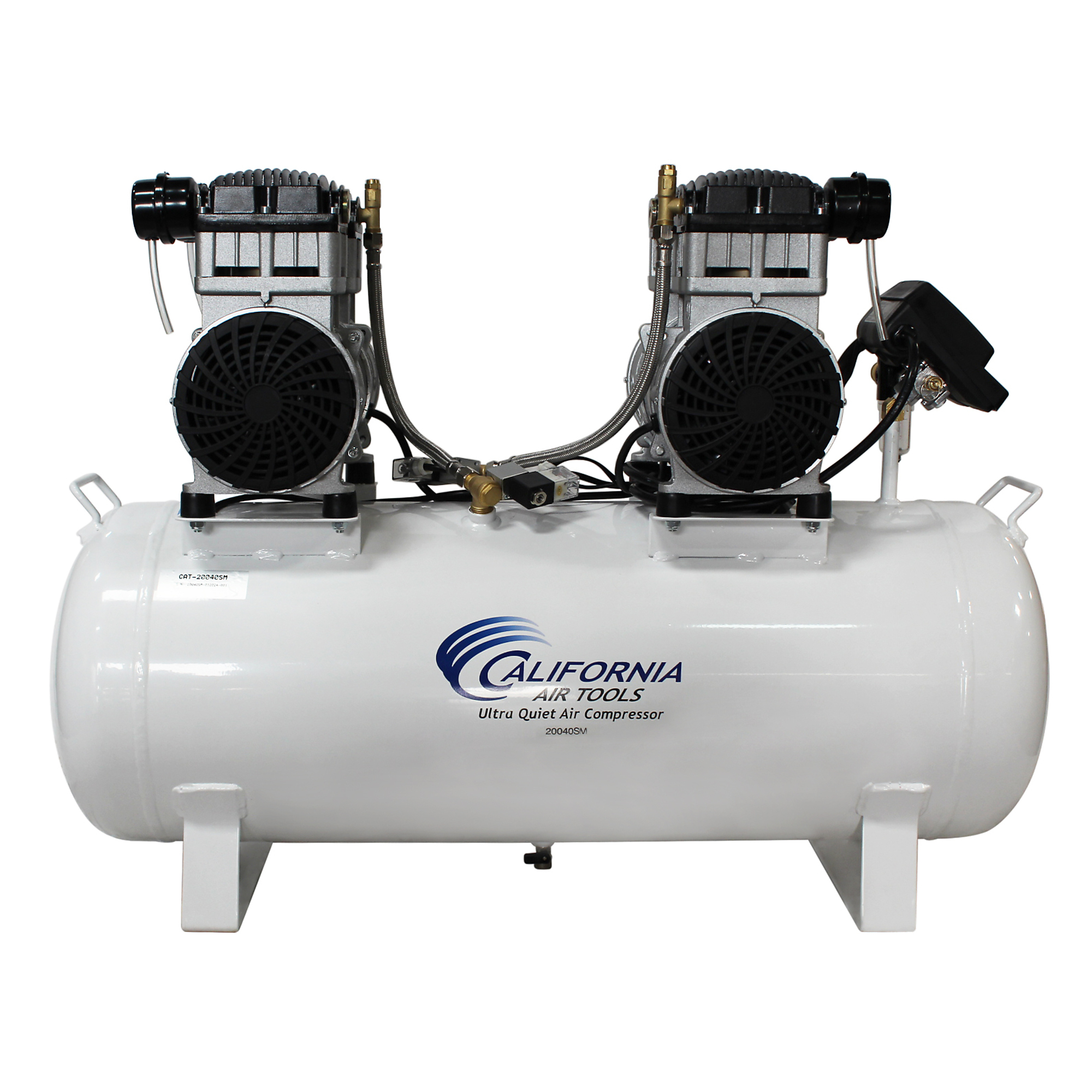

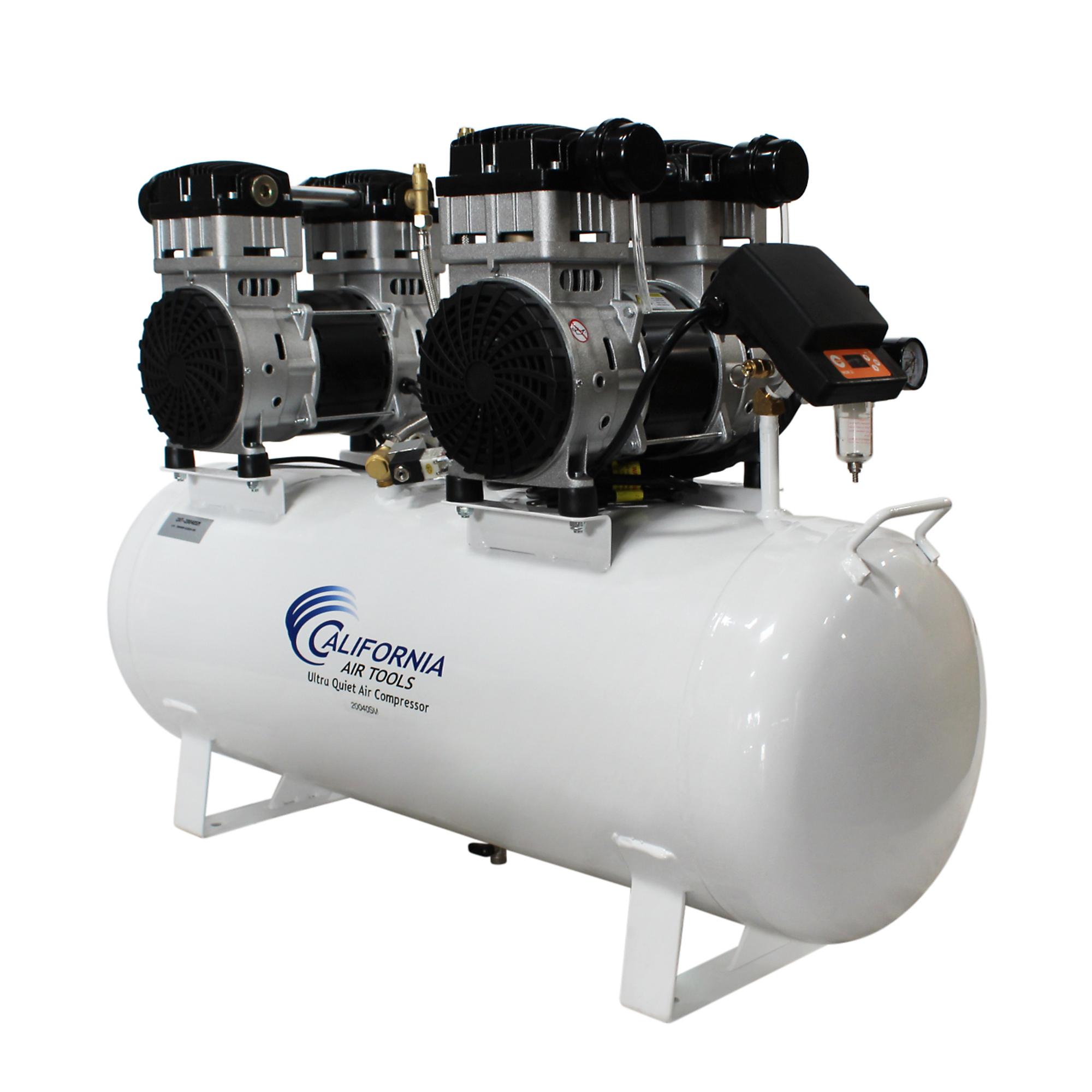

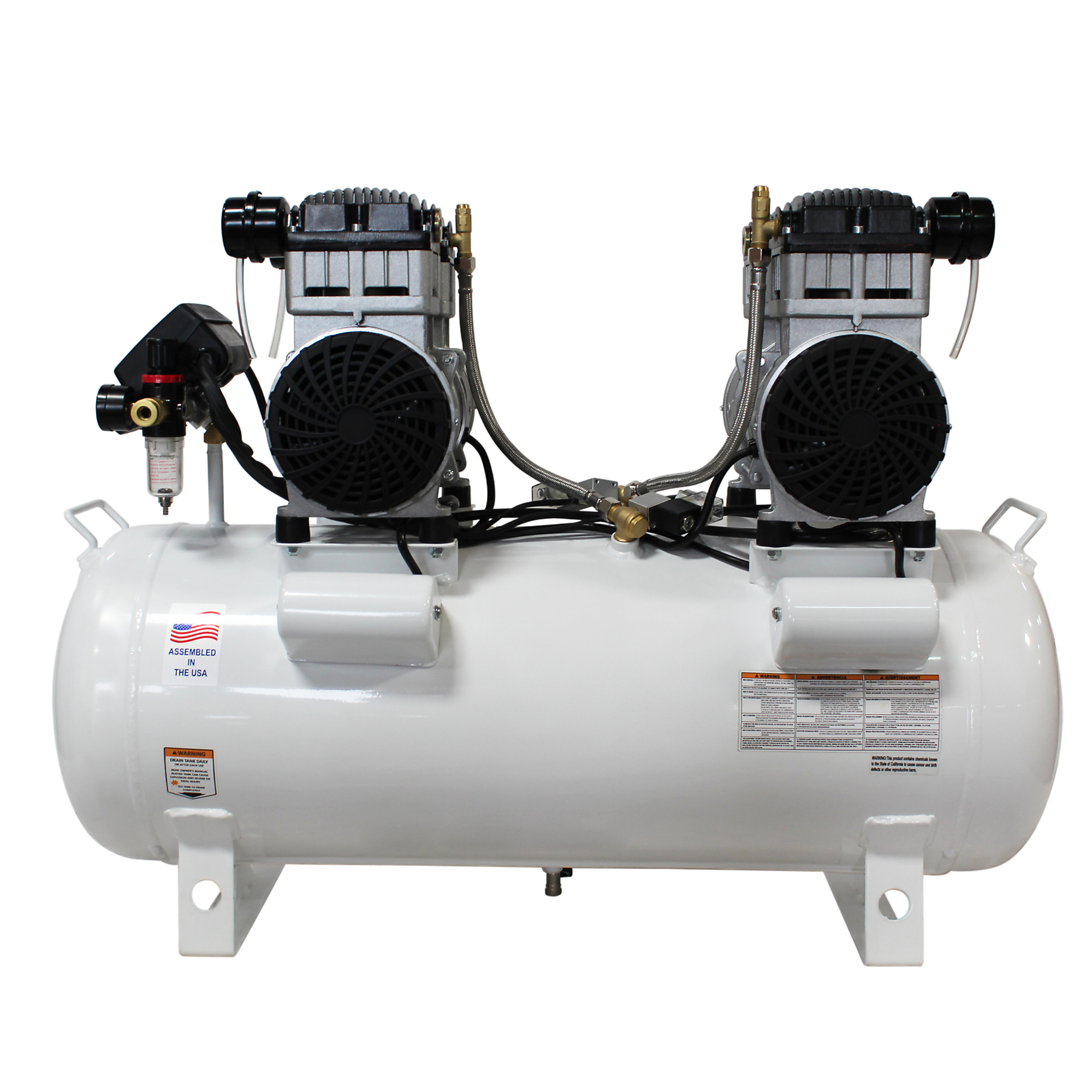

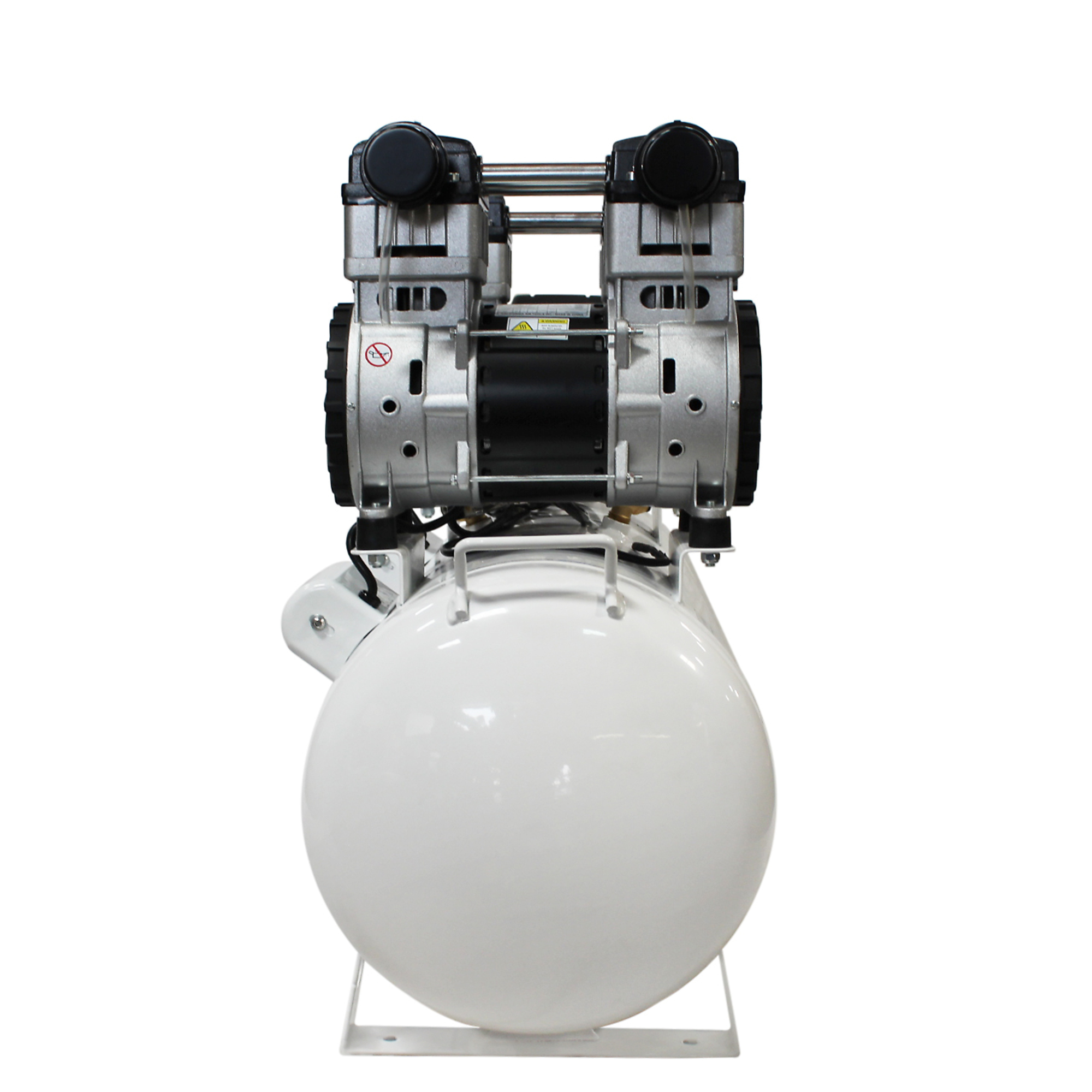

California Air Tools, CAT 20040SM 20Gal 4Hp AirCompressor, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# CAT-20040SM

Item# 6571031
California Air Tools, CAT 20040SM 20Gal 4Hp AirCompressor, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# CAT-20040SM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, CAT 20040SM 20Gal 4Hp AirCompressor, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# CAT-20040SM

Click or Tap image to Zoom

$1450.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet - Only 75 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Regulated output pressure gauge
  • Pressure Regulator (0-120 PSI)
  • One - Female Industrial "Push to Connect" quick connector (1/4" NPT)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CALIFORNIA AIR TOOLS 20040SM SMART Ultra Quiet Oil-Free Air Compressor is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 75 decibels of sound. The Powerful Twin 2.0 HP (SP-9421-22060) motors operate at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20040SM SMART Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The large 20 Gallon Steel Air Tank is just the right size for shop or garage. Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise!

What's Included

    (1) Owners Manual

Downloads

Product Manual

Features + Benefits

  • Ultra Quiet - Only 75 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Regulated output pressure gauge
  • Pressure Regulator (0-120 PSI)
  • One - Female Industrial "Push to Connect" quick connector (1/4" NPT)
  • Easy Start Valve - For Less Starting Amperage
  • Condor Pressure controller
  • MDR2i OLED Smart pressure controller for remote monitoring and control
  • Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
  • Thermal Overload Protector
  • 220 Volt / 60 Hertz / Single Phase (No 208 Volts - if necessary, obtain 208 to 220 voltage booster)
  • Low Amp Draw - 14 Amps
  • Time to fill tank from empty to full - 150 Seconds
  • Recovery time from 95 PSI to 125 PSI - 40 Seconds
  • Duty Cycle - 70/30*
  • Less heat which dissipates more efficiently
  • 20 Gal. Steel AirTank.
  • L (39") x W (15") x H (28")
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6571031

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

205.0 LB

Air Tank Size

20 Gal

Volts

220

CFM at 90 PSI

10.6

Tank Orientation

Horizontal

Horsepower

4 HP

Max. PSI

120

Air Outlets (qty.)

1

Amps

14

Duty Cycle

70 %
AttributeSpecification

Engine Start Type

Electric

Pump Life

3,000 hr

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

12.8

CFM at Max. PSI

10.6

Noise Level

75 dB

Oil Required

No

Lubrication System

Oil-Free

Drain Type

Manual

Engine Brand

OEM

Product Weight

140.0000 lb

Dimensions L x W x H (in.)

39.0 x 15.0 x 28.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
