California Air Tools, CAT 10020HDSMADC 10Gal 2Hp AirCompressor, Horsepower 2 HP, Air Tank Size 10 Gal, Volts 110 Model# CAT-10020HDSMADC

Item# 6570830
California Air Tools, CAT 10020HDSMADC 10Gal 2Hp AirCompressor, Horsepower 2 HP, Air Tank Size 10 Gal, Volts 110 Model# CAT-10020HDSMADC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

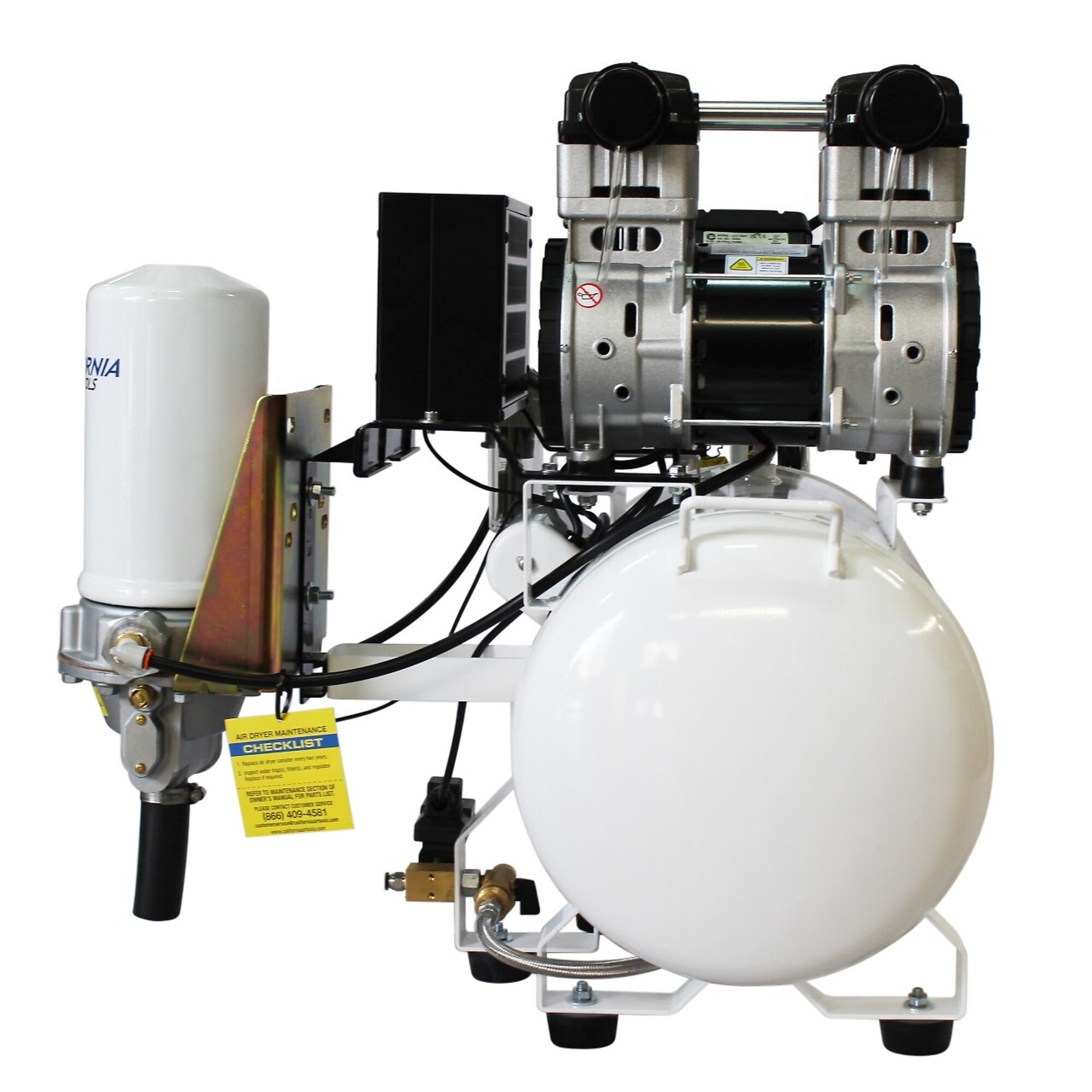

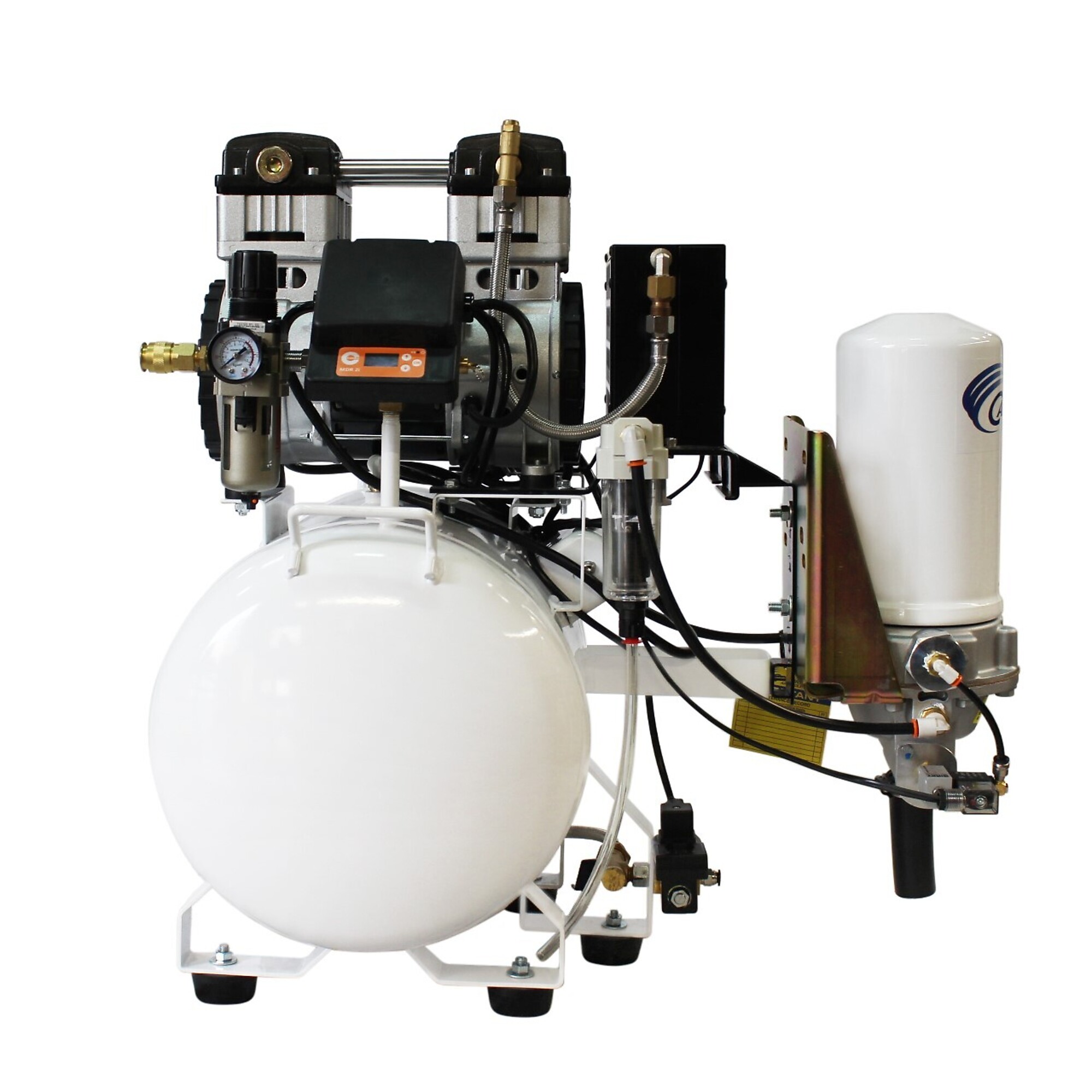

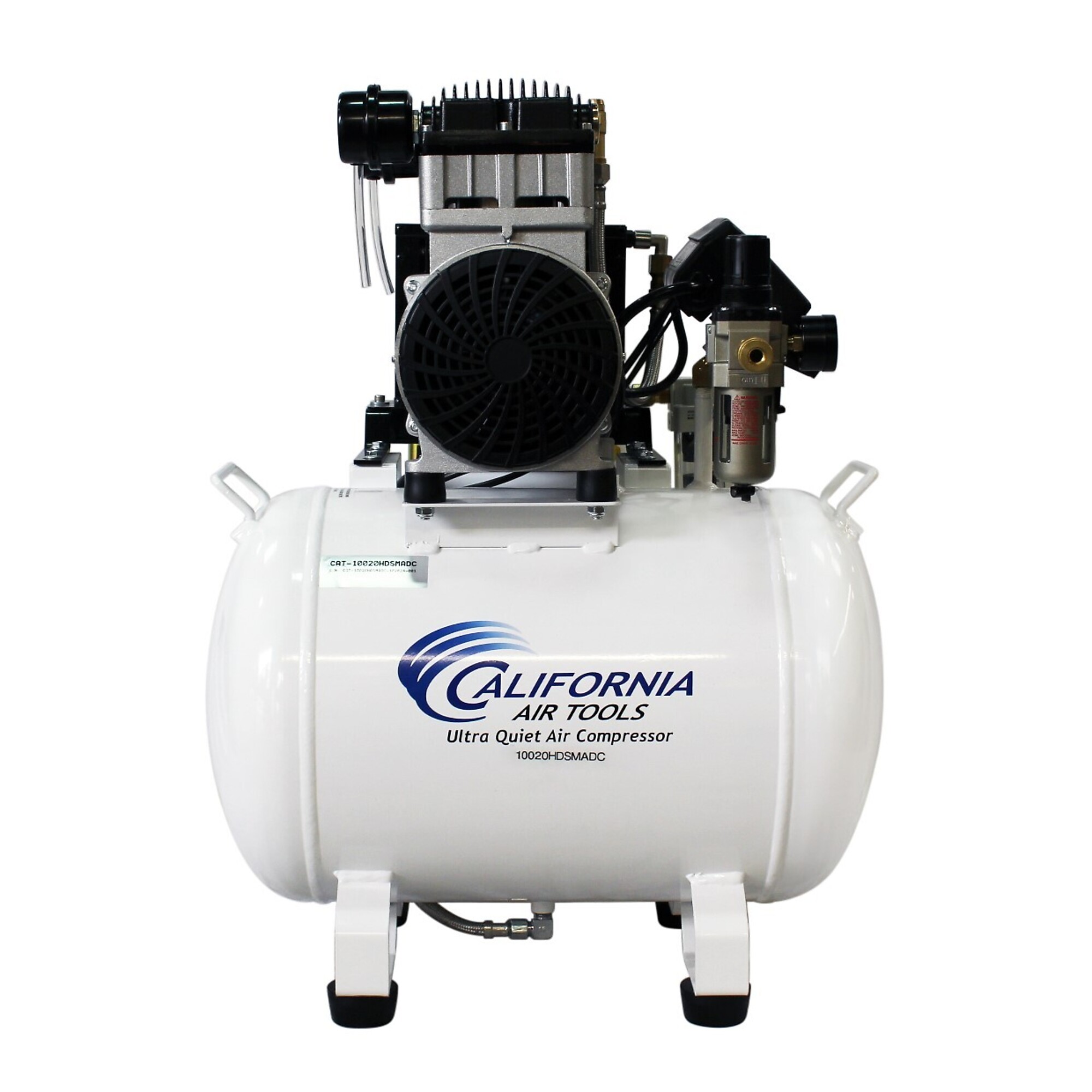

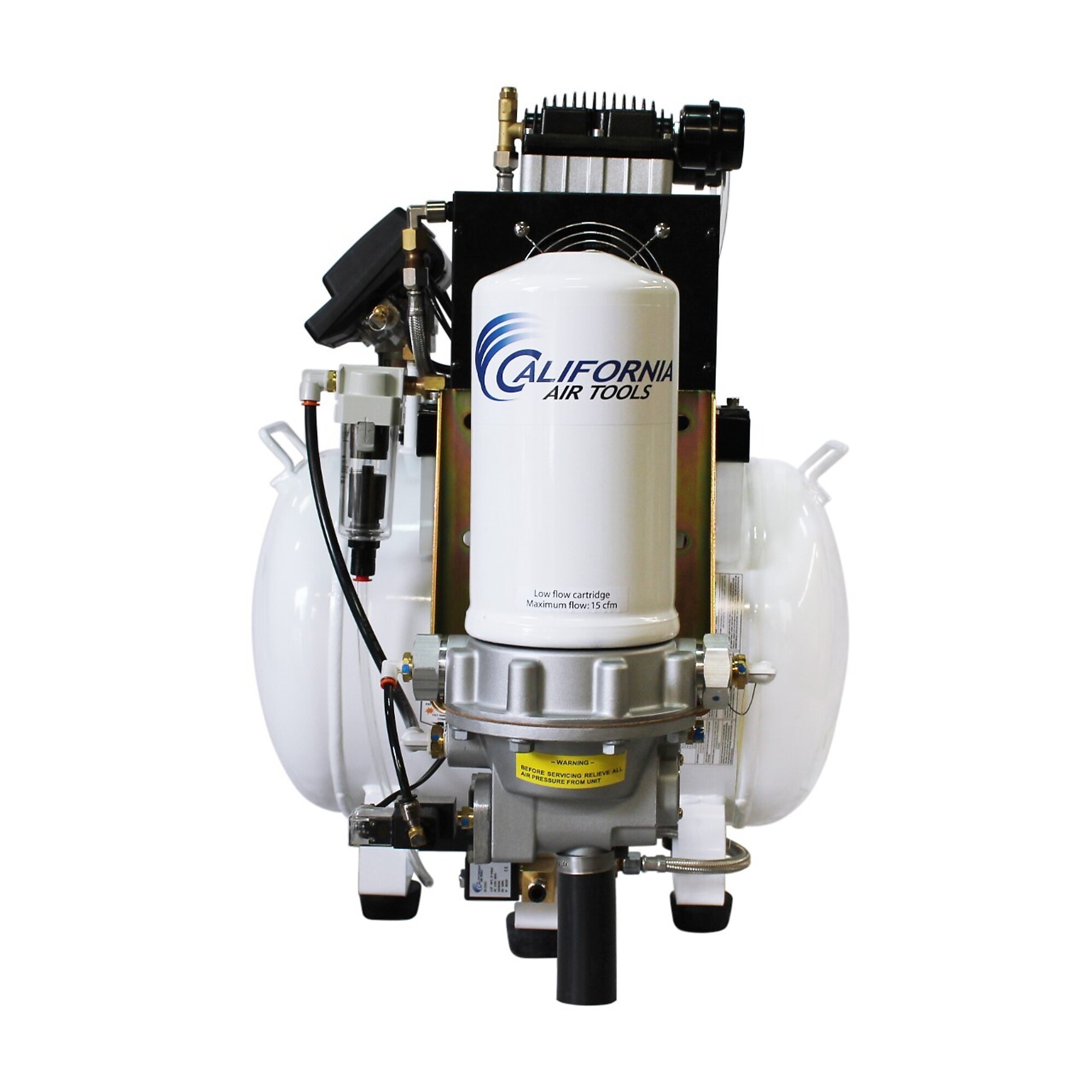

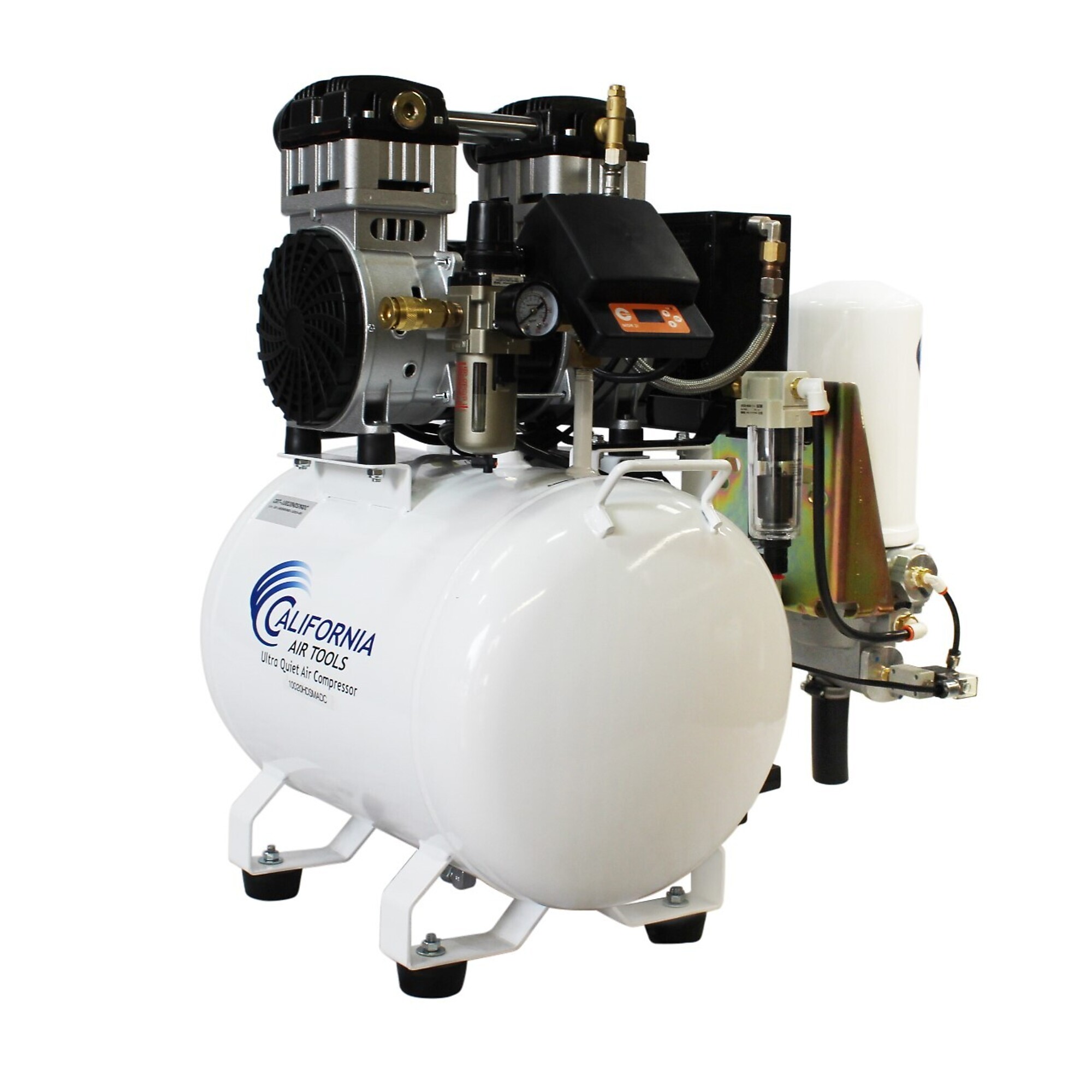

California Air Tools, CAT 10020HDSMADC 10Gal 2Hp AirCompressor, Horsepower 2 HP, Air Tank Size 10 Gal, Volts 110 Model# CAT-10020HDSMADC

Click or Tap image to Zoom

$2850.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Ultra Quiet  -  Only 70  decibels
  • Oil-Free Pump (Class 1) – Cleaner air for better tool operation. - Less maintenance and Costs.
  • Regulated output pressure gauge
  • Pressure Regulator (0-120 PSI)
  • One - Female Industrial "Push to Connect" quick connector (1/4" NPT)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CALIFORNIA AIR TOOLS 10020HDSMADC Ultra Quiet 2 Hp Oil-Free 10-Gallon Air Compressor, with Automatic Drain Valve, is designed to be one of the quietest 2.0 horse power air compressors in the industry having only 70 decibels of sound. The MDR2i OLED Smart controller may be connected to mobile phones, tablets, notebooks, or computers. The controller can be used as an access point or can be connected to a Wi-Fi network. Compressor features and parameters may be entered and controlled comfortably along with remote monitoring. The powerful 2.0 HP motor operates at only 1680 RPM creating less noise, vibration and creating less wear. The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability. The SP-9421 Motor/Pump is tested for a minimum pump life of 3000 hours before service. 30% more life before repair. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The 98% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery. PDP performance range (-20ft. F. to -51ft. F.) Air Quality: ISO 8573 - Class 2.3.1 To dry the air from the air compressor an Aftercooler and 98% Air Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air. This cartridge dryer has a life of 2-years before replacement. The large 10 Gallon Horizontal Steel Air Tank is just the right size to fit under a bench, desk or cabinet. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. Designed for the person looking for Power, 98% Dry Air and Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Bio-Tech, Manufacturing, Packaging, Restaurant and General Engineering Applications.

What's Included

    (1) Owners Manual

Downloads

Product Manual

Features + Benefits

  • Ultra Quiet  -  Only 70  decibels
  • Oil-Free Pump (Class 1) – Cleaner air for better tool operation. - Less maintenance and Costs.
  • Regulated output pressure gauge
  • Pressure Regulator (0-120 PSI)
  • One - Female Industrial "Push to Connect" quick connector (1/4" NPT)
  • 0.01 Micron Prefilter
  • 5.0 Micron (Class 2)  Air Filter & Regulator
  • Easy Start Valve - For Less Starting Amperage
  • MDR2i OLED Smart pressure controller for remote monitoring and control
  • Thermal Overload Protector
  • Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
  • 110v / 60 Hz
  • Low Amp Draw - Only 14.0 Amps
  • Time to fill tank from empty to full - 120 Seconds
  • Recovery time from 95 PSI to 125 PSI - 25 Seconds
  • Duty Cycle - 70/30*
  • L (16") x W (23") x H (35")
  • Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant Easy to remove (spin off) and replace every 2 years
  • Aftercooler (condenser) PDP performance range (-20' F. to -51' F.) Air Quality: ISO 8573 - Class 2.3.1 EZ-1-2321 Auto Drain Valve Factory Installed Comes complete (2) Air Filters 1 Year Limited Warranty Manufactured in Mexico-USA. Assembled in USA using global components Non-ASME Air Tank Commercial Use: Refer to State & City Codes

Key Specs

AttributeSpecification

item#

6570830

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

166.0 LB

Air Tank Size

10 Gal

Volts

110

CFM at 90 PSI

5.3

Tank Orientation

Horizontal

Horsepower

2 HP

Max. PSI

120

Air Outlets (qty.)

1

Amps

14

Duty Cycle

70 %
AttributeSpecification

Engine Start Type

Electric

Pump Life

3,000 hr

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

12.8

CFM at Max. PSI

10.6

Noise Level

75 dB

Oil Required

No

Lubrication System

Oil-Free

Drain Type

Automatic

Engine Brand

OEM

Product Weight

100.0000 lb

Dimensions L x W x H (in.)

20.0 x 28.0 x 26.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
