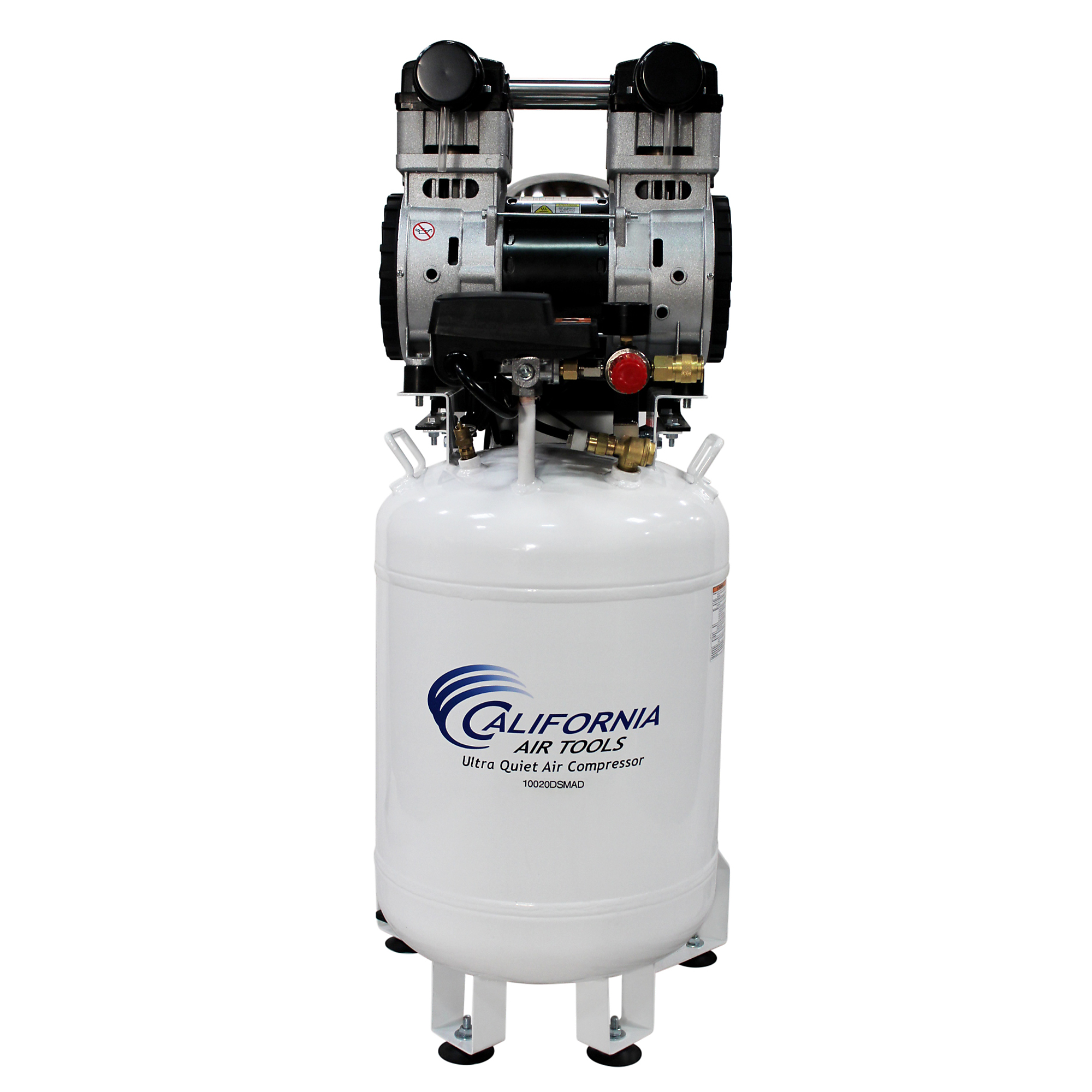

California Air Tools, CAT 10020DSMAD 10Gal 2Hp AirCompressor, Horsepower 2 HP, Air Tank Size 10 Gal, Volts 110 Model# CAT-10020DSMAD

Item# 6570741
California Air Tools, CAT 10020DSMAD 10Gal 2Hp AirCompressor, Horsepower 2 HP, Air Tank Size 10 Gal, Volts 110 Model# CAT-10020DSMAD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, CAT 10020DSMAD 10Gal 2Hp AirCompressor, Horsepower 2 HP, Air Tank Size 10 Gal, Volts 110 Model# CAT-10020DSMAD

Click or Tap image to Zoom

$1910.00

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Ultra Quiet - Only 70 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Two pressure control gauges
  • One - Female Industrial "Push to Connect" quick connector (1/4" NPT)
  • Thermal Overload Protector

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CALIFORNIA AIR TOOLS 10020DSMAD Ultra Quiet Oil-Free Air Compressor, with Automatic Drain Valve, is designed to be one of the quietest 2.0 horse power air compressors in the industry having only 70 decibels of sound. The MDR2i OLED Smart controller may be connected to mobile phones, tablets, notebooks, or computers. The controller can be used as an access point or can be connected to a Wi-Fi network. Compressor features and parameters may be entered and controlled comfortably along with remote monitoring. The powerful 2.0 HP motor operates at only 1680 RPM creating less noise, vibration and creating less wear. The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability. The SP-9421 Motor/Pump is tested for a minimum pump life of 3000 hours before service. 30% more life before repair. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The large 10.0 gallon steel air tank is only 91 lbs. The 80% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery. To dry the air from the air compressor an Aftercooler and 80% Air Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. Designed for the person looking for Power, 80% Dry Airand Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Bio-Tech, Manufacturing, Packaging, Restaurant and General Engineering Applications.

What's Included

    (1) Owners Manual

Downloads

Product Manual

Features + Benefits

  • Ultra Quiet - Only 70 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Two pressure control gauges
  • One - Female Industrial "Push to Connect" quick connector (1/4" NPT)
  • Thermal Overload Protector
  • 125 PSI Maximum Pressure
  • Kick On Pressure 95 PSI - Kick Off Pressure 125 PSI
  • 110v / 60 Hz
  • Low Amp Draw - Only 14.0  Amps
  •  Tank fill rate from empty to full - 130 Seconds
  • Recovery time from 95 PSI to 125 PSI - 40 Seconds
  • Duty Cycle - 70/30*
  • L (16") x W (23") x H (35")
  • 91 pounds
  • Non-ASME Air Tank
  • Air Dryer - Includes Activated Alumina desiccant with a 4000 hour life. Activated Alumina is used in air prepurification (due to it's high water and carbon dioxide adsorption capacity) and adsorption of sulphur compounds.
  • Aftercooler (condenser)
  • EZ-1-2321 Auto Drain Valve Factory Installed
  • Commercial Use: Refer to State & City Codes 1 Year Limited Warranty Assembled in USA with global components

Key Specs

AttributeSpecification

item#

6570741

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

110.0 LB

Air Tank Size

10 Gal

Volts

110

CFM at 90 PSI

5.3

Tank Orientation

Vertical

Horsepower

2 HP

Max. PSI

120

Air Outlets (qty.)

1

Amps

14

Duty Cycle

70 %
AttributeSpecification

Engine Start Type

Electric

Pump Life

3,000 hr

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.4

CFM at Max. PSI

5.3

Noise Level

70 dB

Oil Required

No

Lubrication System

Oil-Free

Drain Type

Automatic

Engine Brand

OEM

Product Weight

95.0000 lb

Dimensions L x W x H (in.)

16.0 x 23.0 x 35.0 in
