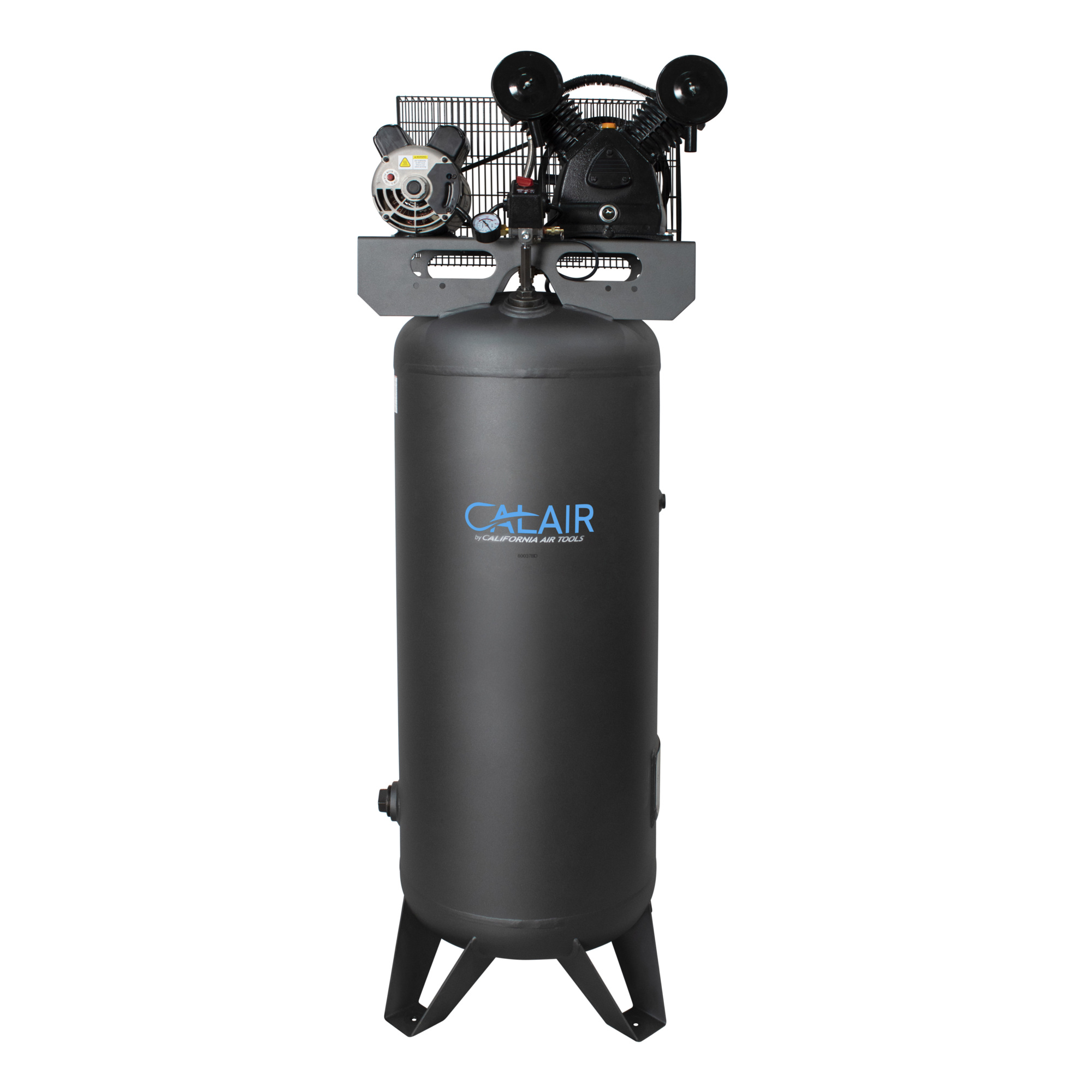

California Air Tools, California Air Tools 60037BD, Horsepower 3.7 HP, Air Tank Size 60 Gal, Volts 208-230 Model# 60037BD

Item# 6121524
"California Air Tools, California Air Tools 60037BD, Horsepower 3.7 HP, Air Tank Size 60 Gal, Volts 208-230 Model# 60037BD"
California Air Tools, California Air Tools 60037BD, Horsepower 3.7 HP, Air Tank Size 60 Gal, Volts 208-230 Model# 60037BD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, California Air Tools 60037BD, Horsepower 3.7 HP, Air Tank Size 60 Gal, Volts 208-230 Model# 60037BD

Click or Tap image to Zoom

$1079.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 3.7 Hp Motor w/Reset Switch
  • Belt-Driven Pump (Oil Type ISO 68 / LDAB68). 5000 to 10000 hour life. Single Stage Pump (2 cylinders)
  • Pressure Gauge
  • 1/2" NPT Output Valve Port
  • Power On/Pressure Switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CALAIR 60037BD Continuous Run 3.7 Hp Air Compressor is designed for CONTINUOUS RUNNING up to 8 hours at 90 PSI. The CALAIR 60037BD Air Compressor has a Pump System that is designed to have a life cycle before maintenance/service of 5,000 to 10,000 hours of usage. The large 60 gallon ASME Certified steel air tank is just the right size for a shop, warehouse or factory. Ideal for Air Brushing, Bolting, Brad Nailing, Cutting, Drilling, Grinding, Finish Nailing, Framing Nailing, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Spraying, Stapling, Trim Impacting/Wrenching. Designed for people looking for reliable air flow in commerical and semi-rugged environments.

What's Included

    (1) Air compressor

Downloads

Product Manual

Features + Benefits

  • 3.7 Hp Motor w/Reset Switch
  • Belt-Driven Pump (Oil Type ISO 68 / LDAB68). 5000 to 10000 hour life. Single Stage Pump (2 cylinders)
  • Pressure Gauge
  • 1/2" NPT Output Valve Port
  • Power On/Pressure Switch
  • Motor Thermal Overload Protector (Trips @135C)
  • Working Pressure - 125 - 155 PSI
  • 208 Volt (200v-216v) to 230 Volt (220v-240v) / 60 Hertz / Single Phase
  • 11.5 CFM @90 PSI, 13.6 CFM @40 PSI
  • Continuous Run up to 8 hours (10 hours maximum)
  • 16.7 Amp Draw
  • Power Requirements: Dedicated 20 amp outlet
  • Plug Type: Nema L6-30P  (fits Nema L6-30R outlet /receptacle)
  • Maximum Operating (ambient) Temperatures: 36 to 108°F
  • Time to fill tank from empty to full (155 PSI) - 6 min 52 seconds
  • Recovery time from 125 PSI to 155 PSI - 1 min 37 seconds
  • 60 Gallon ASME Certified Steel Air Tank
  • Maximum Tank Pressure 180 PSI
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6121524

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

315.0 LB

Air Tank Size

60 Gal

Volts

208-230

CFM at 90 PSI

11.5

Stage

1

Tank Orientation

Vertical

Horsepower

3.7 HP

Max. PSI

180

Air Outlets (qty.)

1

Amps

20

Pump Drive

Belt
AttributeSpecification

Air Outlet Size

1/2 in. NPT

CFM at 40 PSI

13.6

Oil Required

Yes

Lubrication System

Other

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

7 min

Air Dryer

None

Drain Type

Ball Valve

Engine Brand

OEM

Engine Model

OEM

Product Weight

265.0000 lb

Dimensions L x W x H (in.)

26.0 x 26.0 x 73.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. How tall is the actual unit sitting on the floor unpacked? I have a very tight space for it to go.

    1 answer

    1. The overall dimensions on the compressor are 26" L x 20.5" D x 73.5" H.

      Helpful?

  2. Is this ok to be outside in the elements?

    1 answer

    1. The air compressor is designed for indoor use only.

      Helpful?

  3. What is the decibel level on this unit?

    1 answer

    1. This air compressor is rated at 90 decibels (DB).

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
