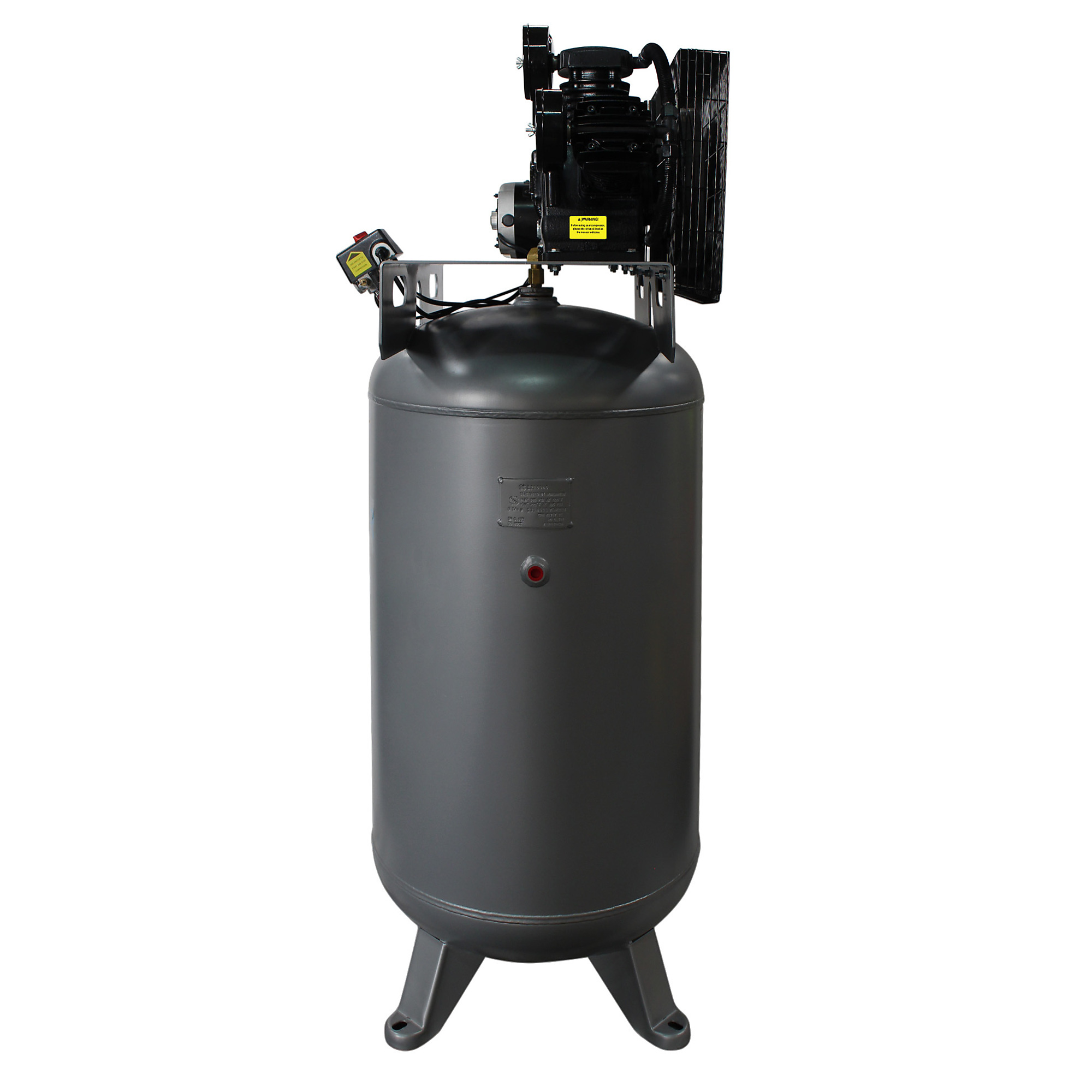

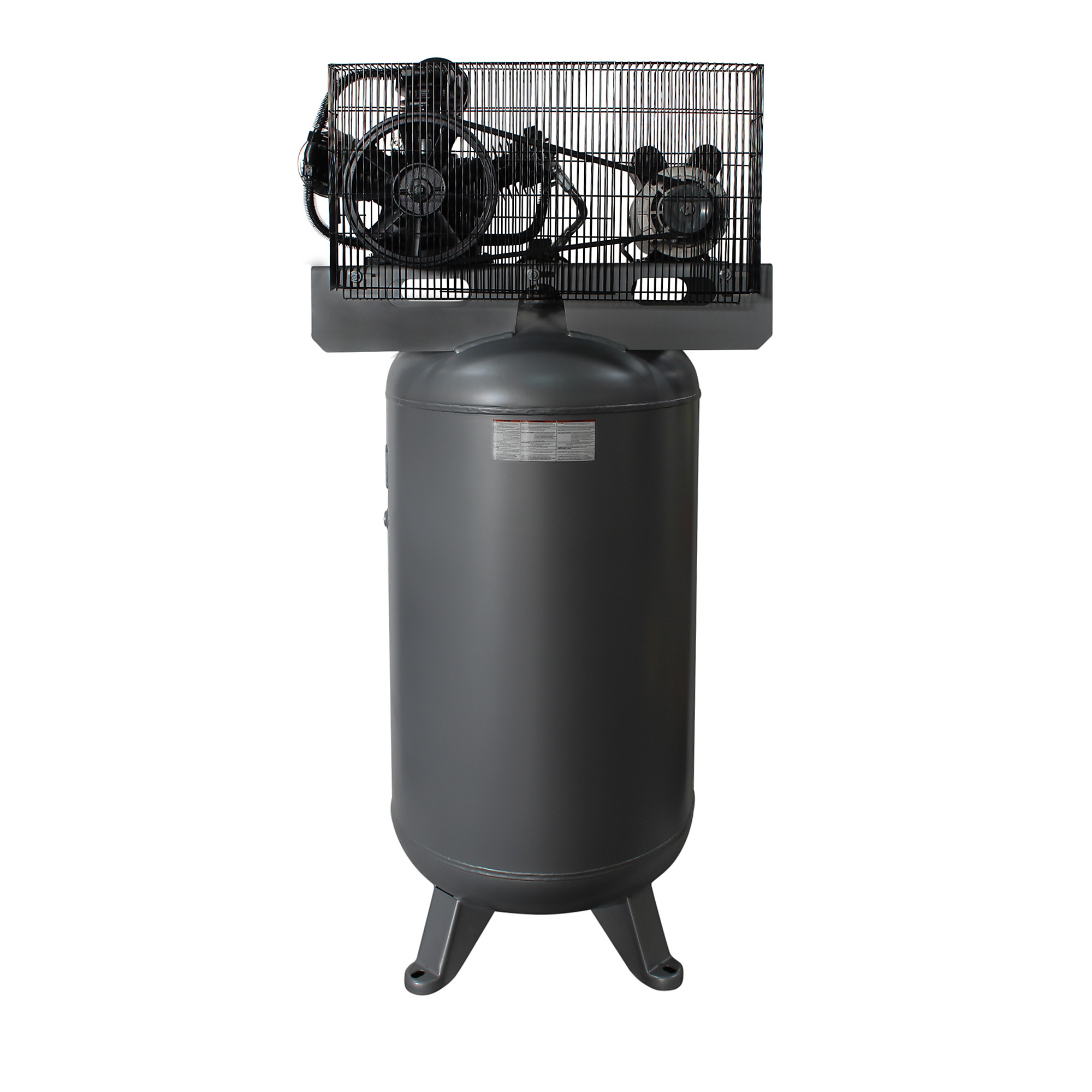

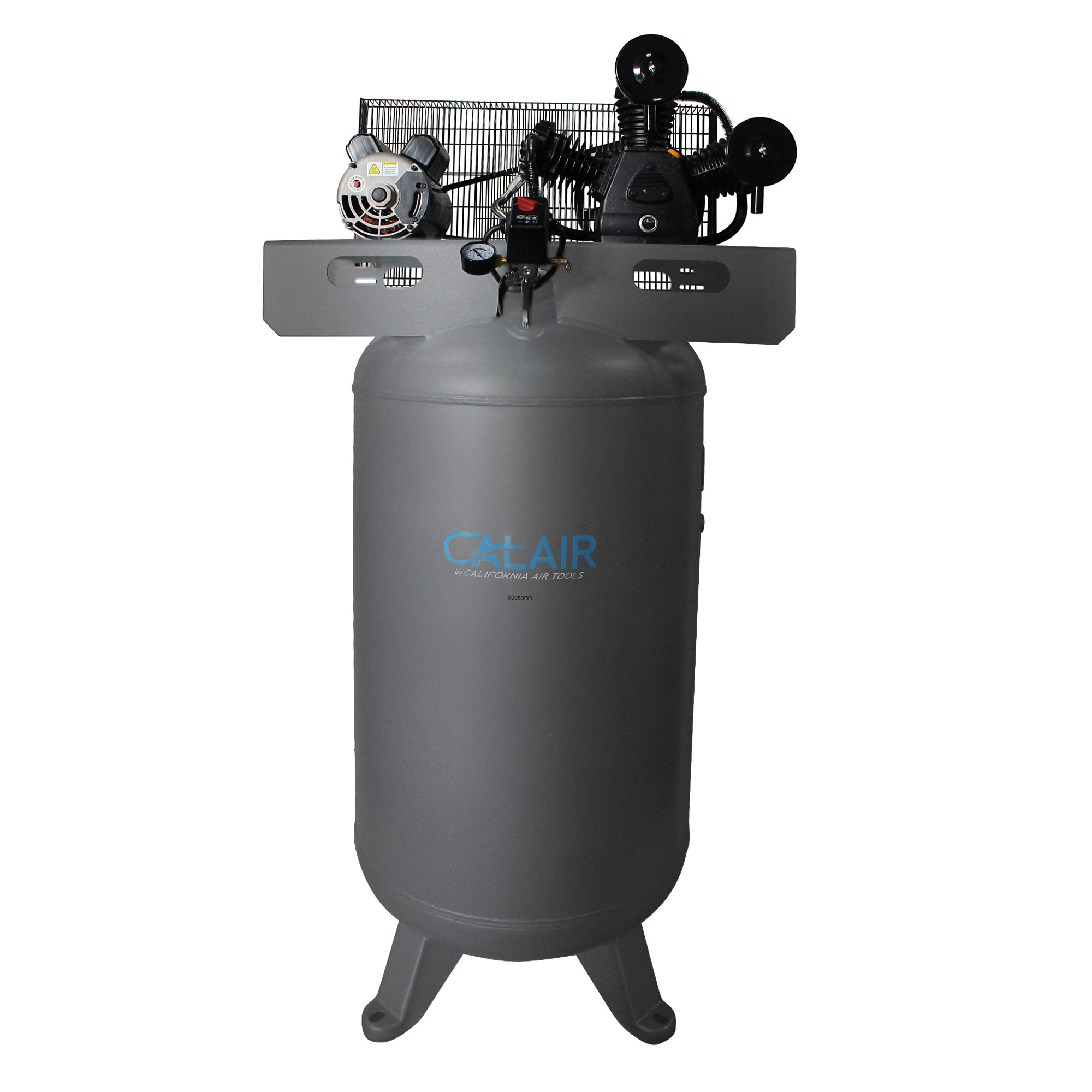

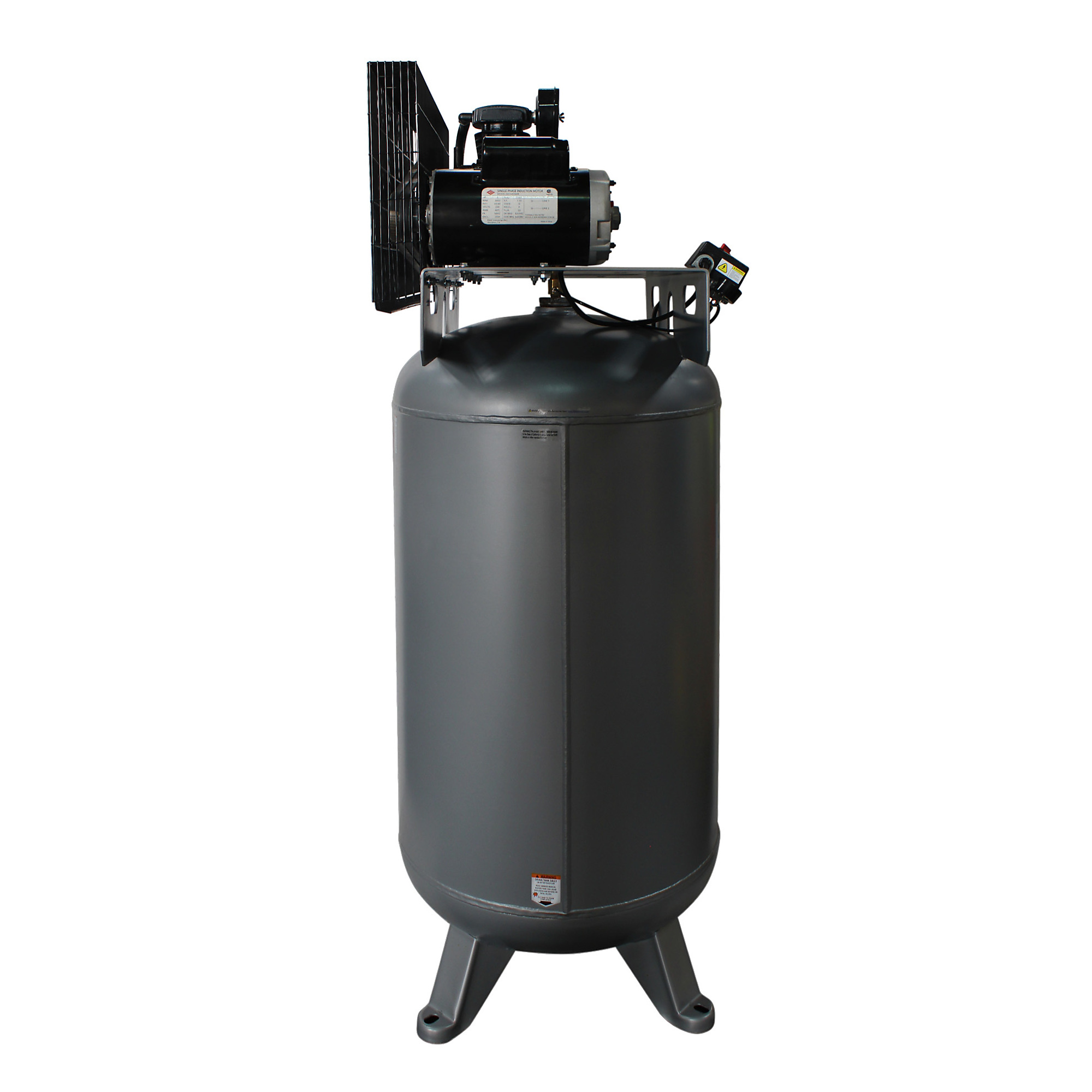

California Air Tools, CALAIR 80050BD 80Gal 6Hp AirCompressor, Horsepower 5 HP, Air Tank Size 80 Gal, Volts 230 Model# 80050BD

Item# 6397969
California Air Tools, CALAIR 80050BD 80Gal 6Hp AirCompressor, Horsepower 5 HP, Air Tank Size 80 Gal, Volts 230 Model# 80050BD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, CALAIR 80050BD 80Gal 6Hp AirCompressor, Horsepower 5 HP, Air Tank Size 80 Gal, Volts 230 Model# 80050BD

Click or Tap image to Zoom

$1545.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 5.0 Hp Motor w/Reset Switch (1072 RPM)
  • Belt-Driven Pump (Oil Type ISO 68 / LDAB68). 5000 to 10000 hour life. Single Stage Pump (3 cylinders)

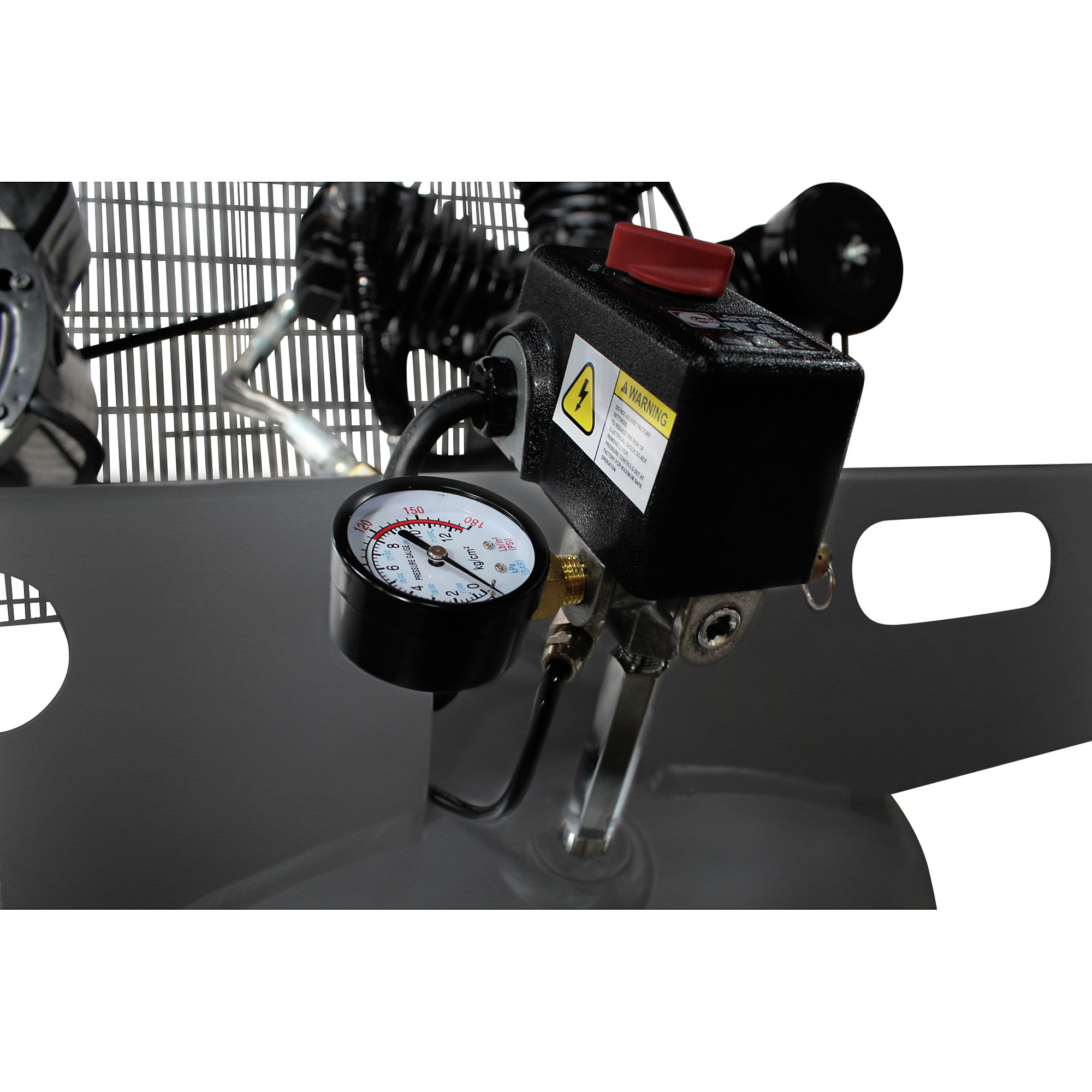

  • Pressure Gauge
  • 1/2" NPT Output Valve Port NOTE: 1/2" Output Ball Valve & 125 PSI Pressure Regulator NOT included Air Ouput Ball Valve, 1/2" NPT, available separately (click here) 5-125 PSI Pressure Regulator available separately (click here)
  • Power On/Pressure Switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CALAIR 80050BD Continuous Run 5.0 Hp Air Compressor is designed for CONTINUOUS RUNNING up to 8 hours at 90 PSI. The CALAIR 80050BD Air Compressor has a Pump System that is designed to have a life cycle before maintenance/service of 5,000 to 10,000 hours of usage. The large 80 gallon ASME Certified steel air tank is just the right size for a shop, warehouse or factory Ideal for Air Brushing, Bolting, Brad Nailing, Cutting, Drilling, Grinding, Finish Nailing, Framing Nailing, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Spraying, Stapling, Trim Impacting/Wrenching. Designed for people looking for reliable air flow in commerical and industrial environments.

What's Included

    (1) Air Compressor

Features + Benefits

  • 5.0 Hp Motor w/Reset Switch (1072 RPM)
  • Belt-Driven Pump (Oil Type ISO 68 / LDAB68). 5000 to 10000 hour life. Single Stage Pump (3 cylinders)
  • Pressure Gauge
  • 1/2" NPT Output Valve Port NOTE: 1/2" Output Ball Valve & 125 PSI Pressure Regulator NOT included Air Ouput Ball Valve, 1/2" NPT, available separately (click here) 5-125 PSI Pressure Regulator available separately (click here)
  • Power On/Pressure Switch
  • Motor Thermal Overload Protector (Trips @135C)
  • Working Pressure - 135 - 165 PSI
  • 208 Volt (200v-216v) to 230 Volt (220v-240v) / 60 Hertz / Single Phase
  • 15.0 CFM @90 PSI, 17.5 CFM @40 PSI
  • Continuous Run up to 8 hours (10 hours maximum)
  • 24 Amp Draw
  • Power Requirements: Dedicated 30 amp outlet
  • Plug Type: NEMA L6-30P    Receptacle: NEMA L6-30R
  • Maximum Operating (ambient) Temperatures: 36 to 108°F
  • Time to fill tank from empty to full (155 PSI) - 7 min 50 seconds
  • Recovery time from 135 PSI to 165 PSI - 1 min 19 seconds
  • 80 Gallon ASME Certified Steel Air Tank
  • Manual Ball Drain Valve * 200 PSI Safety Relief Valve * L (35") x W/D (28") x H (68") * 328 lbs (416 lbs on shipping pallet) * 90 Decibel Noise Level * Commercial Use: Refer to State & City Codes * 2 Year Limited Warranty on Pump; 1 Year Limited Warranty on all other components * Assembled in Mexico with global components
  • * Power Cord Length: 7ft * ASME Certified for Commercial Use * Commercial Use: Refer to State & City Codes * Assembled in Mexico with global components
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6397969

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

416.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

15

Stage

1

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

200

Air Outlets (qty.)

1
AttributeSpecification

Amps

24

Engine Start Type

Electric

Air Outlet Size

1/2 in. NPT

CFM at 40 PSI

17.5

Noise Level

90 dB

Oil Required

Yes

Pressure Gauge

Yes

Electronic Drain Valve

No

Drain Type

Manual

Product Weight

328.0000 lb

Dimensions L x W x H (in.)

35.0 x 28.0 x 68.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
