California Air Tools 80-Gallon, 6 HP Air Compressor, Model# 80060C

Item# 6206333

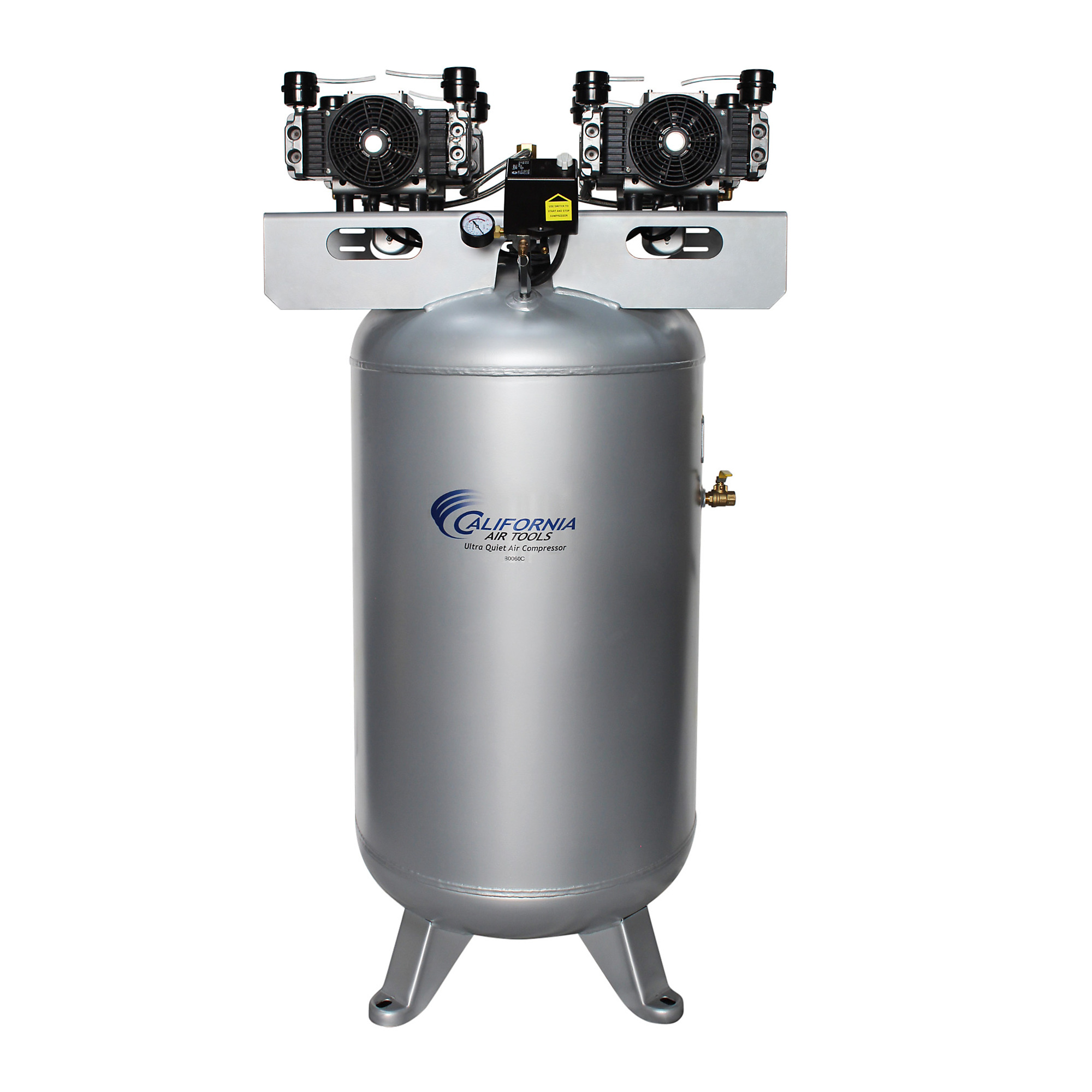

California Air Tools 80-Gallon, 6 HP Air Compressor, Model# 80060C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools 80-Gallon, 6 HP Air Compressor, Model# 80060C

Click or Tap image to Zoom

$2899.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet - Only 76 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Main tank pressure gauge
  • Female air output port with ball valve (1/2" NPT) No output pressure regulator, quick connector or air hose included
  • Condor Pressure Switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

CALIFORNIA AIR TOOLS 80060C Powerful 6.0 Hp Ultra Quiet Oil-Free 80 Gallon Stationary Air Compressor 220v 60hz 1-Phase (range 200-240v) 76 Decibel noise level 6.0 HP (Rated/Running) 80 Gallon ASME Certified Steel Air Tank 20.00 CFM 40 PSI 16.80 CFM 90 PSI 220 Volts / 60 Hertz / Single Phase The CALIFORNIA AIR TOOLS 80060C Ultra Quiet Oil-Free 80 Gallon Air Compressor is designed to be one of the quietest 6.0 Hp air compressors in the industry having only 76 decibels of sound. The Powerful Twin OLF2800 3.0 Hp motors operates at only 1680 RPM creating less noise and less wear. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-80060C Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The large 80 Gallon Steel ASME Air Tank is just the right size for shop or garage. Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise! *Regulated Output Pressure may not be adjusted any higher than the default (factory set) regulated output pressure level (i.e. 90 PSI).

What's Included

    (1) Air Compressor

Features + Benefits

  • Ultra Quiet - Only 76 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Main tank pressure gauge
  • Female air output port with ball valve (1/2" NPT) No output pressure regulator, quick connector or air hose included
  • Condor Pressure Switch
  • Thermal Overload Protector
  • 120 PSI Maximum Pressure
  • 220 Volt / 60 Hertz / Single Phase - (200-240v range)
  • Amp Draw - 24 Amps
  • Time to fill tank from empty to full - 3:56 Minutes
  • Recovery time from 90 PSI to 120 PSI - 57 Seconds
  • Duty Cycle - 70/30*
  •  Less heat which dissipates more efficiently
  • 80 Gal. Steel ASME Air Tank
  • L (33") x W/D (23.5") x H (61.5")
  • 360 lbs
  • Comes complete (8) Air Filters and (8) Air In-Take Tube
  • Plug Type: Nema L6-30P  (fits Nema L6-30P outlet /r receptacle)
  • * Power Cord Length: 7ft * ASME Certified for Commercial Use * Commercial Use: Refer to State & City Codes * Assembled in Mexico with global components
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6206333

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

420.0 LB

Air Tank Size

80 Gal

Volts

220

CFM at 90 PSI

16.8

Stage

1

Tank Orientation

Vertical

Horsepower

6 HP

Max. PSI

120

Air Outlets (qty.)

1
AttributeSpecification

Amps

24

Engine Start Type

Electric

Air Outlet Size

1/2 in. NPT

CFM at 40 PSI

20

Noise Level

76 dB

Oil Required

No

Pressure Gauge

Yes

Electronic Drain Valve

No

Drain Type

Manual

Product Weight

360.0000 lb

Dimensions L x W x H (in.)

33.0 x 23.5 x 61.5 in
