California Air Tools 60-Gallon, 6.5 HP Air Compressor, Model# 60065C

Item# 6111772
California Air Tools 60-Gallon, 6.5 HP Air Compressor, Model# 60065C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools 60-Gallon, 6.5 HP Air Compressor, Model# 60065C

Click or Tap image to Zoom

$2429.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet  -  85 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • One tank pressure gauge
  • 1/2" NPT female port. No output pressure regulator, quick connector or air hose included
  • Condor Pressure Switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

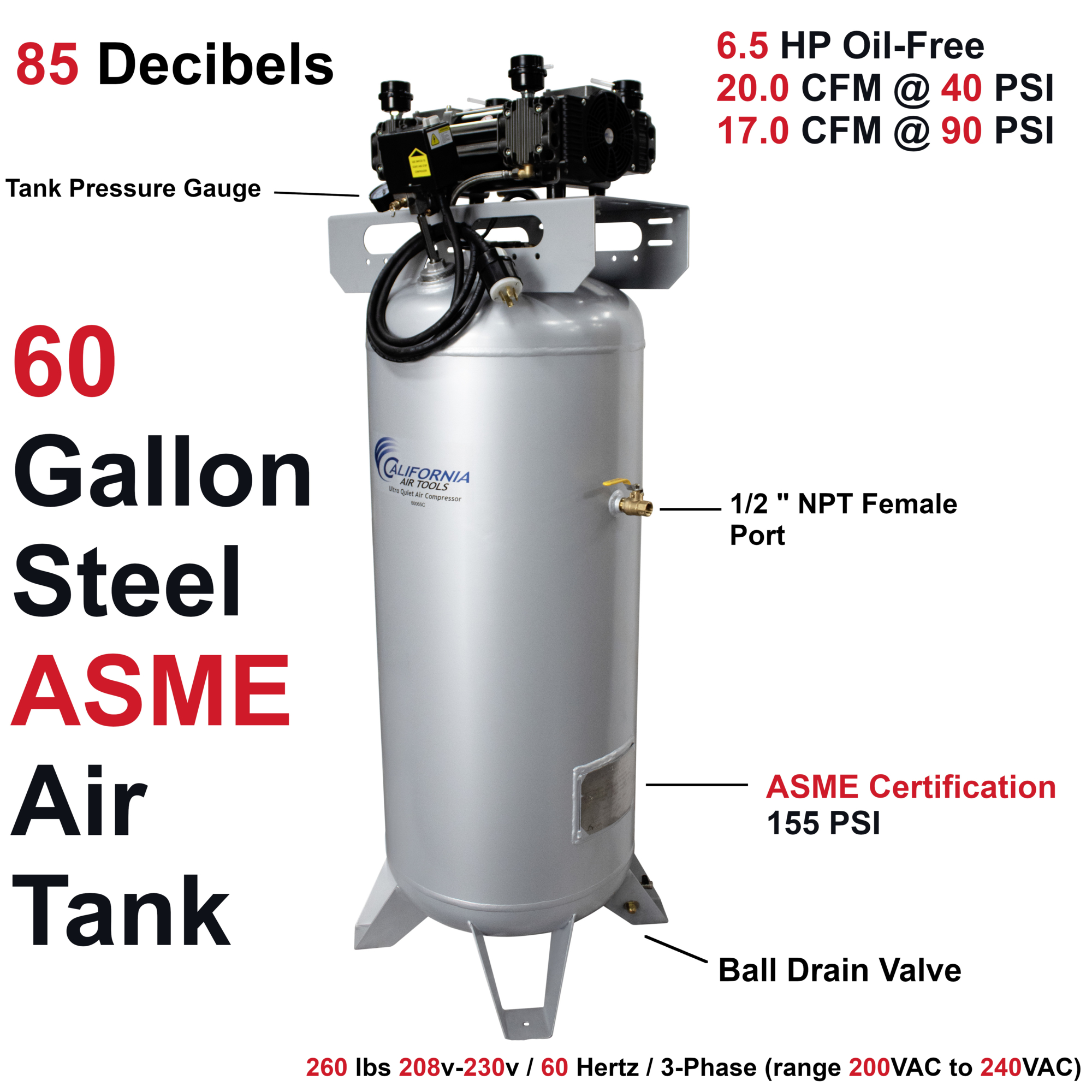

"The CALIFORNIA AIR TOOLS 60065C Ultra Quiet Oil-Free 60 Gallon ASME Air Compressor is designed to be one of the quietest 6.5 Hp air compressors in the industry having only 85 decibels of sound compared to competitive models. The Powerful 6.5 Hp 3-Phase 230 volt motor-pump operates at 3400 RPM creating up to 20 CFM air flow and is designed to increase duty cycle and allow for longer continuous run operations.* The Oil-Free Quad Piston Pump System is engineered for high performance and durability. The large 60 Gallon ASME Steel Air Tank is just the right size to support a large facility including commercial business, manufacturing operations, autobody shops and other general pneumatics that require air volumes of up to 20 cfm. Designed for the person looking for Power, Oil-Free Air Flow and at Least 30% Less Noise! *Regulated Output Pressure may not be adjusted any higher than the default (factory set) regulated output pressure level (i.e. 90 PSI). "

What's Included

    (1) Air compressor

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Ultra Quiet  -  85 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • One tank pressure gauge
  • 1/2" NPT female port. No output pressure regulator, quick connector or air hose included
  • Condor Pressure Switch
  • Thermal Overload Protector
  • 120 PSI  Maximum Pressure
  • 230 Volt / 60 Hertz / 3-Phase  (range 215v to 240v)
  • Amp Draw - 15 Amps
  • 20 Amp Breaker suggested
  • Time to fill tank from empty to full - 191 Seconds
  • Recovery time from 92 PSI to 120 PSI - 35 Seconds
  • Less heat which dissipates more efficiently
  • 60 Gallon ASME Steel 155 PSI Air Tank
  • L (32.5") x W (28") x H (60.5")
  • 260 lbs
  •  Manual Drain Valve with Strainer cleanout
  • Comes complete with (4) Air Filters
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6111772

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

321.0 LB

Air Tank Size

60 Gal

Volts

230

CFM at 90 PSI

17

Motor Phase

3

Stage

1

Tank Orientation

Vertical

Horsepower

6.5 HP

Max. PSI

155

Air Outlets (qty.)

2

Amps

15

Motor RPM

3,400

Engine Start Type

Electric
AttributeSpecification

Pump Material

Alloy Steel

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

20

Noise Level

85 dB

Oil Required

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

3 min

Air Dryer

None

Drain Type

Manual

Engine Brand

OEM

Product Weight

260.0000 lb

Dimensions L x W x H (in.)

32.5 x 28.0 x 60.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
