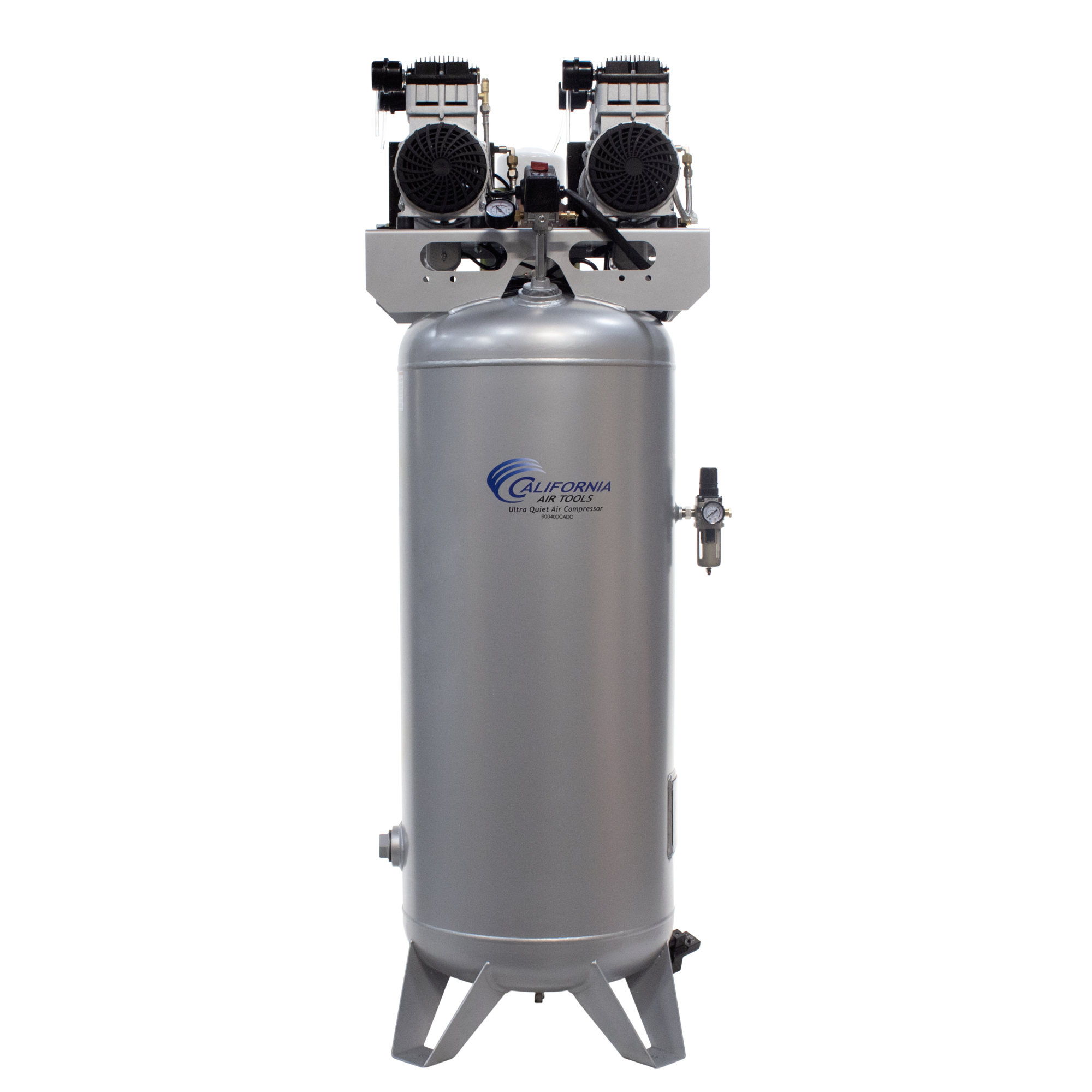

California Air Tools, 60 Gal 4 Hp Air Drying Automatic Drain, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Model# 60040DCADC

Item# 6203618
California Air Tools, 60 Gal 4 Hp Air Drying Automatic Drain, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Model# 60040DCADC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, 60 Gal 4 Hp Air Drying Automatic Drain, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Model# 60040DCADC

Click or Tap image to Zoom

$4449.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet only 75 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 60.0 Gallon Steel ASME Air Tank
  • Air Dryer & Aftercooler for up to 98% dry air
  • Two Powerful 2.0 HP (Rated / Running) Motors

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

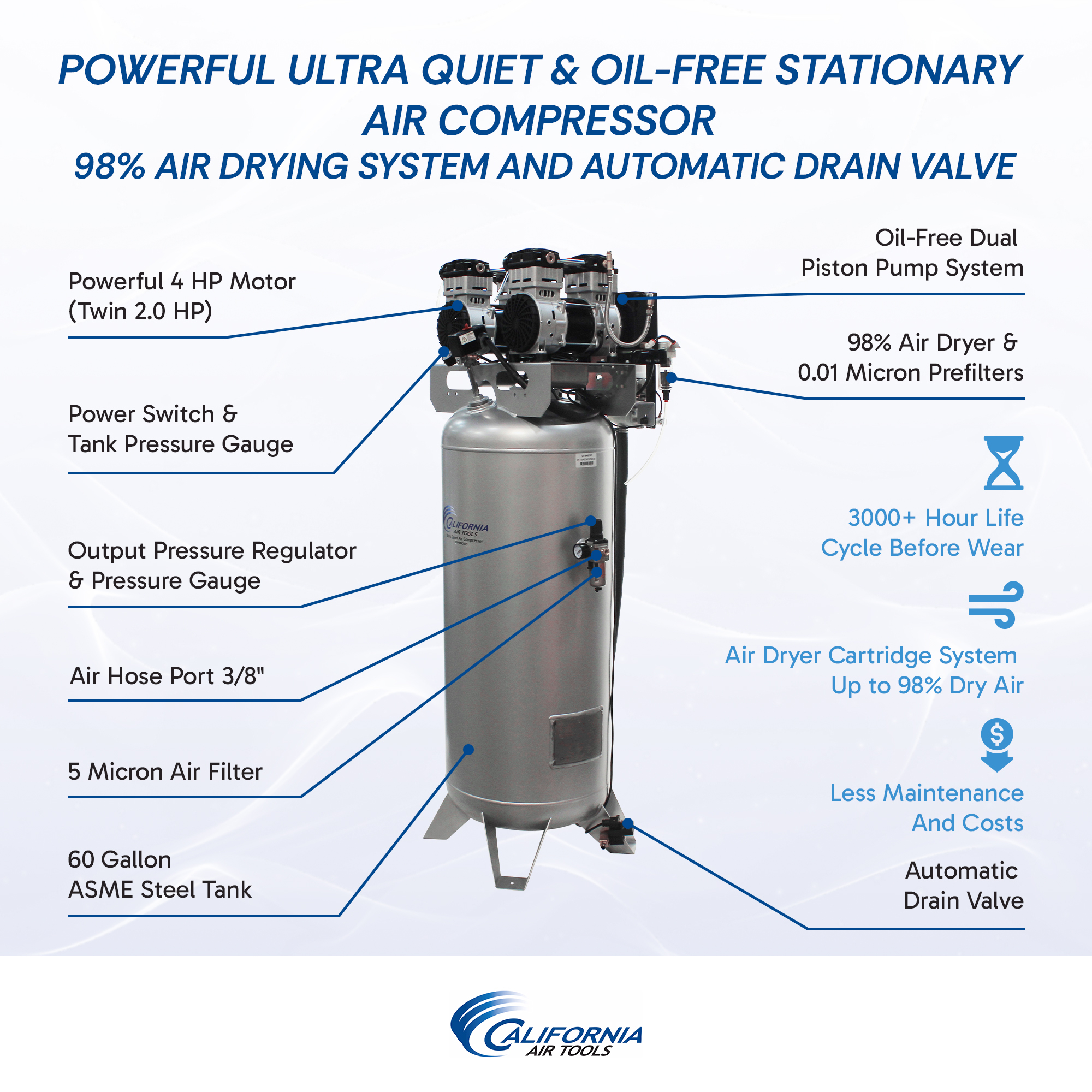

The California Air Tools 60040DCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System is designed to be 1 of the quietest 4.0 HP air compressors in the industry having only 75 dB of sound. The Powerful two 2.0 HP motors operates at only 1680 RPM creating less noise and less wear. The CAT-60040DCADC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500-hours or less. The large 60 Gal. Steel Air Tank is just the right size for shop or garage. The Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery. PDP performance range (-20°F to -51°F). Air Quality: ISO 8573-Class 2.3.1. To dry the air from the air compressor an Aftercooler and Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The easy to replace Spin-On Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air. This cartridge dryer has a life of 2-years before replacement. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. Designed for the person looking for Power, Dry Air and Air Flow with at Least 30% Less Noise.

What's Included

    (1) Air Compressor

Features + Benefits

  • Ultra Quiet only 75 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 60.0 Gallon Steel ASME Air Tank
  • Air Dryer & Aftercooler for up to 98% dry air
  • Two Powerful 2.0 HP (Rated / Running) Motors
  • 12.80 CFM @ 40 PSI
  • 10.60 CFM @ 90 PSI
  • Maximum Pressure - 125 PSI
  • Two Pressure Control Gauges
  • 3/8" Port Hose Outlet
  • Low amp draw - 14 Amps - 220 Volts 60 Hertz
  • Less time to fill the tank - Only 6.30 Minutes
  • Low Vibration - Motor Speed of 1680 RPMS
  • Thermal Overload Protector
  • Includes Automatic Drain Valve
  • Extra Long Pump Life of over 3000 Hours
  • Less Heat - Dissipates heat more efficiently
  • 1 Micron Filter & Regulator
  • Limited Warranty 1 Year

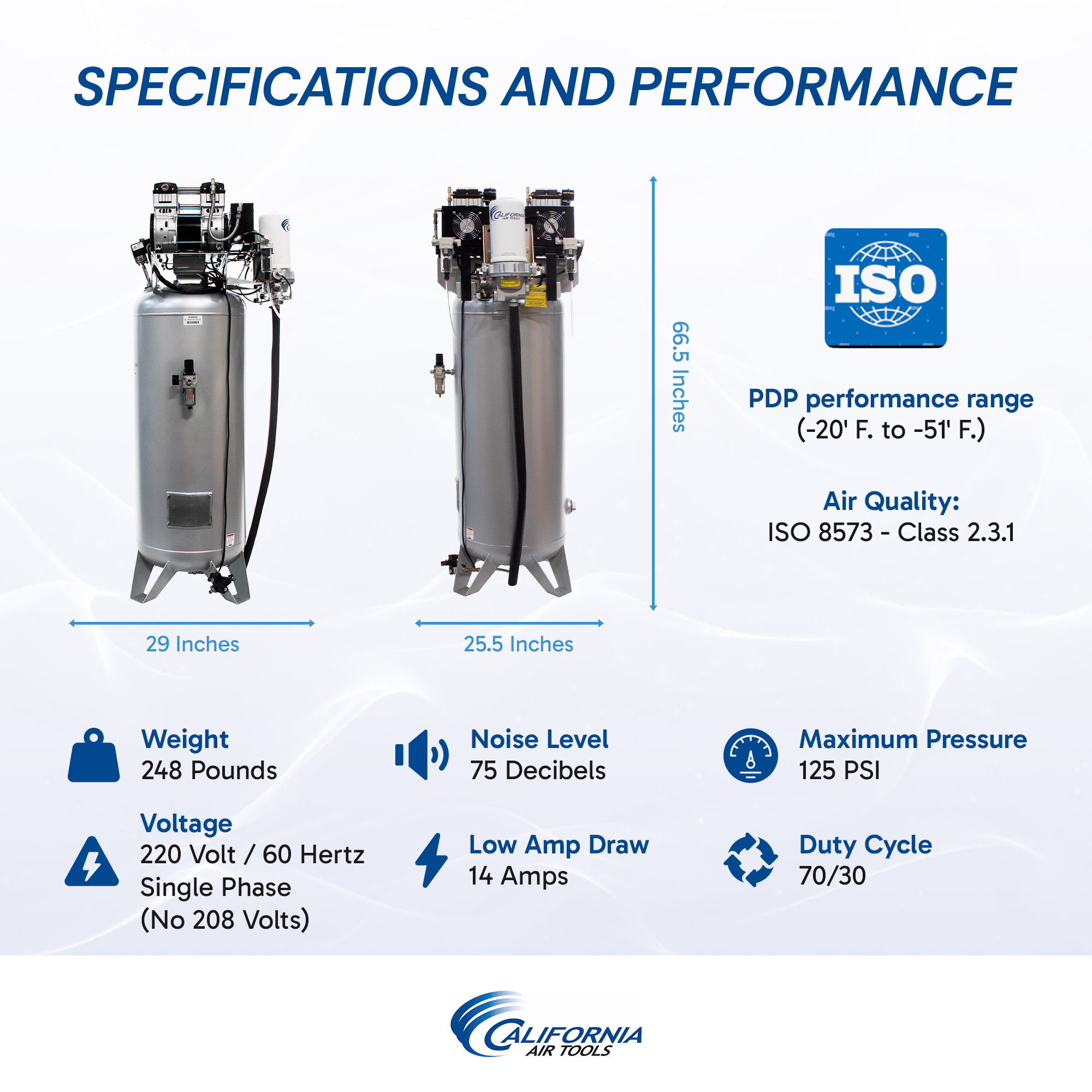

Key Specs

AttributeSpecification

item#

6203618

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

340.0 LB

Air Tank Size

60 Gal
AttributeSpecification

Volts

220

Horsepower

4 HP

Product Weight

241.0000 lb

Dimensions L x W x H (in.)

27.0 x 31.0 x 66.5 in
