California Air Tools, 5 Gal Pressure Pot, Capacity 5 Gal, Max. PSI 80 Model# 365C

Item# 6203642
California Air Tools, 5 Gal Pressure Pot, Capacity 5 Gal, Max. PSI 80 Model# 365C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, 5 Gal Pressure Pot, Capacity 5 Gal, Max. PSI 80 Model# 365C

Click or Tap image to Zoom

$329.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 5 Gallon Pressure Pot for Casting
  • Tight Seal
  • Caster Wheels
  • Double Output Regulator
  • On/Off Ball Valve

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

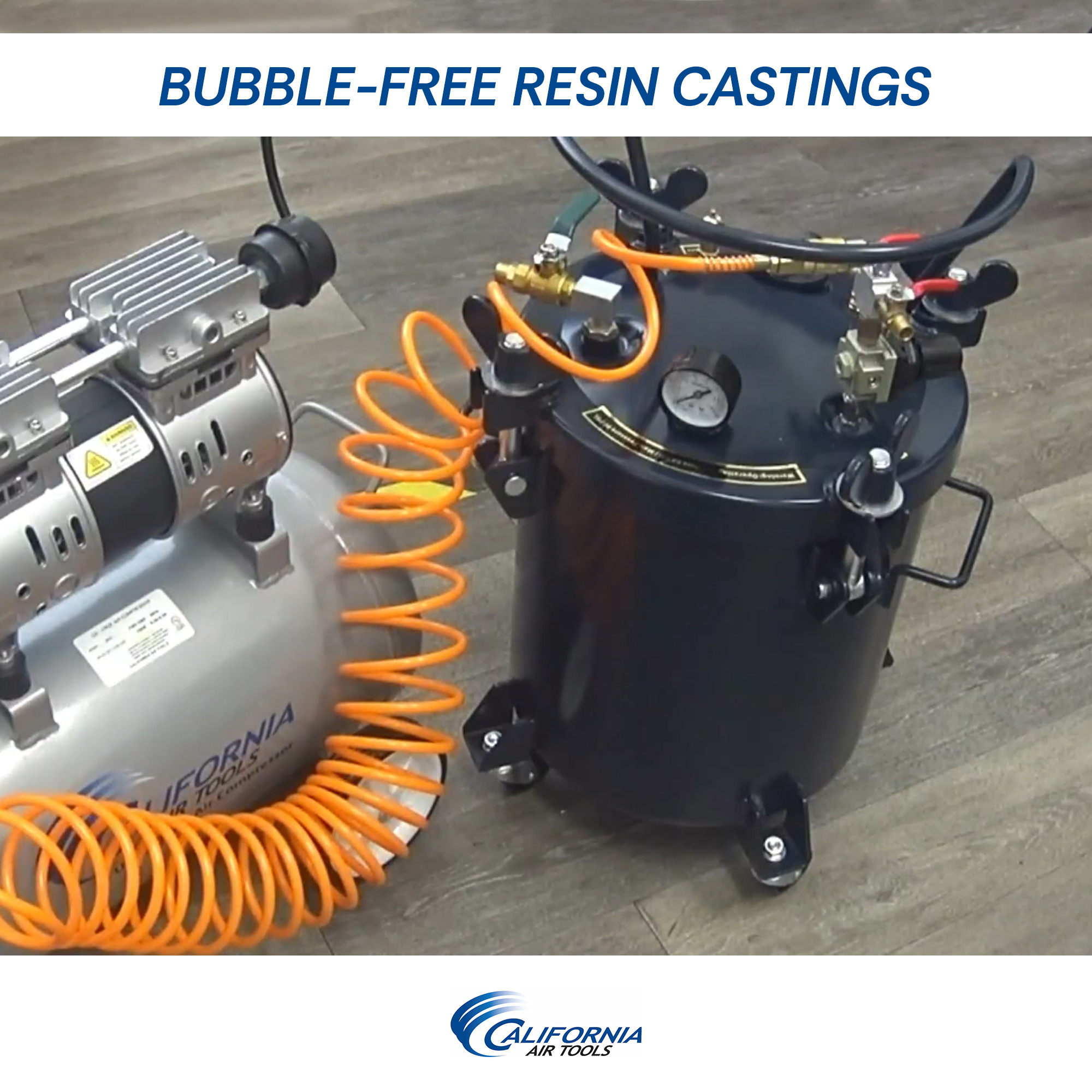

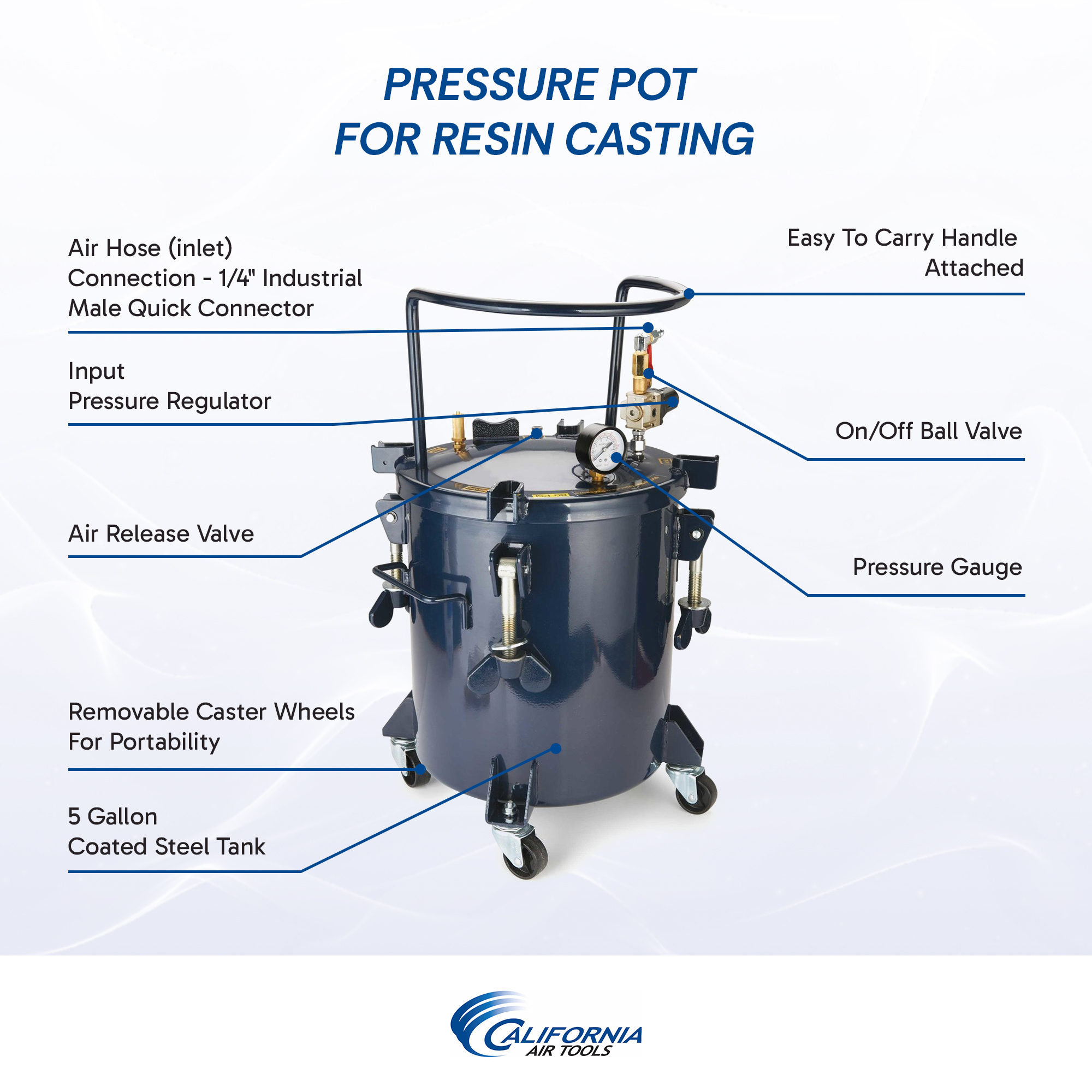

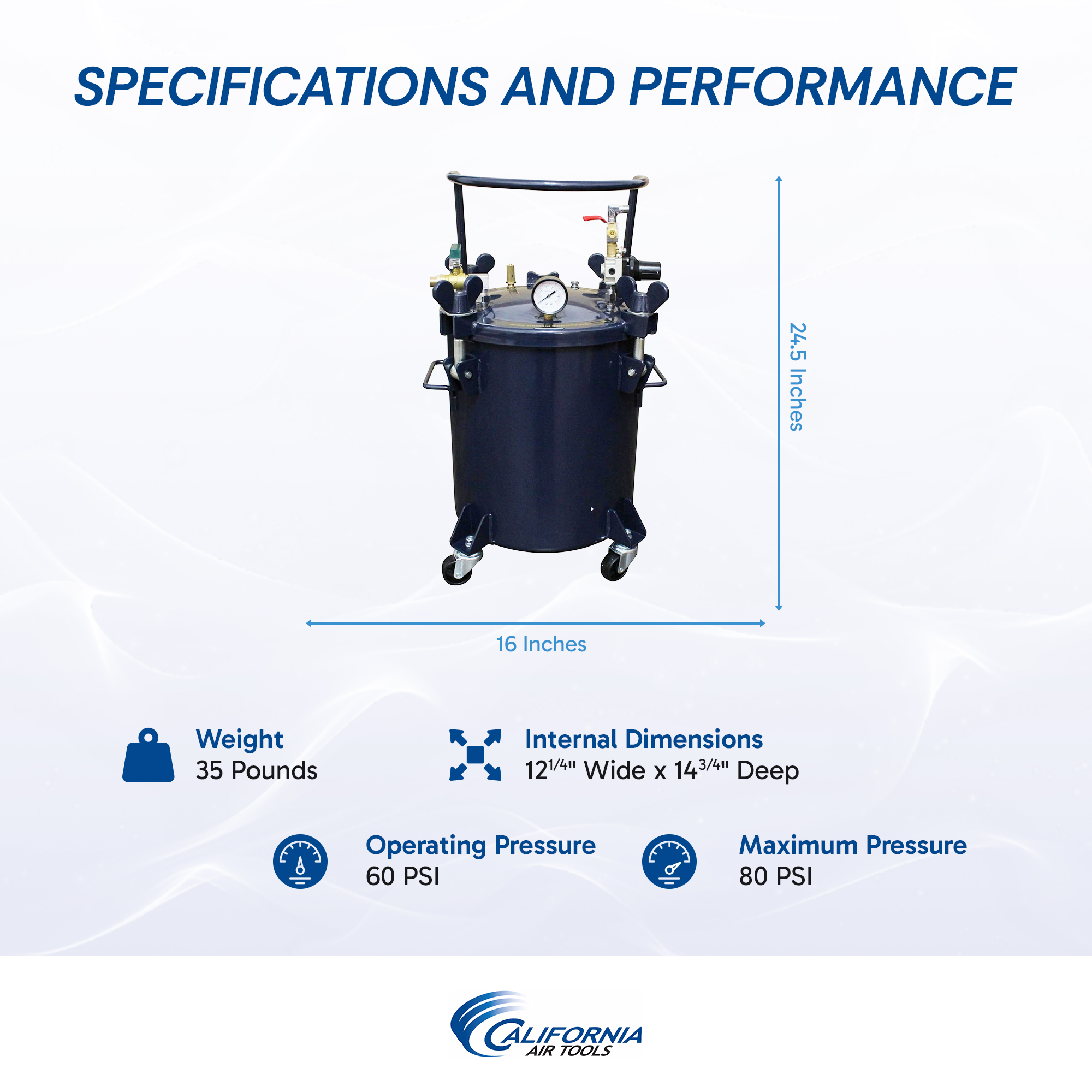

5 Gal. Pressure Pot for Casting. Maximum pressure is 80 psi. Suggested operating pressure 60 psi.  Air hose (inlet) connection - 1/4in. The fluid hose (outlet) connection is 3/8in.  Pressure Pot Paint Tank features a Teflon coated steel tank for easy clean up, (removable) casters for stability, double output regulator, On/Off ball valve and pressure relief valve. Internal dimensions: 12 1/4in. Wide x 14 3/4in. deep with lid applied. Exterior dimensions: 16in. Wide x 24.5in. High with lid  assembled. A standard 5 Gal. paint pal/bucket (12in. Diameter x 14.5in. High) can fit inside this pot.

What's Included

    (1) Pressure Pot

Features + Benefits

  • 5 Gallon Pressure Pot for Casting
  • Tight Seal
  • Caster Wheels
  • Double Output Regulator
  • On/Off Ball Valve
  • Easy to Clean Tank
  • Pressure Relief Valve
  • Maximum Pressure 80 PSI
  • Operating Set Pressure 60 PSI
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6203642

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

46.0 LB

Capacity

5 Gal
AttributeSpecification

Max. PSI

80

Tank Orientation

Vertical

Material

Steel

Product Weight

35.0000 lb

Dimensions L x W x H (in.)

16.0 x 16.0 x 24.5 in

Reviews

Questions & Answers

Questions

  1. Can resin molds be stacked with or without risers inside the pot?

    1 answer

    1. Yes, resin molds can be stacked inside the pressure pot. However, you must use risers (or racks) when stacking molds; you should never stack them directly on top of each other.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
