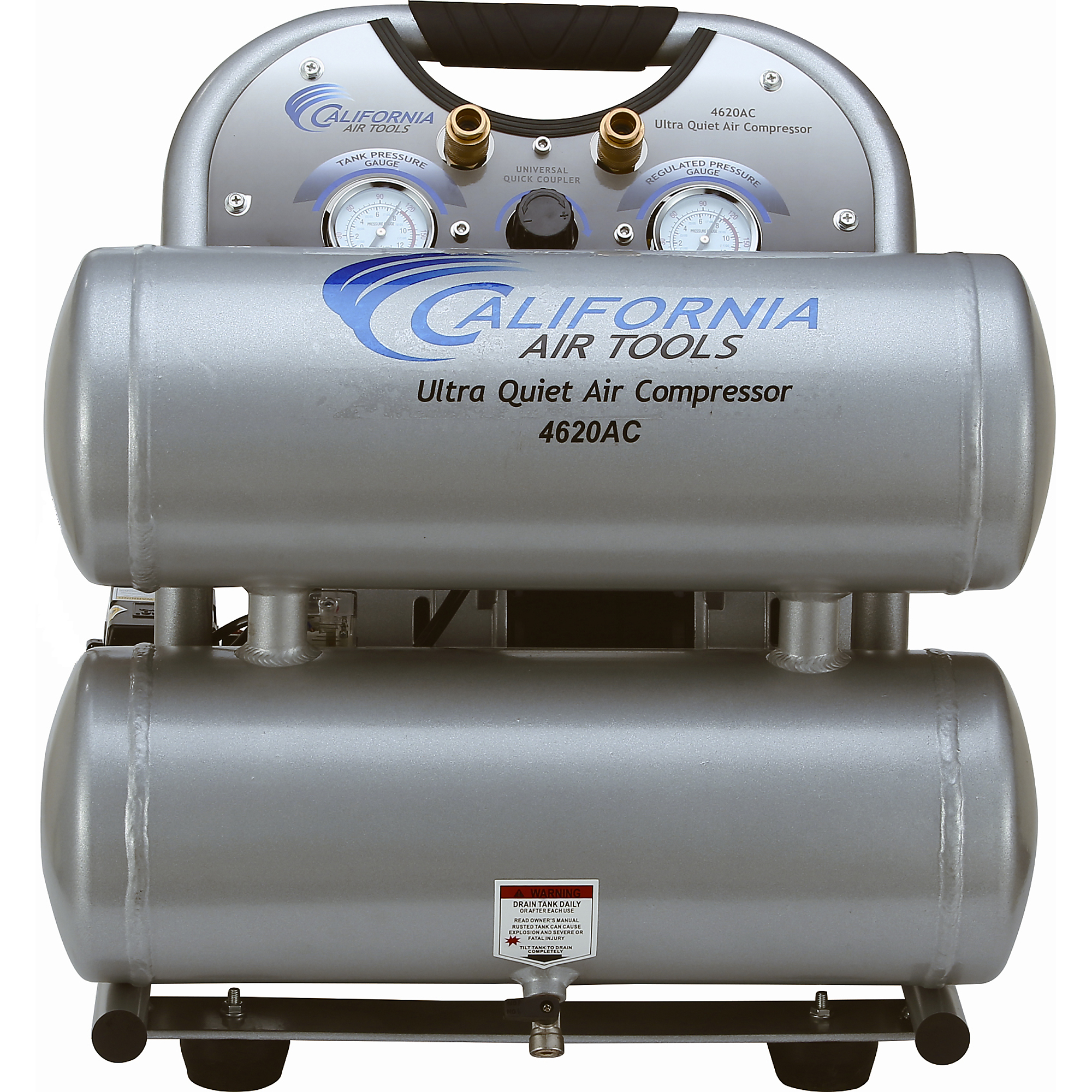

California Air Tools Ultra Quiet Oil-Free Air Compressor — 2.0 HP, 4.0 Gal., Aluminum Twin Tank, 70dB, Model# 4620AC

Item# 6734398
California Air Tools Ultra Quiet Oil-Free Air Compressor — 2.0 HP, 4.0 Gal., Aluminum Twin Tank, 70dB, Model# 4620AC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools Ultra Quiet Oil-Free Air Compressor — 2.0 HP, 4.0 Gal., Aluminum Twin Tank, 70dB, Model# 4620AC

Click or Tap image to Zoom

$405.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ultra Quiet only 70 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 4.6 Gallon (Rust Free) Aluminum Twin Tank
  • Lightweight for easy transporting - 64 lbs
  • Powerful 2.0 HP (Rated / Running) Motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The California Air Tools 4620AC Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 2.0 HP air compressors in the industry having only 70 dB of sound. The Powerful "New" 2.0 HP (SP-9421) motor operates at only 1680 RPM creating less noise and less wear. The "New" SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-4620AC Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The Easy Start Valve feature allows for an easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for an easier start up in cold temperatures. The large 4.6 Gal. Aluminum Air Tank is only 67.2 lbs. making it very easy to move around the jobsite. Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise.

What's Included

    (1) Manual

Features + Benefits

  • Ultra Quiet only 70 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 4.6 Gallon (Rust Free) Aluminum Twin Tank
  • Lightweight for easy transporting - 64 lbs
  • Powerful 2.0 HP (Rated / Running) Motor
  • 6.40 CFM @ 40 PSI
  • 5.30 CFM @ 90 PSI
  • Maximum Pressure - 125 PSI
  • Two Pressure Control Gauges
  • Two 1/4" Universal Quick Connectors
  • Low amp draw - 15.0 Amps
  • Thermal Overload Protector
  • Less time to fill the tank - Only 60 Seconds
  • Low Vibration - Motor Speed of 1680 RPMS
  • Less Heat - Dissipates heat more efficiently
  • Extra Large Dual Piston Pump for increased Compression
  • Extra Long Pump Life of over 3000 Hours
  • Oil-Free pump allows you to use in different temperatures & terrains
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6734398

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

68.0 LB

Horsepower

2 HP

Air Tank Size

4.6 Gal

Volts

110

Engine Brand

OEM

CFM at 90 PSI

5.3

Max. PSI

125

Air Outlets (qty.)

2
AttributeSpecification

Amps

14

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.4

Noise Level

70 dB

Oil Required

No

Pressure Gauge

Yes

Tank Fill Time

1 min

Drain Type

Manual

Product Weight

64.0000 lb

Dimensions L x W x H (in.)

18.75 x 17.0 x 19.7 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. What are the maintenance requirements for this compressor and does this compressor have an automatic drain valve that will drain the water from the tanks? If repair parts are needed for the compressor where would they be ordered from?

    1 answer

    1. The unit has an oil-free pump. The maintenance would involve draining the moisture from the tanks daily, cleaning or replacing the air filter as needed and occasionally checking the pressure and safety valves. It does not have an automatic tank drain. It would have a manual ball valve to open and close. Replacement parts would be available through the manufacturer.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
