Product Summary

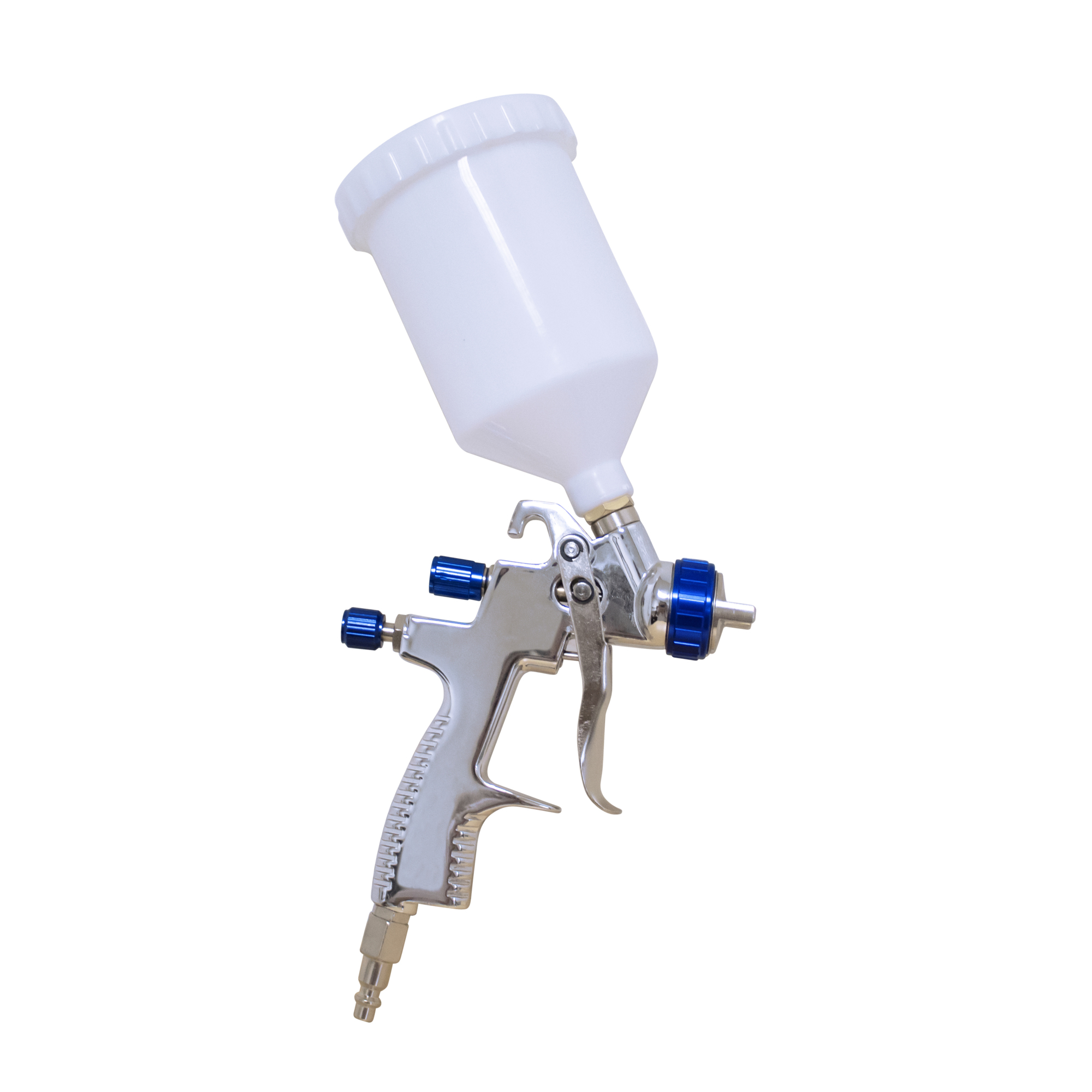

CAT-33000 LVLP Gravity Feed Spray Gun can be used for variety of different applications such as Automotive, Industrial, Marine and Wood Working. The LVLP features require less air allowing you to use a smaller air compressor.Using the CAT-33000 reduces overspray and allows you to spray larger surfaces without having to stop. The one-piece Lightweight Aluminum Gun Body makes working with this spray gun very easy. The Stainless Steel Fluid Needle and Nozzle are corrosion resistant. The separate and adjustable fluid fan pattern and air controls make for more precise fan patterns and less waste. Separate and adjustable fluid, fan pattern and air controls for precise application. Good for use with lacquers, enamels, stains, urethanes and fast dry low viscosity coatings.

What's Included

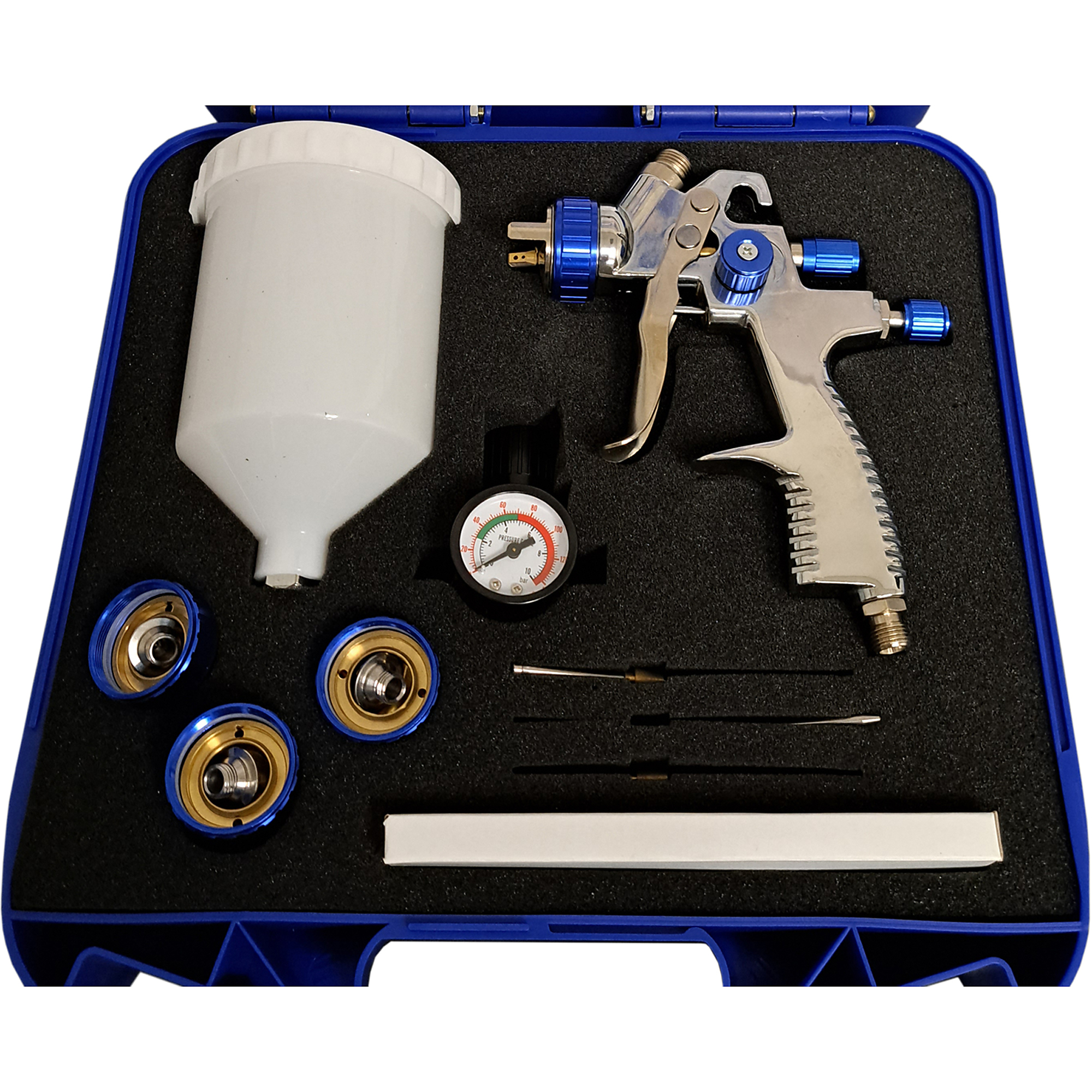

    (1) Spray Gun (1) Spray Gun Kit

Features + Benefits

  • CAT-33000 LVLP (Low Volume Low Pressure) Gravity Feed Spray Gun
  • CAT-33000 LVLP (Low Volume Low Pressure) Gravity Feed Spray Gun

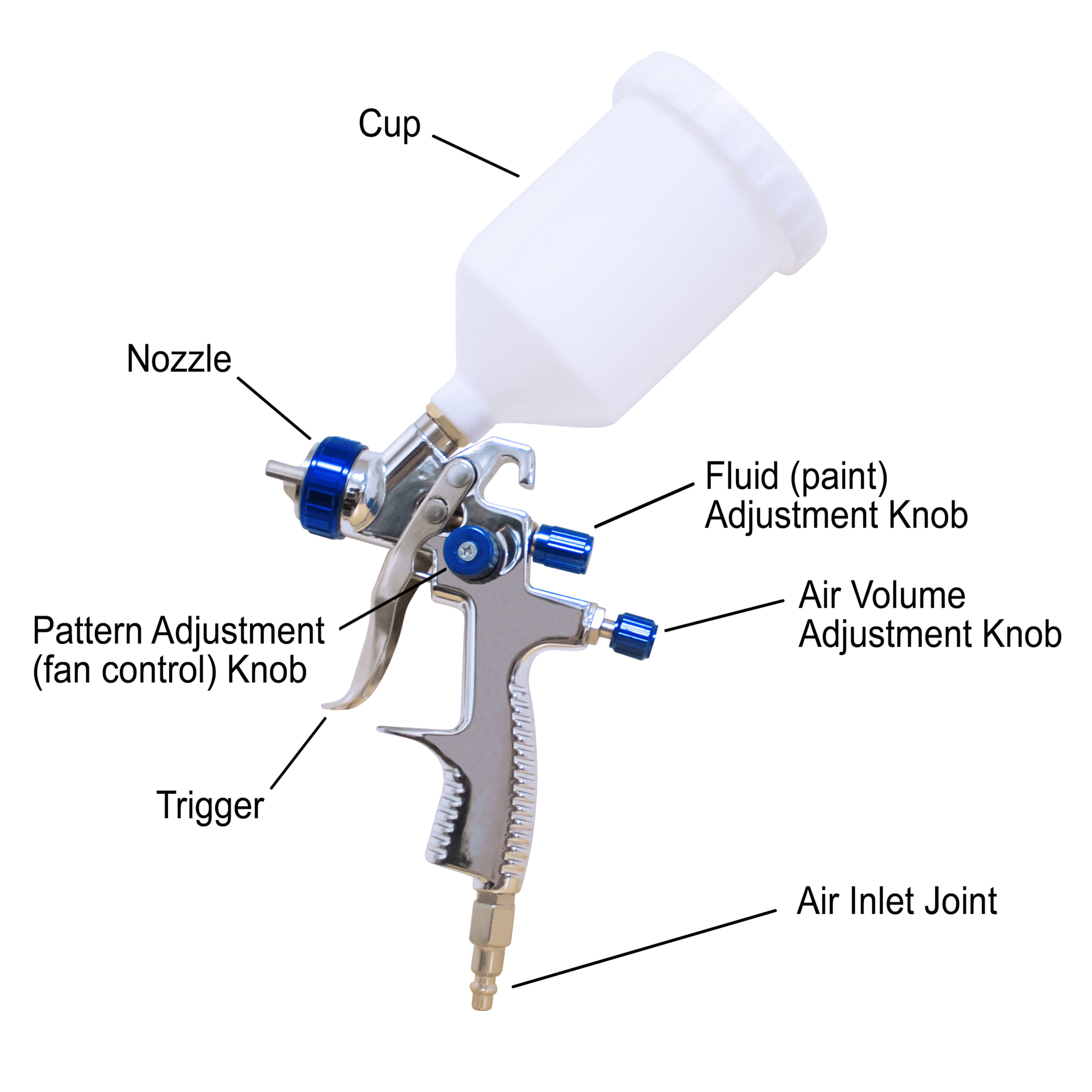

  • Separate and Adjustable fluid, fan pattern and air controls for precise application
  • Stainless steel fluid needle and nozzle - corrosion resistant for longer life
  • Tip size: 1.3 mm
  • Air consumption 3.5 to 3.9 CFM @ 30 PSI
  • Working pressure 28-45 PSI. Maximum pressure 60 PSI
  • Fan Pattern: 7.0'' to 10.9''
  • Air inlet: 1/4 NPT hose connector
  • Excellent for Automotive, Home and Furniture applications
  • Good for lacquers, enamels, stains, urethanes and fast dry and low viscosity paints
  • Very low overspray that optimize material consumption and waste
  • Includes extra Spanner, Brush, and socket

Key Specs

AttributeSpecification

item#

6203870

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.0 LB

Nozzle Size

0.05 in

Capacity

20 oz

Nozzle (qty.)

4
AttributeSpecification

Product Type

Paint Spray Gun Set

Max. PSI

60

Min. PSI

28

Max. Flow Rate

3.9 cfm

Min. Flow Rate

3.5 cfm

Product Weight

1.0000 lb

Dimensions L x W x H (in.)

14.0 x 5.0 x 13.0 in

Warranty

Manufacturer's Warranty

1 year limited warranty
