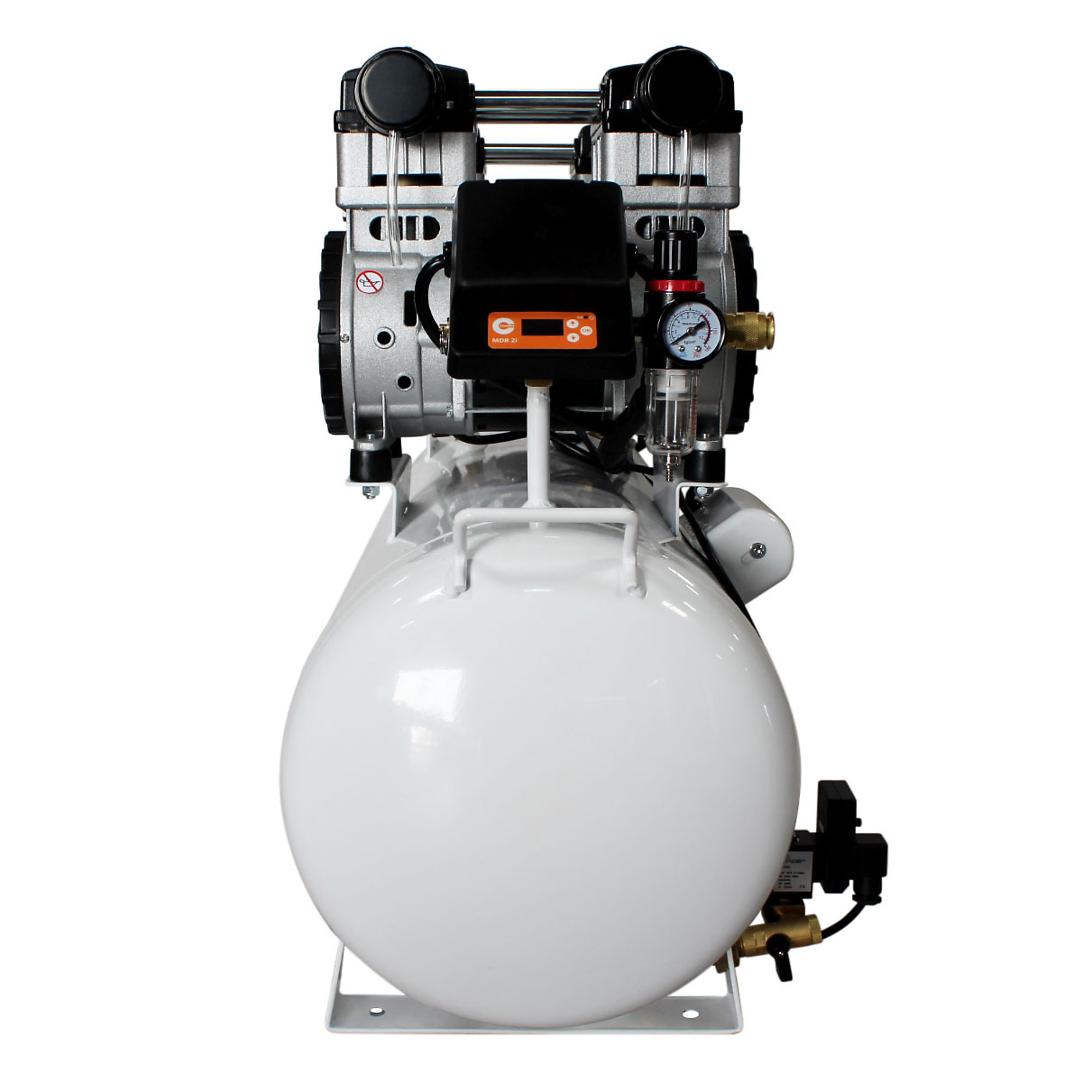

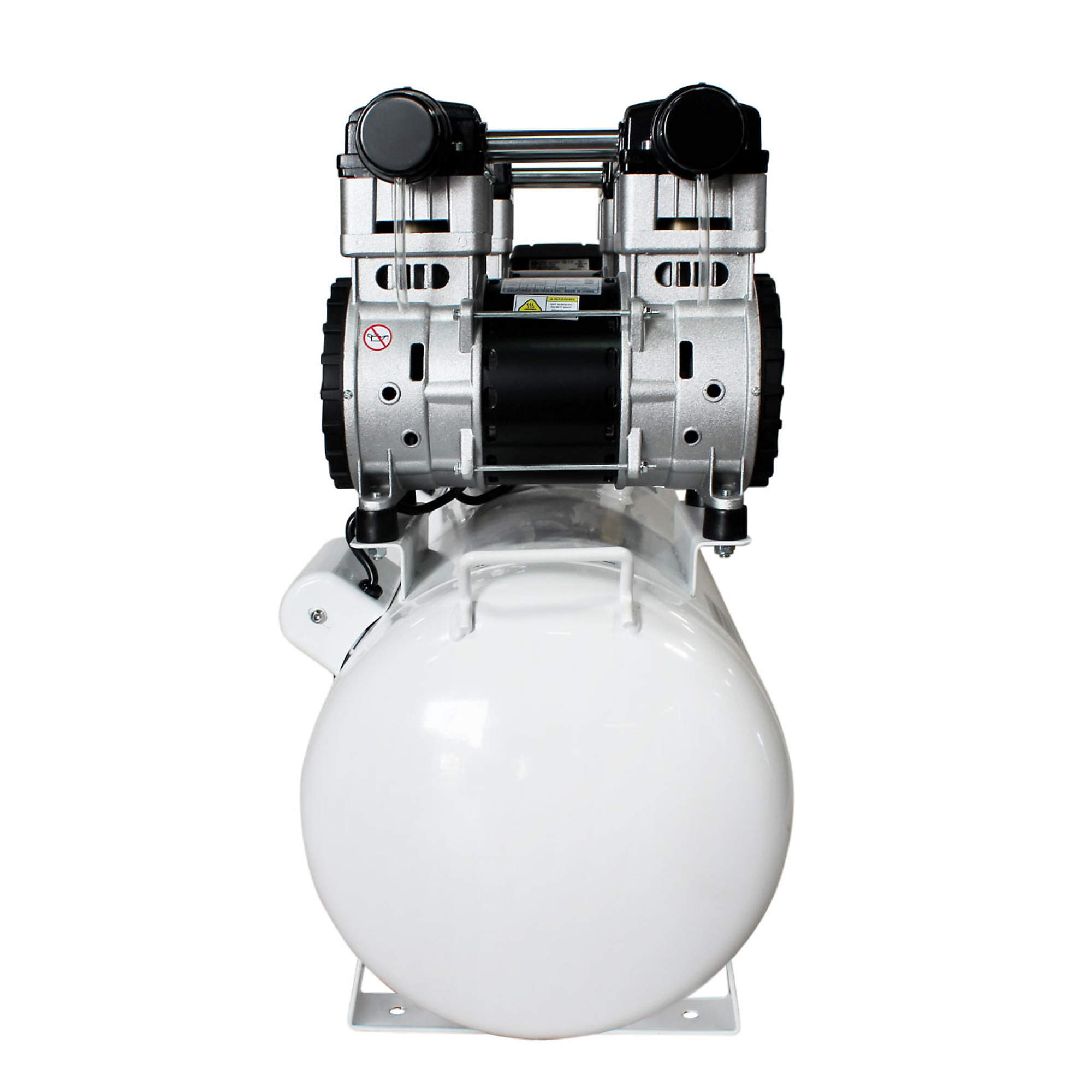

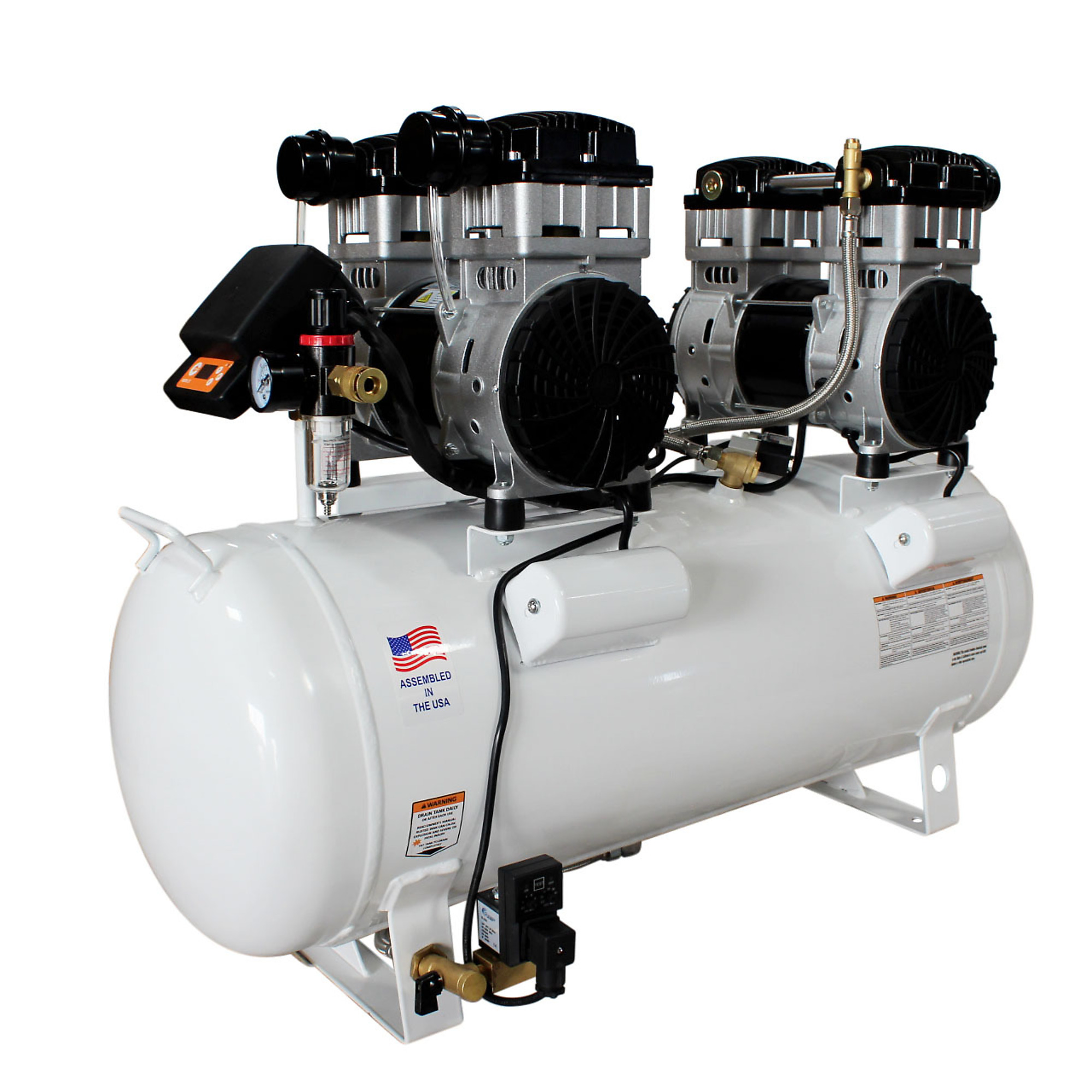

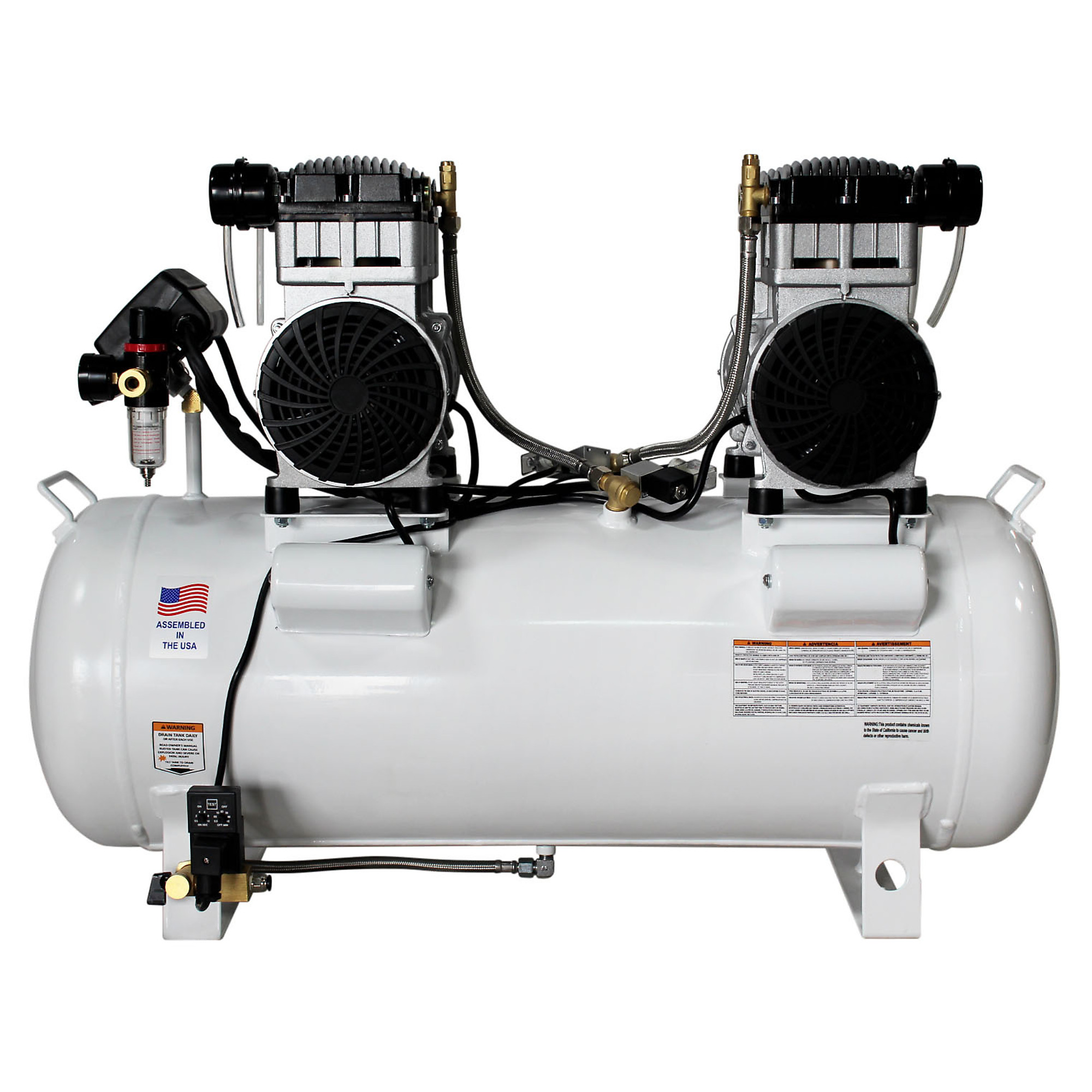

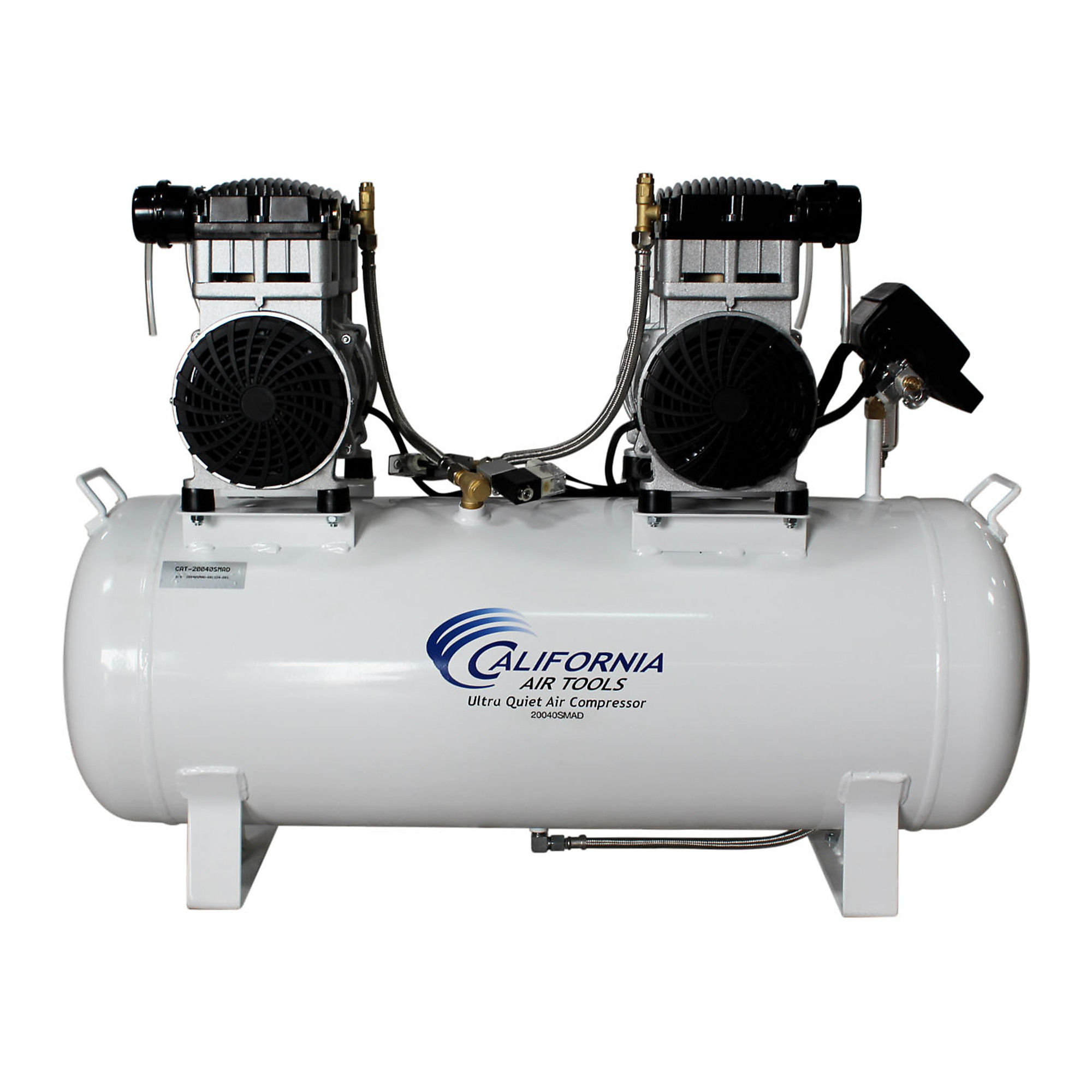

California Air Tools 20040SMAD Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 20 Gallon Air Compressor with Automatic Drain Valve

Item# 7342151
New
California Air Tools 20040SMAD Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 20 Gallon Air Compressor with Automatic Drain Valve

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools 20040SMAD Powerful 4.0 Hp SMART Ultra Quiet & Oil-Free 20 Gallon Air Compressor with Automatic Drain Valve

Click or Tap image to Zoom

$1799.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet  -  Only 75  decibels
  • Ultra Quiet  -  Only 75  decibels
  • Oil-Free Pump – Cleaner air for better tool operation.
  • Regulated output pressure gauge
  • Pressure Regulator (0-120 PSI)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CALIFORNIA AIR TOOLS 20040SMAD SMART Ultra Quiet Oil-Free Air Compressor, with Automatic Drain Valve, is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 75 decibels of sound. The MDR2i OLED Smart Controller may be connected to mobile phones, tablets, notebooks, or computers. The controller can be used as an access point or can be connected to a Wi-Fi network. Compressor features and parameters may be entered and controlled comfortably along with remote monitoring. The Powerful Twin 2.0 HP (SP-9421-22060) motors operate at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20040SMAD SMART Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The large 20 Gallon Steel Air Tank is just the right size for shop or garage. EZ-1-2321 Auto Drain Valve Factory Installed The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. (Factory Pre-Set) Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise!

What's Included

    (1) Air Compressor

Features + Benefits

  • Ultra Quiet  -  Only 75  decibels
  • Ultra Quiet  -  Only 75  decibels
  • Oil-Free Pump – Cleaner air for better tool operation.
  • Regulated output pressure gauge
  • Pressure Regulator (0-120 PSI)
  • Easy Start Valve - For Less Starting Amperage
  • Condor Pressure Controller
  • MDR2i OLED Smart pressure controller for remote monitoring and control
  • Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
  • Thermal Overload Protector
  • Thermal Overload Protector
  • 220 Volt / 60 Hertz / Single Phase (No 208 Volts - if necessary, obtain 208 to 220 voltage booster)
  • Low Amp Draw - 14 Amps
  • Time to fill tank from empty to full - 150 Seconds
  • Recovery time from 95 PSI to 125 PSI - 40 Seconds
  • Duty Cycle - 70/30*
  • Less heat which dissipates more efficiently
  • 20 Gal. Steel AirTank  -  pounds and easy to move around.
  • EZ-1-2301 Auto Drain Valve Factoy Installed The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. L (39") x W (15") x H (28") 148 lbs 1 Year Limited Warranty Comes complete (4) Air Filters Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle) Commercial Use: Refer to State & City Codes Non-ASME Air Tank Manufactured in Mexico-USA. Assembled in USA using global components.

Key Specs

AttributeSpecification

item#

7342151

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

210.0 LB

Air Tank Size

20 Gal

Volts

220

CFM at 90 PSI

12.8

Tank Orientation

Horizontal

Horsepower

4 HP

Max. PSI

130

Air Outlets (qty.)

1

Amps

14

Duty Cycle

70 %

Motor RPM

1,680

Working Pressure

90-120 PSI

Engine Start Type

Electric

Pump Life

3,000 hr
AttributeSpecification

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

15.6

CFM at Max. PSI

5.3

Noise Level

75 dB

Oil Required

No

Low Oil Shutdown

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

No

Air Dryer

Integral

Drain Type

Automatic

Engine Brand

OEM

Engine Model

SP Series Twin Motor

Product Weight

148.0000 lb

Dimensions L x W x H (in.)

39.0 x 18.0 x 28.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
