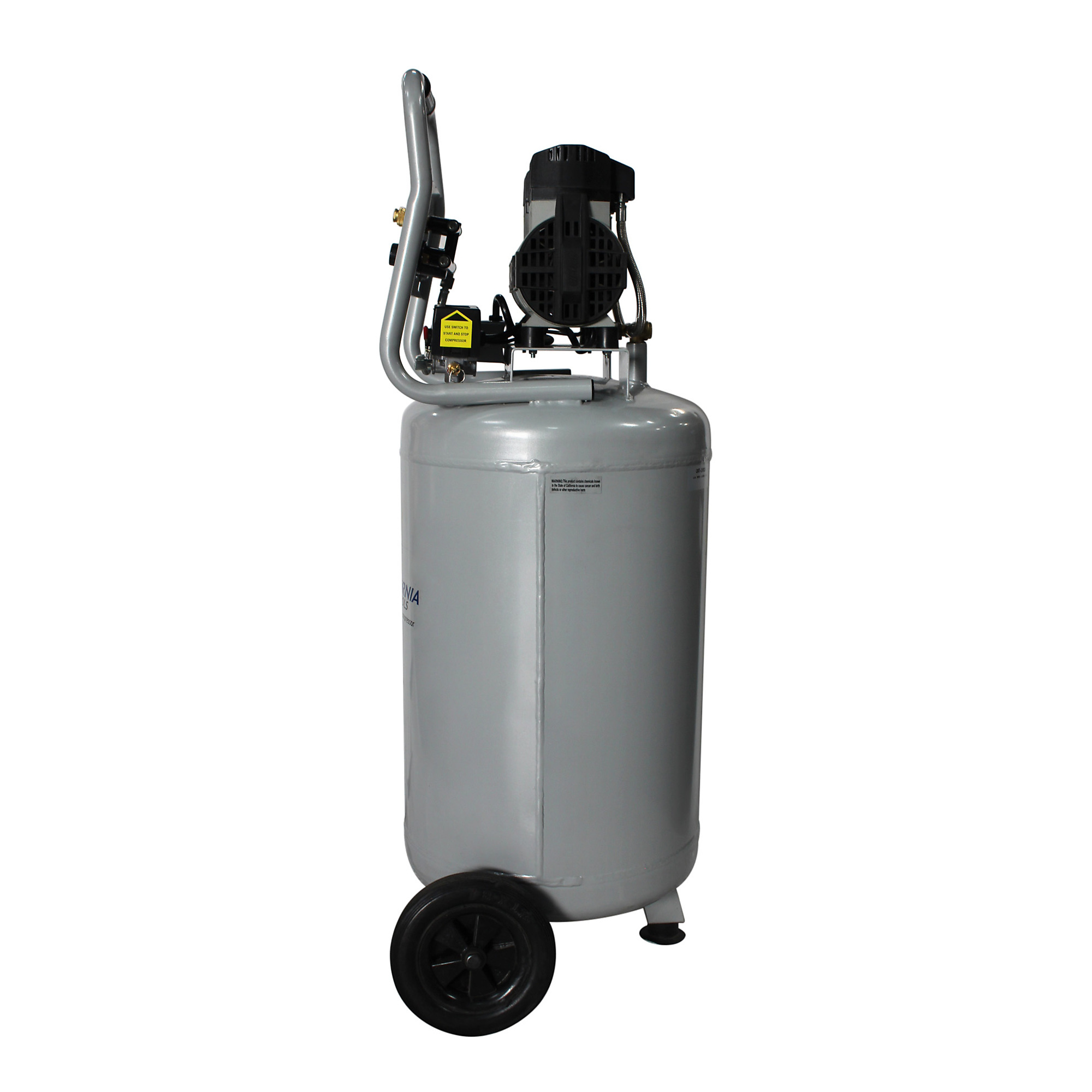

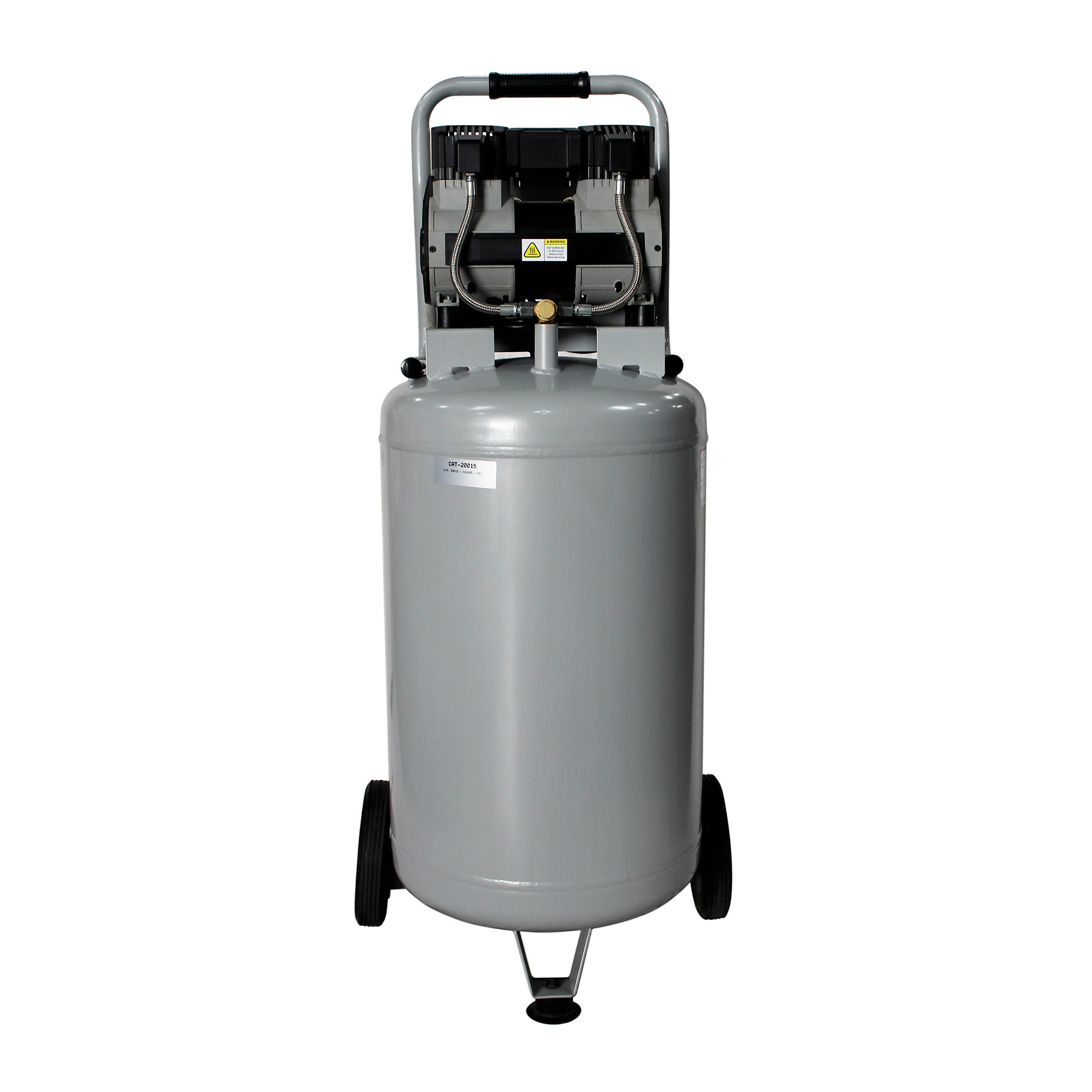

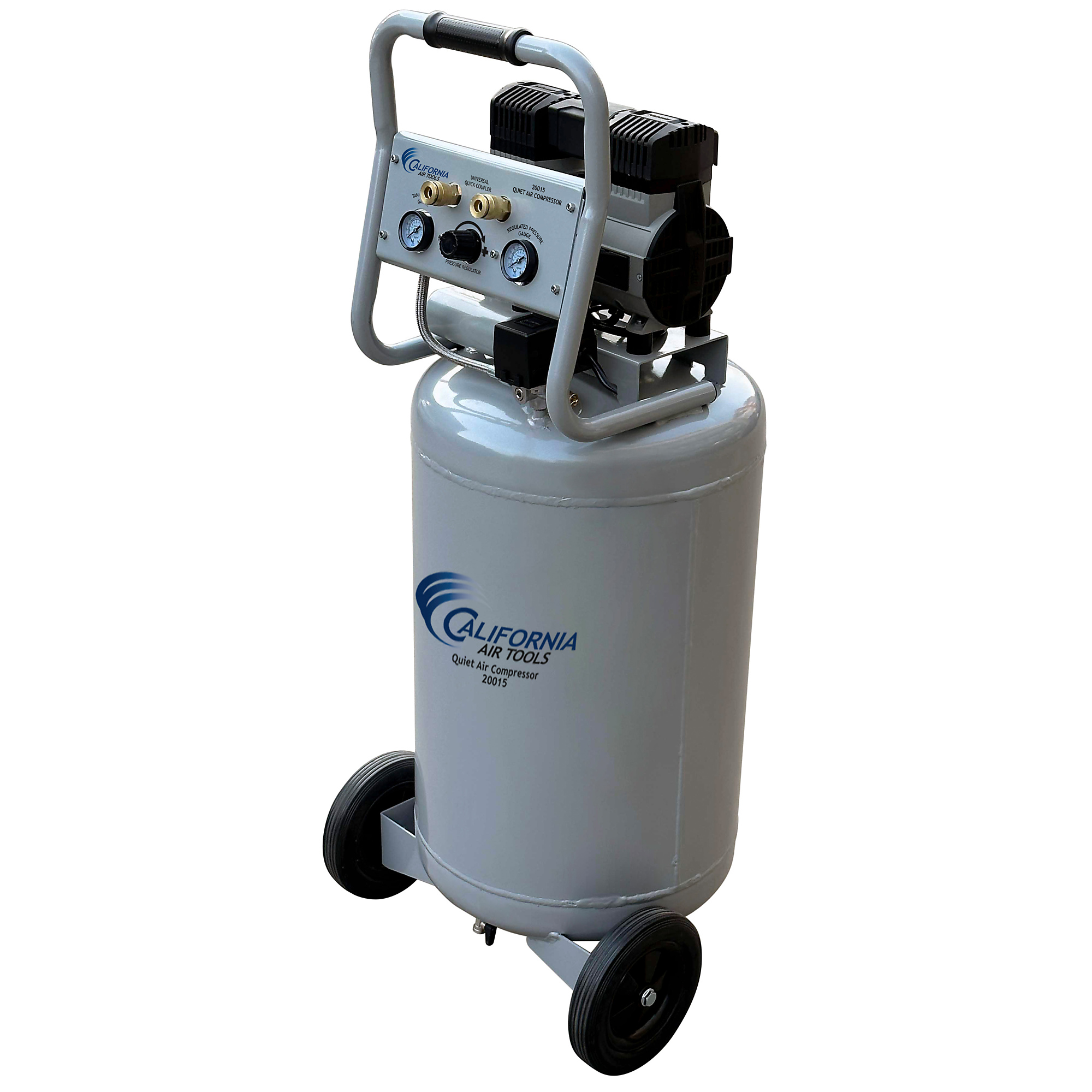

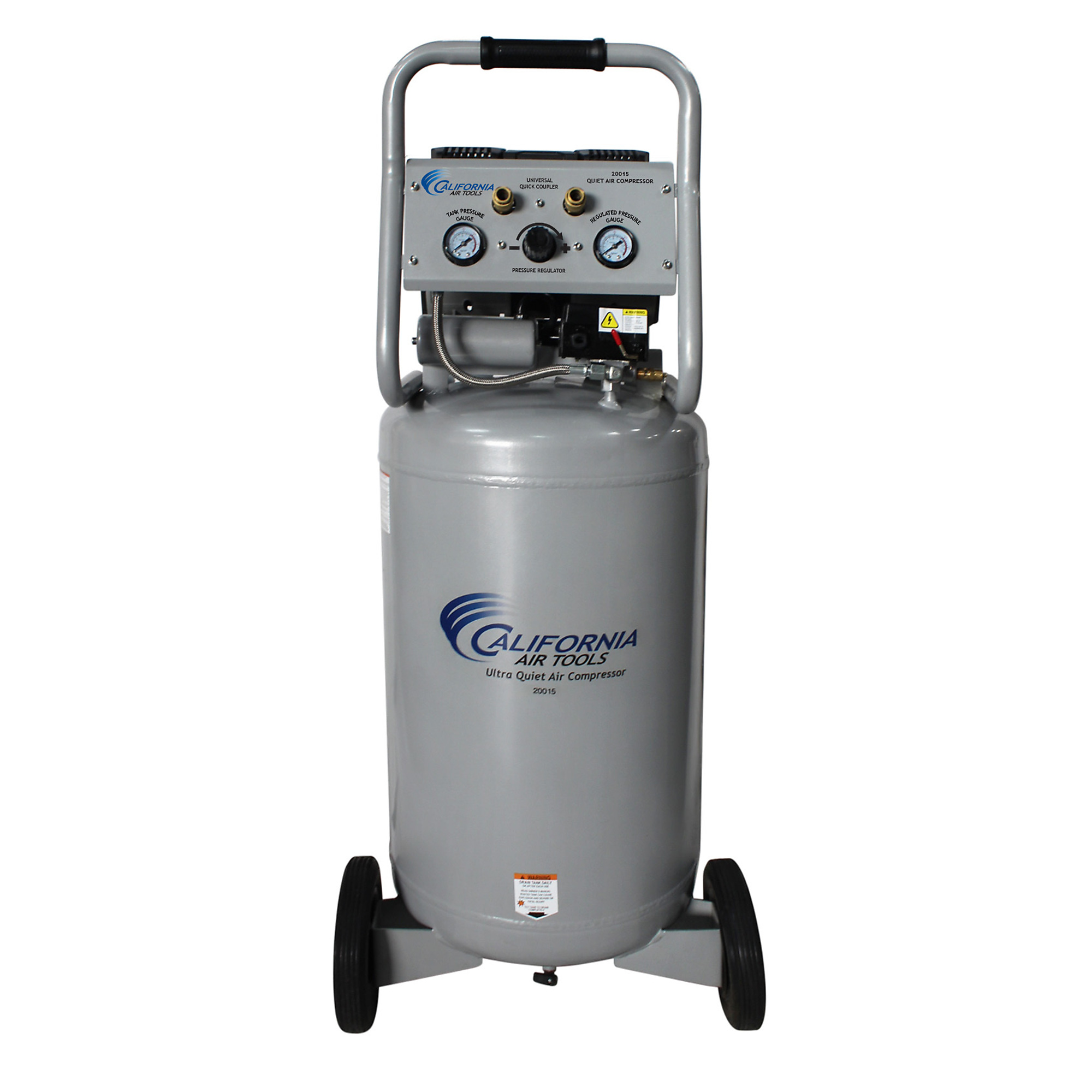

California Air Tools Ultra Quiet Air Compressor — 20-Gallon, Oil-Free, 1.5 HP, 70dB, Model# 20015

Item# 6701502
California Air Tools Ultra Quiet Air Compressor — 20-Gallon, Oil-Free, 1.5 HP, 70dB, Model# 20015

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools Ultra Quiet Air Compressor — 20-Gallon, Oil-Free, 1.5 HP, 70dB, Model# 20015

Click or Tap image to Zoom

$380.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ultra Quiet - Only 70 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Two pressure control gauges
  • Two - Female industrial "Push to Connect" quick connectors
  • Easy-to-Use Start/Stop Switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CALIFORNIA AIR TOOLS 20015 Ultra Quiet Oil-Free 20-Gallon Air Compressor is designed to be one of the quietest 1.5 Hp air compressors in the industry having only 70 decibels of sound. The Oil-Free Dual Piston Pump System is engineered for high performance and durability.* The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The large 20 Gallon Steel Air Tank is designed to store more air for higher demand air tools such as spray guns and sanders. Prefect for the shop or garage. The 2 (no flat) wheels and handle makes moving this air compressor very easy. Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 25% Less Noise!

What's Included

    (1) Owners Manual

Features + Benefits

  • Ultra Quiet - Only 70 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • Two pressure control gauges
  • Two - Female industrial "Push to Connect" quick connectors
  • Easy-to-Use Start/Stop Switch
  • Auto Pressure Switch
  • Working Pressure 105-135 PSI (+/-5 PSI)
  • 135 PSI  Maximum Pressure
  • Output Air Pressure Regulator (adjustable from 0-105 PSI)
  • Thermal Overload Protector
  • Safety Relief Valve opens at 150 PSI
  • 110v / 60 hz
  • Low Amp Draw - 13 Amps
  • Dedicated 15 amp outlet -14 gauge 25ft cord - Min. 5000 Watt Generator
  • Time to fill tank from empty to full -  6.50 Minutes
  • Recovery time from 95 PSI to 125 PSI -1.8 Minutes
  • Duty Cycle - 70/30*
  • Maximum continuous running 60 min. (Depending PSI & CFM)
  • Less heat which dissipates more efficiently 20 Gal. Steel Air Tank Wheel Kit (no flat) and (2) Air Filters L (17.0") x W/D (19.25") x H (45.25") 89 lbs Non-ASME Air Tank 1 Year Limited Warranty Commercial Use: Refer to State & City Codes Manufactured in China

Key Specs

AttributeSpecification

item#

6701502

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

100.0 LB

Horsepower

1.5 HP

Air Tank Size

20 Gal

Volts

110

Engine Brand

OEM

CFM at 90 PSI

2.9

Max. PSI

135

Air Outlets (qty.)

2
AttributeSpecification

Amps

13

Engine Start Type

Electric

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

4.2

Noise Level

70 dB

Oil Required

No

Tank Fill Time

6.5 min

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

89.0000 lb

Dimensions L x W x H (in.)

17.0 x 19.25 x 45.25 in

Reviews

Questions & Answers

Questions

  1. Can this run air tools

    1 answer

    1. This unit delivers 4.2 CFM at 40 PSI and 2.9 CFM at 90 PSI. Its maximum pressure is 135 PSI, with a working pressure range of 105–135 PSI.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
