California Air Tools 20-Gallon Air Compressor, 2 HP, 14 Amps, Model# CAT-20040DC

Item# 114874

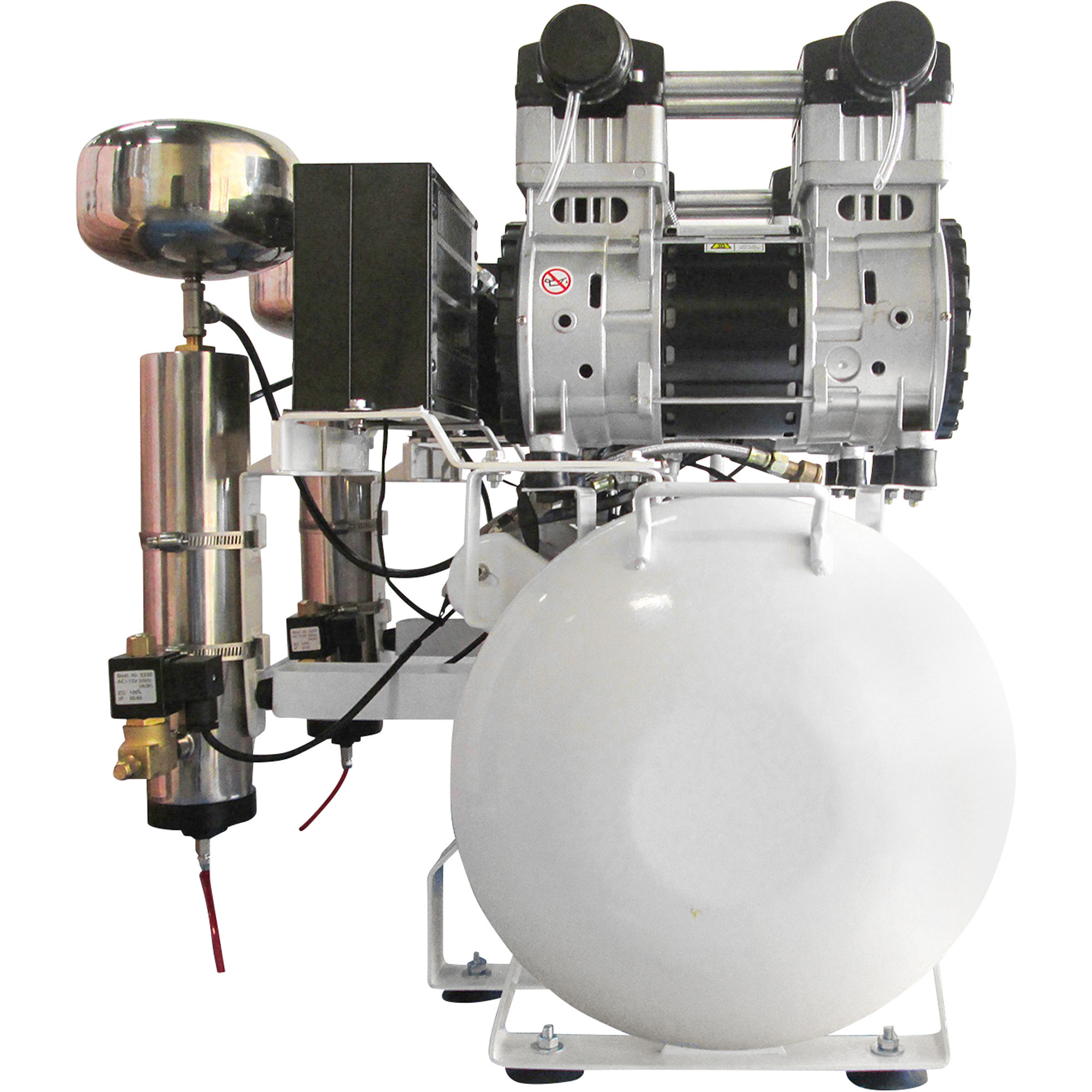

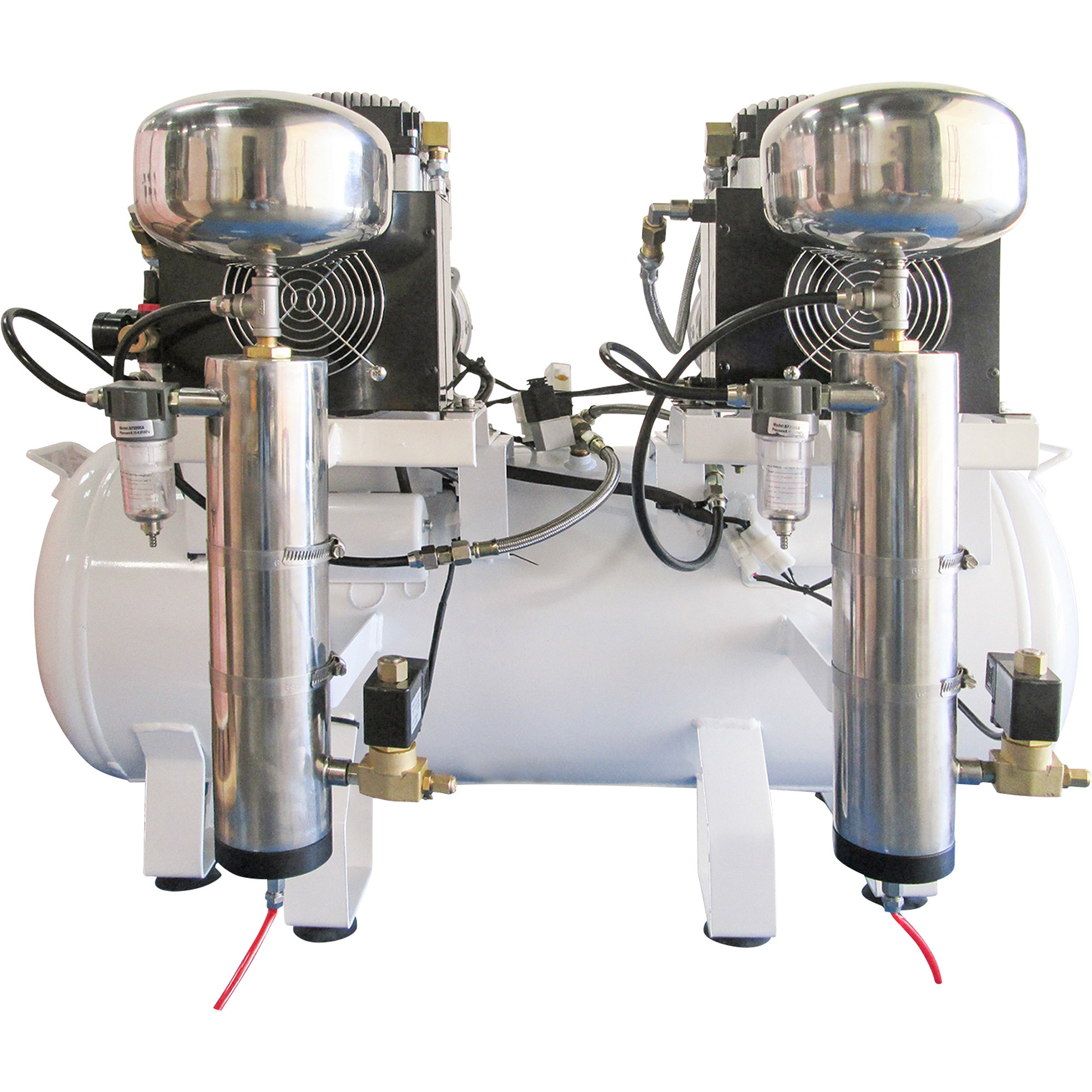

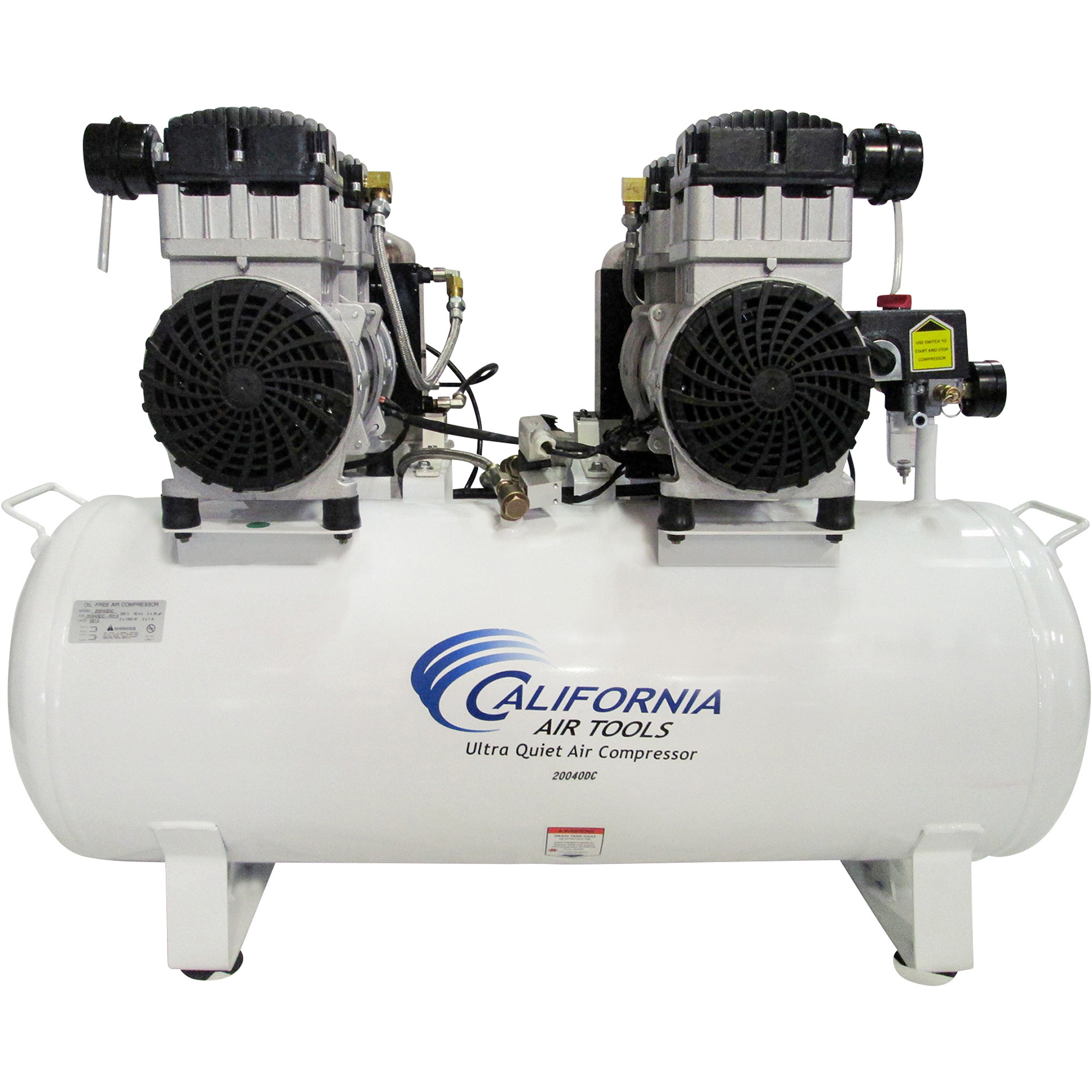

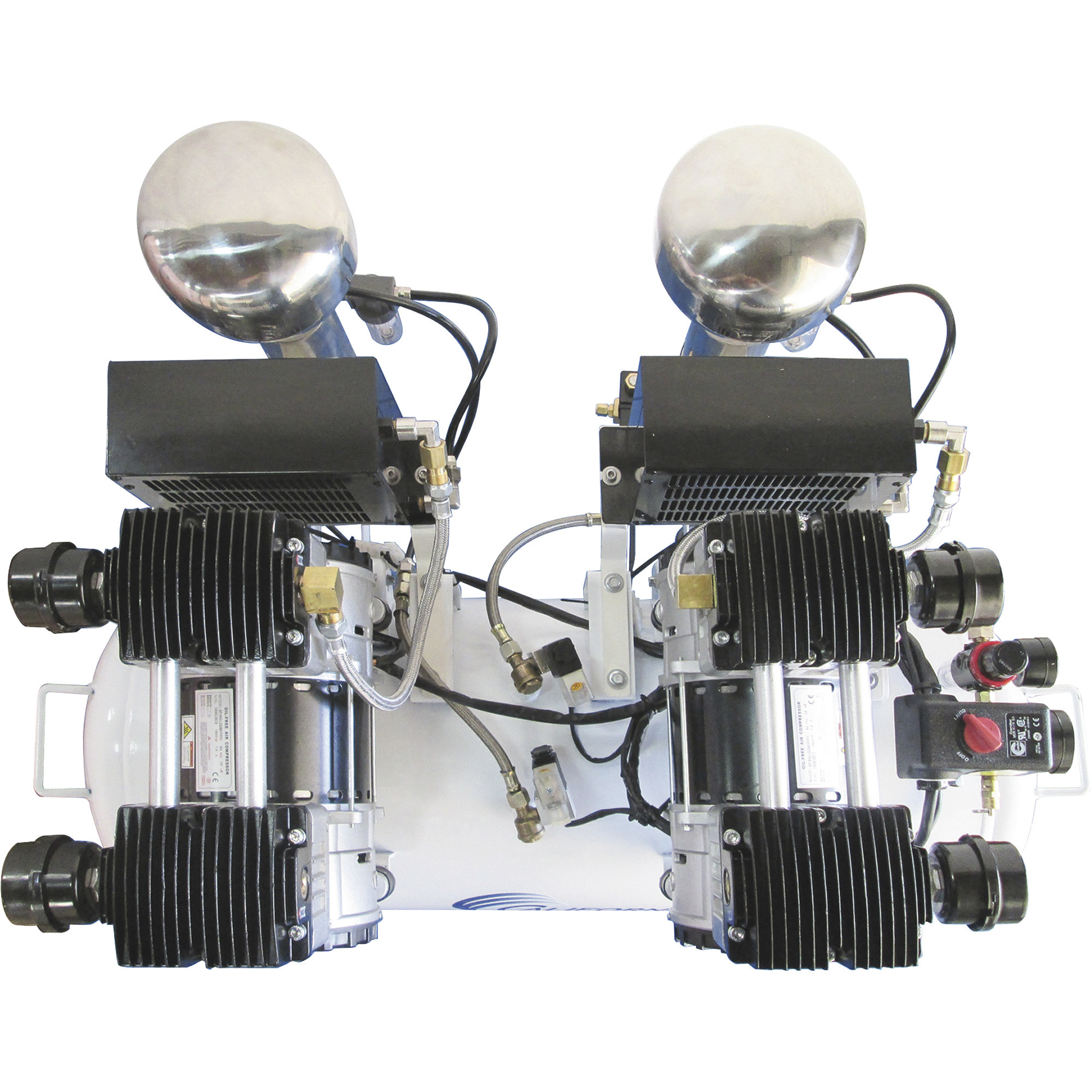

California Air Tools 20-Gallon Air Compressor, 2 HP, 14 Amps, Model# CAT-20040DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools 20-Gallon Air Compressor, 2 HP, 14 Amps, Model# CAT-20040DC

Click or Tap image to Zoom

$2857.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Thermal overload protector
  • Only 150 seconds to fill the tank
  • Low vibration
  • Motor speed of 1680 RPMS
  • Minimal heat that dissipates efficiently

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The California Air Tools 20-Gallon Air Compressor runs quietly at just 75 dB and delivers an extra-long life at 3000 hours of run time with a 70/30 duty cycle compared to others that fall below 500 hours at a shorter duty cycle. This unit delivers 12.8 CFM 40 PSI and 10.6 CFM 90 PSI. Maximum pressure is 125 PSI. Other features include 2 pressure control gauges and one 1/4in. universal quick connector. This unit operates on a low draw of 7.5 Amps, 220 Volts and 60 Hz.

What's Included

    (1) Air compressor

Features + Benefits

  • Thermal overload protector
  • Only 150 seconds to fill the tank
  • Low vibration
  • Motor speed of 1680 RPMS
  • Minimal heat that dissipates efficiently
  • Extra-large dual piston pump for increased compression
  • Extra-long pump life of over 3000 hours
  • Oil-free pump allows use in various temperatures and on various terrain

Key Specs

AttributeSpecification

item#

114874

Brand

California Air Tools

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

191.0 LB

Horsepower

2 HP

Air Tank Size

20 Gal

Volts

220

CFM at 90 PSI

10.60

Max. PSI

125

Air Outlets (qty.)

1

Amps

14

Duty Cycle

0.7 %

Motor RPM

1,680

Working Pressure

90 PSI

Motor Phase

1
AttributeSpecification

Pump Life

3,000 hr

Pump Material

Steel

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

12.80

Noise Level

75 dB

Oil Required

No

Low Oil Shutdown

No

Lubrication System

Other

Pressure Gauge

Yes

After Cooler Included

Yes

Tank Fill Time

2 min

Drain Type

Ball Valve

Tank Orientation

Horizontal

Product Weight

191.0000 lb

Dimensions L x W x H (in.)

37.5 x 25.0 x 28.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
