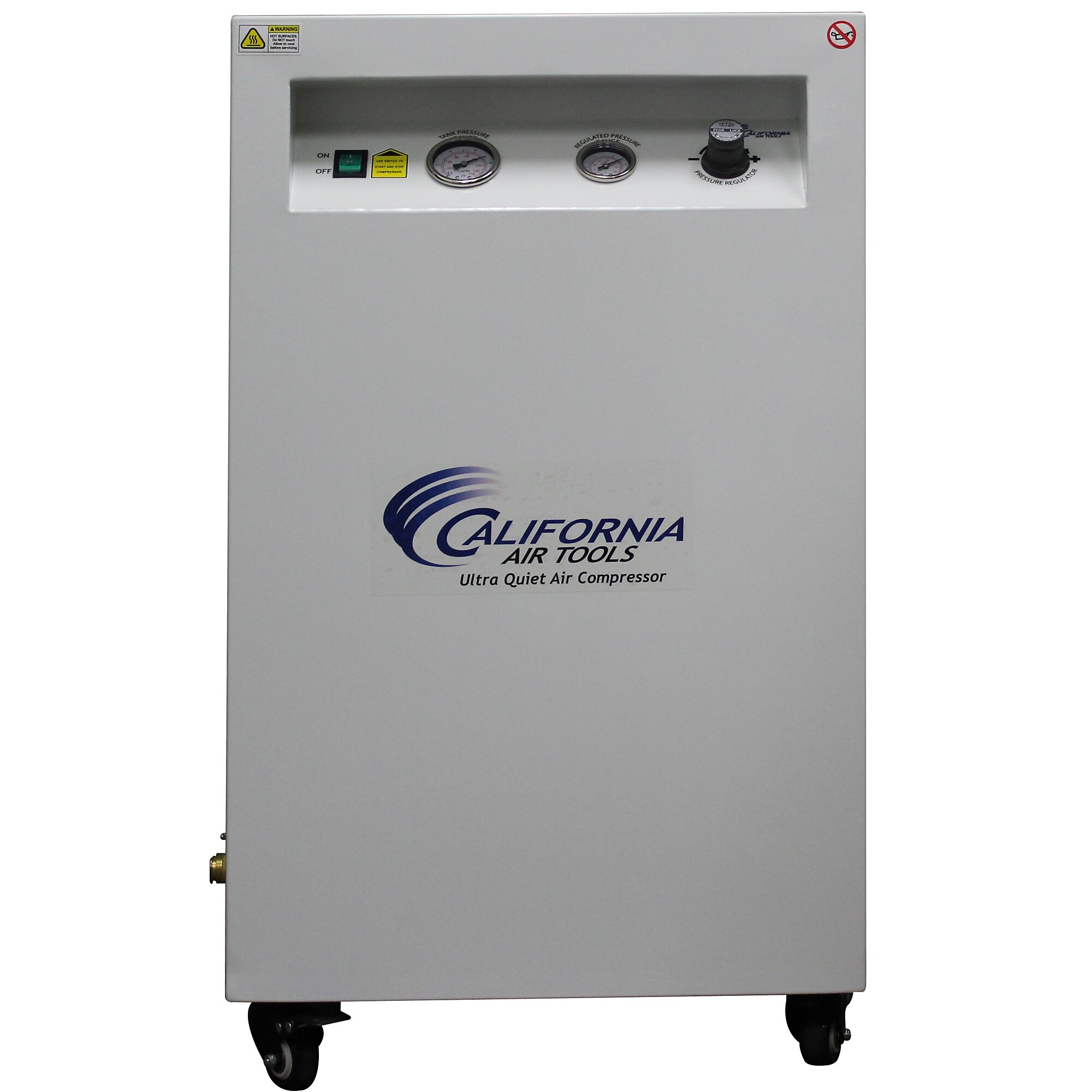

California Air Tools, 20 Gal 4 Hp Automatic Drain Soundproof Cabinet, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# 20040SPCAD

Item# 6203562
California Air Tools, 20 Gal 4 Hp Automatic Drain Soundproof Cabinet, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# 20040SPCAD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, 20 Gal 4 Hp Automatic Drain Soundproof Cabinet, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# 20040SPCAD

Click or Tap image to Zoom

$2529.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet only 65 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 20.0 Gallon Steel Tank
  • Includes a Sound Proof Cabinet, Auto Drain
  • Two Powerful 2.0 HP (Rated / Running) Motors

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

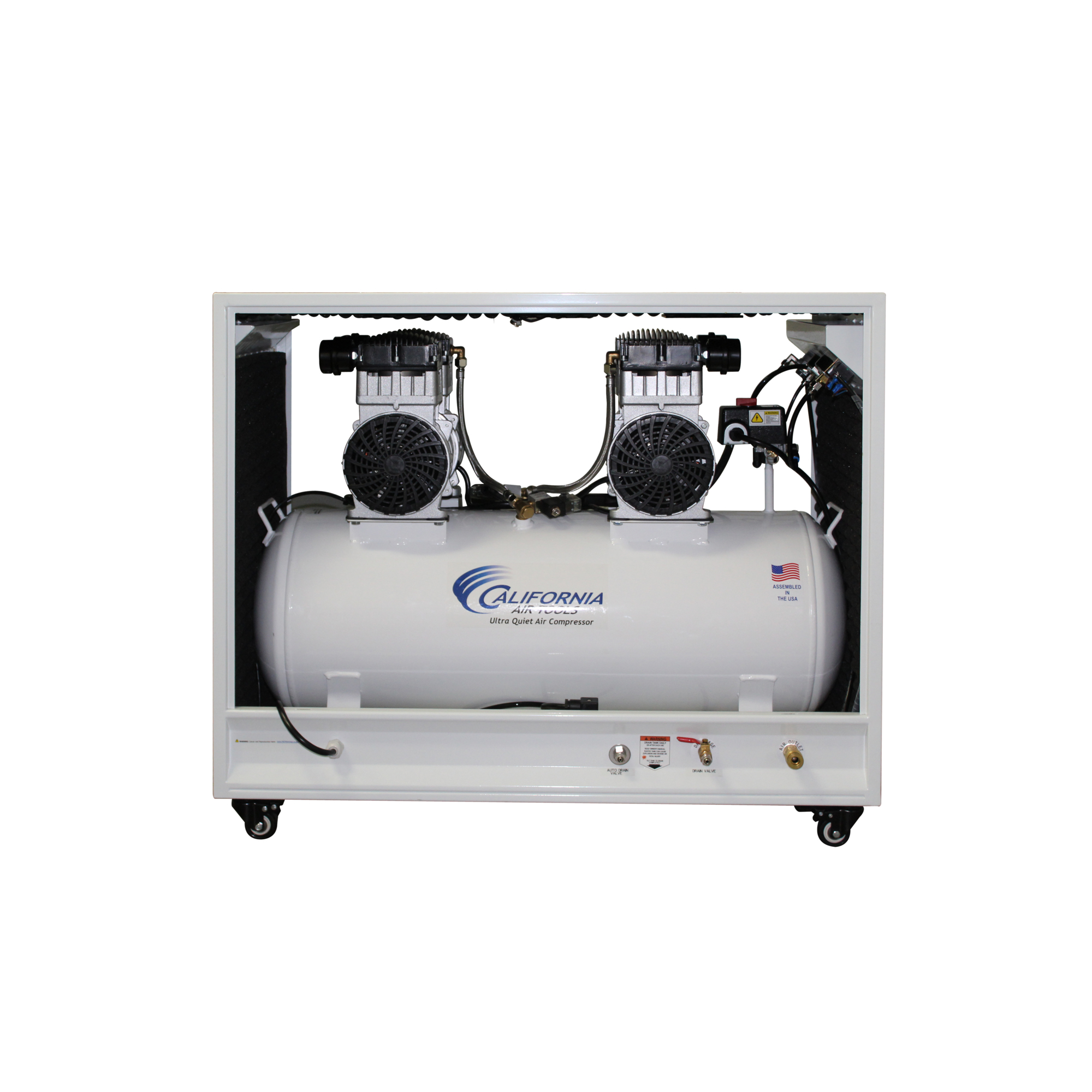

The California Air Tools 20040SPCAD Ultra Quiet and Oil-Free Air Compressor in Sound Proof Cabinet is designed to be 1 of the quietest 4.0 HP air compressors in the industry having only 65 decibels of sound. The Powerful (2) 2.0 HP motors operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance, durability and less maintenance. The CAT-20040SPCAD Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500-hours or less. The large 20 Gal. Steel air tank and Soundproof Cabinet is 230 lbs. The sound proof cabinet has 2 latching doors that allows for easy access to the air compressor and components. The 3 cabinet exhaust fans are used to remove air from the cabinet to reduce heat and provide a cooler working condition for the air compressor. The 4 caster wheels makes moving the air compressor from location to location very easy. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise.

What's Included

    (1) Air Compressor

Features + Benefits

  • Ultra Quiet only 65 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 20.0 Gallon Steel Tank
  • Includes a Sound Proof Cabinet, Auto Drain
  • Two Powerful 2.0 HP (Rated / Running) Motors
  • 12.80 CFM @ 40 PSI
  • 10.60 CFM @ 90 PSI
  • Maximum Pressure - 125 PSI
  • Two Pressure Control Gauges
  • One 1/4" Universal Quick Connectors
  • Low amp draw - 14 Amps - 220 Volts 60 Hertz
  • Thermal Overload Protector
  • Less time to fill the tank - Only 150 Seconds
  • Low Vibration - Motor Speed of 1680 RPMS
  • Less Heat - Dissipates heat more efficiently
  • Extra Large Dual Piston Pump for increased Compression
  • Extra Long Pump Life of over 3000 Hours
  • Oil-Free pump allows you to use in different temperatures & terrains
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6203562

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

310.0 LB

Horsepower

4 HP
AttributeSpecification

Air Tank Size

20 Gal

Volts

220

Product Weight

230.0000 lb

Dimensions L x W x H (in.)

19.0 x 38.0 x 33.0 in

Reviews

Questions & Answers

Questions

  1. What is the rated duty cycle?

    1 answer

    1. The rated duty cycle is 70/30. The compressor may run continuously at 5.3 cfm @ 90 PSI for up to 1 hour, or intermittently at 10.6 cfm @ 90 PSI during standard work day. Do not allow motors to run continuously for more than 60 minutes. After 60 minutes of continuous use the compressor should be allowed to cool down for 15-20 minutes.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
