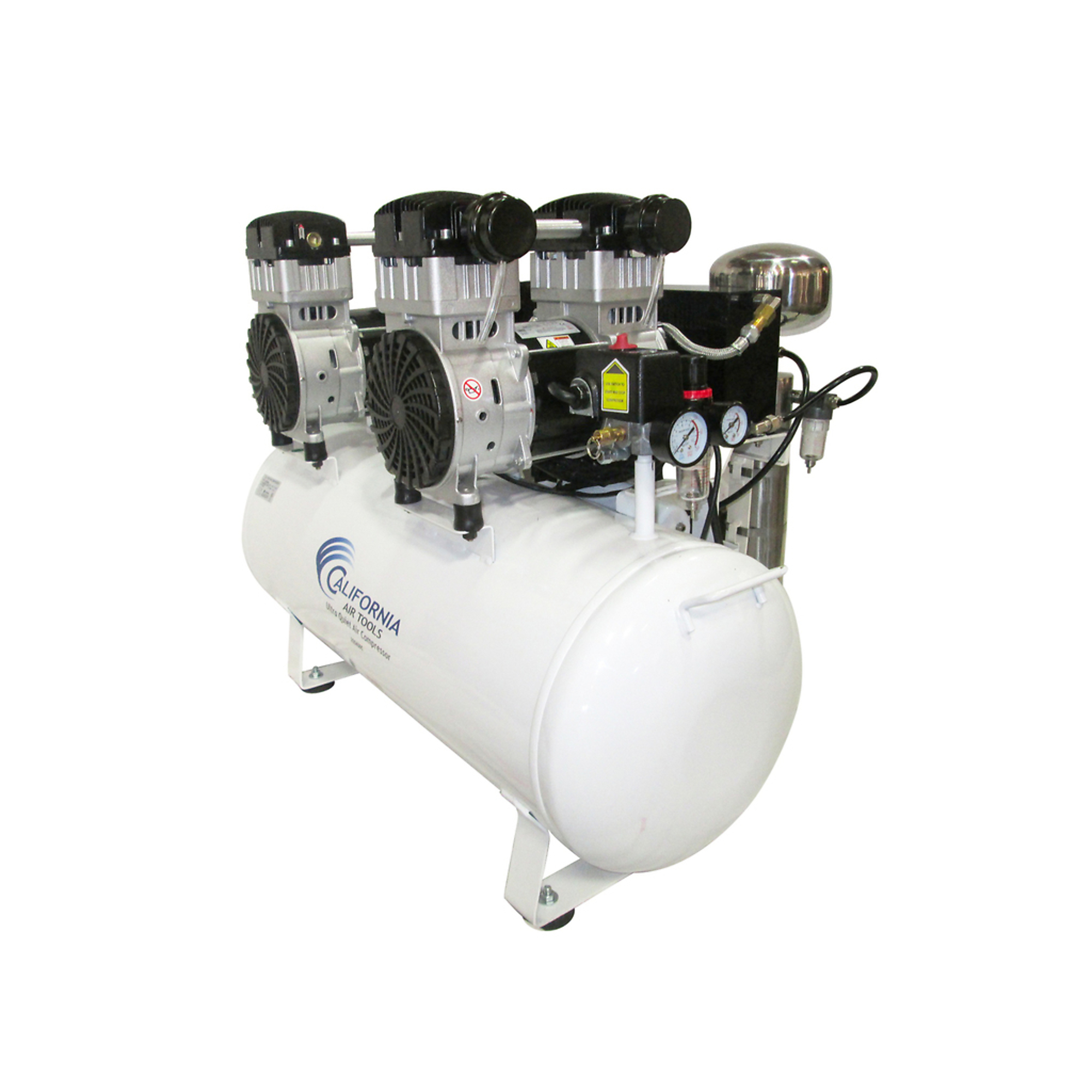

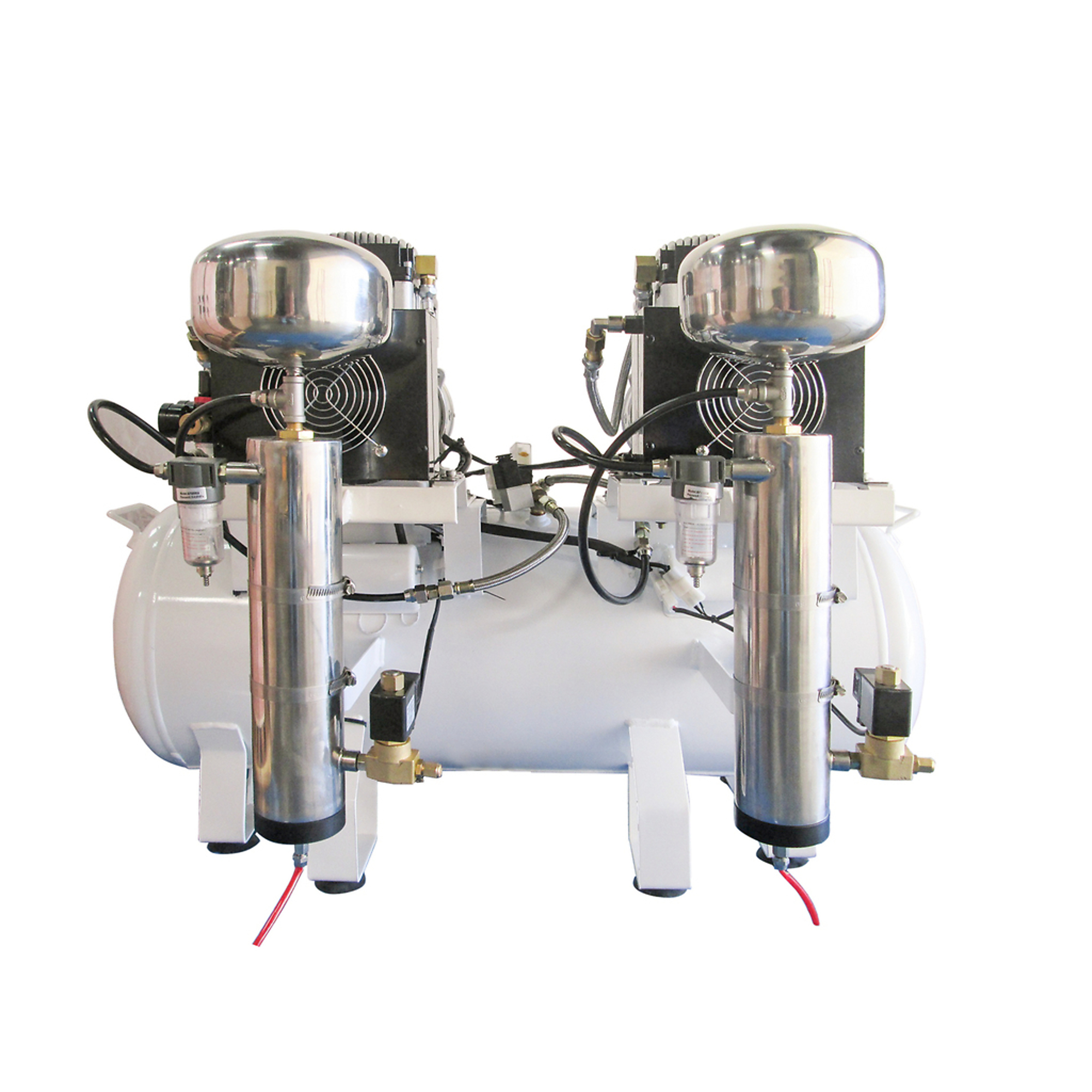

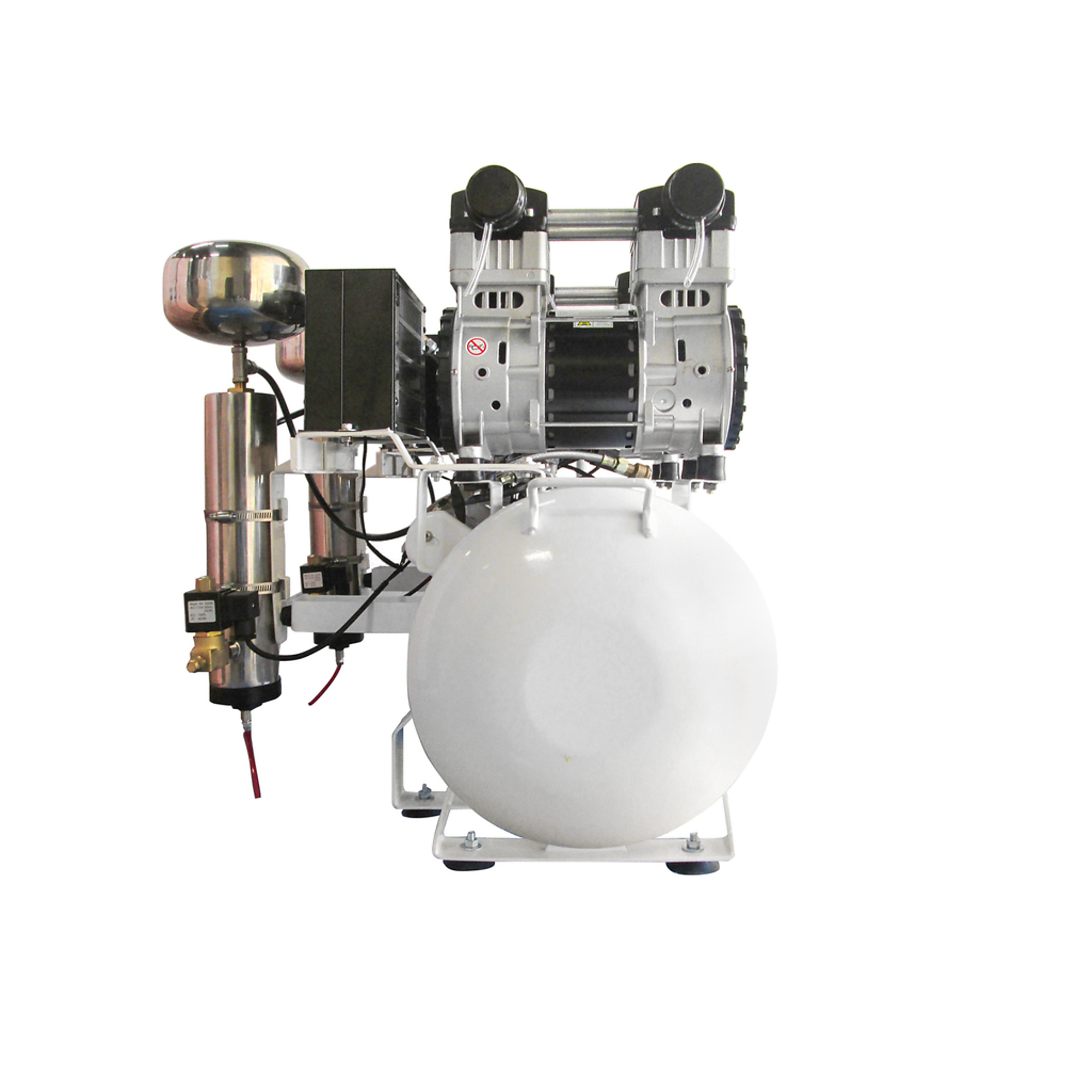

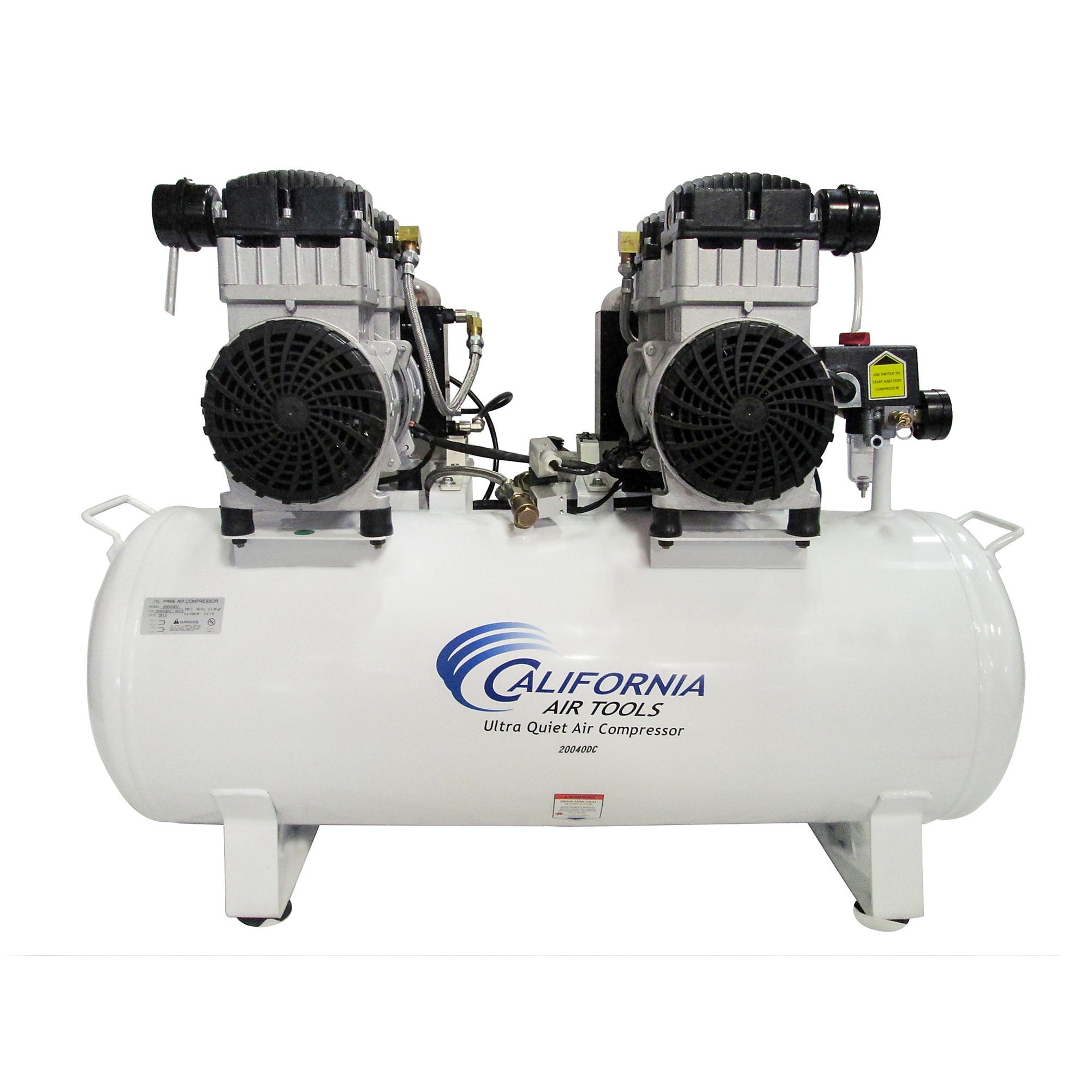

California Air Tools, 20 Gal 4 Hp Air Drying Automatic Drain, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# 20040DCAD

Item# 6208081
California Air Tools, 20 Gal 4 Hp Air Drying Automatic Drain, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# 20040DCAD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, 20 Gal 4 Hp Air Drying Automatic Drain, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# 20040DCAD

Click or Tap image to Zoom

$2979.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet only 75 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 20.0 Gallon Steel Tank
  • Air Dryer & Aftercooler for dry air delivery - 176 lbs
  • Two Powerful 2.0 HP (Rated / Running) Motors

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The California Air Tools 20040DCAD Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 4.0 HP air compressors in the industry having only 75 dBs of sound. The powerful two 2.0 HP motors operates at only 1680 RPM creating less noise, vibration and creating less wear. The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability. The SP-90407 Motor/Pumps are tested for a minimum pump life of 3000 hours before service. 30% more life before repair. The large 20.0 Gal. steel air tank is the right size for most all locations. The Air Dryers are specially designed to remove the water vapor from the air to protect sensitive tools and machinery. To dry the air from the air compressor an after cooler and dryer are utilized. The after cooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. This air compressor is ideal for anyone working inside.

What's Included

    (1) Air Compressor

Features + Benefits

  • Ultra Quiet only 75 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 20.0 Gallon Steel Tank
  • Air Dryer & Aftercooler for dry air delivery - 176 lbs
  • Two Powerful 2.0 HP (Rated / Running) Motors
  • 12.80 CFM @ 40 PSI
  • 10.60 CFM @ 90 PSI
  • Maximum Pressure - 125 PSI
  • Two Pressure Control Gauges
  • One 1/4" Universal Quick Connectors
  • Low amp draw - 14 Amps - 220 Volts 60 Hertz
  • Thermal Overload Protector
  • Less time to fill the tank - Only 150 Seconds
  • Low Vibration - Motor Speed of 1680 RPMS
  • Less Heat - Dissipates heat more efficiently
  • Extra Large Dual Piston Pump for increased Compression
  • Extra Long Pump Life of over 3000 Hours
  • Oil-Free pump allows you to use in different temperatures & terrains
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6208081

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

246.0 LB

Air Tank Size

20 Gal
AttributeSpecification

Volts

220

Horsepower

4 HP

Product Weight

192.0000 lb

Dimensions L x W x H (in.)

37.5 x 25.0 x 28.0 in
