California Air Tools, 20 Gal 4 Hp Air Automatic Drain Soundproof Cabinet, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# 20040DSPCAD

Item# 6203706
California Air Tools, 20 Gal 4 Hp Air Automatic Drain Soundproof Cabinet, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# 20040DSPCAD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, 20 Gal 4 Hp Air Automatic Drain Soundproof Cabinet, Horsepower 4 HP, Air Tank Size 20 Gal, Volts 220 Model# 20040DSPCAD

Click or Tap image to Zoom

$4979.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet only 65 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 20.0 Gallon Steel Tank
  • Includes a Sound Proof Cabinet, Air Dryer & Aftercooler and Auto Drain
  • Two Powerful 2.0 HP (Rated / Running) Motors

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

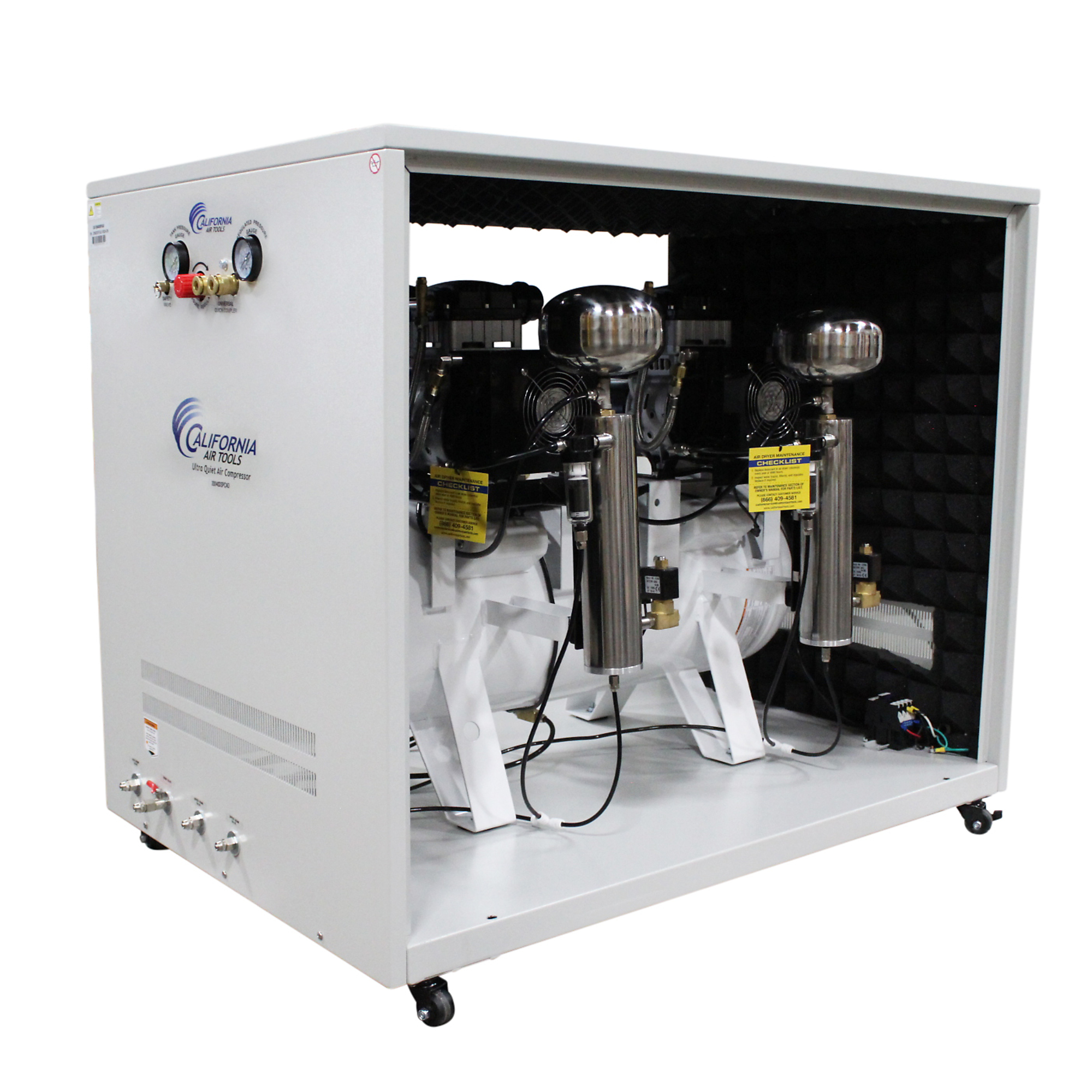

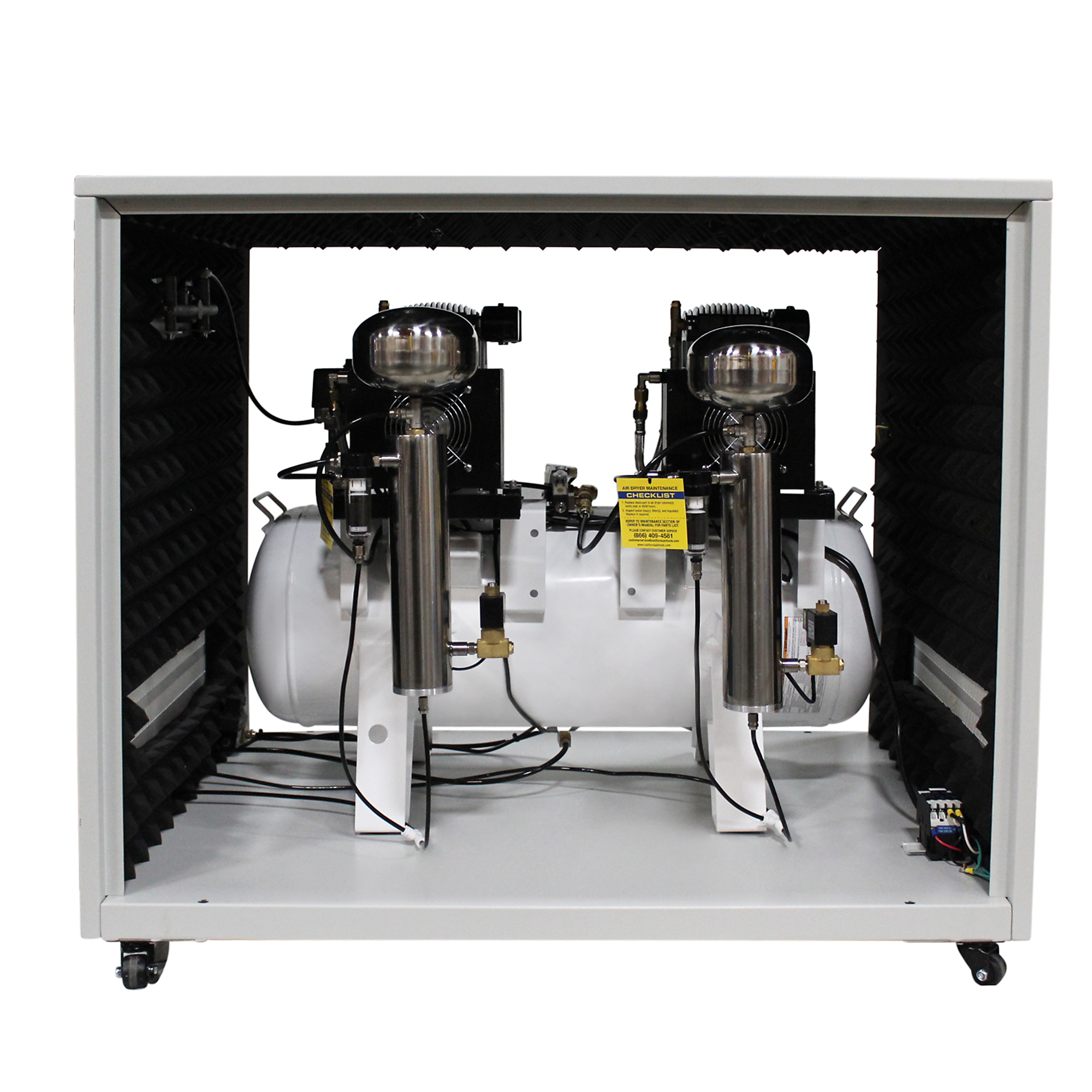

The California Air Tools 20040DSPCAD Ultra Quiet Oil-Free Air Compressor with Air Drying System and Auto Drain in a Soundproof Cabinet is designed to be one of the quietest 4.0 horsepower air compressors in the industry having only 65 decibels of sound. The (2) powerful 2.0 HP motors operates at only 1680 RPM creating less noise, vibration and creating less wear. The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability. The SP-Motor/Pumps are tested for a minimum pump life of 3000 hours before service. 30% more life before service. The sturdy steel soundproof cabinet has a large 20-gallon steel air tank and caster wheels that makes it easy to move. The interior of the cabinet is lined with acoustic sound proofing foam insulation to reduce the air compressor's noise and vibration. The two latching door handles allows for easy access to the air compressor. The four exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor. The Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery. To dry the air from the air compressor an Aftercooler and Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The factory installed California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue.

What's Included

    (1) Air Compressor

Features + Benefits

  • Ultra Quiet only 65 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 20.0 Gallon Steel Tank
  • Includes a Sound Proof Cabinet, Air Dryer & Aftercooler and Auto Drain
  • Two Powerful 2.0 HP (Rated / Running) Motors
  • 12.80 CFM @ 40 PSI
  • 10.60 CFM @ 90 PSI
  • Maximum Pressure - 130 PSI
  • Two Pressure Control Gauges
  • One 1/4" Industrial Quick Connectors
  • Low amp draw - 14 Amps - 220 Volts 60 Hertz
  • Thermal Overload Protector
  • Less time to fill the tank - Only 150 Seconds
  • Low Vibration - Motor Speed of 1680 RPMS
  • Less Heat - Dissipates heat more efficiently
  • Extra Large Dual Piston Pump for increased Compression
  • Extra Long Pump Life of over 3000 Hours
  • Oil-Free pump allows you to use in different temperatures & terrains
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6203706

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

430.0 LB

Air Tank Size

20 Gal
AttributeSpecification

Volts

220

Horsepower

4 HP

Product Weight

370.0000 lb

Dimensions L x W x H (in.)

31.0 x 46.0 x 39.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
