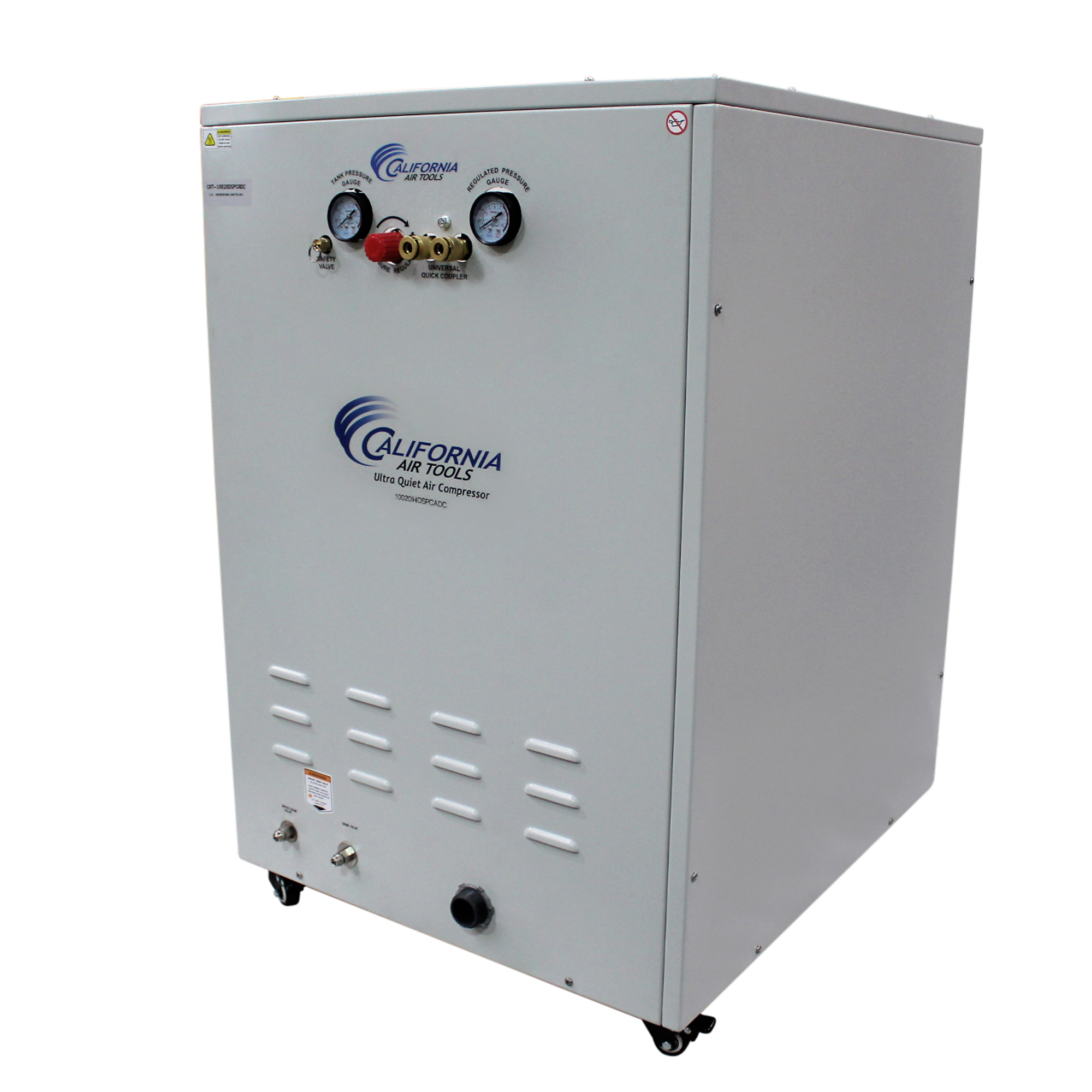

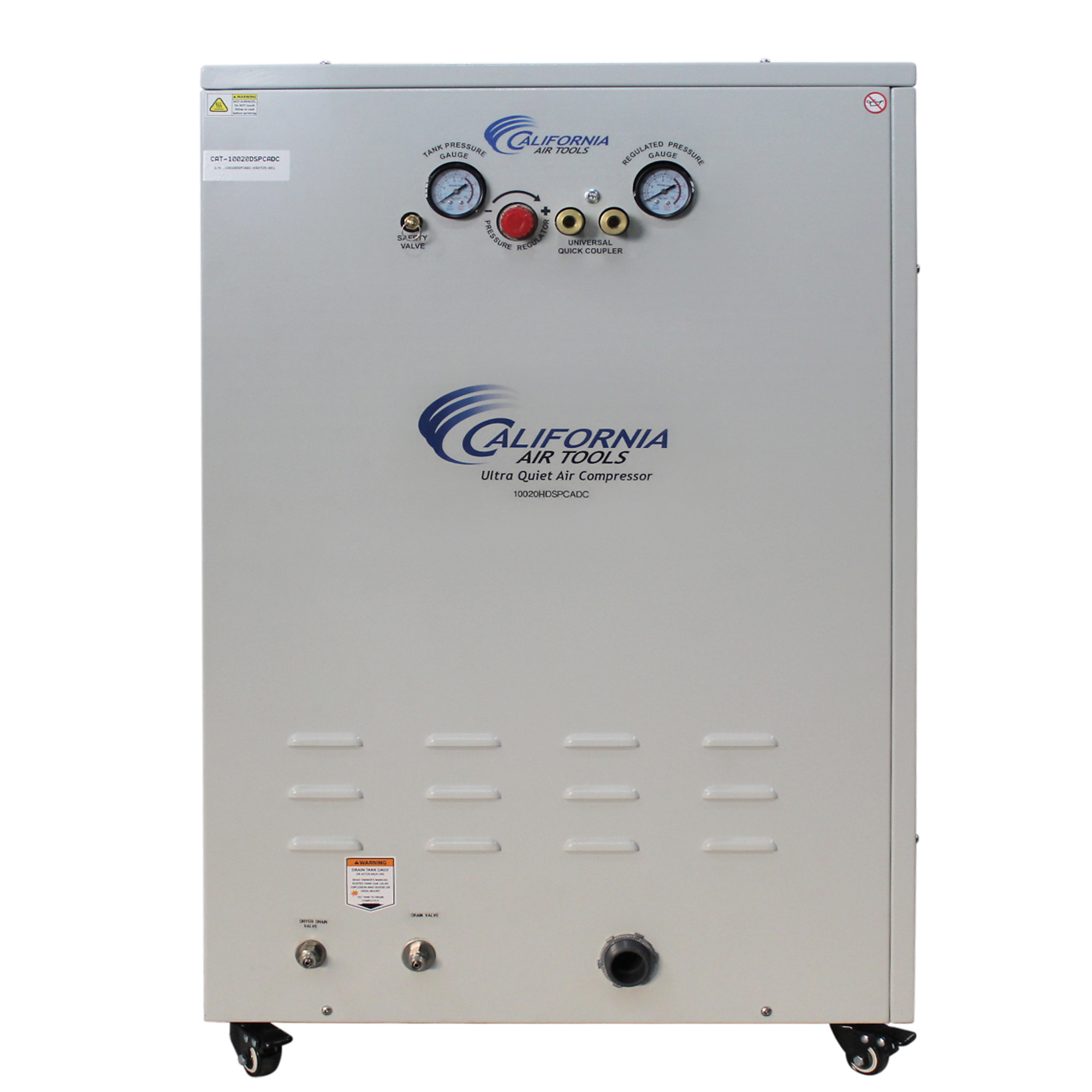

California Air Tools Ultra Quiet Oil-Free Air Compressor — 10 Gal., 2.0 HP, 98% Air Drying System, Automatic Drain, Sound Proof Cabinet, Model# 10020HDSPCADC

Item# 6649193
California Air Tools Ultra Quiet Oil-Free Air Compressor — 10 Gal., 2.0 HP, 98% Air Drying System, Automatic Drain, Sound Proof Cabinet, Model# 10020HDSPCADC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools Ultra Quiet Oil-Free Air Compressor — 10 Gal., 2.0 HP, 98% Air Drying System, Automatic Drain, Sound Proof Cabinet, Model# 10020HDSPCADC

Click or Tap image to Zoom

$4344.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet - Only 58 decibels
  • Oil-Free Pump (Class 1) – Cleaner air for better tool operation. Less maintenance and Costs.
  • Two pressure control gauges
  • Two Female Industrial "Push to Connect" quick connector air ports (1/4" NPT)
  • 0.01 Micron Prefilter

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

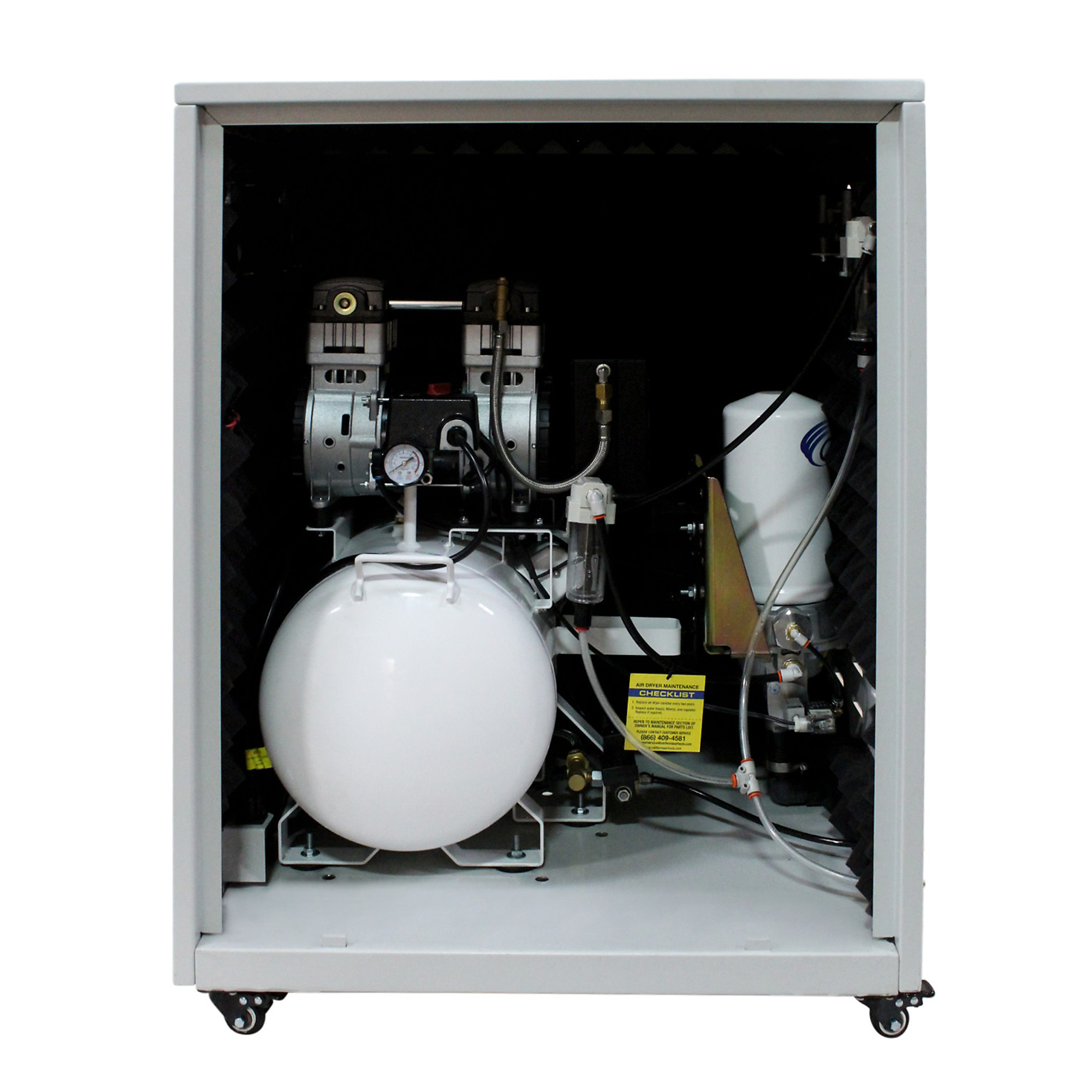

The CALIFORNIA AIR TOOLS 10020HDSPCADC Ultra Quiet, 98% Ultra Dry Oil-Free Air Compressor with Air Drying System, in Sound Proof Cabinet, is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 58 decibels of sound. The Powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-10020HDSPCADC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and eliminates oil from being in the air. The large 10 Gallon Horizontal Steel Air Tank is just the right size to fit under a bench, desk or cabinet. The 98% Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery. PDP performance range (-20ft. F. to -51ft. F.) Air Quality: ISO 8573 - Class 2.3.1 To dry the air from the air compressor an Aftercooler and 98% Air Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air. This cartridge dryer has a life of 4000 hours or 2-years before replacement. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. The sturdy large steel cabinet on caster wheels makes it easier to move and reduces the noise level. The interior of the cabinet is lined with acoustic sound proofing foam insulation to reduce the air compressor's noise and vibration. The two latching door handles allows for easy access to the air compressor.'' The two exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor. This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue. Designed for the person looking for Power, 98% Dry Air with Low Dew Point Air Flow and Less Ser

What's Included

    (1) Owners Manual

Downloads

Product Manual

Features + Benefits

  • Ultra Quiet - Only 58 decibels
  • Oil-Free Pump (Class 1) – Cleaner air for better tool operation. Less maintenance and Costs.
  • Two pressure control gauges
  • Two Female Industrial "Push to Connect" quick connector air ports (1/4" NPT)
  • 0.01 Micron Prefilter
  • 5.0 Micron (Class 2) Air Filter & Regulator
  • Condor Pressure Switch
  • Thermal Overload Protector
  • 125 PSI Maximum Pressure
  • 110 Volts / 60 Hertz / Single Phase
  • Low Amp Draw - 14 Amps
  • Time to fill tank from empty to full - 120 Seconds
  • Recovery time from 95 PSI to 125 PSI - 25 Seconds
  • Duty Cycle - 70/30*
  • Less heat which dissipates more efficiently
  • 10 Gallon Steel Air Tank for Commercial use.
  • Solid Steel Cabinet, Insulated.
  • L (26") x W (30") x H (39.5")
  • 221 pounds Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant Easy to remove (spin off) and replace every 4000 hours or 2 years Aftercooler (condenser) PDP performance range (-20' F. to -51' F.) Air Quality: ISO 8573 - Class 2.3.1 EZ-1-2321 Auto Drain Valve Factory Installed 1 Year Limited Warranty Comes complete (2) Air Filters Commercial Use: Refer to State & City Codes Non-ASME Air Tank Assembled in Mexico and USA with global components

Key Specs

AttributeSpecification

item#

6649193

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

328.0 LB

Horsepower

2 HP

Air Tank Size

10 Gal

Volts

110

Engine Brand

OEM

CFM at 90 PSI

5.3

Max. PSI

125

Air Outlets (qty.)

2

Amps

14

Motor RPM

1,680

Engine Start Type

Electric
AttributeSpecification

Motor Phase

1

Pump Life

3,000 hr

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.4

Noise Level

58 dB

Oil Required

No

Pressure Gauge

Yes

Electronic Drain Valve

Yes

Tank Fill Time

120 min

Air Dryer

Integral

Drain Type

Automatic

Tank Orientation

Vertical

Product Weight

220.0000 lb

Dimensions L x W x H (in.)

26.0 x 30.0 x 39.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
