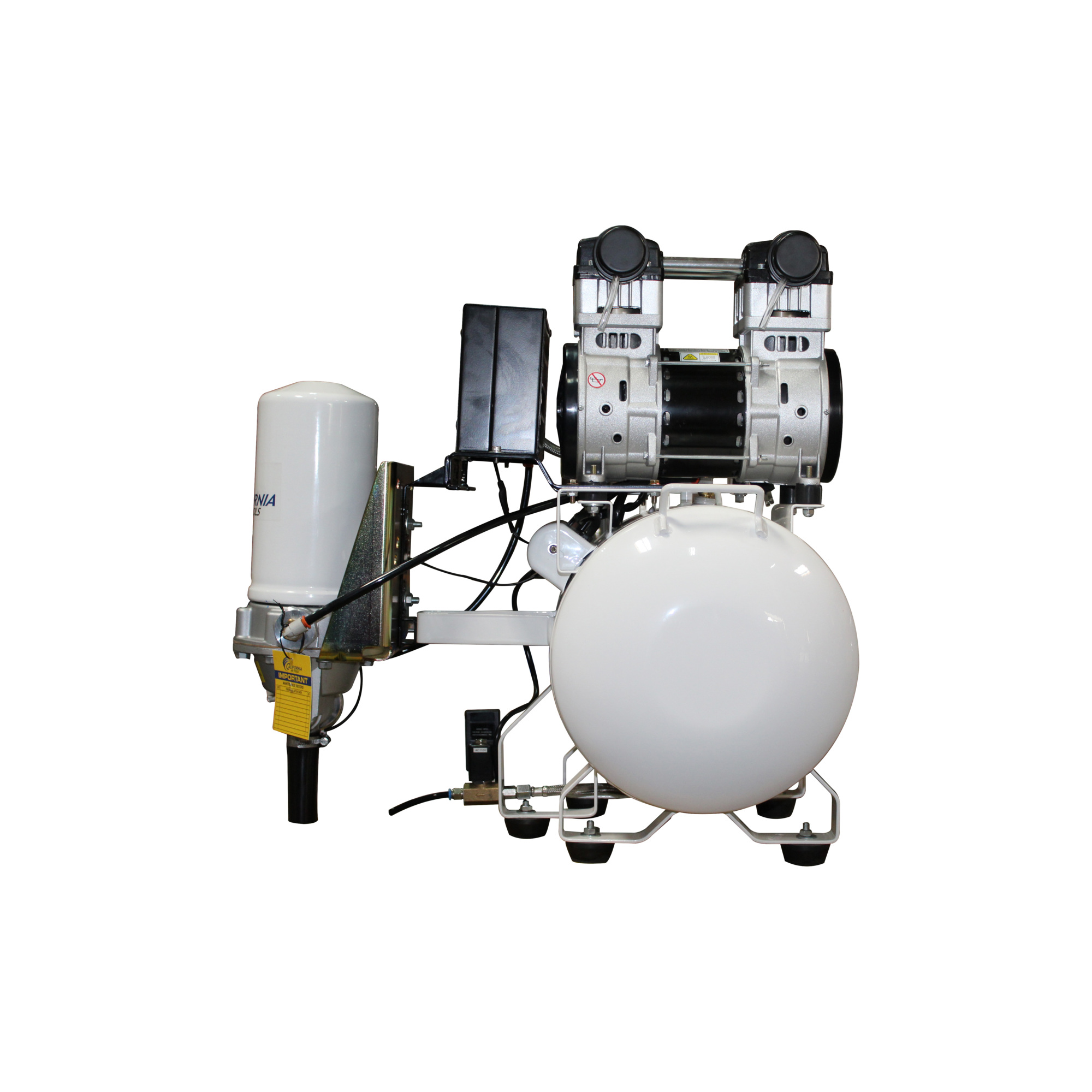

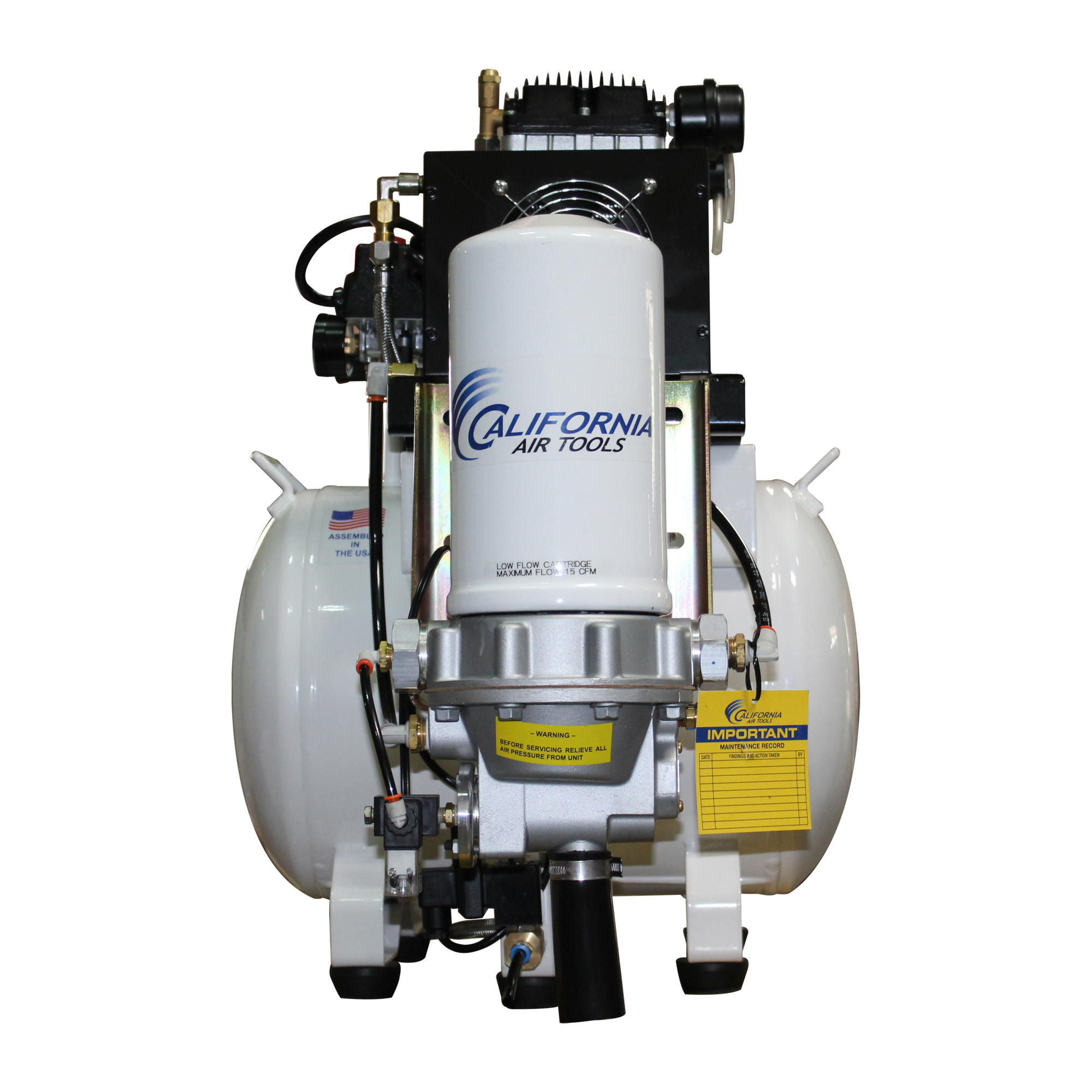

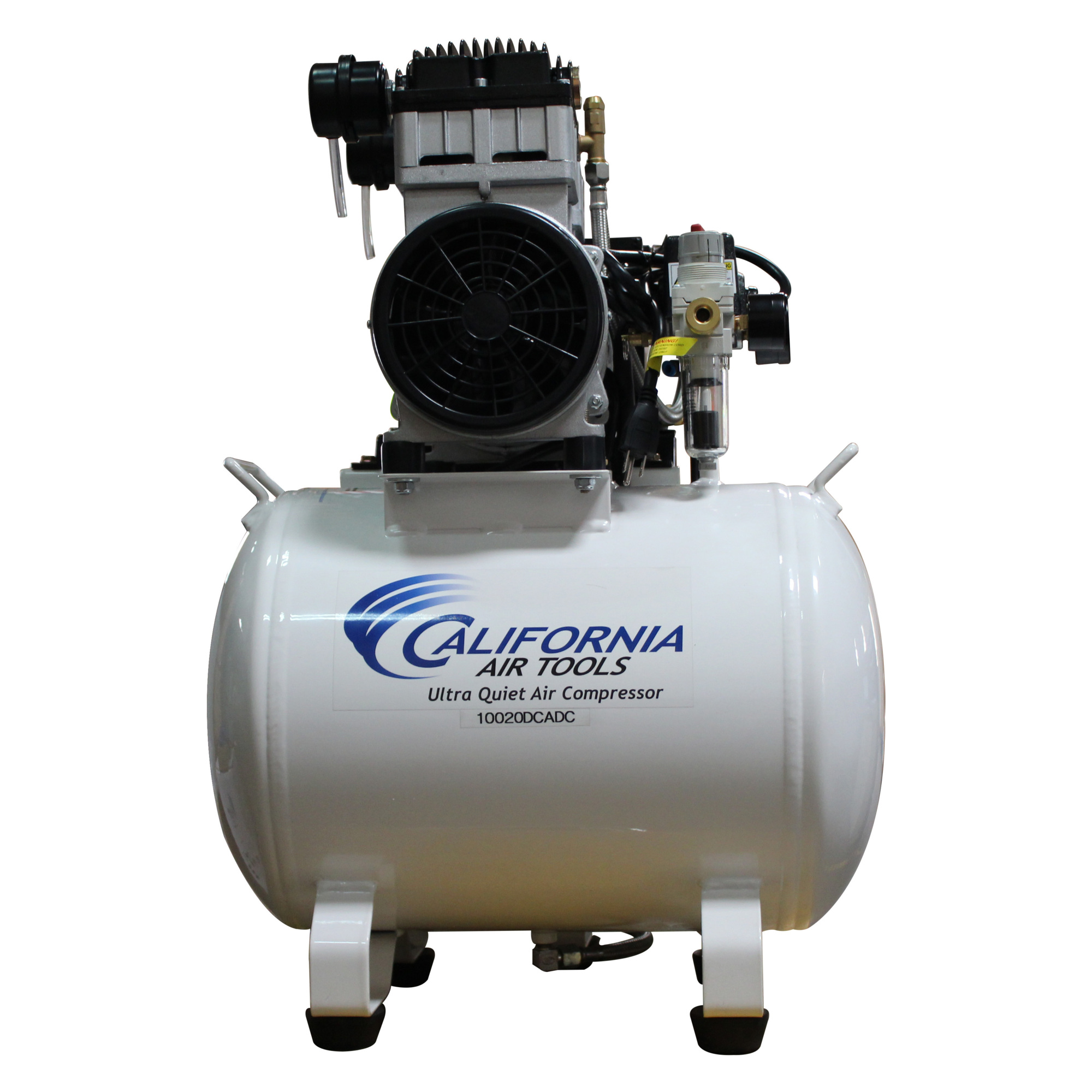

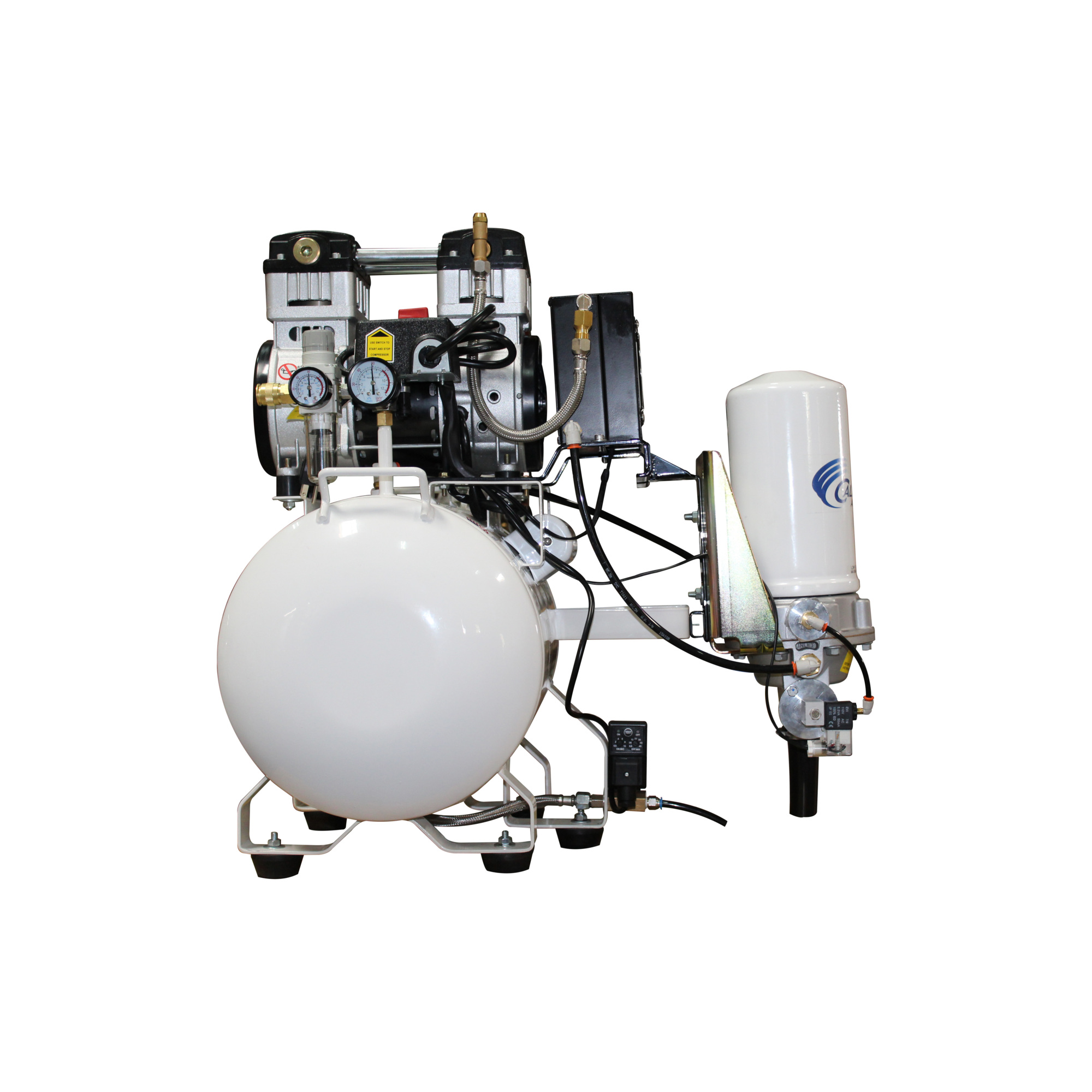

California Air Tools 10020HDCADC-22060 Ultra Quiet & Oil-Free 2.0 Hp, 10.0 Gal. Steel Tank Air Compressor Air Drying System 220v 60hz

Item# 7342142
New
California Air Tools 10020HDCADC-22060 Ultra Quiet & Oil-Free 2.0 Hp, 10.0 Gal. Steel Tank Air Compressor Air Drying System 220v 60hz

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools 10020HDCADC-22060 Ultra Quiet & Oil-Free 2.0 Hp, 10.0 Gal. Steel Tank Air Compressor Air Drying System 220v 60hz

Click or Tap image to Zoom

$2127.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet only 70 Decibels
  • Ultra Quiet only 70 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 10.0 Gallon Steel Tank - 100 lbs
  • Air Dyer & Aftercooler for 98% dry air delivery

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The California Air Tools 10020HDCADC-22060 Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound. The Powerful 2.0 HP motor(220 volts 60 hertz) operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-10020HDCADC-22060 Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and eliminates oil from being in the air. The large 10 Gallon Horizontal Steel Air Tank is just the right size to fit under a bench, desk or cabinet. The Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery performance range (-20ft. F. to -51ft. F.)Air Quality: ISO 8573 - Class 2.3.1.To dry the air from the air compressor an Aftercooler and Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air. This cartridge dryer has a life of 2-years before replacement. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. Designed for the person looking for Power, Dry Air,  Air Flow and Less Service with at Least 30% Less Noise!

What's Included

    (1) Air Compressor

Features + Benefits

  • Ultra Quiet only 70 Decibels
  • Ultra Quiet only 70 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 10.0 Gallon Steel Tank - 100 lbs
  • Air Dyer & Aftercooler for 98% dry air delivery
  • 6.40 CFM @ 40 PSI
  • 5.30 CFM @ 90 PSI
  • Maximum Pressure - 125 PSI
  • Two Pressure Control Gauges
  • One 1/4" Universal Quick Connectors
  • Low amp draw - 7.0 Amps - 220 Volts 60 Hertz
  • Thermal Overload Protector
  • Less time to fill the tank - Only 120 Seconds
  • Low Vibration - Motor Speed of 1680 RPMS
  • Less Heat - Dissipates heat more efficiently
  • Extra Large Dual Piston Pump for increased Compression
  • Extra Long Pump Life of over 3000 Hours
  • Oil-Free pump allows you to use in different temperatures & terrains
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

7342142

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

166.0 LB

Air Tank Size

10 Gal

Volts

220

CFM at 90 PSI

5.3

Tank Orientation

Vertical

Horsepower

2 HP

Max. PSI

125

Air Outlets (qty.)

1

Amps

7

Motor RPM

1,680

Working Pressure

95-125 PSI

Engine Start Type

Electric

Pump Material

Steel
AttributeSpecification

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.4

Noise Level

70 dB

Oil Required

No

Low Oil Shutdown

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Air Dryer

Integral

Drain Type

Automatic

Engine Model

SP-9421-22060

Product Weight

100.0000 lb

Dimensions L x W x H (in.)

20.0 x 28.0 x 26.0 in
