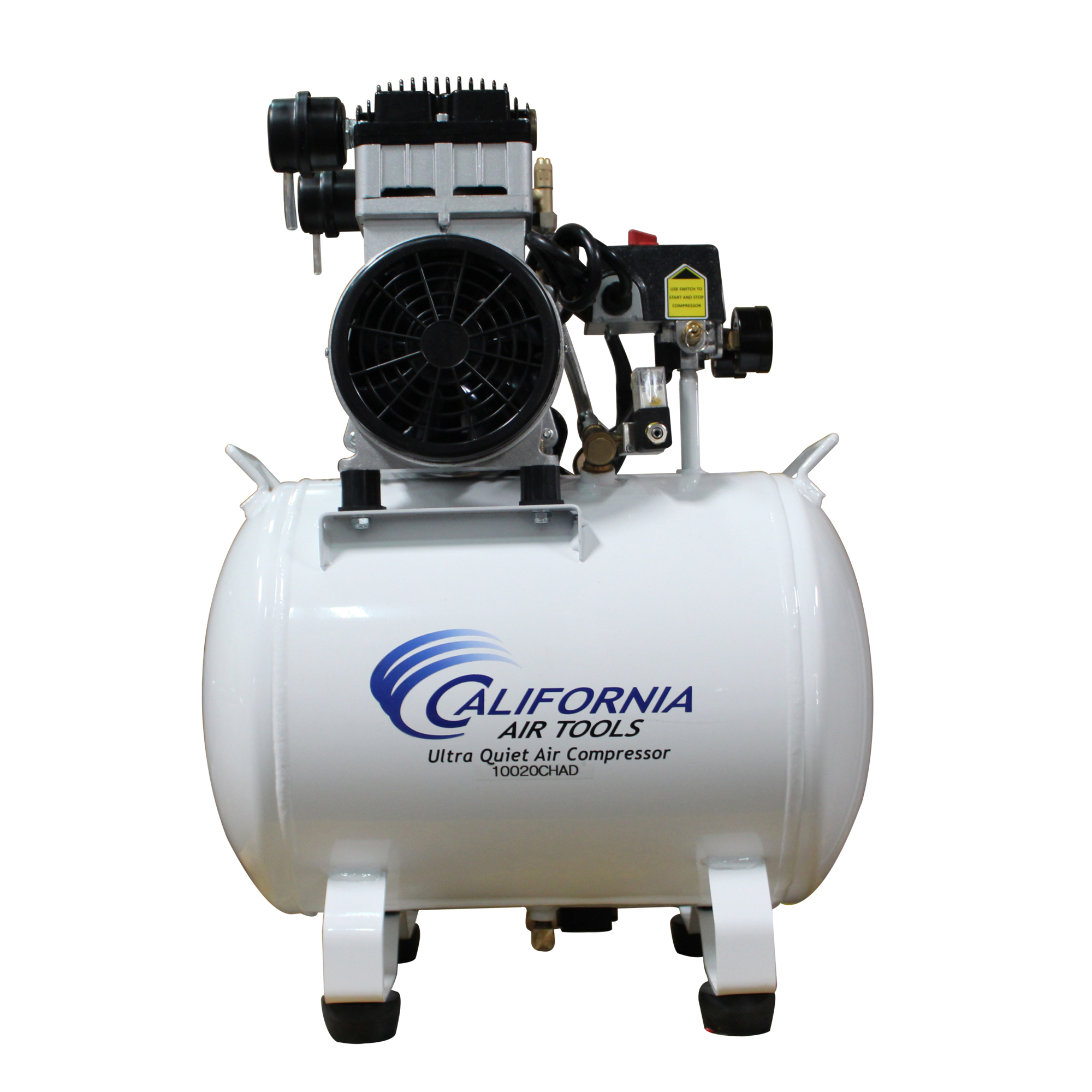

California Air Tools 10020CHAD-22060 Ultra Quiet & Oil-Free 2.0 Hp, 10.0 Gal. Steel Tank Air Compressor with Auto Drain Valve (220v 60hz)

Item# 7353108
California Air Tools 10020CHAD-22060 Ultra Quiet & Oil-Free 2.0 Hp, 10.0 Gal. Steel Tank Air Compressor with Auto Drain Valve (220v 60hz)

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools 10020CHAD-22060 Ultra Quiet & Oil-Free 2.0 Hp, 10.0 Gal. Steel Tank Air Compressor with Auto Drain Valve (220v 60hz)

Click or Tap image to Zoom

$565.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ultra Quiet only 70 Decibels
  • Ultra Quiet only 70 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 10.0 Gallon Steel Tank
  • Portable and easy to store - 82.75 lbs

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The California Air Tools 10020CHAD-22060 Ultra Quiet Oil-Free Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound. The Powerful 2.0 HP motor (220v 60hz) operates at only 1680 RPM creating less noise and less wear. SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-10020CHAD-22060 Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures. The large low profile 10 Gallon Steel Horizontal Air Tank makes storing under a bench, desk or shelf very easy. The factory installed California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. The 10020CHAD-22060 is designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!

What's Included

    (1) Air Compressor

Features + Benefits

  • Ultra Quiet only 70 Decibels
  • Ultra Quiet only 70 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 10.0 Gallon Steel Tank
  • Portable and easy to store - 82.75 lbs

Key Specs

AttributeSpecification

item#

7353108

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

78.0 LB

Air Tank Size

10 Gal

Volts

220

CFM at 90 PSI

5.3

Tank Orientation

Horizontal

Horsepower

2 HP

Max. PSI

125

Air Outlets (qty.)

1

Amps

7.5

Motor RPM

1,680

Working Pressure

95-125 PSI

Engine Start Type

Electric

Pump Material

Steel
AttributeSpecification

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.4

Noise Level

70 dB

Oil Required

No

Low Oil Shutdown

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

No

Air Dryer

Integral

Drain Type

Automatic

Engine Model

SP Series Motor

Product Weight

75.0000 lb

Dimensions L x W x H (in.)

19.0 x 15.0 x 26.5 in
