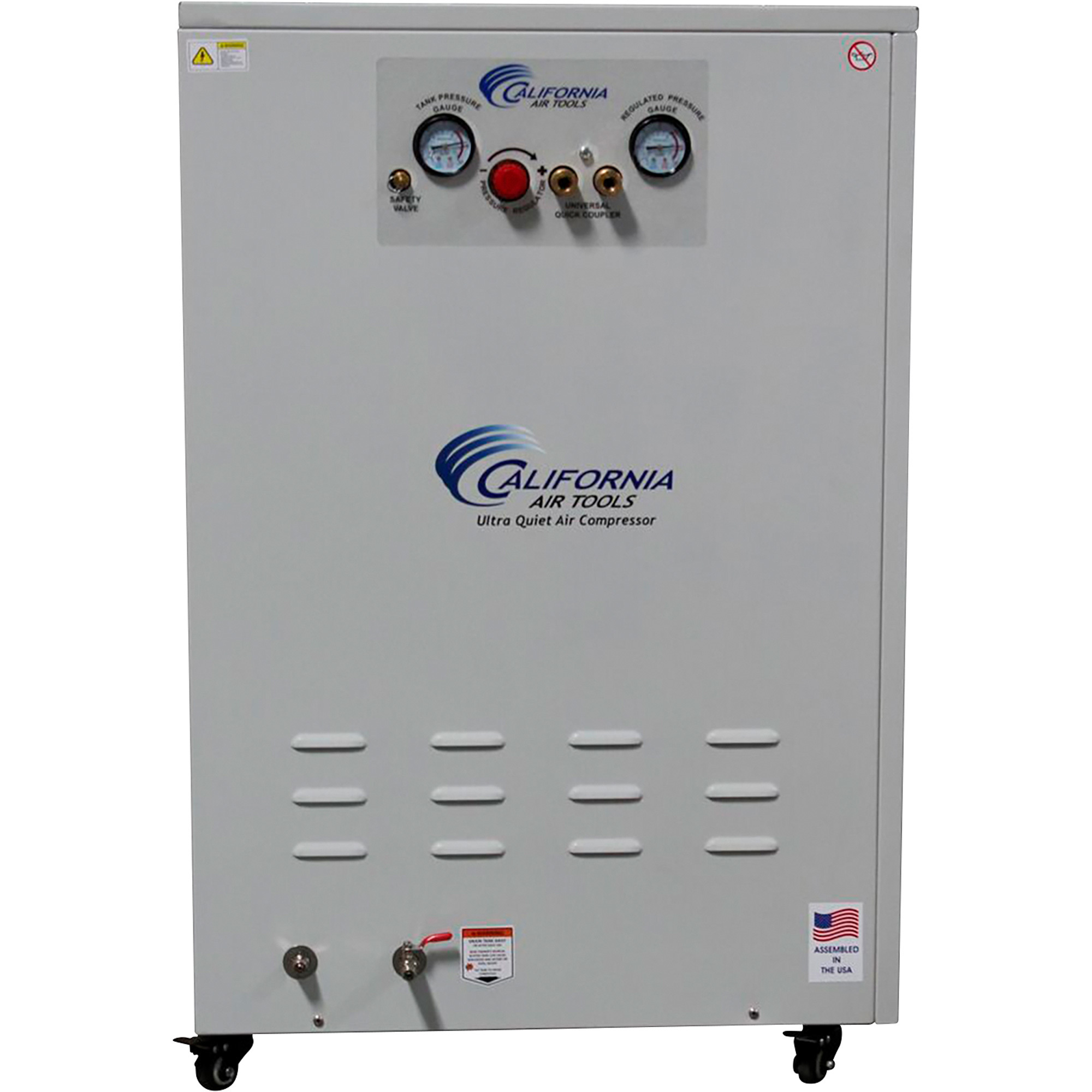

California Air Tools 10-Gallon Air Compressor, 2 HP, 15 Amp, Model# 10020DSPCAD

Item# 114872
California Air Tools 10-Gallon Air Compressor, 2 HP, 15 Amp, Model# 10020DSPCAD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools 10-Gallon Air Compressor, 2 HP, 15 Amp, Model# 10020DSPCAD

Click or Tap image to Zoom

$2815.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Thermal overload protector
  • Low vibration
  • Motor speed of 1680 RPMS with minimal heat
  • Dissipates heat efficiently
  • Extra-large dual piston pump for increased compression

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

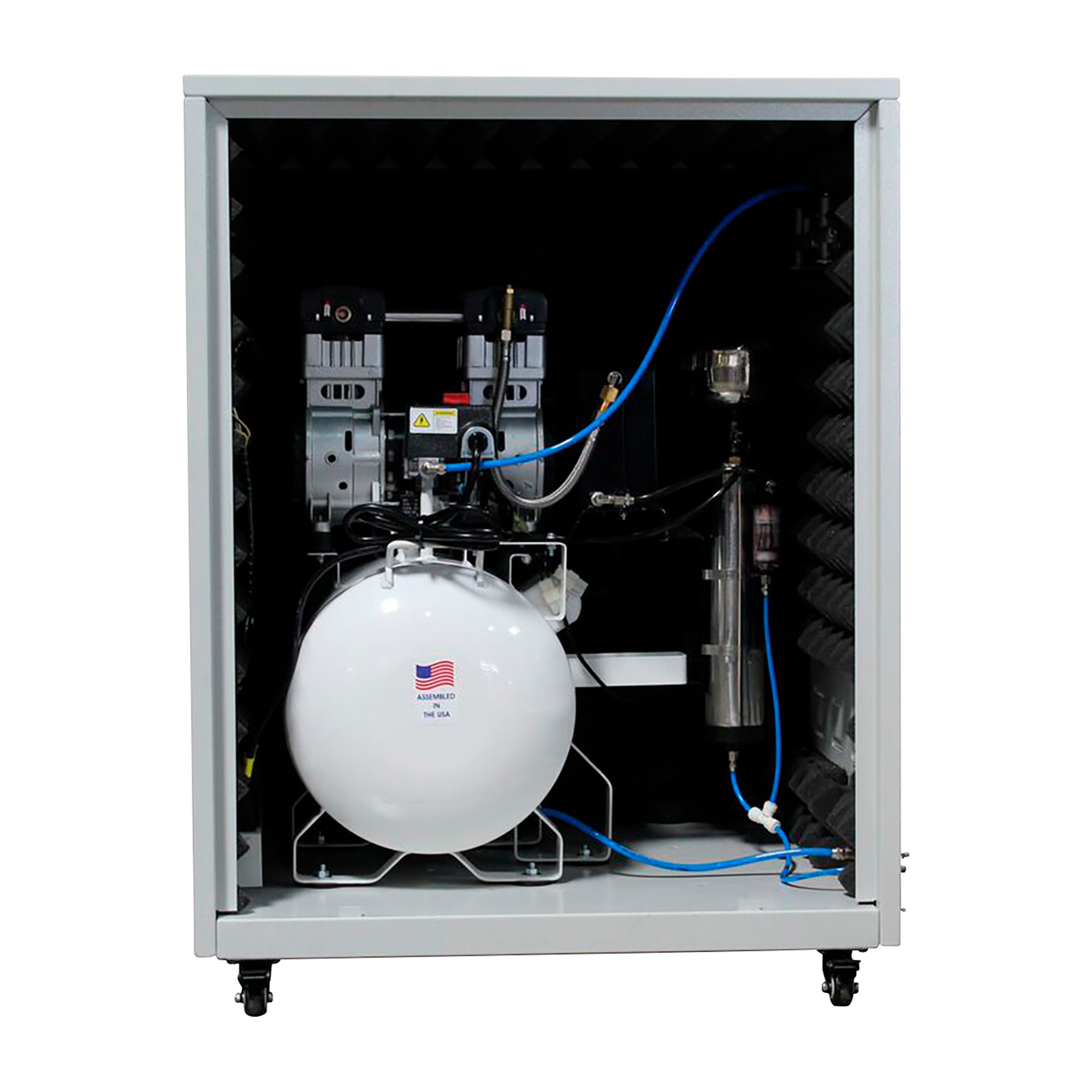

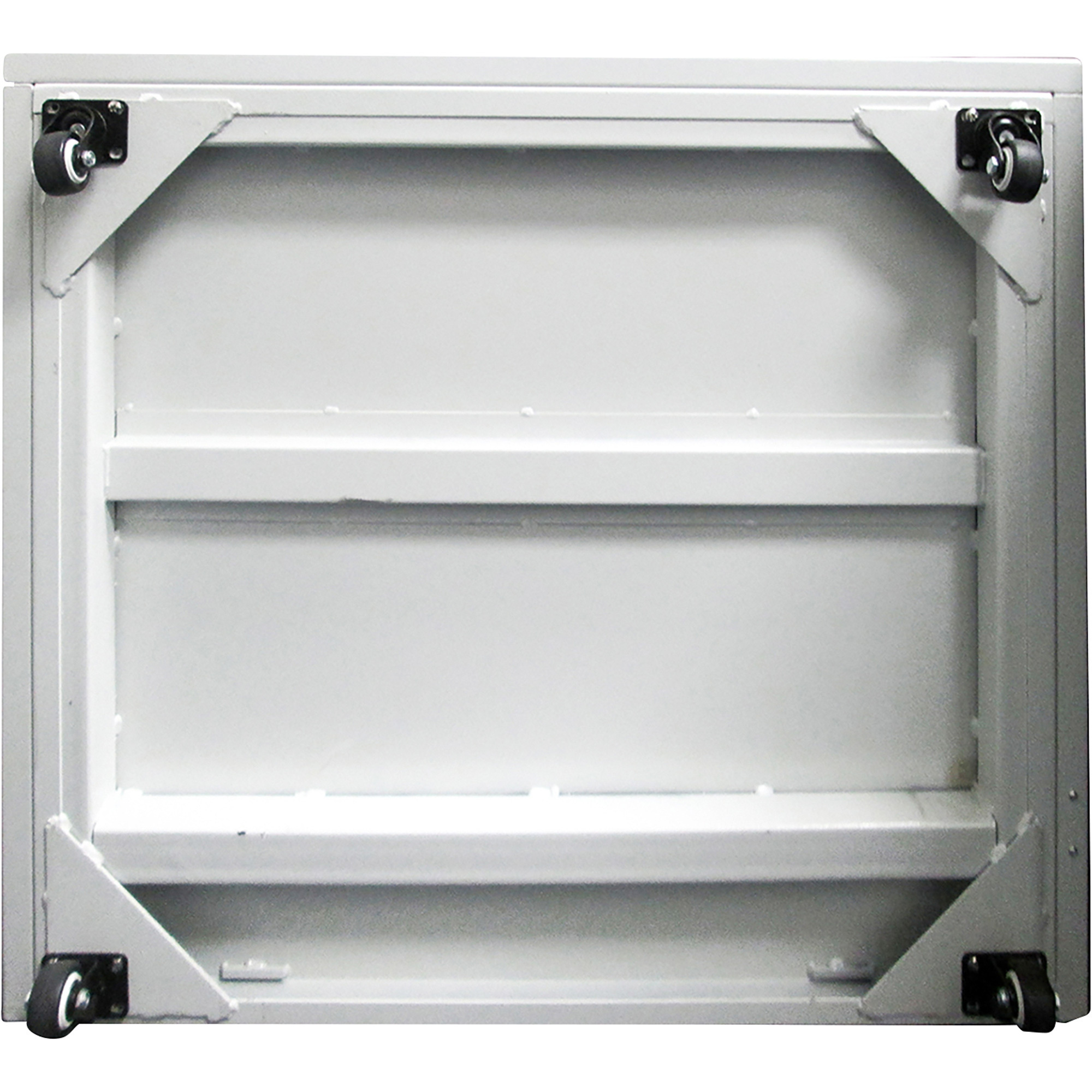

The California Air Tools 10-Gallon Air Compressor operates ultra-quietly at just 58 dB and offers an extra-long life at 3000 hours of run time with a 70:30 duty cycle compared to others that fall below 500 hours at a shorter duty cycle. The oil-free pump requires minimal maintenance and cost. The 10-gallon steel tank and soundproof steel cabinet is easy to transport on swivel wheels. This unit delivers 6.40 CFM 40 PSI and 5.30 CFM 90 CFM. Maximum pressure is 150 PSI. Other features include 2 pressure gauges and a 1/4in. connector.

What's Included

    (1) 10-gallon air compressor

Downloads

Product Manual

Features + Benefits

  • Thermal overload protector
  • Low vibration
  • Motor speed of 1680 RPMS with minimal heat
  • Dissipates heat efficiently
  • Extra-large dual piston pump for increased compression
  • Extra-long pump life of over 3000 hours
  • Oil-free pump can be used in various temperatures and terrains

Key Specs

AttributeSpecification

item#

114872

Brand

California Air Tools

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

221.0 LB

Air Tank Size

10 Gal

Volts

110

CFM at 90 PSI

5.30

Motor Phase

1

Horsepower

2 HP

Max. PSI

130

Air Outlets (qty.)

1

Amps

15

Duty Cycle

0.7 %

Motor RPM

1,680

Working Pressure

90 PSI
AttributeSpecification

Pump Life

3,000 hr

Pump Material

Steel

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.40

CFM at Max. PSI

5.30

Noise Level

65 dB

Oil Required

No

Lubrication System

Other

Pressure Gauge

Yes

After Cooler Included

Yes

Tank Fill Time

3 min

Drain Type

Ball Valve

Product Weight

221.0000 lb

Dimensions L x W x H (in.)

26.0 x 33.0 x 39.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
