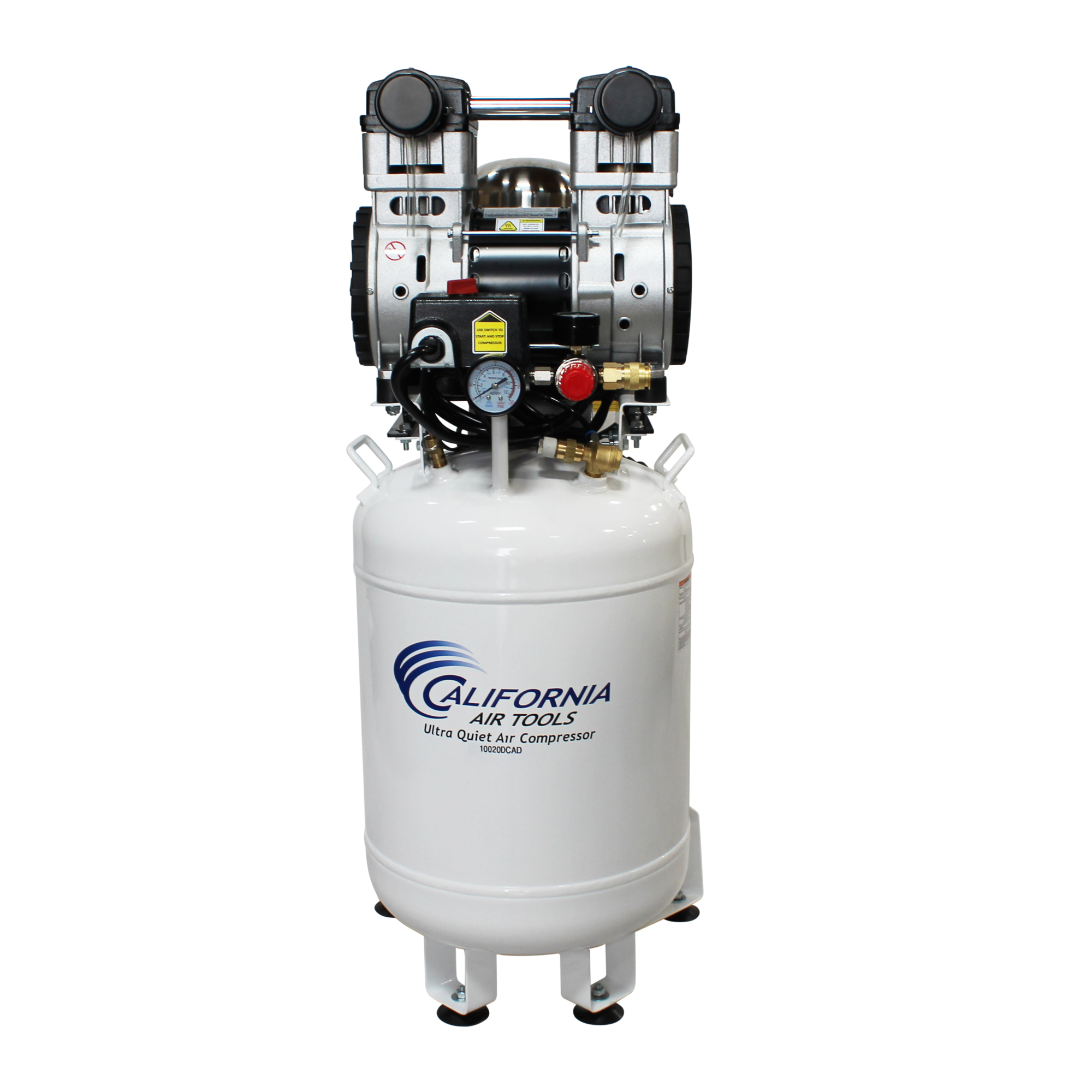

California Air Tools, 10 Gal 2 Hp Compressor Air Dryer Automatic Drain, Horsepower 2 HP, Air Tank Size 10 Gal, Volts 110 Model# 10020DCAD

Item# 6204311
California Air Tools, 10 Gal 2 Hp Compressor Air Dryer Automatic Drain, Horsepower 2 HP, Air Tank Size 10 Gal, Volts 110 Model# 10020DCAD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, 10 Gal 2 Hp Compressor Air Dryer Automatic Drain, Horsepower 2 HP, Air Tank Size 10 Gal, Volts 110 Model# 10020DCAD

Click or Tap image to Zoom

$1349.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet only 70 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 10.0 Gallon Steel Tank
  • Air Dyer & Aftercooler for dry air delivery - 92 lbs
  • Powerful 2.0 HP (Rated / Running) Motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The California Air Tools 10020DCAD Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 2 HP air compressors in the industry having only 70 dB of sound. The powerful 2 HP motor operates at only 1600 RPM creating less noise, vibration and creating less wear. The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability. The Motor/Pump is tested for a minimum pump life of 3000 hours before service, 30% more life before repair. The large 10 Gal. steel air tank is only 91 lbs. The Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery. To dry the air from the air compressor an after cooler and dryer are utilized. The after cooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue.

What's Included

    (1) Air Compressor

Features + Benefits

  • Ultra Quiet only 70 Decibels
  • Oil-Free Pump for Less Maintenance & Costs
  • 10.0 Gallon Steel Tank
  • Air Dyer & Aftercooler for dry air delivery - 92 lbs
  • Powerful 2.0 HP (Rated / Running) Motor
  • 6.40 CFM @ 40 PSI
  • 5.30 CFM @ 90 PSI
  • Maximum Pressure - 125 PSI
  • Two Pressure Control Gauges
  • Two 1/4" Universal Quick Connectors
  • Low amp draw - 15 Amps - 110 Volts 60 Hertz
  • Thermal Overload Protector
  • Less time to fill the tank - Only 130 Seconds
  • Low Vibration - Motor Speed of 1680 RPMS
  • Less Heat - Dissipates heat more efficiently
  • Extra Large Dual Piston Pump for increased Compression
  • Extra Long Pump Life of over 3000 Hours
  • Oil-Free pump allows you to use in different temperatures & terrains
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6204311

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

130.0 LB

Air Tank Size

10 Gal
AttributeSpecification

Volts

110

Horsepower

2 HP

Product Weight

92.0000 lb

Dimensions L x W x H (in.)

16.0 x 23.0 x 35.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
