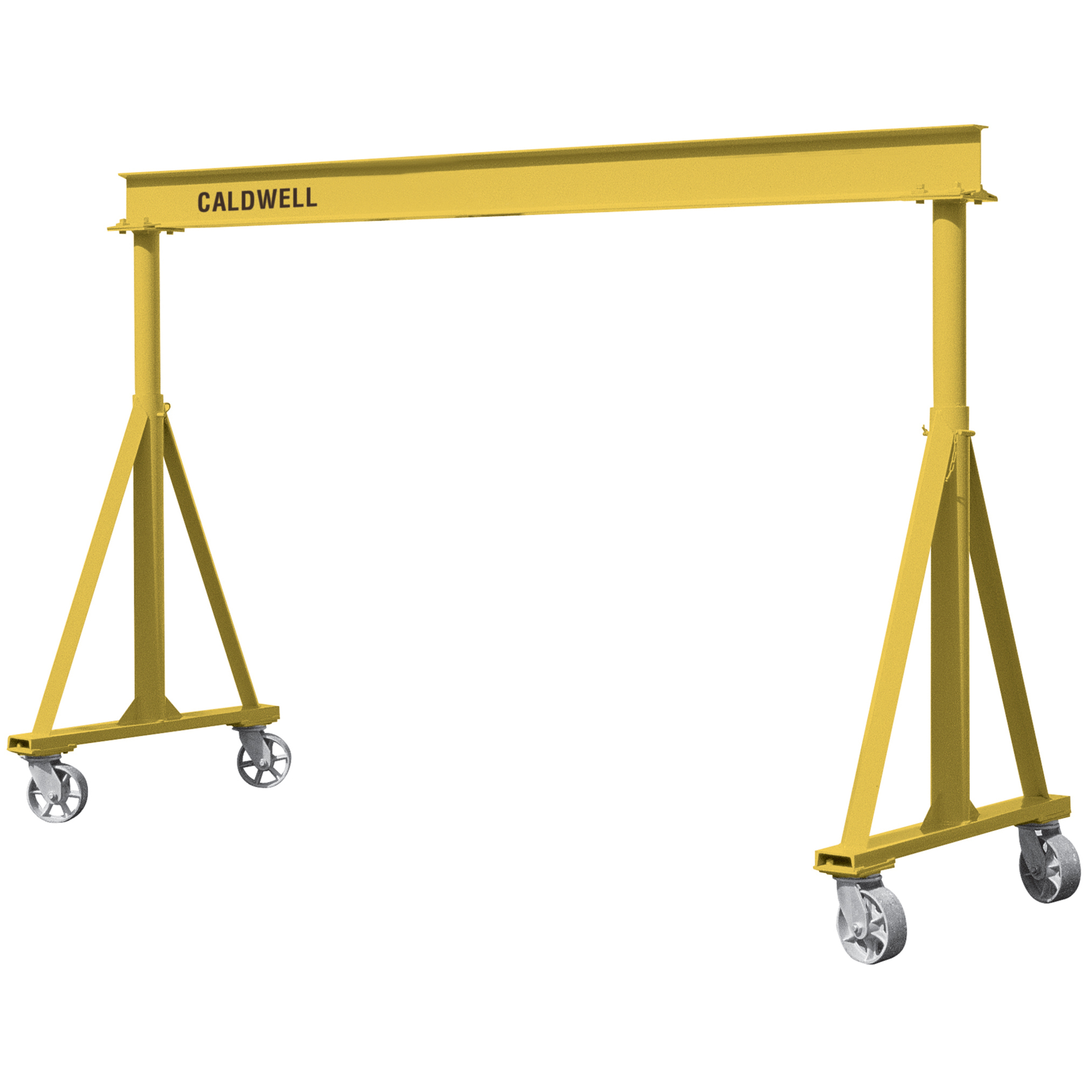

Caldwell, Fixed Height Gantry Crane, Material Steel, Load Capacity 16000 lb, I-Beam Length 258 in, Model# H90-8-14/20

Item# 4362797
Caldwell, Fixed Height Gantry Crane, Material Steel, Load Capacity 16000 lb, I-Beam Length 258 in, Model# H90-8-14/20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Caldwell, Fixed Height Gantry Crane, Material Steel, Load Capacity 16000 lb, I-Beam Length 258 in, Model# H90-8-14/20

Click or Tap image to Zoom

$17,679.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Adjustable span standard on 10'-16' spans through 5 tons
  • Bolted connections on spans of 20'-24' and all 8 ton units.
  • Heavy duty supported leg design.
  • Balanced design allows for easy rolling, even under load.
  • Conforms to AISC, OSHA and CMAA specifications.

See full description

Complete Your Solution

  • Caldwell, Fixed Height Gantry Crane, Material Steel, Load Capacity 16000 lb, I-Beam Length 258 in, Model# H90-8-14/20
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • OZ Lifting Products Manual Plain Trolley, 10-Ton Capacity, 12in. Rod, 4.95-12in. Flange Width, Model# OZ10PBT
  • OZ Lifting Products Premium Manual Chain Hoist,10-Ton Capacity, 15ft. Lift, Model# OZ100-15CHOP
Price for all four:

$20,313.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Gantry Cranes - Easily moves to where you need to pick-up, transport or rotate a load. Roll it inside or out. Can be utilized where a smooth and level floor is available. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) I-Beam (2) Uprights (4) steel swivel casters (24) bolts

Features + Benefits

  • Adjustable span standard on 10'-16' spans through 5 tons
  • Bolted connections on spans of 20'-24' and all 8 ton units.
  • Heavy duty supported leg design.
  • Balanced design allows for easy rolling, even under load.
  • Conforms to AISC, OSHA and CMAA specifications.
  • Simple bolt together construction.
  • Easy setup and maintenance.
  • 4 - steel swivel casters standard.
  • Assembly instructions provided.

Key Specs

AttributeSpecification

item#

4362797

Brand

Caldwell

Manufacturer's Warranty

2 year limited warranty

Ship Weight

3655.0 LB
AttributeSpecification

Flange Width

7.12 in

Product Weight

3225.0000 lb

Dimensions L x W x H (in.)

258.0 x 90.0 x 184.43 in

Reviews

Questions & Answers

Questions

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

2 year limited warranty
