Calcium Chloride Liquid Transfer Pump

Item# 7483092
New
Calcium Chloride Liquid Transfer Pump

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Calcium Chloride Liquid Transfer Pump

Click or Tap image to Zoom

$1714.95

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Technical Specification Air Exhaust Port Size (in) 3/4 Air Exhaust Port Thread Gender Female Air Exhaust Port Thread Type NPT Air Inlet Size (in) 1/2 Air Inlet Thread Gender Female Air Inlet Thread Type NPT Application Industrial Ball Material Geolast® Center Section Material Aluminum Compatible Material Calcium Chloride, Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer Connection Type Threaded Diaphragm Compatible Material Geolast® Diaphragm Material Geolast® Fluid Inlet Size (in) 1 Fluid Inlet Thread Gender Female Fluid Inlet Thread Type NPT Fluid Outlet Size (in) 1 Fluid Outlet Thread Gender Female Fluid Outlet Thread Type NPT Fluid Section Material Aluminum Manifold Configuration Center Port, End Port Manifold O-Ring Material PTFE Material Aluminum Maximum Air Consumption (SCFM) 67 Maximum Air Pressure (MPa) 0.86 Maximum Air Pressure (psi) 125 Maximum Cycle Rate (CPM) 280 Maximum Flow Rate (GPM) 50 Maximum Fluid Pressure (MPa) 0.86 Maximum Fluid Pressure (psi) 125 Maximum Operating Temperature (°F) 150 Maximum Solid Size (in) 0.125 Overall Height (in) 15.9 Power Source Air Seat Material Geolast® Standards Met ATEX, CE Type Pneumatic Diaphragm Pump

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

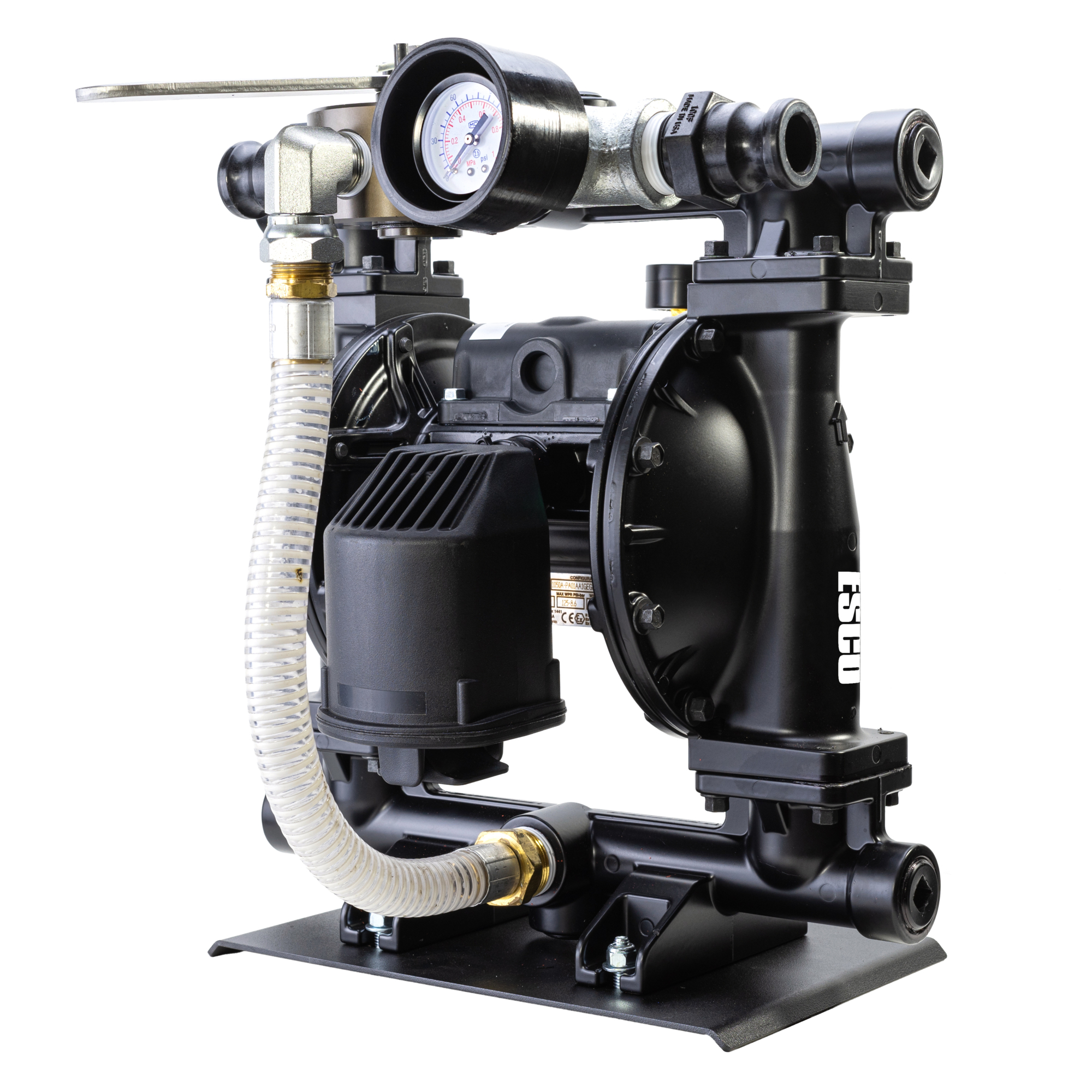

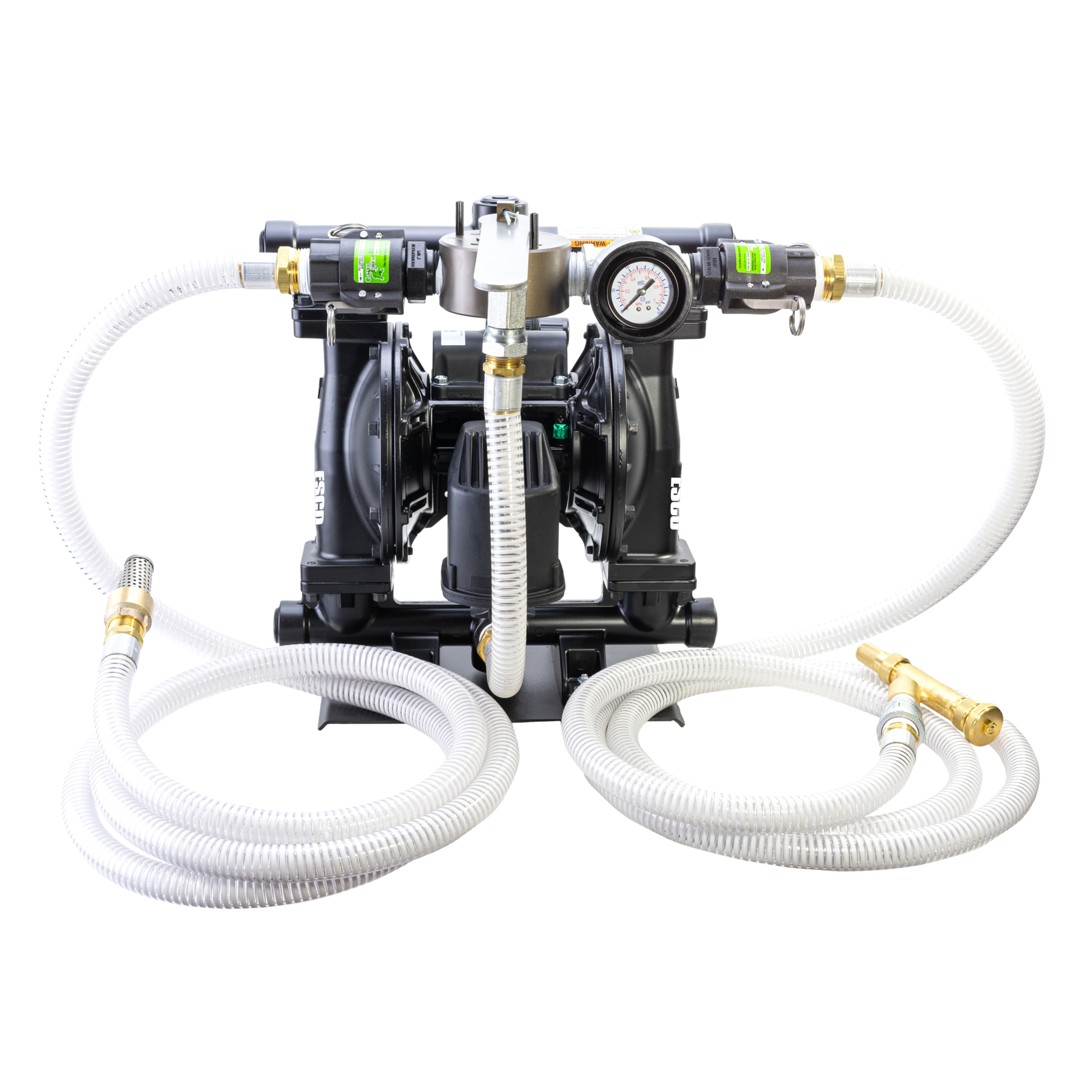

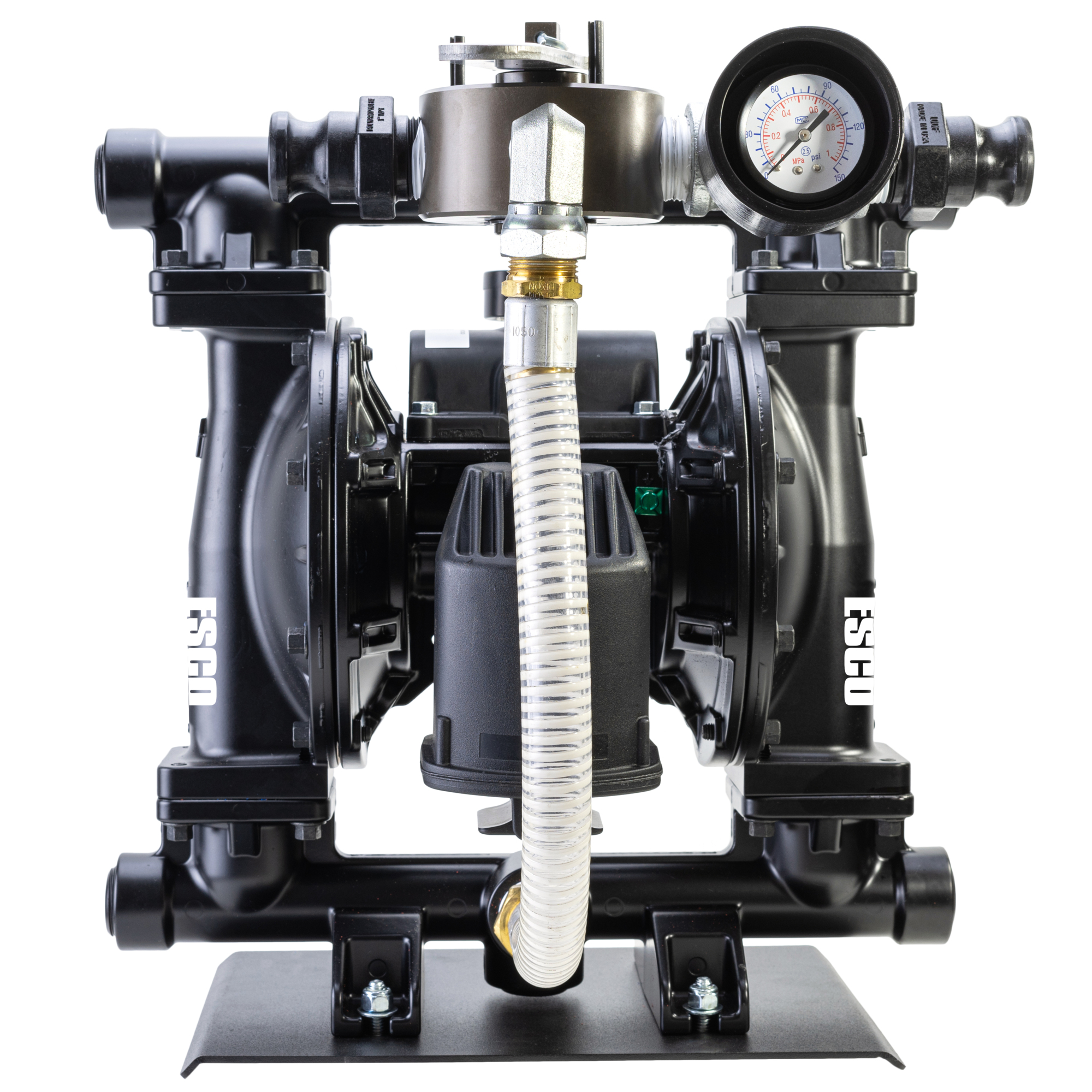

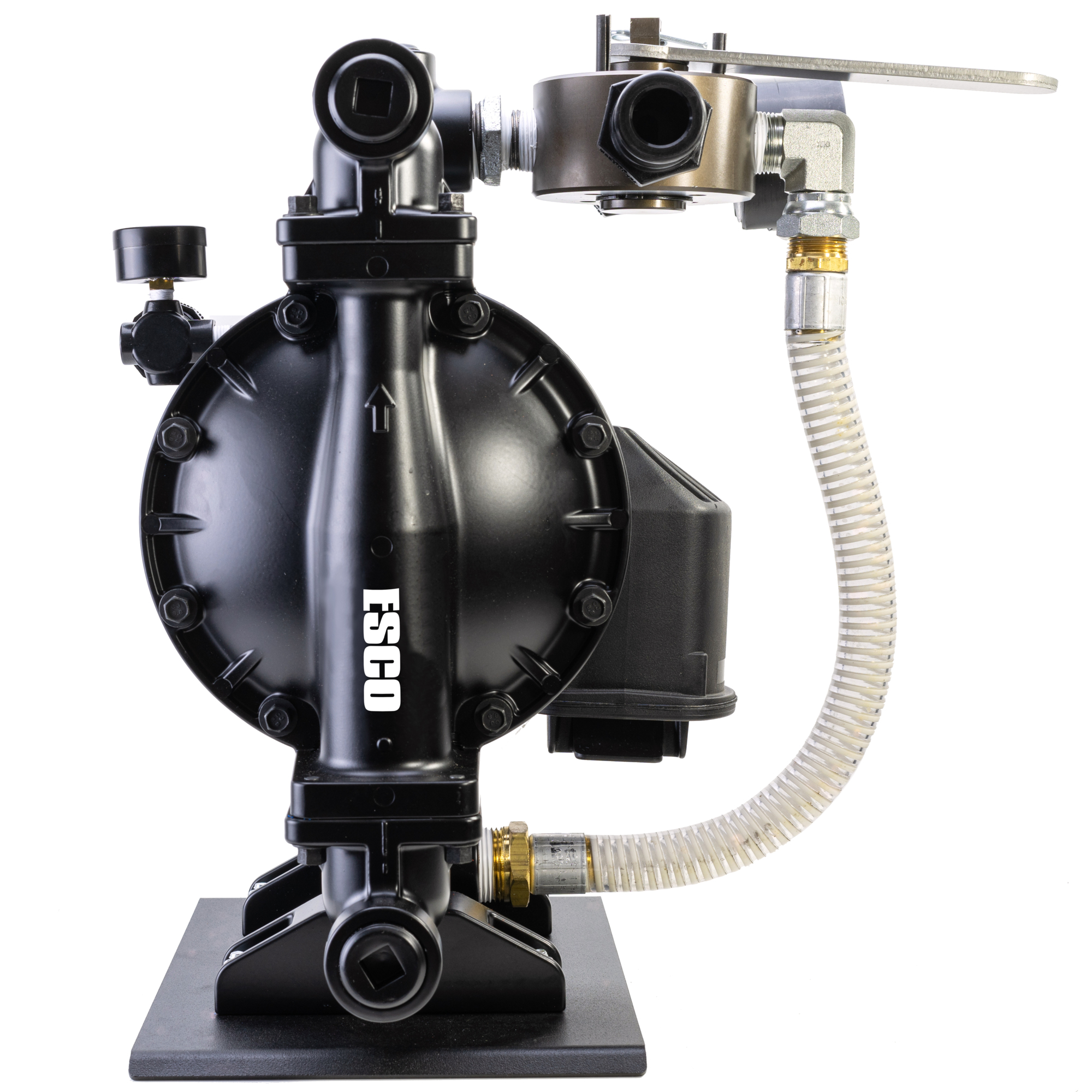

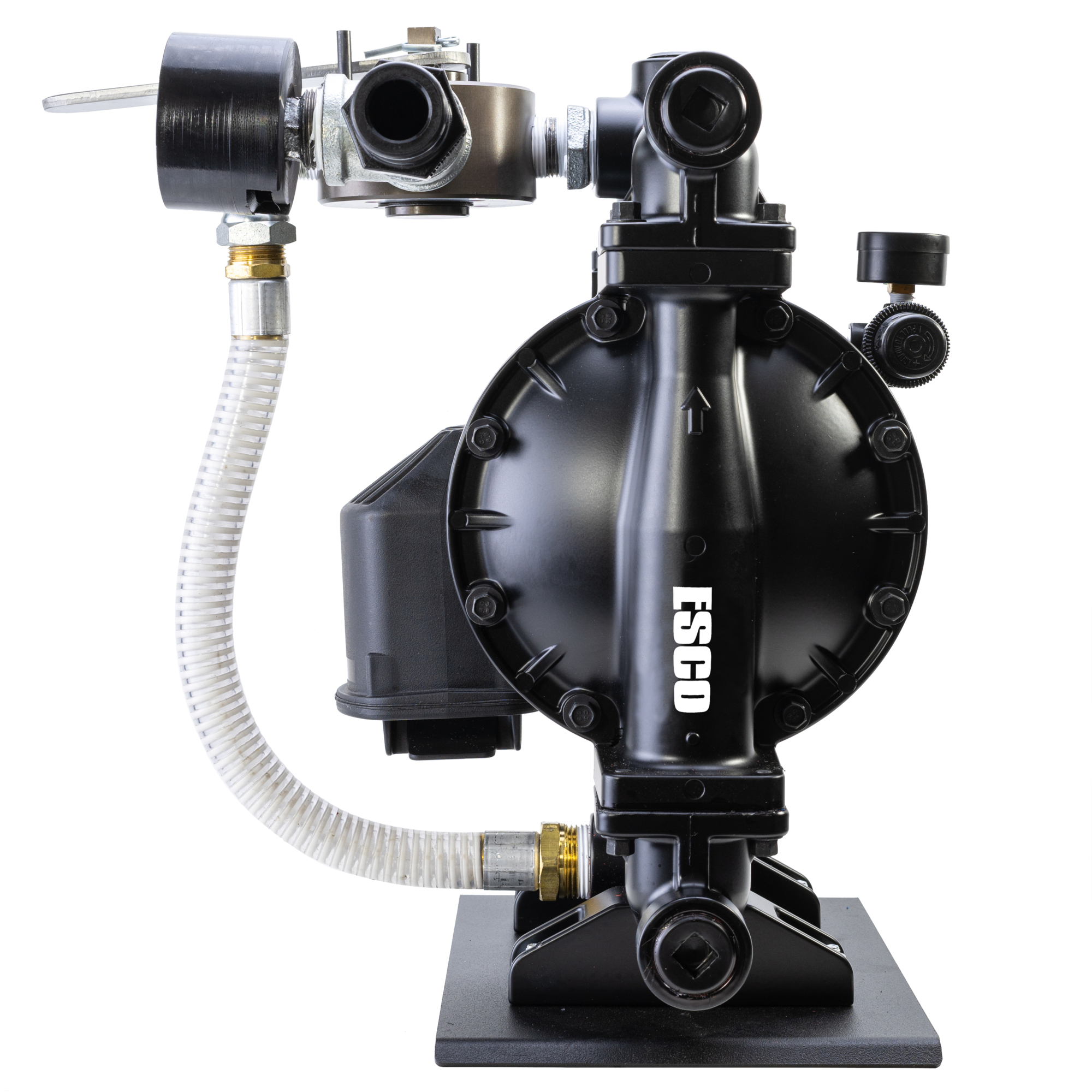

CALCIUM CHLORIDE LIQUID TRANSFER PUMP Model #10543 The ESCO Calcium Chloride Liquid Transfer Pump is designed to transfer up to 50 gallons per minute transferring fluid from one container to another quickly and easily. Works with multiple fluid applications including calcium chloride, water, methanol, oil, anti-freeze, coolants, tire liquids, and more. The design and functionality of the Model 10543 is specifically designed for transferring calcium chloride or other mediums into tire/wheel assemblies to aid in creating ballast with the tire/wheel. Fully assembled and ready to use out of the box, this kit includes two 10ft. hoses, a liquid ejector gun, quick safety-connection “cam-locks”, 4-way metal control valve, and air regulator. Portable and mountable liquid transfer pump designed to be used for transferring calcium chloride or other mediums into larger tire/wheel assemblies to help support ballast in the tire/wheel. Heavy-Duty Lightweight construction – ideal for commercial use. Fast Reliable transfer of calcium chloride or other mediums – transfer up to 50 gallons per minute* NEW Easy to use safety-secure quick connection “Cam-Lock” couplers on the hose ends for better transport, storage, and cleaning of hoses and unit – Extends the life of the hoses, pump, and accessories 1in. hose intake Pump 1 to 1 ratio – designed to provide optimal output for evacuating and transferring liquids. Fluid inlet and outlet ports 1in. NPT *50 gallon per minute rating based on liquid transfer pump without any plumbing, hoses, or other restricting external parts or adapters.

What's Included

    (1) 1

Features + Benefits

  • Technical Specification Air Exhaust Port Size (in) 3/4 Air Exhaust Port Thread Gender Female Air Exhaust Port Thread Type NPT Air Inlet Size (in) 1/2 Air Inlet Thread Gender Female Air Inlet Thread Type NPT Application Industrial Ball Material Geolast® Center Section Material Aluminum Compatible Material Calcium Chloride, Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer Connection Type Threaded Diaphragm Compatible Material Geolast® Diaphragm Material Geolast® Fluid Inlet Size (in) 1 Fluid Inlet Thread Gender Female Fluid Inlet Thread Type NPT Fluid Outlet Size (in) 1 Fluid Outlet Thread Gender Female Fluid Outlet Thread Type NPT Fluid Section Material Aluminum Manifold Configuration Center Port, End Port Manifold O-Ring Material PTFE Material Aluminum Maximum Air Consumption (SCFM) 67 Maximum Air Pressure (MPa) 0.86 Maximum Air Pressure (psi) 125 Maximum Cycle Rate (CPM) 280 Maximum Flow Rate (GPM) 50 Maximum Fluid Pressure (MPa) 0.86 Maximum Fluid Pressure (psi) 125 Maximum Operating Temperature (°F) 150 Maximum Solid Size (in) 0.125 Overall Height (in) 15.9 Power Source Air Seat Material Geolast® Standards Met ATEX, CE Type Pneumatic Diaphragm Pump

Key Specs

AttributeSpecification

item#

7483092

Brand

ESCO

Manufacturer's Warranty

1 year limited warranty

Ship Weight

40.0 LB

Flow

50 GPM

Inlet Port

1 in

Outlet Port

1 in
AttributeSpecification

Operating PSI

120 PSI

Max. PSI

120

Pump Housing Material

Polycarbonate

Pump Tube Diameter

1 in

Compatible Fluids

calcium chloride, water, methanol, oil, anti-freeze, coolants, tire liquids, and more.

Product Weight

40.0000 lb

Dimensions L x W x H (in.)

14.0 x 14.0 x 20.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
