This is a single acting cylinder with (1) 1/4'' NPT port.
Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304200
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$159.99

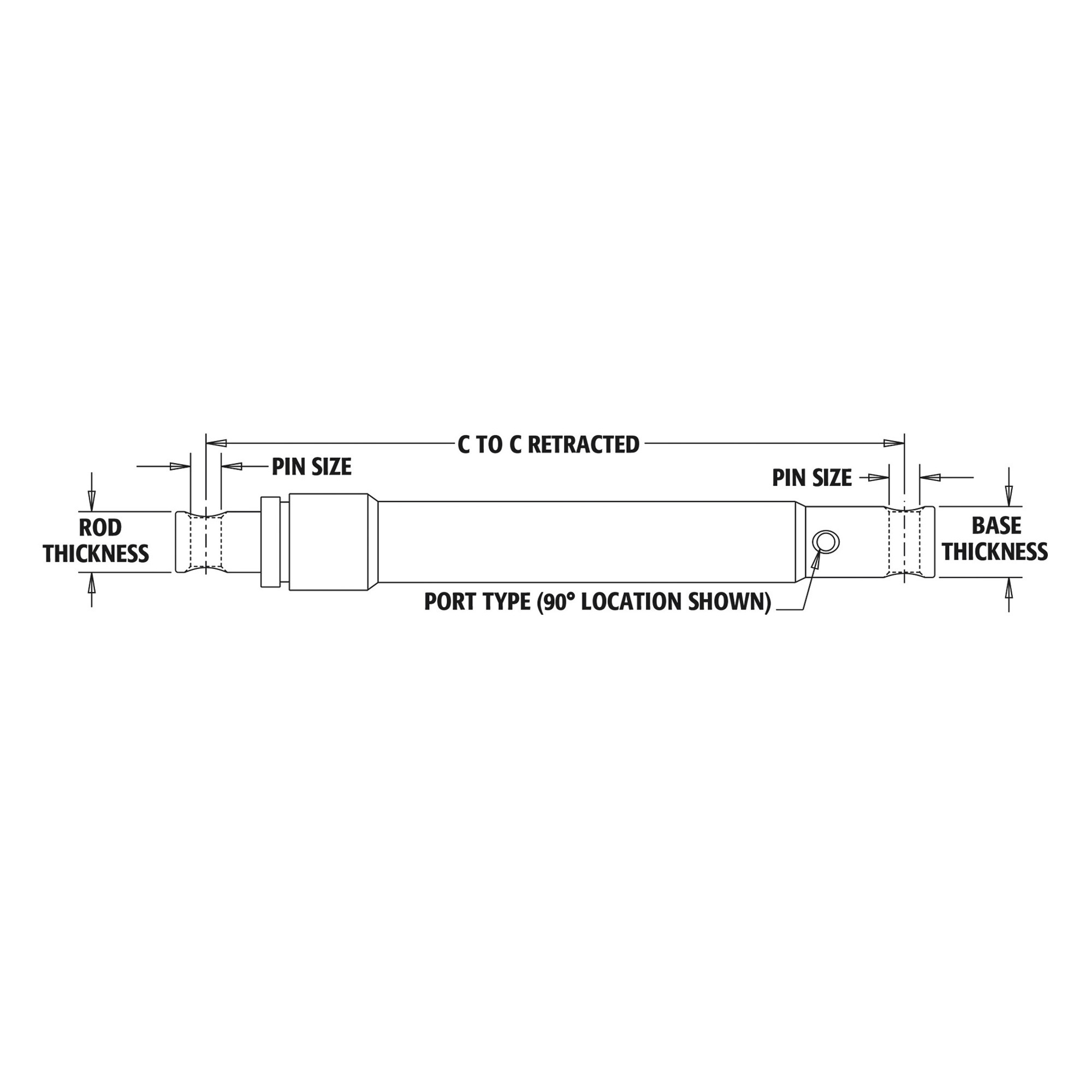

- OEM part# 25209
- Center to Center retracted distance: 17in.
- Center to Center extended distance: 27in.
- Rod diameter thickness: 1 1/2in.
- Base diameter thickness: 1 3/4in.
See full description
See All Snowplow Hydraulic Cylinders
See All Buyers SAM Snowplow Hydraulic Cylinders
Currently Viewing This Product
Specifications
Specifications
Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 1.5 in, Stroke 10 in, Rod Diameter 1.5 in, Model# 1304200
Buyers SAM, SAM Angle and Lift Cylinders to fit Western Snow Plows, Bore Diameter 2 in, Stroke 16 in, Rod Diameter 2.25 in, Model# 1304220
Buyers Products, SAM 1-1/2 x 6in. Lift Cylinder-Replaces Western #25200 Bore Diameter 1.5 in, Stroke 6 in, Rod Diameter 1.5 in, Model# 1304210
Buyers SAM, SAM Lift and Angle Cylinders fits Meyer/Diamond Snow Plows, Bore Diameter 1.5 in, Stroke 12 in, Rod Diameter 1.5 in, Model# 1304010
Bore Diameter
Same
1.5 in
2 in
1.5 in
1.5 in
Stroke
Same
10 in
16 in
6 in
12 in
Rod Diameter
Same
1.5 in
2.25 in
1.5 in
1.5 in
Compatible With
Same
Western Plow
Western Plow
Western Plow
Meyer Plow
Extended Length
Same
27 in
39.93 in
18.93 in
30 in
Retracted Length
Same
17 in
23.25 in
13 in
18 in
Max. PSI
Same
0
0
0
0
Closed Pin Center
Same
17 in
223.93 in
12.93 in
18 in
Cylinder Action
Same
Single Acting
Single Acting
Single Acting
Single Acting
Pin Diameter
Same
1 in
1 in
0.75 in
0.62 in
Pin Length
Same
1 in
1 in
0.75 in
0.62 in
