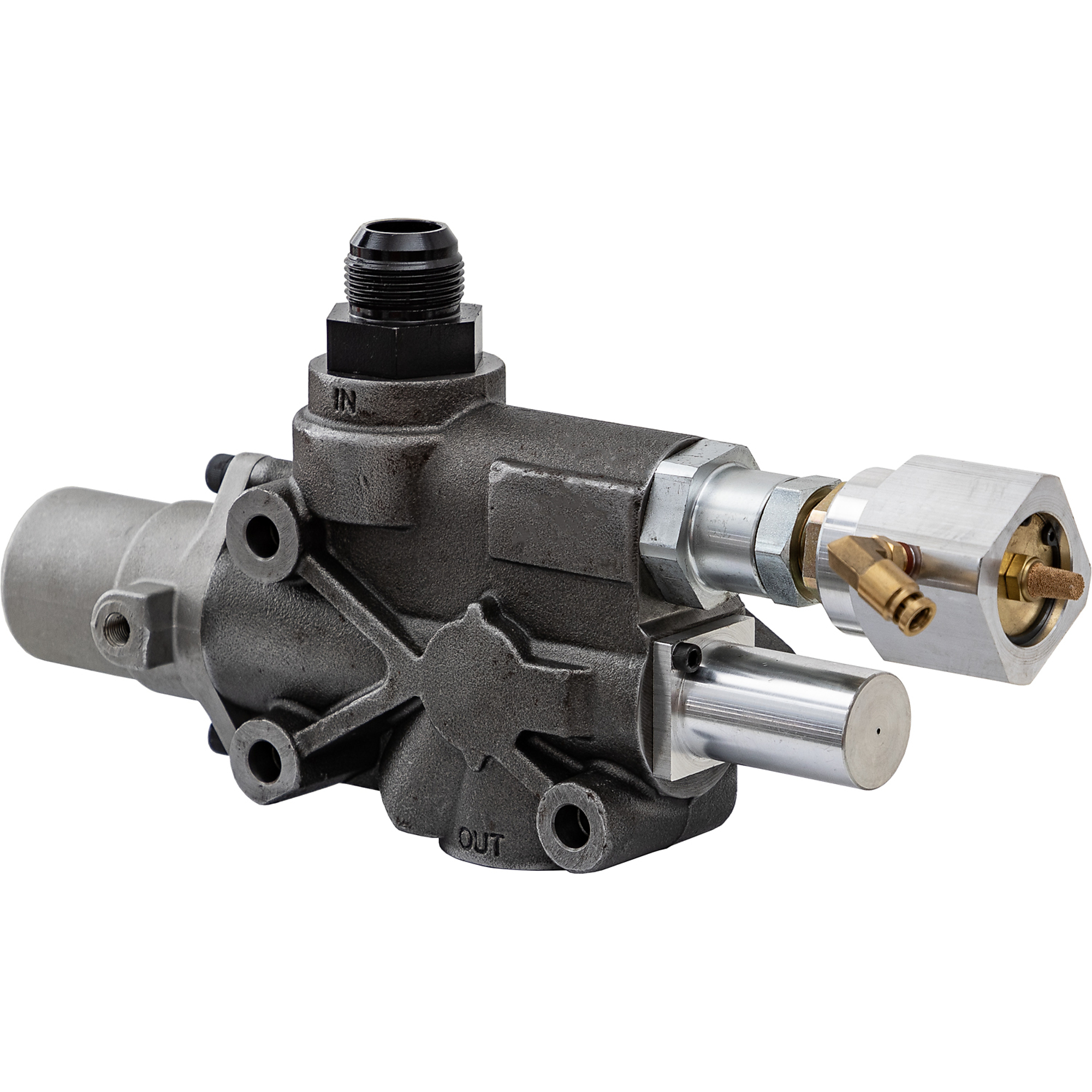

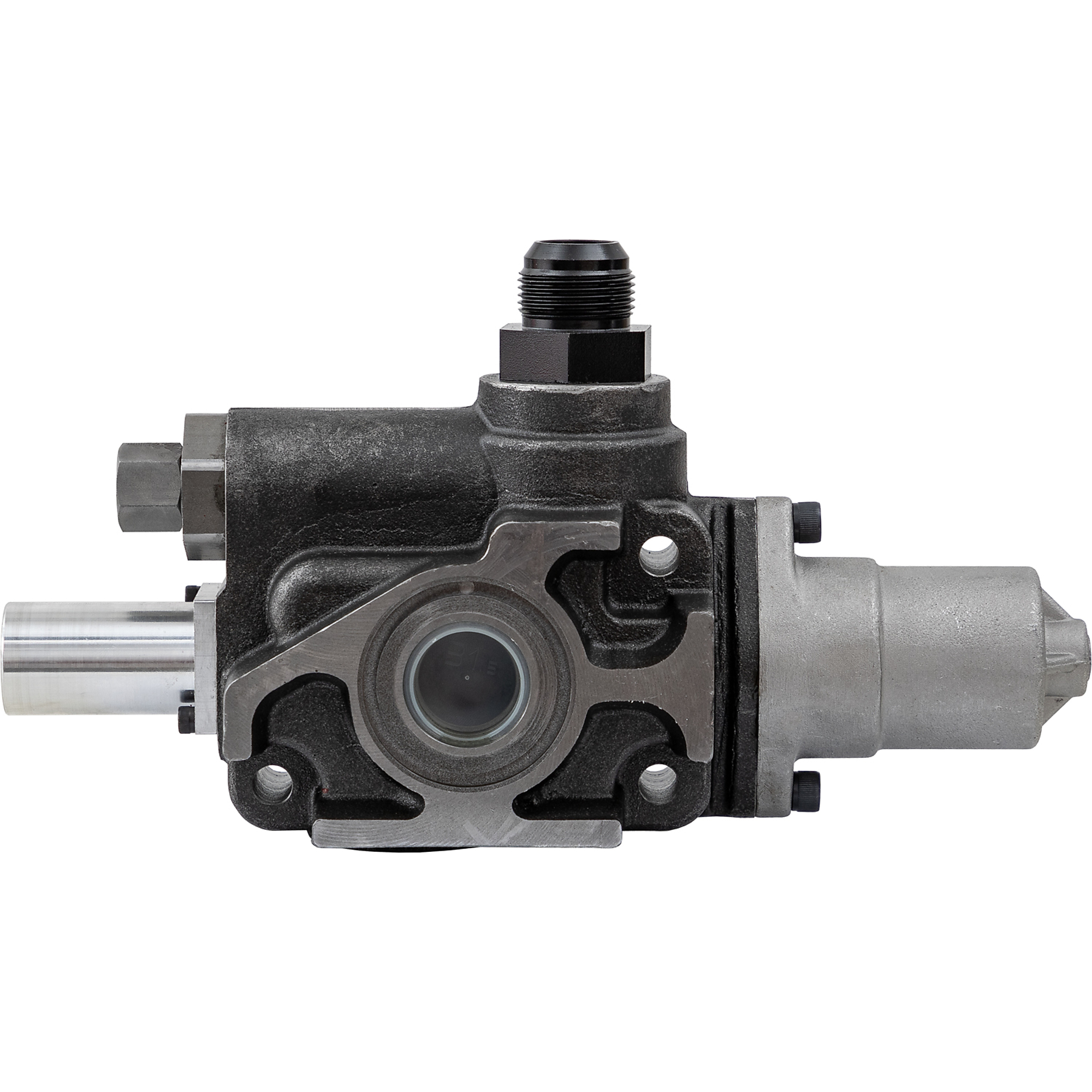

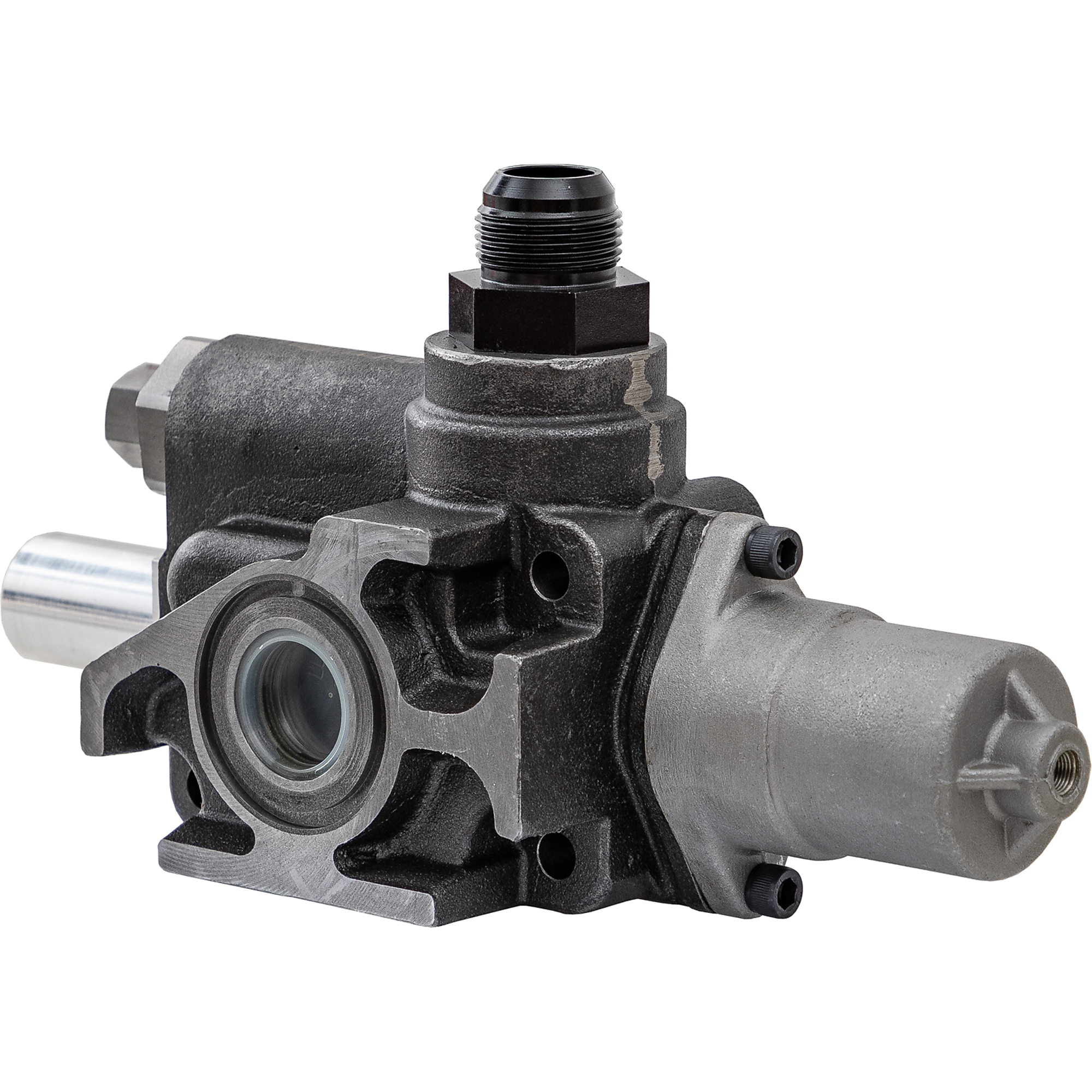

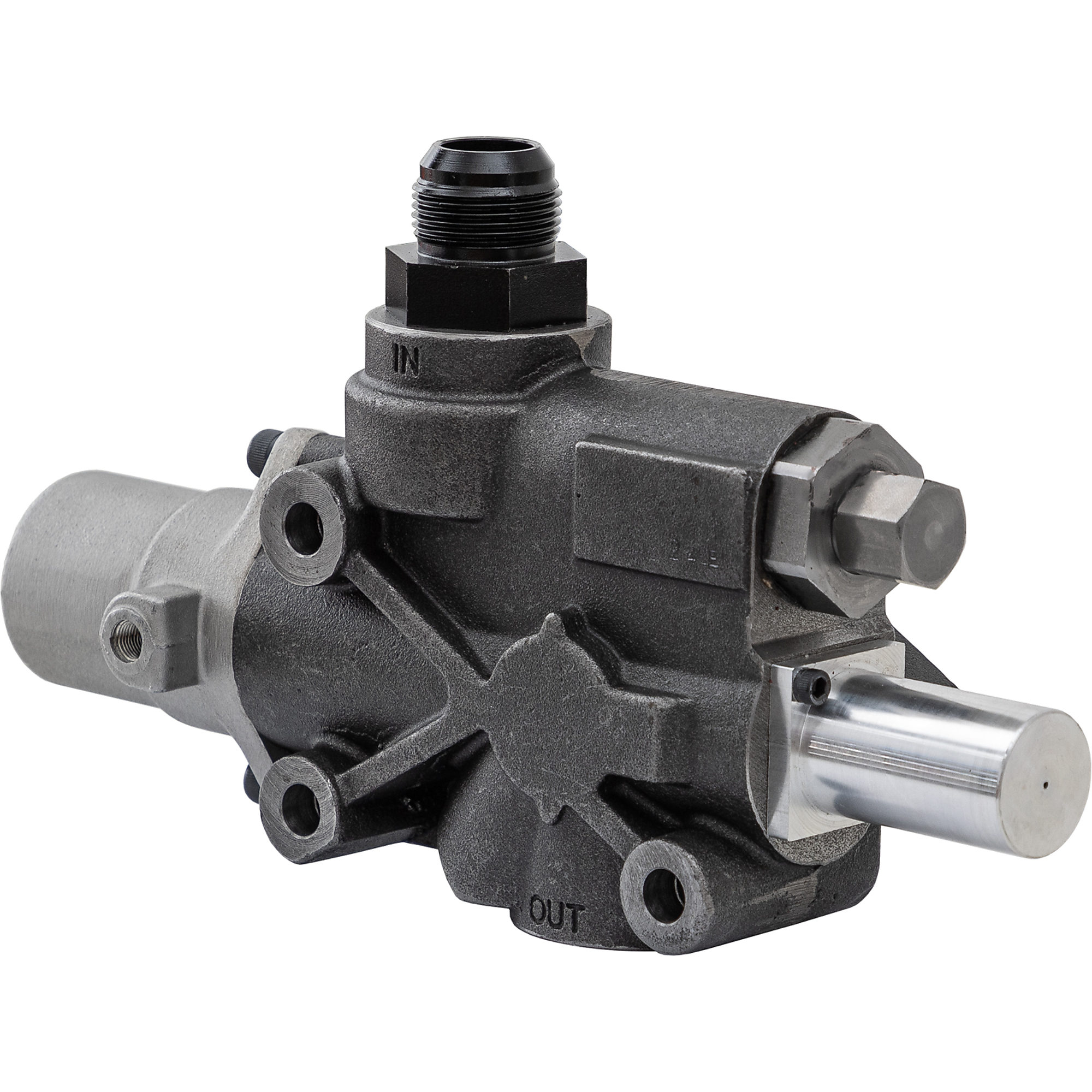

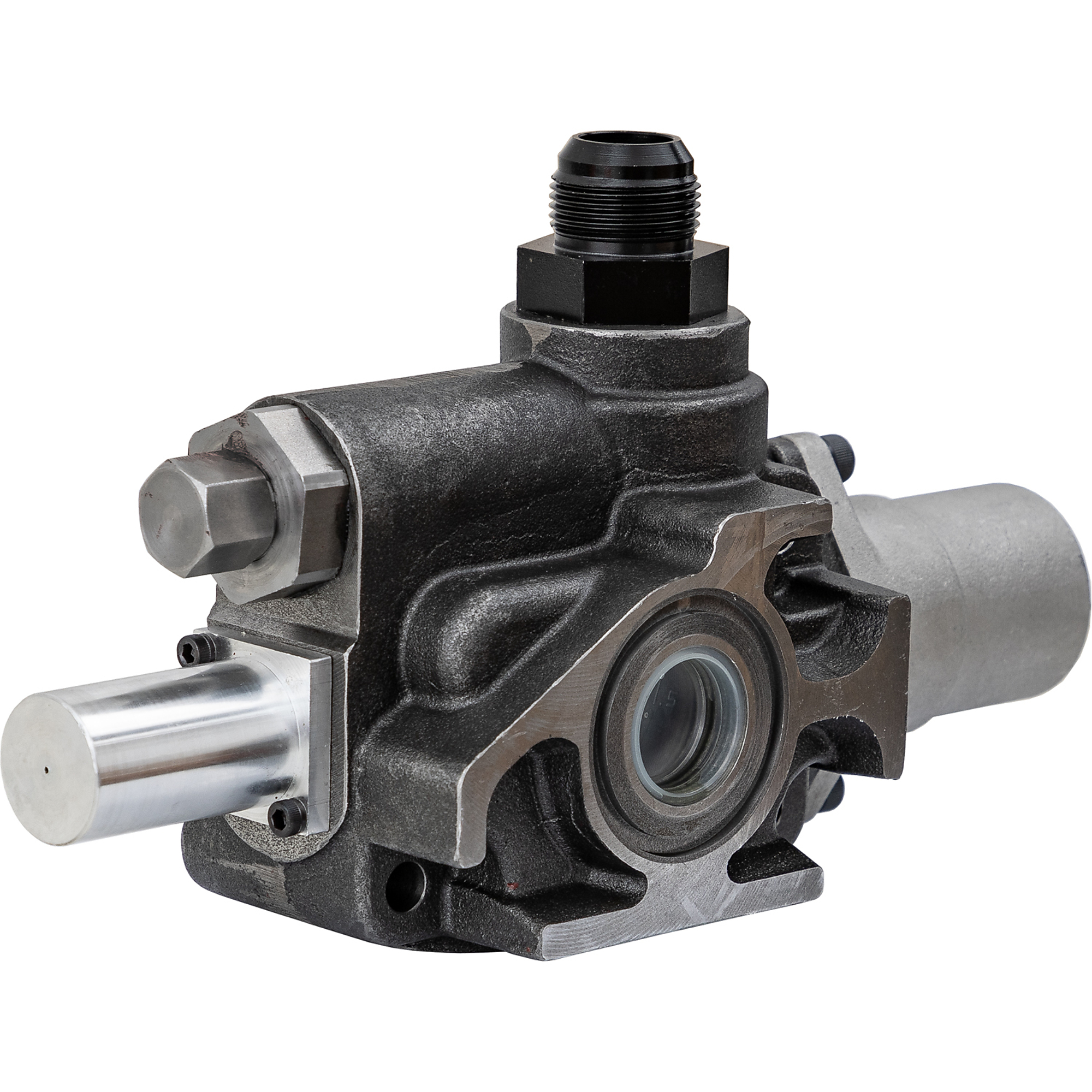

Buyers Products Single Acting Hydraulic Tipper Valve ,Model# HTV-100

Item# 6805627
Buyers Products Single Acting Hydraulic Tipper Valve ,Model# HTV-100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers Products Single Acting Hydraulic Tipper Valve ,Model# HTV-100

Click or Tap image to Zoom

$614.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • High flow capacity to meet the requirements of large dump trucks or end dump trailers.
  • Regulates flow and limits pressure, providing reliable performance in heavy-duty environments.
  • Integral air shifter for use with feathering or on/off style controls (available separately).
  • 3-way single acting function three position functions – Pressure (Raise) / Hold / Return (Lower).

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Buyers Products Hydraulic Tipper Valves control the flow of hydraulic fluid for a 3-way or single-acting hydraulic function. Commonly used in high-flow tipping applications like dump trucks and end dump trailers with a single-acting cylinder, these valves can also supply controlled hydraulic flow for walking floor, refuse compaction, full-ejection, and many other applications. These valves feature an integral air shifter to be operated by a feathering control like Buyers Products 64570000 (or others from that series), the Buyers K80 series controls, or an on/off control such as the Buyers BAV020 series, and an adjustable main relief. The HTV-100DP includes an adjustable dual pressure setting that allows this valve to seamlessly operate a wide range of equipment. These tipper valves are built tough to provide reliable performance in heavy-duty environments and withstand harsh operating conditions

What's Included

    (1) Hydraulic Valve

Features + Benefits

  • High flow capacity to meet the requirements of large dump trucks or end dump trailers.
  • Regulates flow and limits pressure, providing reliable performance in heavy-duty environments.
  • Integral air shifter for use with feathering or on/off style controls (available separately).
  • 3-way single acting function three position functions – Pressure (Raise) / Hold / Return (Lower).

Key Specs

AttributeSpecification

item#

6805627

Brand

Buyers Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

16.62 LB

GPM

60

Working Port

1 in

Max. PSI

3,500

Spool (qty.)

4

Indicator Light

No
AttributeSpecification

Body Material

Cast Iron

Inlet Port

1 in

Outlet Port

1 in

Max. Release Pressure

3,500 PSI

Min. Release Pressure

2,000 PSI

Accessory Type

Single Acting Tipper Valve

Product Weight

16.6200 lb

Dimensions L x W x H (in.)

16.0 x 7.25 x 4.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
