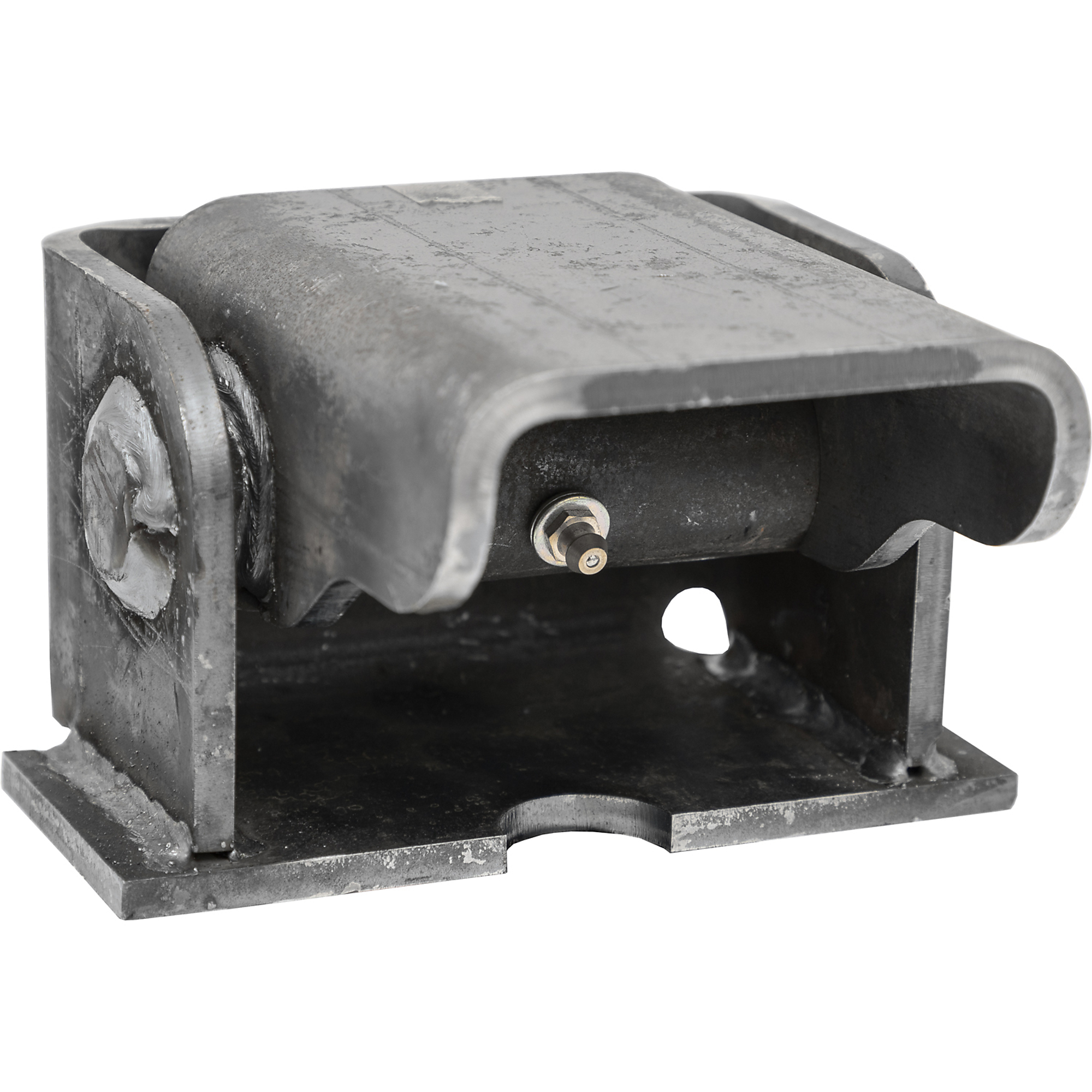

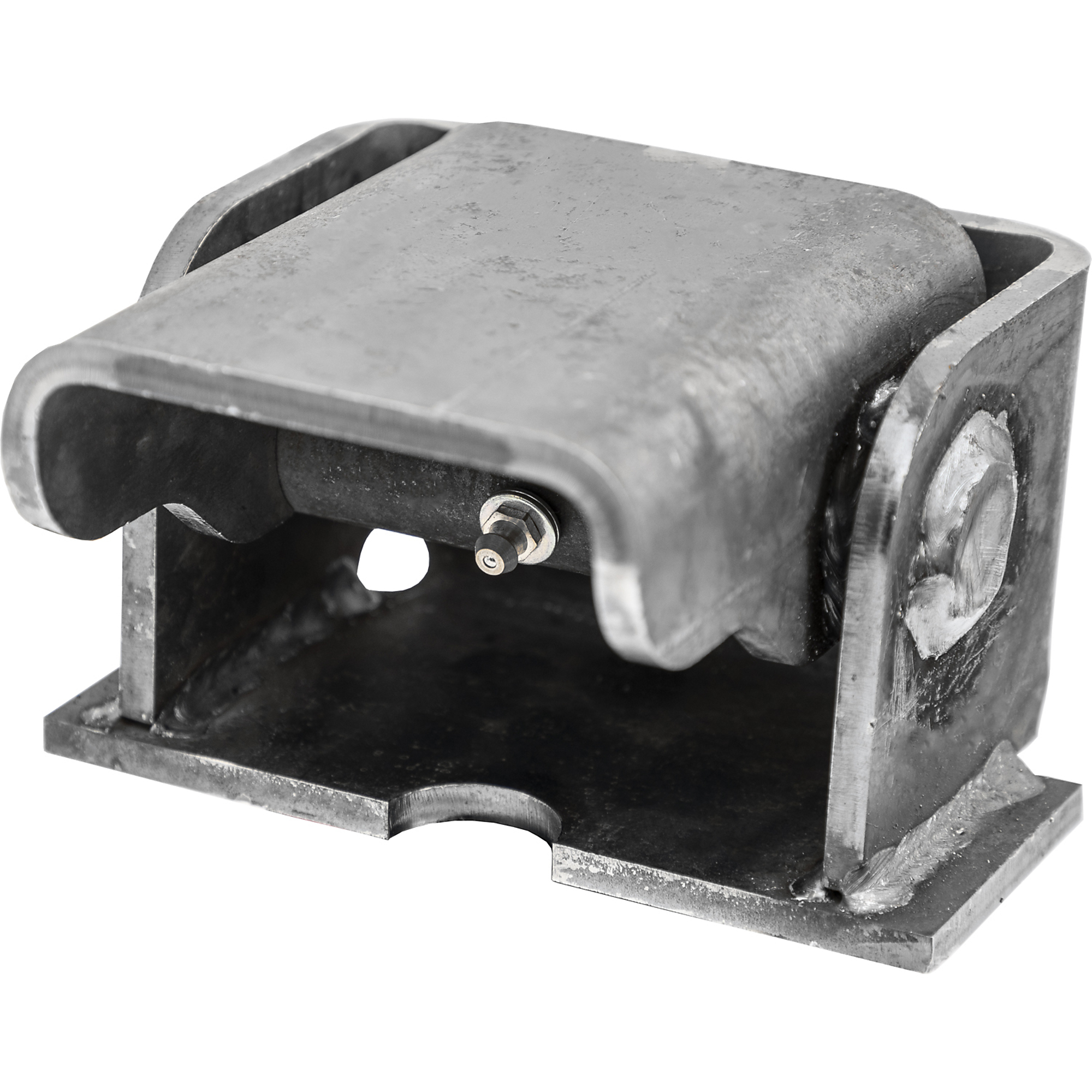

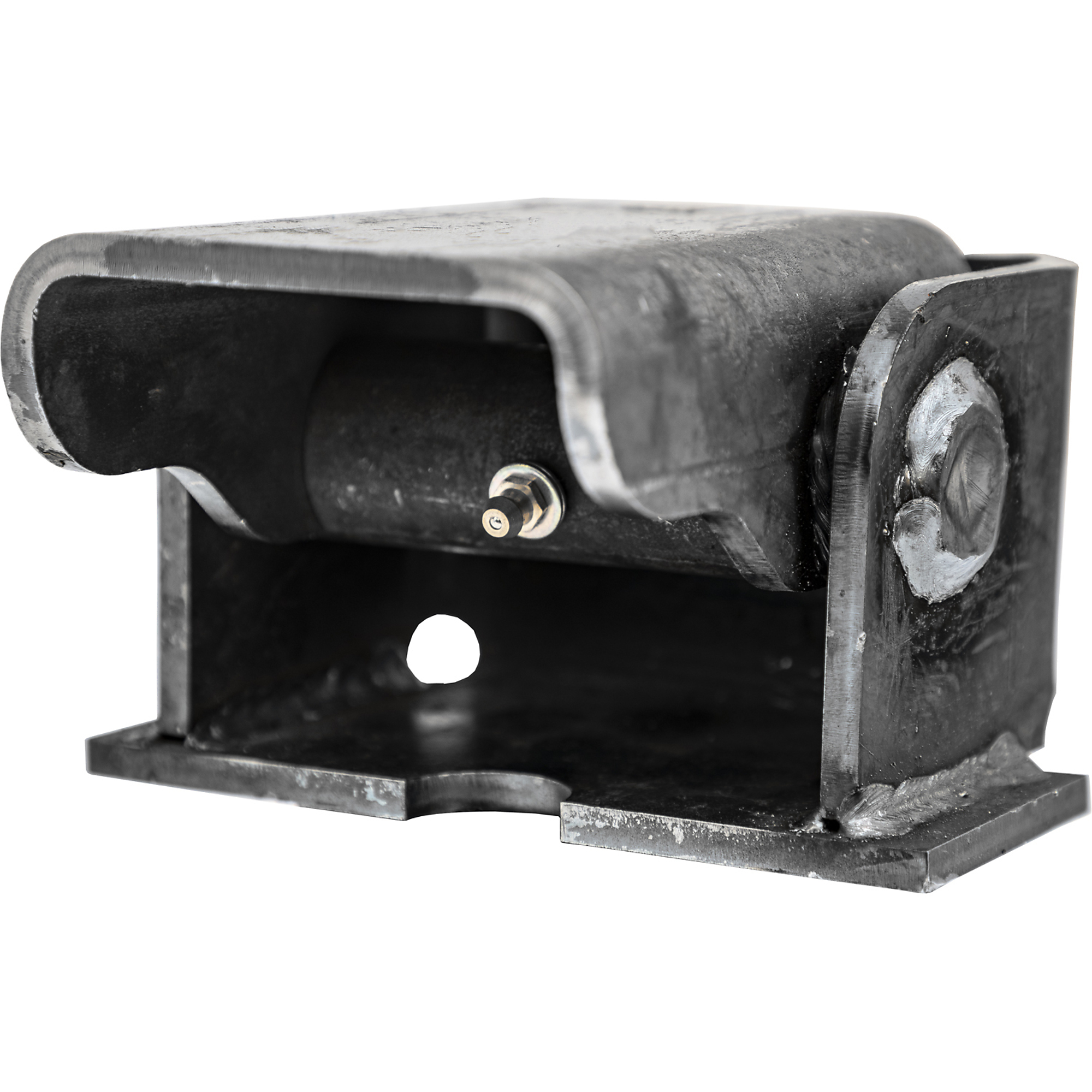

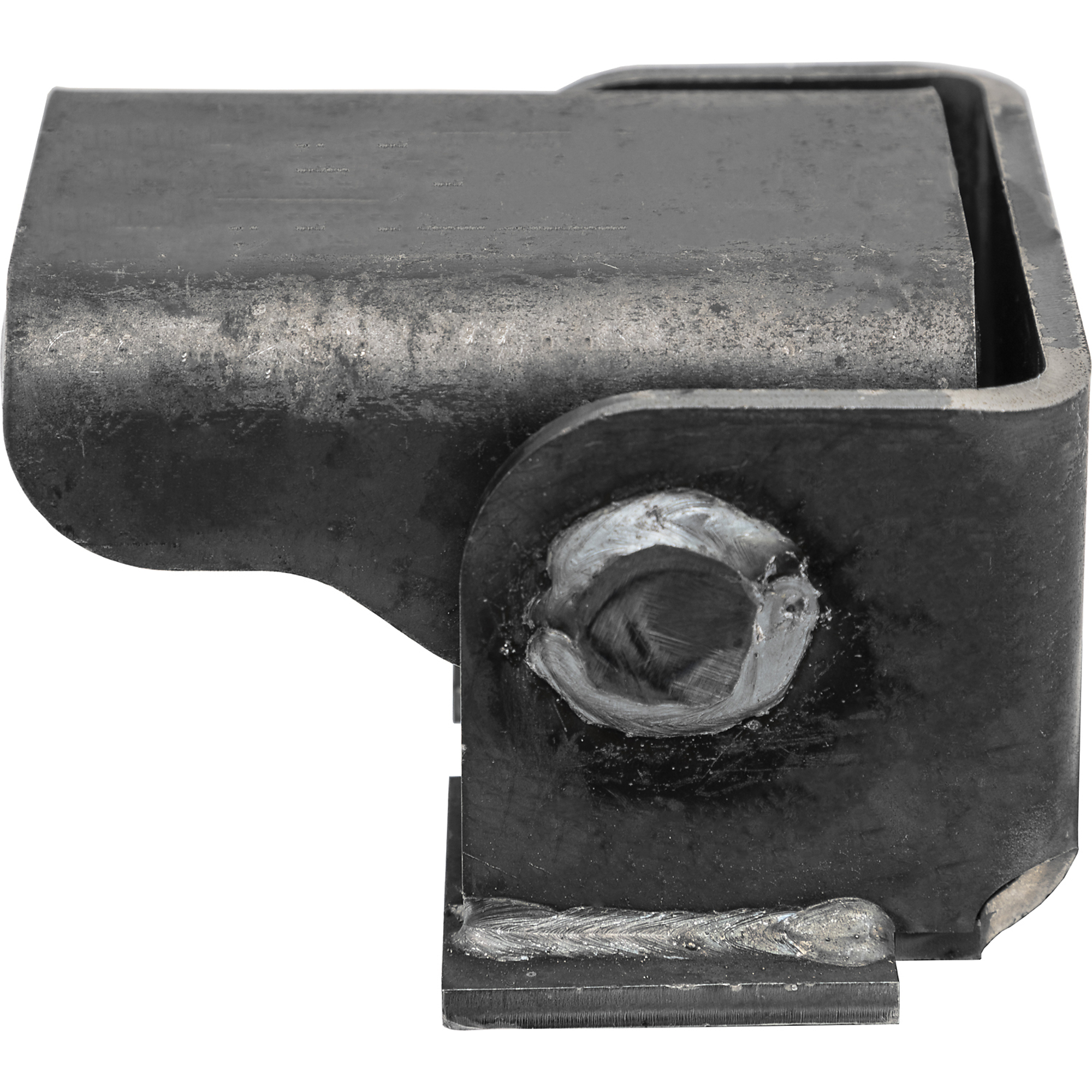

Buyers Products Rear Dump Hinge Model # 5121000

Item# 7333326
New1 Included
Buyers Products Rear Dump Hinge Model # 5121000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers Products Rear Dump Hinge Model # 5121000

Click or Tap image to Zoom

$46.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Replaces corroded, worn-out hinges on dump trucks and trailers.
  • Keeps the dump body aligned with the truck frame.
  • 1/4" A36 carbon steel construction.
  • Includes grease fitting.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

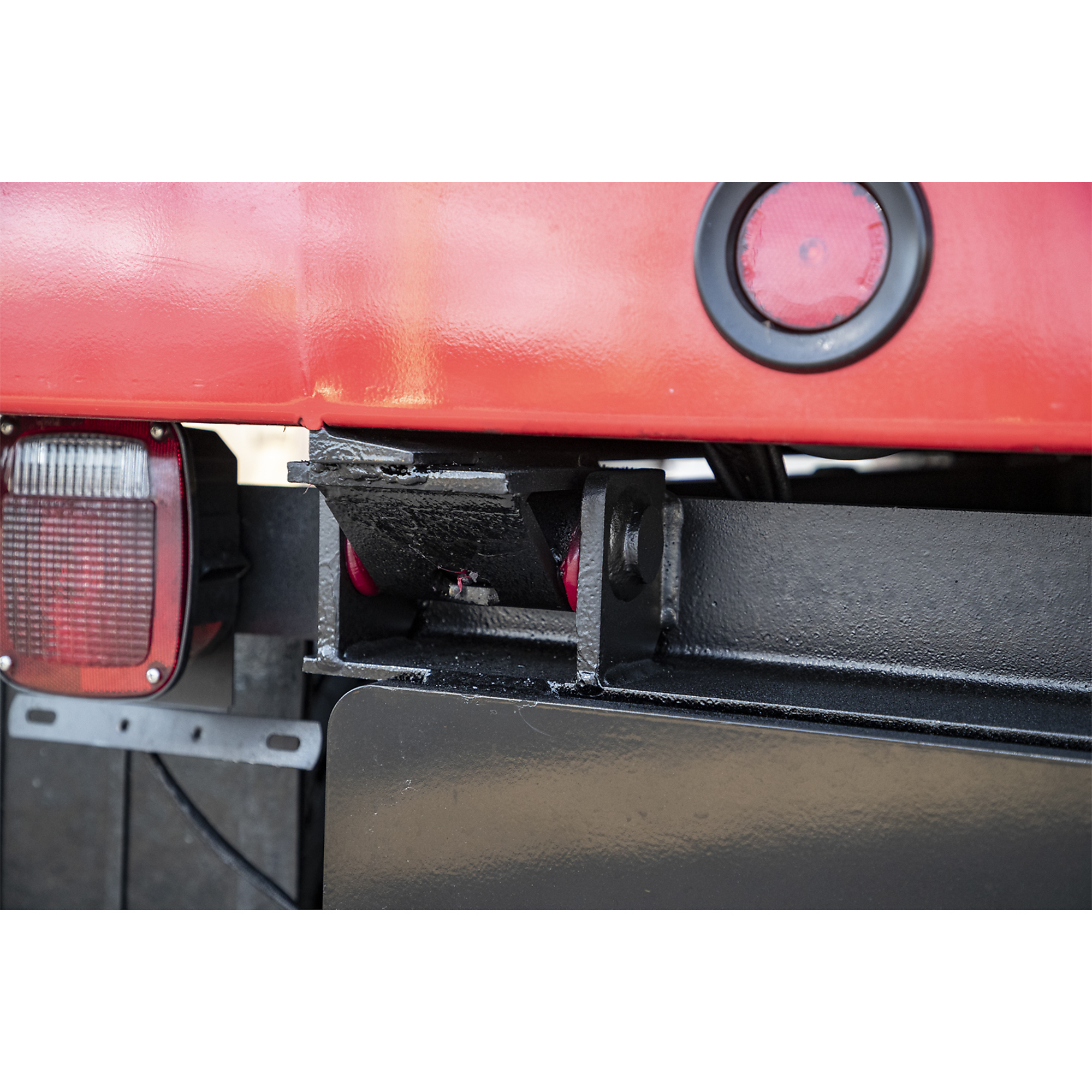

The Rear Dump Hinge keeps your dump body aligned with the truck frame rails as the hoist raises and lowers the dump body. Commonly used by OEM fabricators, TEDs, and weld shops to replace corroded, worn-out hinges on old dumps or when manufacturing new dump trucks and trailers. The hinge typically gets welded to a structural steel angle at the back of the dump truck or trailer frame, one on each side. The bracket side of the hinge faces forward towards the front of the dump, and the swing bracket side of the hinge faces the back. The longitudinal dump frame rails get welded to the top of the swing bracket, thus keeping the body aligned with the truck frame. 1/4in. A36 carbon steel construction.

What's Included

    (1) Hinge

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Replaces corroded, worn-out hinges on dump trucks and trailers.
  • Keeps the dump body aligned with the truck frame.
  • 1/4" A36 carbon steel construction.
  • Includes grease fitting.

Key Specs

AttributeSpecification

item#

7333326

Brand

Buyers Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.5 LB

Product Type

Hinges

Length

6.5 in
AttributeSpecification

Included (qty.)

1

Material

Steel

Application

Dump Body

Product Weight

3.5000 lb

Dimensions L x W x H (in.)

5.5 x 5.31 x 3.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
