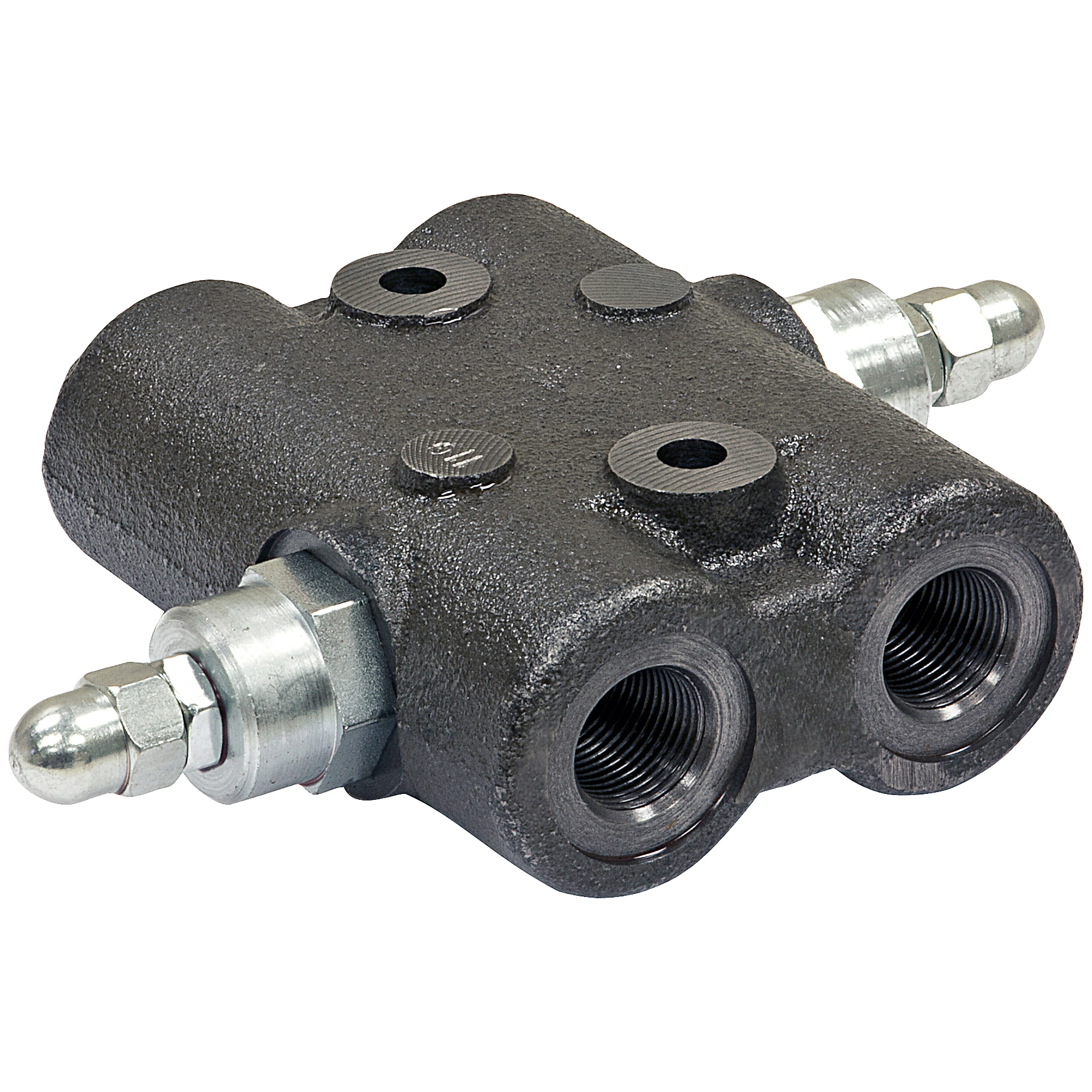

Buyers Products, Cross Over Relief Valve, NPTF, Working Port 1/2 in, Max. PSI 3000 Model# HCR050

Item# 4901631
Buyers Products, Cross Over Relief Valve, NPTF, Working Port 1/2 in, Max. PSI 3000 Model# HCR050

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers Products, Cross Over Relief Valve, NPTF, Working Port 1/2 in, Max. PSI 3000 Model# HCR050

Click or Tap image to Zoom

$139.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Protects your plow from damage.
  • Provides relief to angling cylinders when plow hits obstructions

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Cross-Over Relief Valve (NPTF Port) from Buyers Products protects your plow and other system components from damage whenever a circuit is overloaded. It provides relief to angling cylinders in situations when a plow may encounter obstructions. It is designed to fit NPTF ports and is available in two models to meet your needs.

What's Included

    (1) Cross Over Relief Valve, NPTF

Features + Benefits

  • Protects your plow from damage.
  • Provides relief to angling cylinders when plow hits obstructions

Key Specs

AttributeSpecification

item#

4901631

Brand

Buyers Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.5 LB

Working Port

1/2 in
AttributeSpecification

Max. PSI

3,000

Body Material

Cast Iron

Product Weight

4.5050 lb

Dimensions L x W x H (in.)

9.5 x 6.2 x 3.75 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. this doesn't require an o-ring or ORB fitting with straight thread?

    1 answer

    1. The HCR050 uses 1/2" NPTF tapered threads and does not require an O-ring or ORB fitting.

      Helpful?

  2. Will this work for a hydraulic Motor?

    1 answer

    1. This cross over relief valve can be used in hydraulic systems that have hydraulic pumps or motors.

      Helpful?

  3. can this be set to 500psi? If yes, how is that done?

    1 answer

    1. This Cross Over Relief Valve is set at 1000 PSI, but is adjustable between 500-1500 PSI. A pressure gauge will need to be installed in the system to monitor the point where pressure relieves.

      To adjust pressure setting:
      1. Remove acorn nut to reveal adjusting screw
      2. Loosen the lock nut
      3. Turn adjusting screw out to lower pressure setting or turn adjusting screw in to raise pressure setting

      Helpful?

  4. Does it have return to tank ports? Does it vent to atmosphere?

    1 answer

    1. This relief valve does not have return-to-tank ports, it would bypass the flow to relieve pressure in the system. This valve does not vent to the atmosphere.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
