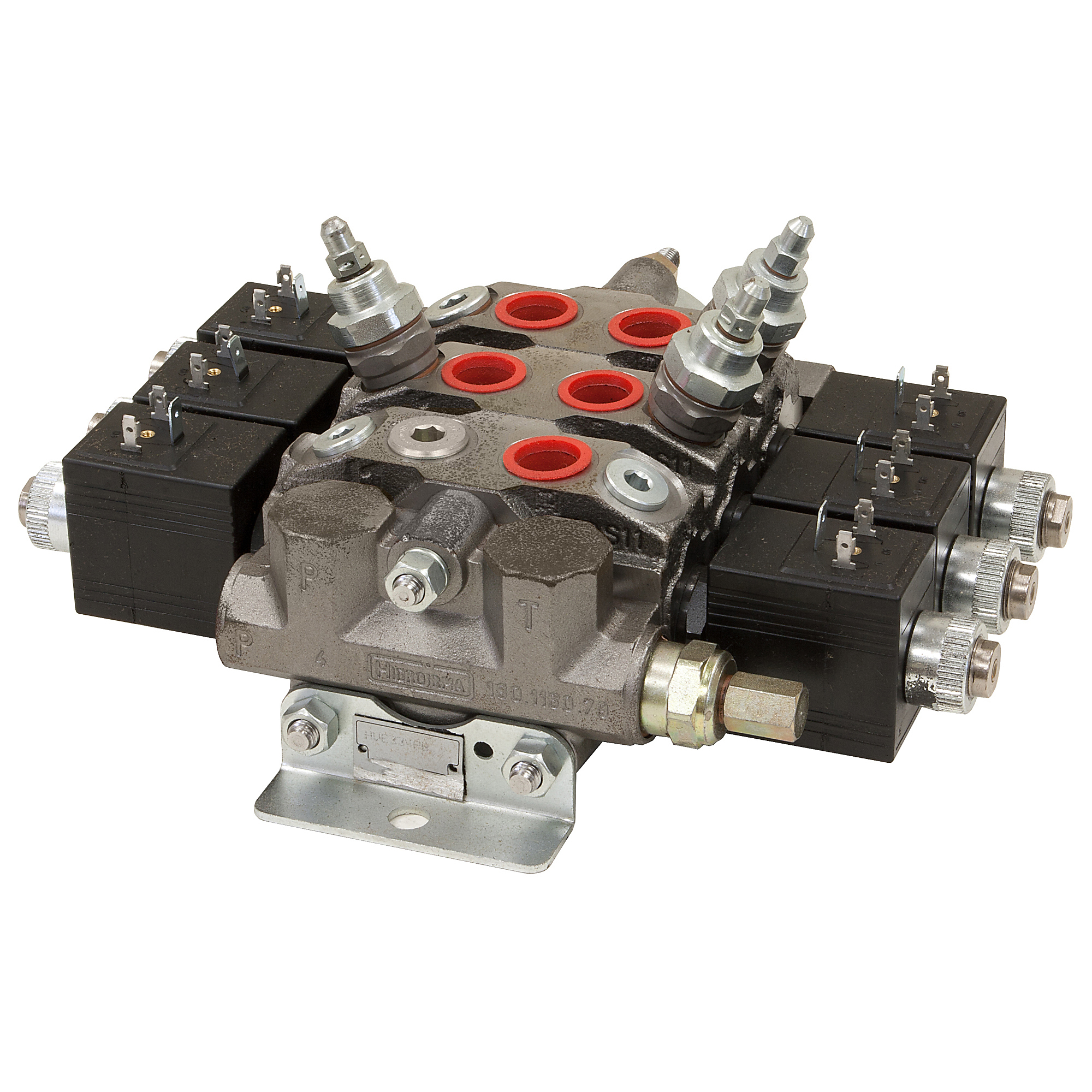

Buyers Products, 4-Way Sectional Valve, GPM 11 Working Port 1/2 in, Max. PSI 3600 Model# HVE4

Item# 4905131
Top Seller
Buyers Products, 4-Way Sectional Valve, GPM 11 Working Port 1/2 in, Max. PSI 3600 Model# HVE4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers Products, 4-Way Sectional Valve, GPM 11 Working Port 1/2 in, Max. PSI 3600 Model# HVE4

Click or Tap image to Zoom

$589.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Adjustable main relief lets you tackle jobs of varying demands.
  • Handles demanding jobs with a maximum rating of 4300 PSI (when the main relief is set to a higher pressure).
  • Tough cast-iron sectional design for reliability and versatility.
  • Electric controls take less room in your cab -- great for smaller trucks
  • Many configurations available to fit your exact needs.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The compact Electric Sectional Valve from Buyers Products features a compact design. Its electrical controls allow you to mount a switch in the cab and control the valve remotely. It's great for smaller trucks and plow trucks. The 12V valve is rated to a max flow of 11 GPM. It features a simple on/off (non-proportional) flow. It can handle a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. The valve has cylinder spools, and features load hold check in the neutral position, precision-machined and ground spools, and easily replaceable spool end seals. Additional configurations are available. Please contact Customer Service for further information.

What's Included

    (1) 4-Way Sectional Valve

Features + Benefits

  • Adjustable main relief lets you tackle jobs of varying demands.
  • Handles demanding jobs with a maximum rating of 4300 PSI (when the main relief is set to a higher pressure).
  • Tough cast-iron sectional design for reliability and versatility.
  • Electric controls take less room in your cab -- great for smaller trucks
  • Many configurations available to fit your exact needs.

Key Specs

AttributeSpecification

item#

4905131

Brand

Buyers Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.29 LB

GPM

11
AttributeSpecification

Working Port

1/2 in

Max. PSI

3,600

Product Weight

12.2950 lb

Dimensions L x W x H (in.)

13.4 x 11.7 x 7.7 in

Reviews

Questions & Answers

Questions

  1. What positions does thee valve have?

    1 answer

    1. The HVE4 electric on/off spool valve has the following features:

      Single inlet with main relief set at 2200 PSI (adjustable up to 4200 PSI)

      Single 4‑way cylinder spool, checked in neutral, and spring‑centered when de‑energized

      Open‑center hydraulic configuration

      Single outlet with dedicated tank port

      All ports are #8 SAE (3/4‑16 ORB)

      Maximum flow: 11 GPM

      Coil current draw: approximately 2.0–2.5 amperes at full load

      Either work port may be used for extend/retract or up/down; the valve does not assign directional priority; plumbing determines function.
