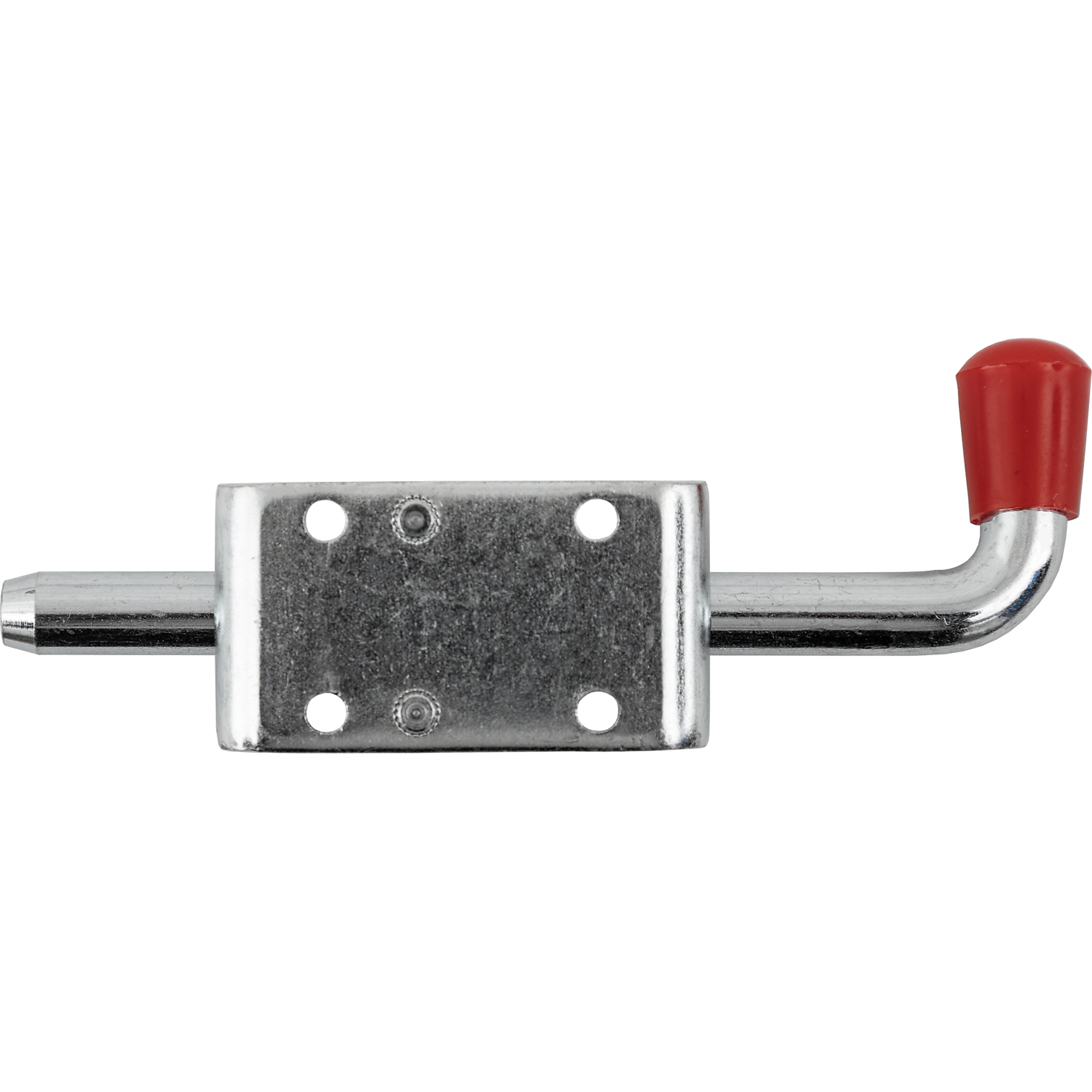

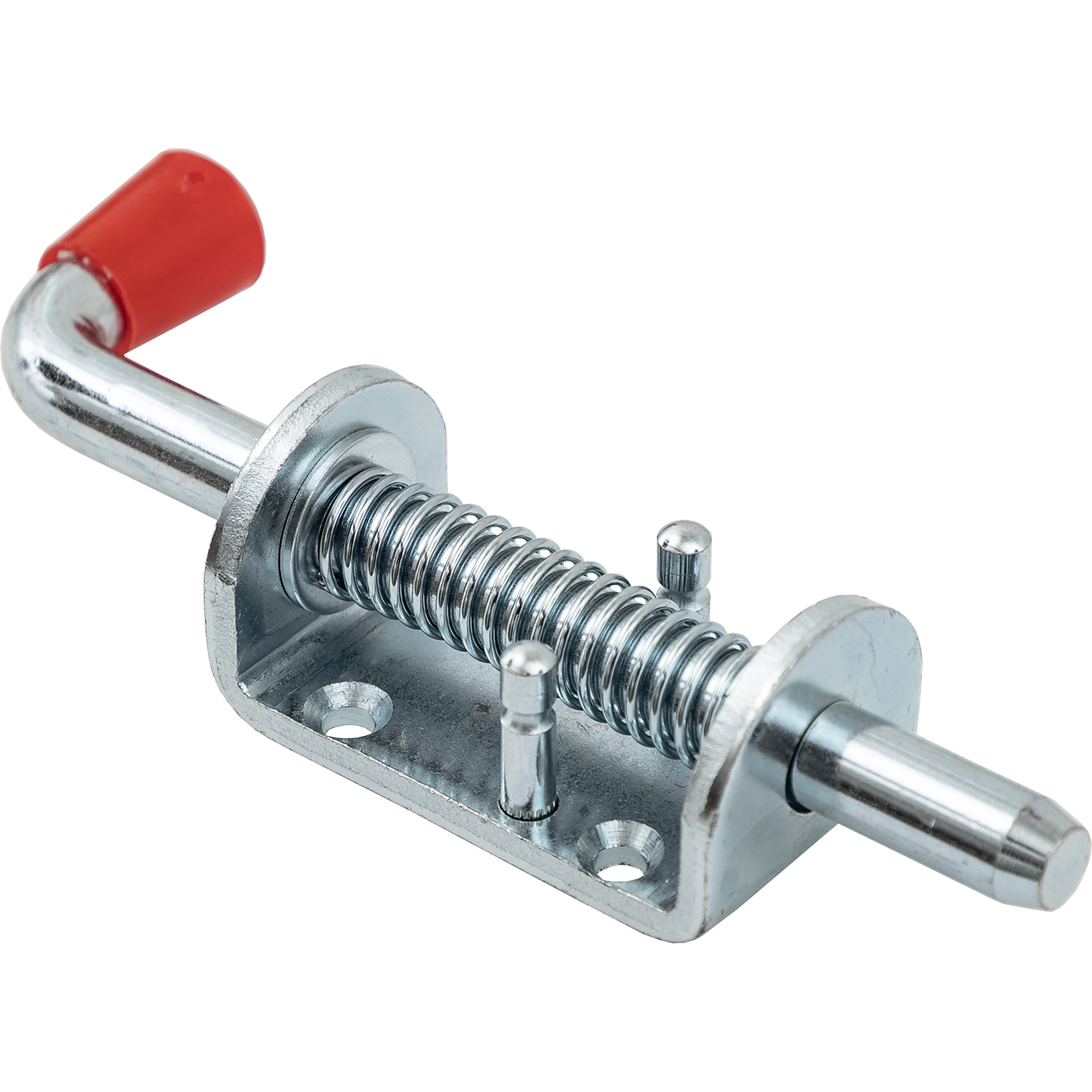

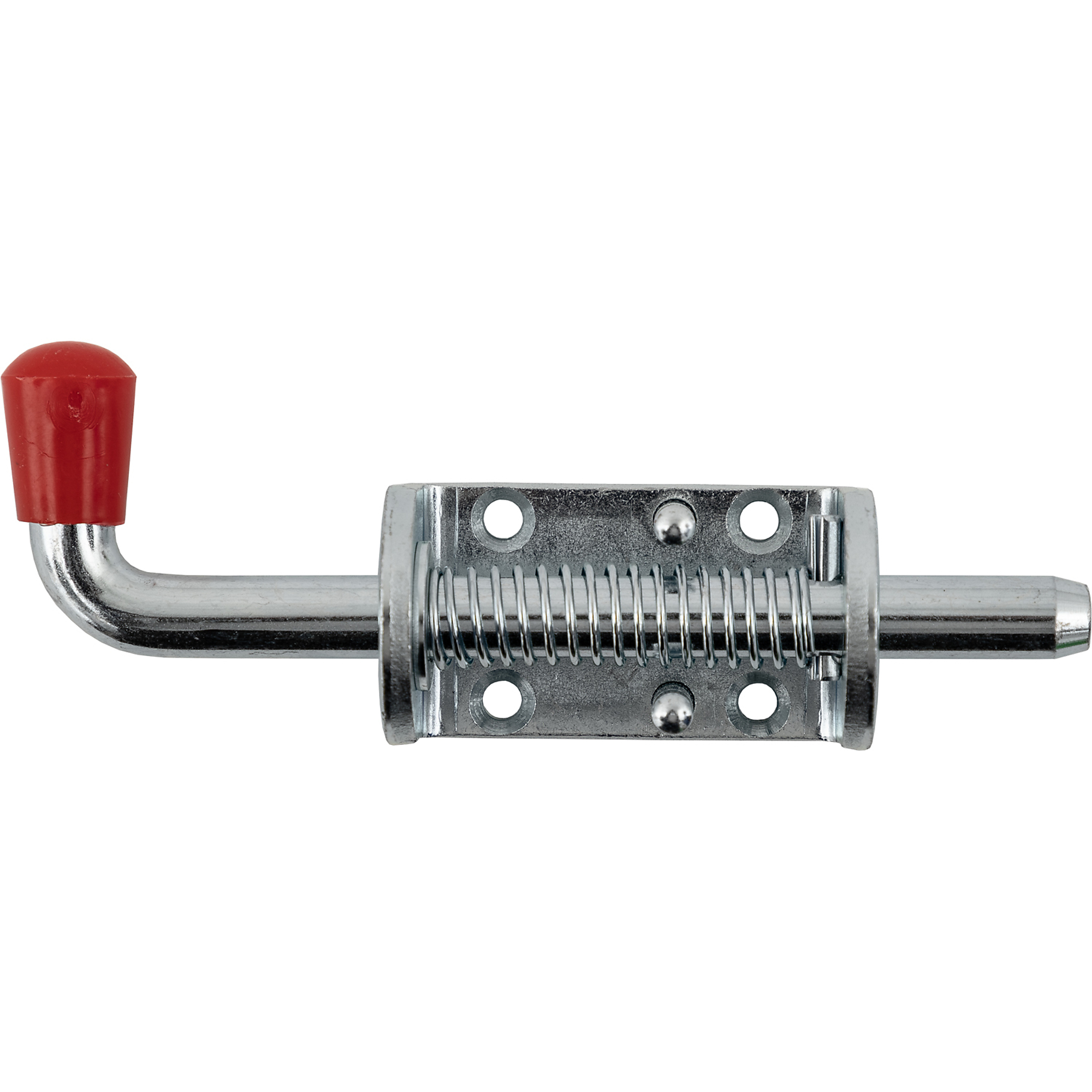

Buyers Products, 1/2in. Spring Latch Assembly, Model# B2575

Item# 571972
Buyers Products, 1/2in. Spring Latch Assembly, Model# B2575

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers Products, 1/2in. Spring Latch Assembly, Model# B2575

Click or Tap image to Zoom

$12.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Latch is zinc-plated and measures 6.5in.L x 1.56in.W
  • Mounting holes measure 1.5in. center-to-center and have a diameter of 0.24in.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Buyers Products Spring Latch is ideal for uses where doors, compartments, or panels need to engage and disengage quickly and securely. The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure.

What's Included

    (1) 1/2in. spring latch assembly

Features + Benefits

  • Latch is zinc-plated and measures 6.5in.L x 1.56in.W
  • Mounting holes measure 1.5in. center-to-center and have a diameter of 0.24in.

Key Specs

AttributeSpecification

item#

571972

Brand

Buyers Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.85 LB
AttributeSpecification

Product Type

Fasteners

Material

Steel

Finish Type

Zinc-Plated

Application

Spring Latch Assembly

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. is the rubber end black or red?

    1. Black

      Helpful?

    2. The rubber end would be black.

      Helpful?

  2. How far does the pin go below the bracket?

    1 answer

    1. The pin leg is 1.56”.

      Helpful?

  3. What is the diameter of the pin?

    1 answer

    1. The diameter of the pin is 1/2".

      Helpful?

  4. What are the dimensions of the pin and housing respectively?

    the dimensions are vague and i need them to be more specific

    1 answer

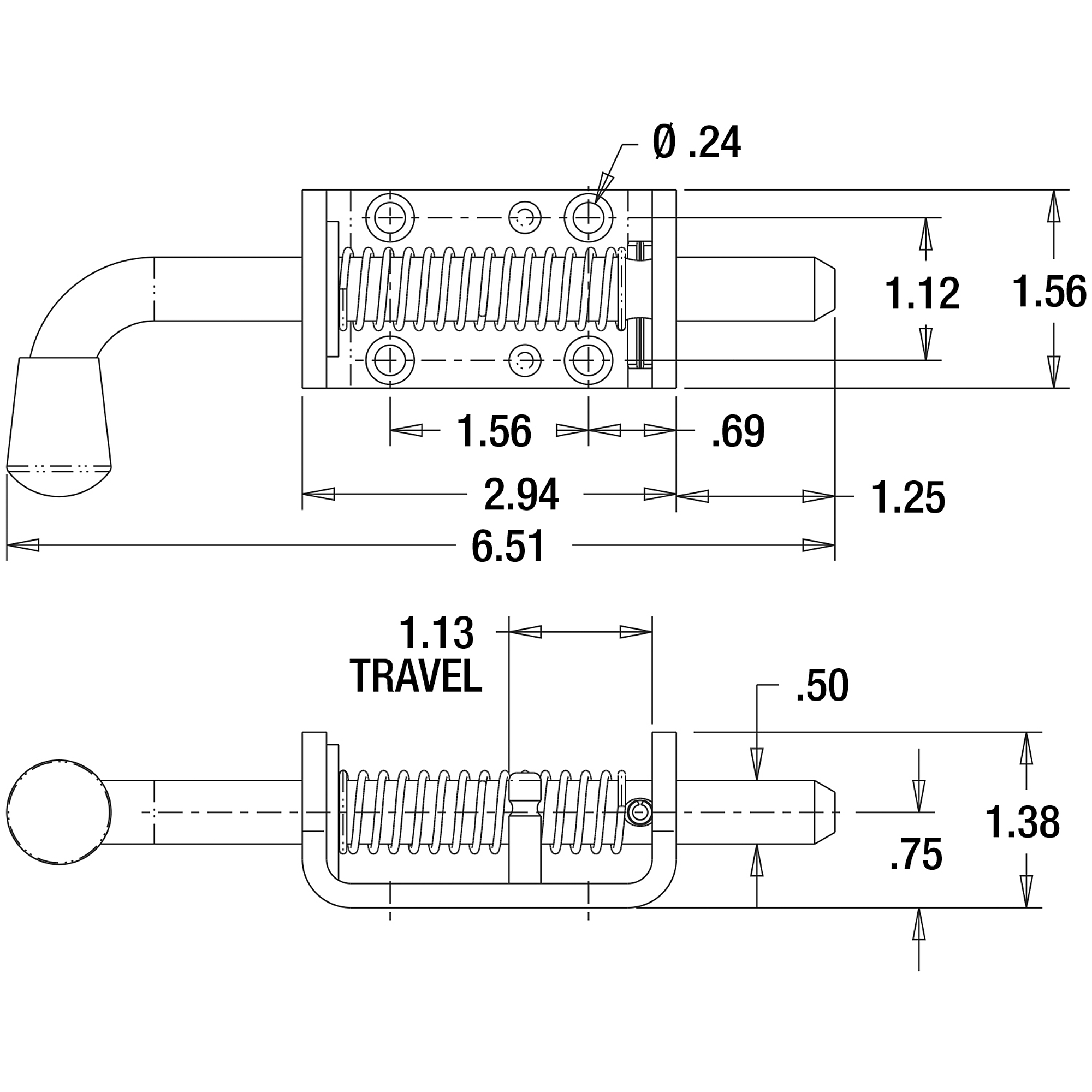

    1. On this latch assembly the pin protrudes 1-3/16" from the mount and can be pulled in flush with the mount, but if locked into the pulled in position 3/16" of it will protrude from the mount. The mounting hole dimension is .24". The holes are 1.56" apart horizontally from center to center. They are 1.12" apart vertically from center to center.

      Helpful?

  5. What are the dimensions of the mounting holes?

    1 answer

    1. The mounting hole dimension is .24". The holes are 1.56" apart horizontally from center to center. They are 1.12" apart vertically from center to center.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
