Buyers Products, 15 Gallon Side Mount Steel Reservoir, Capacity 15 Gal, Suction Port Size 2 in, Return Port Size 1-1/4 in, Model# SMR15S

Item# 4054
Buyers Products, 15 Gallon Side Mount Steel Reservoir, Capacity 15 Gal, Suction Port Size 2 in, Return Port Size 1-1/4 in, Model# SMR15S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers Products, 15 Gallon Side Mount Steel Reservoir, Capacity 15 Gal, Suction Port Size 2 in, Return Port Size 1-1/4 in, Model# SMR15S

Click or Tap image to Zoom

$349.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Welded mounting angles
  • 1/4 turn chrome filler breather w/basket strainer
  • Oil level gauge with temperature indicator
  • Interior baffle between suction and discharge
  • Magnetic drain plug

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

13 gauge HRPO steel with welded mounting angles. 1/4 turn chrome filler breather with basket strainer. Oil level gauge with temperature indicator. Interior baffle between suction and discharge. 2in. NPT suction ports. 11 gallon usable capacity.

What's Included

    (1) Steel Reservoir

Features + Benefits

  • Welded mounting angles
  • 1/4 turn chrome filler breather w/basket strainer
  • Oil level gauge with temperature indicator
  • Interior baffle between suction and discharge
  • Magnetic drain plug
  • Factory powder coated
  • Fully tested

Key Specs

AttributeSpecification

item#

4054

Brand

Buyers Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

59.2 LB

Capacity

15 Gal

Suction Port Size

2 in

Return Port Size

1-1/4 in

Oil Level Gauge

Yes
AttributeSpecification

Temperature Gauge

Yes

Mount Position

Side

Mounting Hardware Included

No

Material

Steel

Removable Cover

No

Thread Type

NPT

Product Weight

lb

Dimensions L x W x H (in.)

13.5 x 15.5 x 17.5 in

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Do I need to use Teflon tape on the inlet and outlet fittings when I install the new tank

    1. Would not be a bad idea.
      1.5 wraps max.
      I prefer liquid Teflon sold in tubes, myself.

      Helpful?

    2. The Buyers Hydraulic Tank would be best installed using Teflon tape to insure leak proof fittings.

      Helpful?

  2. What size opening is the fill port?

    1 answer

    1. The fill port on this hydraulic tank is 2 1/4".

      Helpful?

  3. Does the height dimension include the breather cap? What are the dimensions for only the fluid container?

    1 answer

    1. The overall dimensions including the breather cap will be 20 1/8" W x 15" D x 20 1/2" H. The tank only dimensions will be 15.58" W x 13.5" D x 17.5" H.

      Helpful?

  4. can you describe each of the ports/sizes including the drain whci might be on the bottom

    1 answer

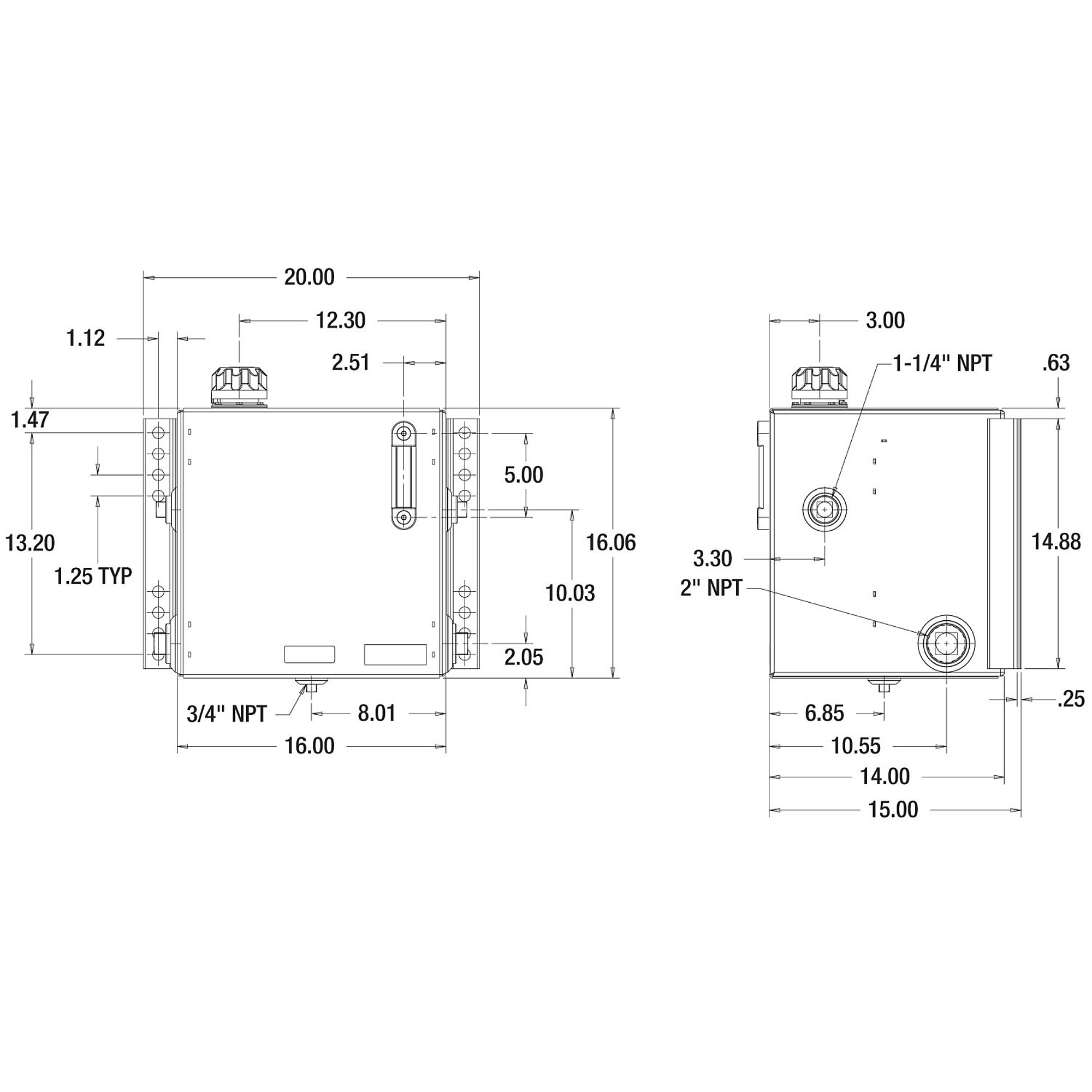

    1. This tank has ports on both sides. On each of the two opposing sides there is a bottom port which is 2” NPT. In the center of the same two sides there is also a 1 ¼” NPT port. The bottom drain plug is ¾” NPT.

      Helpful?

  5. Does this tank have ports on both ends ?

    1 answer

    1. Yes, this tank has ports on both sides. On each of the two opposing sides there is a bottom port which is 2 inches NPT. In the center of the same two sides there is also a 1-1/4 inch NPT port.

      Helpful?

  6. how does the level gauge work

    and can the level gauge be purchased separately?

    1 answer

    1. It has a sight level gauge on the side of the unit. It will show you the level of oil in the tank. You can view the gauge on the side by using the zoom feature for the product. The gauge can be purchased separately from our parts department at 1.800.222.5381, option #3.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
