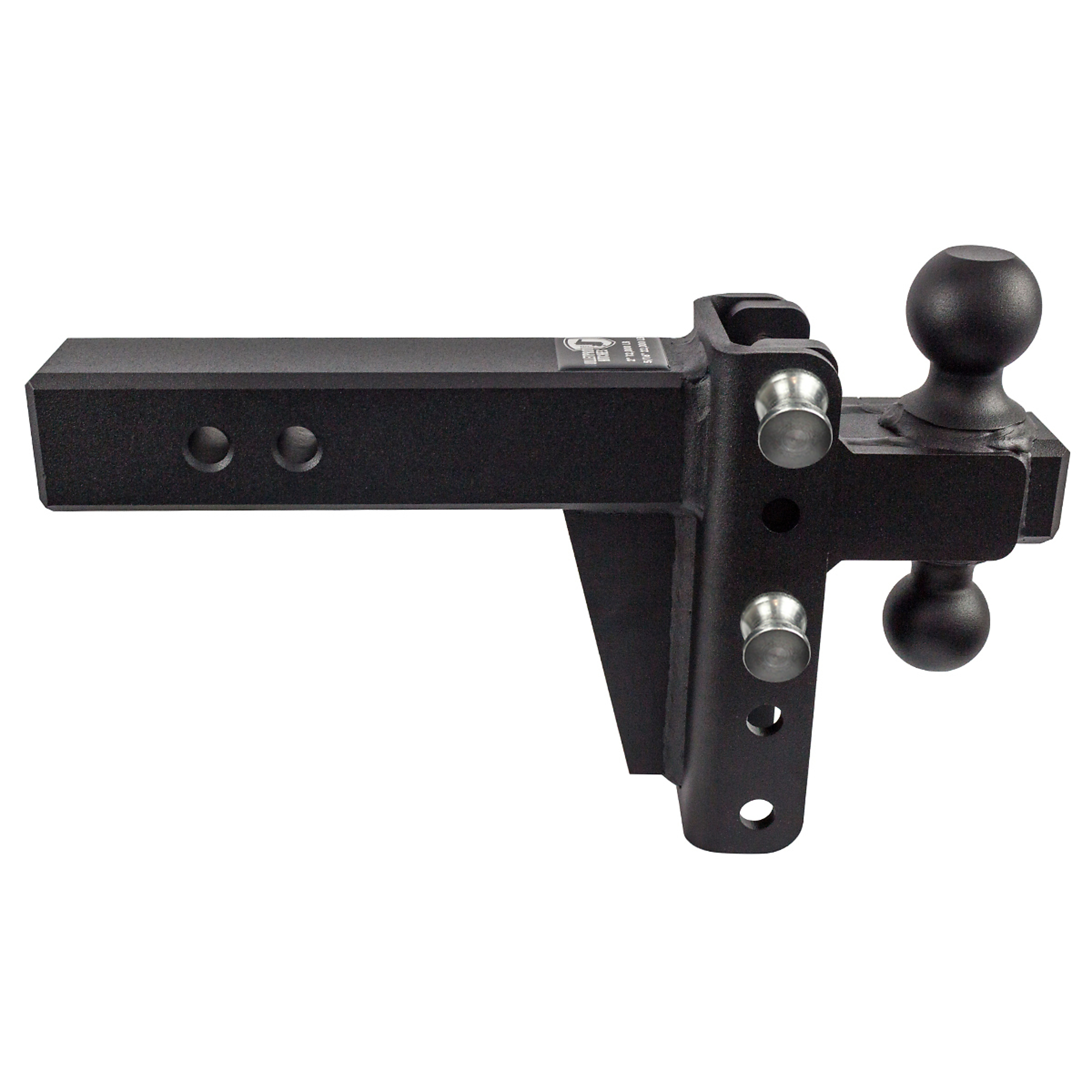

BulletProof Hitches, 2.5in. HEAVY DUTY 4in. DROP/RISE HITCH, Gross Towing Weight 22000 lb, Class Rating Class V, Model# HD254

Item# 5904421
BulletProof Hitches, 2.5in. HEAVY DUTY 4in. DROP/RISE HITCH, Gross Towing Weight 22000 lb, Class Rating Class V, Model# HD254

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BulletProof Hitches, 2.5in. HEAVY DUTY 4in. DROP/RISE HITCH, Gross Towing Weight 22000 lb, Class Rating Class V, Model# HD254

Click or Tap image to Zoom

$379.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel of the hitch. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.
  • 2" & 2-5/16" Dual Ball
  • 2" Ball: 12,000 lb Rating
  • 2-5/16" Ball: 22,000 lb Rating
  • The Heavy Duty and Extreme Duty hitch shanks are solid steel all the way through and have chamfered edges so that they can easily slide into & out of your hitch receiver. The Solid Steel Shank also comes with two pin holes on the shank for more adjustment options.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Our 2.5in. Heavy Duty 4in. Drop or Rise Hitch is unlike any of our competitors' products. We worked hard to create 1 amazing Hitch that does the work of 10. Our hitches are extensively tested and exceed SAE-J684 testing requirements. They are built to such a high standard that we have never had a single failure. You can see why from the features listed below: Class 5 Hitch with a 22,000 lb Max Towing Capacity 3000 lb Tongue Weight Capacity. 3 Ride Heights that are Easily Adjustable. The 2.5in. Heavy Duty 4in. Hitch Weighs 45 Pounds. *PATENT PENDING

What's Included

    (1) 2.5" HEAVY DUTY 4" DROP/RISE HITCH

Features + Benefits

  • Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel of the hitch. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.
  • 2" & 2-5/16" Dual Ball
  • 2" Ball: 12,000 lb Rating
  • 2-5/16" Ball: 22,000 lb Rating
  • The Heavy Duty and Extreme Duty hitch shanks are solid steel all the way through and have chamfered edges so that they can easily slide into & out of your hitch receiver. The Solid Steel Shank also comes with two pin holes on the shank for more adjustment options.
  • The textured powder-coated finish creates a durable surface to help protect your hitch.
  • All BulletProof Hitches™ feature a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5-stage pretreatment wash to remove any oil or residue. The metal itself is then sealed to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat, which is applied by a Fanuc robot to ensure consistent thickness across the hitch.
  • The components of the BulletProof Hitch™ are machined in house on our state-of-the-art Haas CNC machines. These CNC machines use Renishaw probes, allowing us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combination fit together without slop or excess movement when attached to your vehicle.
  • All of our hitches can be used in the drop or rise position and maintain the same weight capacity in either position.
  • This 2.5" Heavy Duty 4" drop/rise hitch has a max towing capacity of 22,000 lbs and a tongue weight capacity of 3,000 lbs in both the drop & rise positions.

Key Specs

AttributeSpecification

item#

5904421

Brand

Bulletproof Hitches

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

46.0 LB

Gross Towing Weight

22,000 lb
AttributeSpecification

Class Rating

Class V

Material

Steel

Tongue Weight

3,000 lb

Product Weight

46.0000 lb

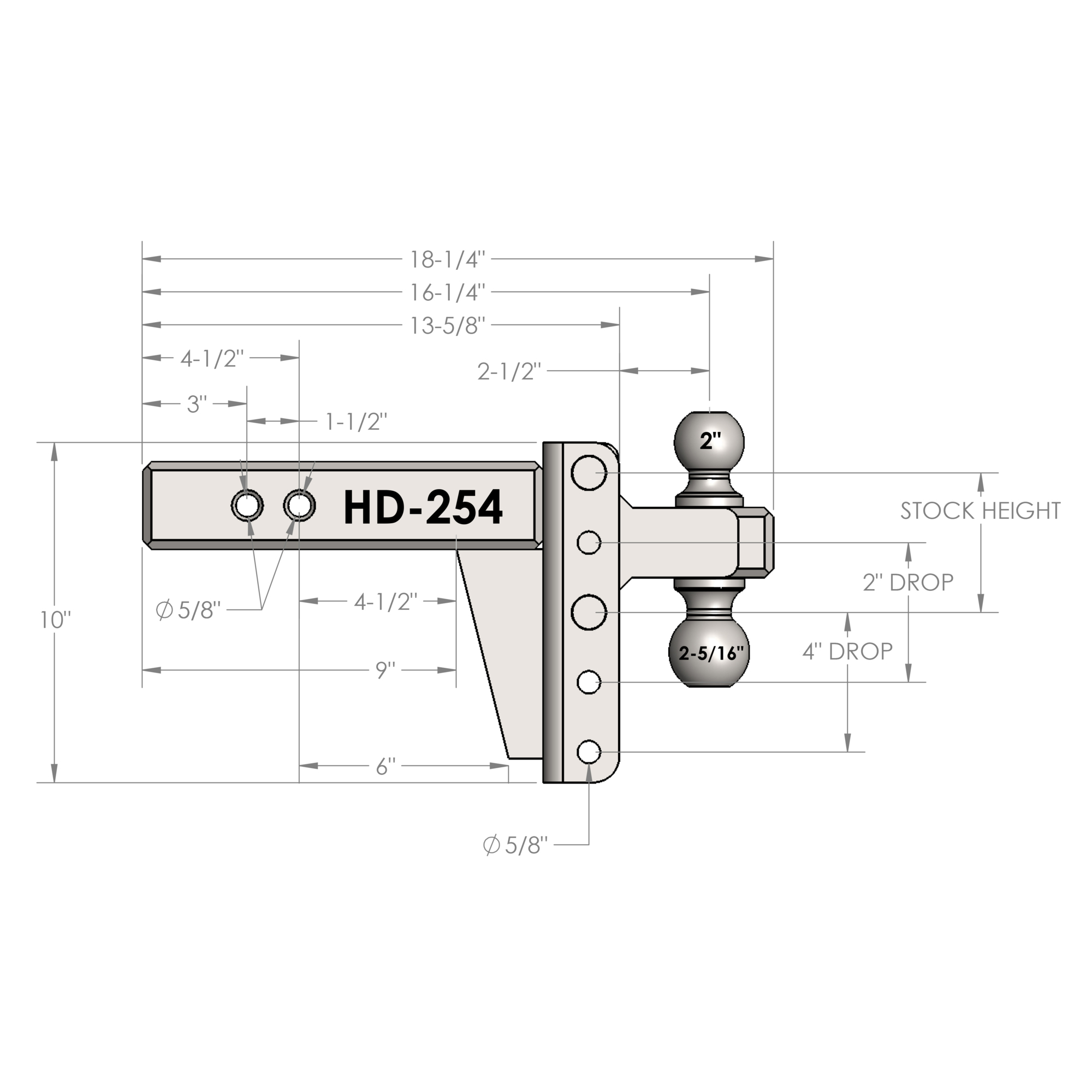

Dimensions L x W x H (in.)

x 6.0 x 17.0 in
