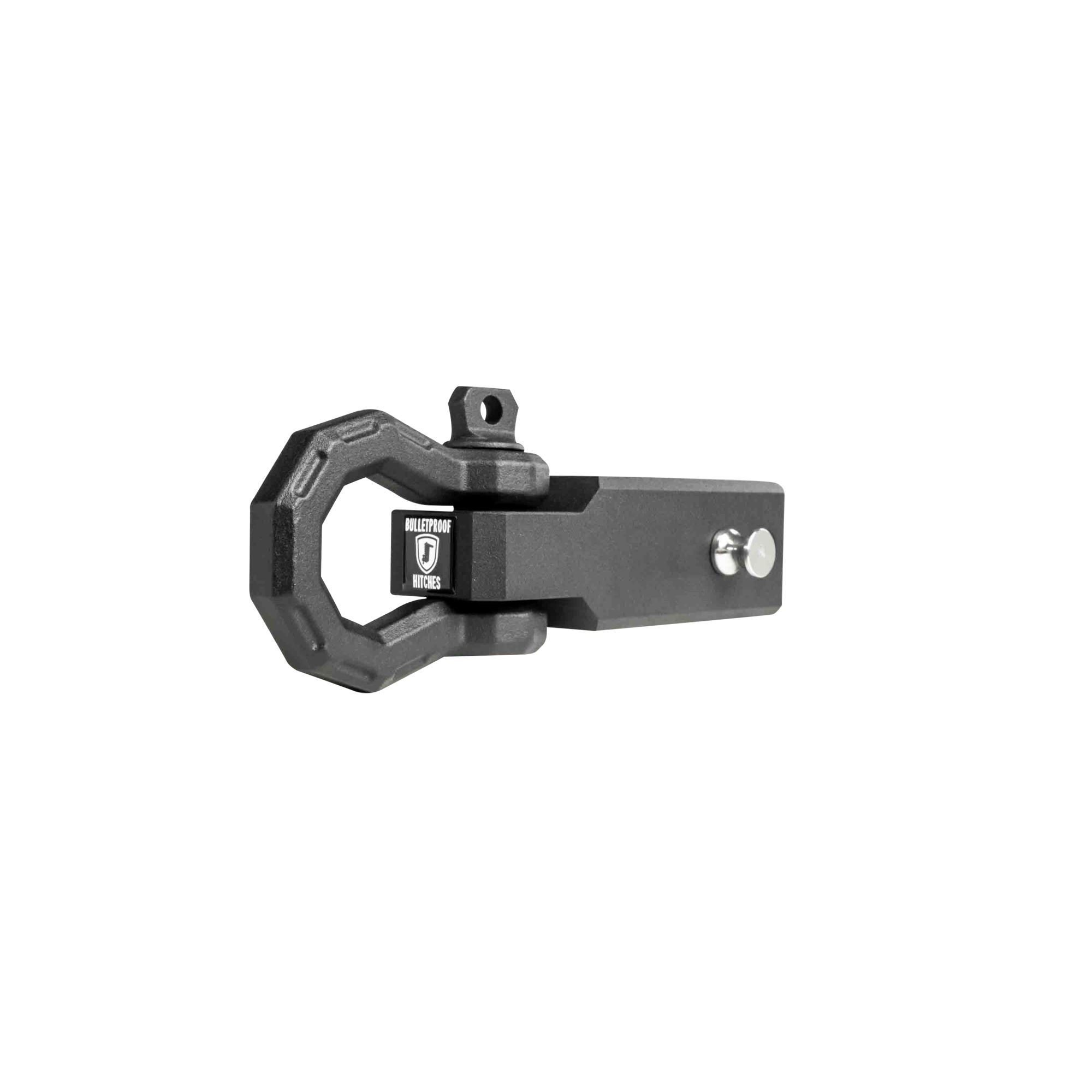

BulletProof Hitches Heavy Duty Receiver Shackle — 3in., 22,000-Lb. Capacity, Model# HD30SHACKLE

Item# 6716325
BulletProof Hitches Heavy Duty Receiver Shackle — 3in., 22,000-Lb. Capacity, Model# HD30SHACKLE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BulletProof Hitches Heavy Duty Receiver Shackle — 3in., 22,000-Lb. Capacity, Model# HD30SHACKLE

Click or Tap image to Zoom

$169.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Maximum weight capacity is 22,000 lbs.

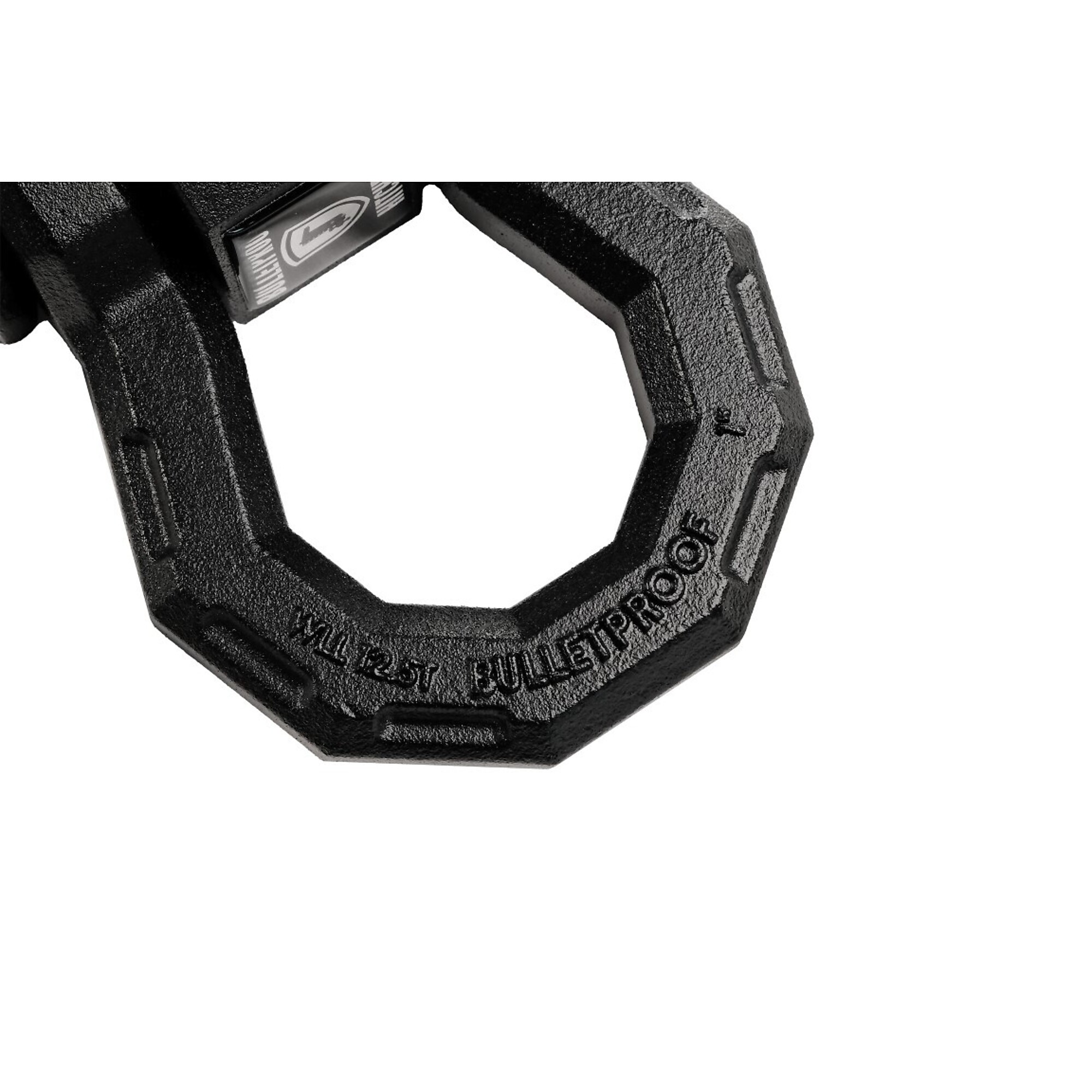

  • WLL: 12.5T - clearly stamped on the shackle to meet DOT requirements
  • Ultimate recovery solution for any truck with a 3" receiver tube
  • 3" solid steel shank with a 1" D-Ring shackle that is secured by a 1-1/8" threaded pin
  • Features four pin holes, one on each side of the shank to allow the shackle to be mounted in the horizontal or vertical orientation

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The BulletProof 3.0” Heavy Duty Receiver Shackle is the ultimate recovery solution for any truck with a 3” receiver tube; perfect for the times you need to attach a rope, strap or a chain. Engineered for strength, it’s rated for a maximum weight capacity of 22,000 lbs., with a Working Load Limit (WLL) of 12.5T, which is clearly stamped on the shackle to meet all DOT requirements. Constructed for durability, this shackle has a rugged 1in. D-ring shackle that is secured to a solid steel shank by a 1-1/8in. threaded pin. The shank offers four pin holes allowing for both horizontal or vertical mounting without compromising strength or capacity. The design features two different mounting options, letting you choose how much of the shank extends into the receiver tube - ideal for trucks with aftermarket bumpers. This additional pin hole at the end of the shank provides an extra 1-1/2in. of extension when needed. The shackle is easy to use-simply unthread the pin to quickly remove or attach the loop of a strap or rope. For best performance, it can be paired with the BulletProof Heavy Duty Tow Strap or the BulletProof Heavy Duty Kinetic Rope. Finished in the signature black textured powder coat, it comes with one corrosion resistant 5/8in. pin and R-clip to secure it into the receiver tube. Pair it with a BulletProof Locking Pin to keep your receiver shackle secured onto your vehicle for added security. Disclaimer for 3in. Receiver Shackle: It is important to double check the size of the opening of your receiver tube before ordering your new BulletProof Receiver Shackle. 3in. receivers are only found on some 2017 and newer Ford Truck models, such as F250, F350, F450, F550. Some Class C and Class A RVs may have a 3in. receiver tube. As with all BulletProof Hitches® Recovery Equipment, the Heavy Duty Receiver Shackle is backed by a Lifetime, No-Hassle warranty.

What's Included

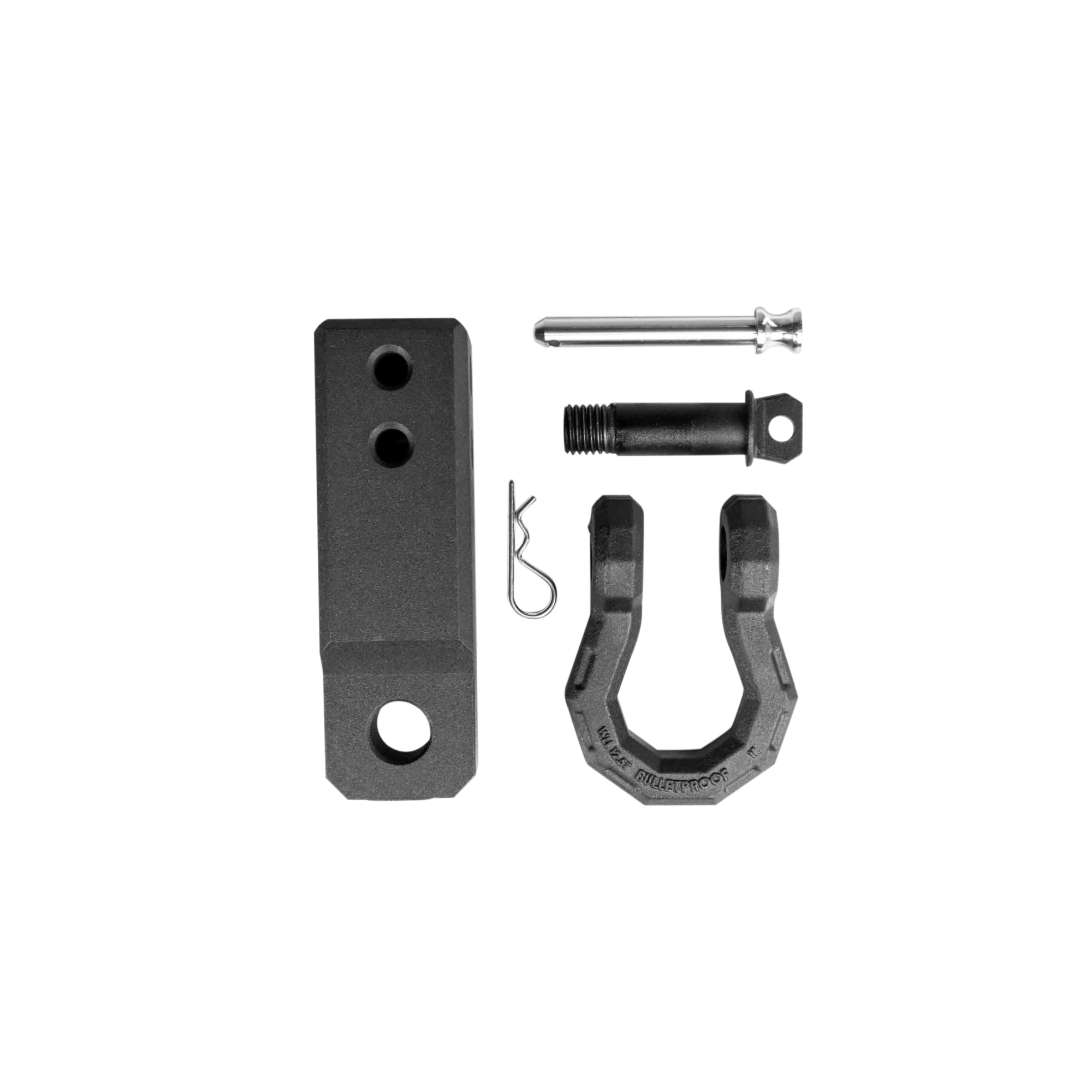

    (1) 3" Solid Steel Shank (1) 1" Shackle with 1-1/8" Threaded Pin

Features + Benefits

  • Maximum weight capacity is 22,000 lbs.
  • WLL: 12.5T - clearly stamped on the shackle to meet DOT requirements
  • Ultimate recovery solution for any truck with a 3" receiver tube
  • 3" solid steel shank with a 1" D-Ring shackle that is secured by a 1-1/8" threaded pin
  • Features four pin holes, one on each side of the shank to allow the shackle to be mounted in the horizontal or vertical orientation

Key Specs

AttributeSpecification

item#

6716325

Brand

Bulletproof Hitches

Manufacturer's Warranty

12 years limited

Ship Weight

27.0 LB

Working Load Limit

22,000 lb
AttributeSpecification

Material

Steel

Product Type

Other

Product Weight

26.1800 lb

Dimensions L x W x H (in.)

13.5 x 3.0 x 8.125 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 years limited
