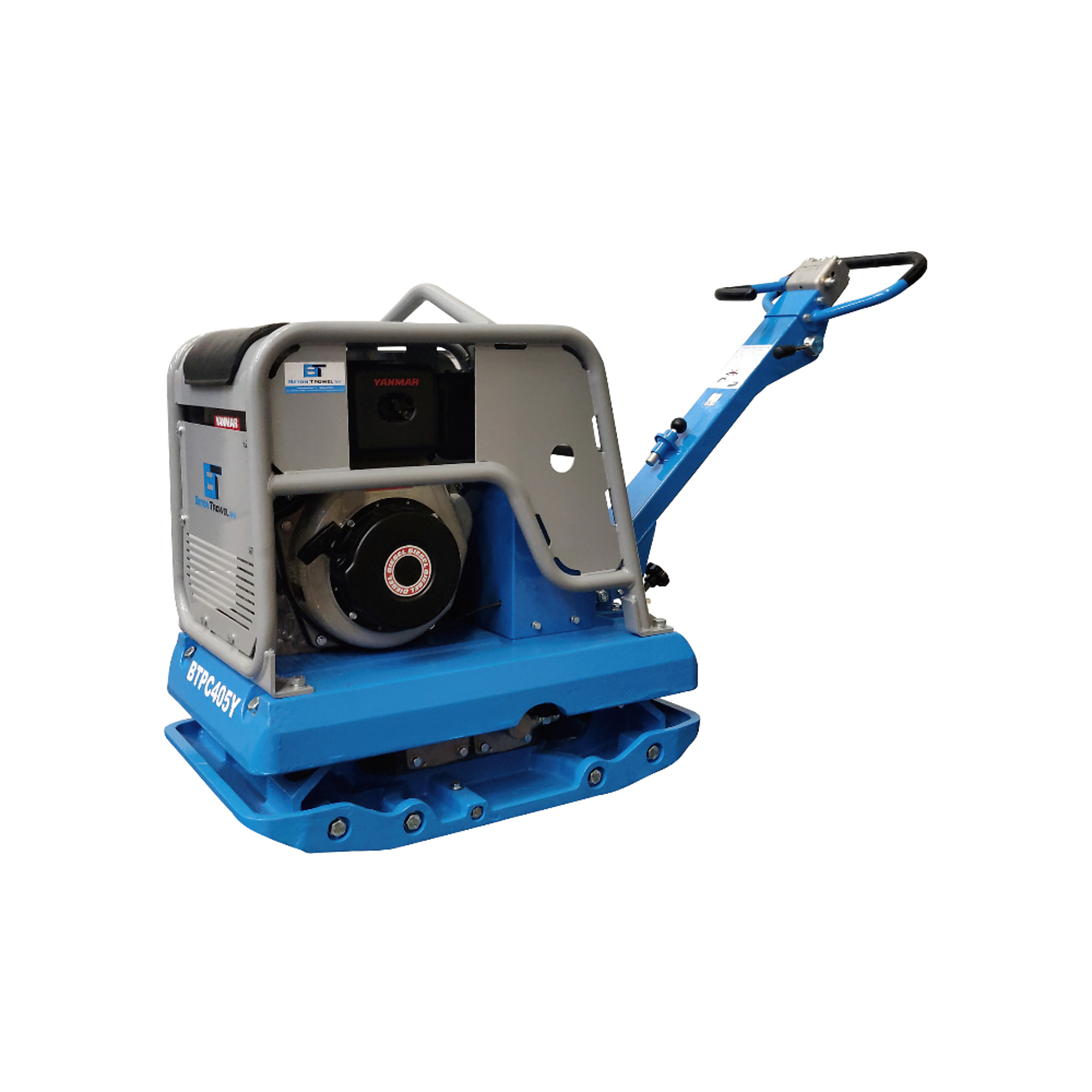

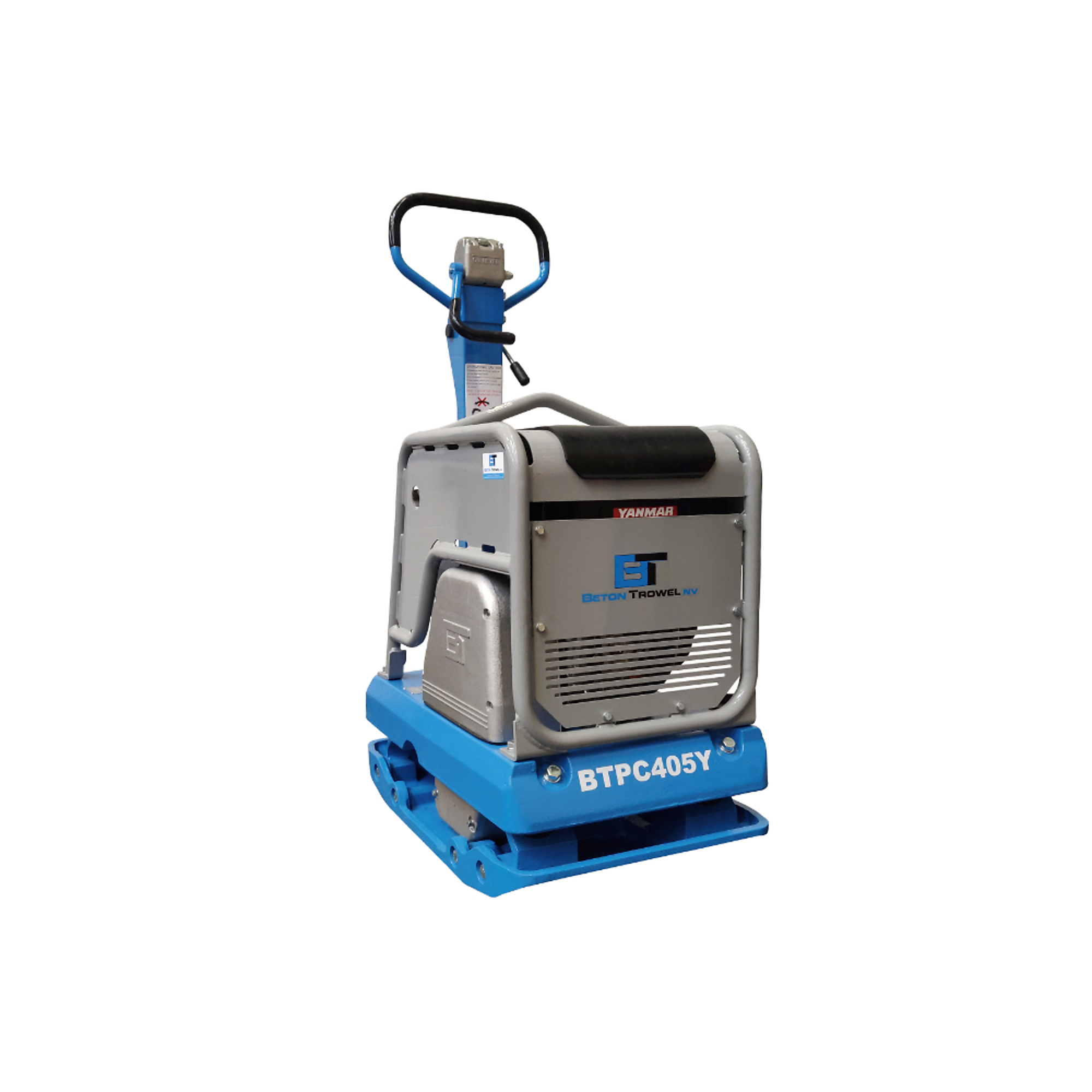

Beton Trowel Reversible Plate Compactor — 20in., 990 lbs., Hydraulic Reversing, Yanmar L100 Engine, Model# BTPC405Y

Item# 7048066
Beton Trowel Reversible Plate Compactor — 20in., 990 lbs., Hydraulic Reversing, Yanmar L100 Engine, Model# BTPC405Y

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Beton Trowel Reversible Plate Compactor — 20in., 990 lbs., Hydraulic Reversing, Yanmar L100 Engine, Model# BTPC405Y

Click or Tap image to Zoom

$13,899.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Enclosed frame to protect the Yanmar L70 diesel engine
  • Hydraulic reversing mechanism allows forward and backward movement
  • Cast aluminum throttle and ductile iron base
  • 19.6 by 35.4 In. plate provides great coverage for compaction
  • Travels at 65 to 82 feet per minute, at up to 35% climbing gradient

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The BTPC405Y reversible plate compactor features a hydraulic reversing mechanism, making it easy to maneuver for forward and backward movement. This compact is designed for durability, with a cast aluminum belt guard to protect the clutch, and a ductile iron base for added longevity. This compactor has a fully enclosed frame, which protects the powerful Yanmar L100 diesel engine for maximum reliability. The plate covers a 19.6 by 35.4in. area, providing excellent coverage, with a travel speed between 65 to 82ft. per minute. It’s even great on slopes up to a 35% climb gradient, and easy to transport with an integrated hoist hook recess.

What's Included

    (1) Reversible Plate Compactor

Features + Benefits

  • Enclosed frame to protect the Yanmar L70 diesel engine
  • Hydraulic reversing mechanism allows forward and backward movement
  • Cast aluminum throttle and ductile iron base
  • 19.6 by 35.4 In. plate provides great coverage for compaction
  • Travels at 65 to 82 feet per minute, at up to 35% climbing gradient
  • 35k Newton centrifugal force, with 5,200 VPM frequency
  • Easy to load and unload with hoist hook recess

Key Specs

AttributeSpecification

item#

7048066

Brand

Beton Trowel

Manufacturer's Warranty

1 year limited warranty

Ship Weight

990.0 LB

Engine Brand

Yanmar

Engine Model

L100

Motor Type

Gas

Fuel Type

Diesel
AttributeSpecification

Product Type

Plate Compactor

Plate Length

35.4 in

Plate Width

19.6 in

Travel Speed

82 ft./min.

Reversible

Yes

Product Weight

992.0000 lb

Dimensions L x W x H (in.)

35.0 x 20.0 x 60.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
