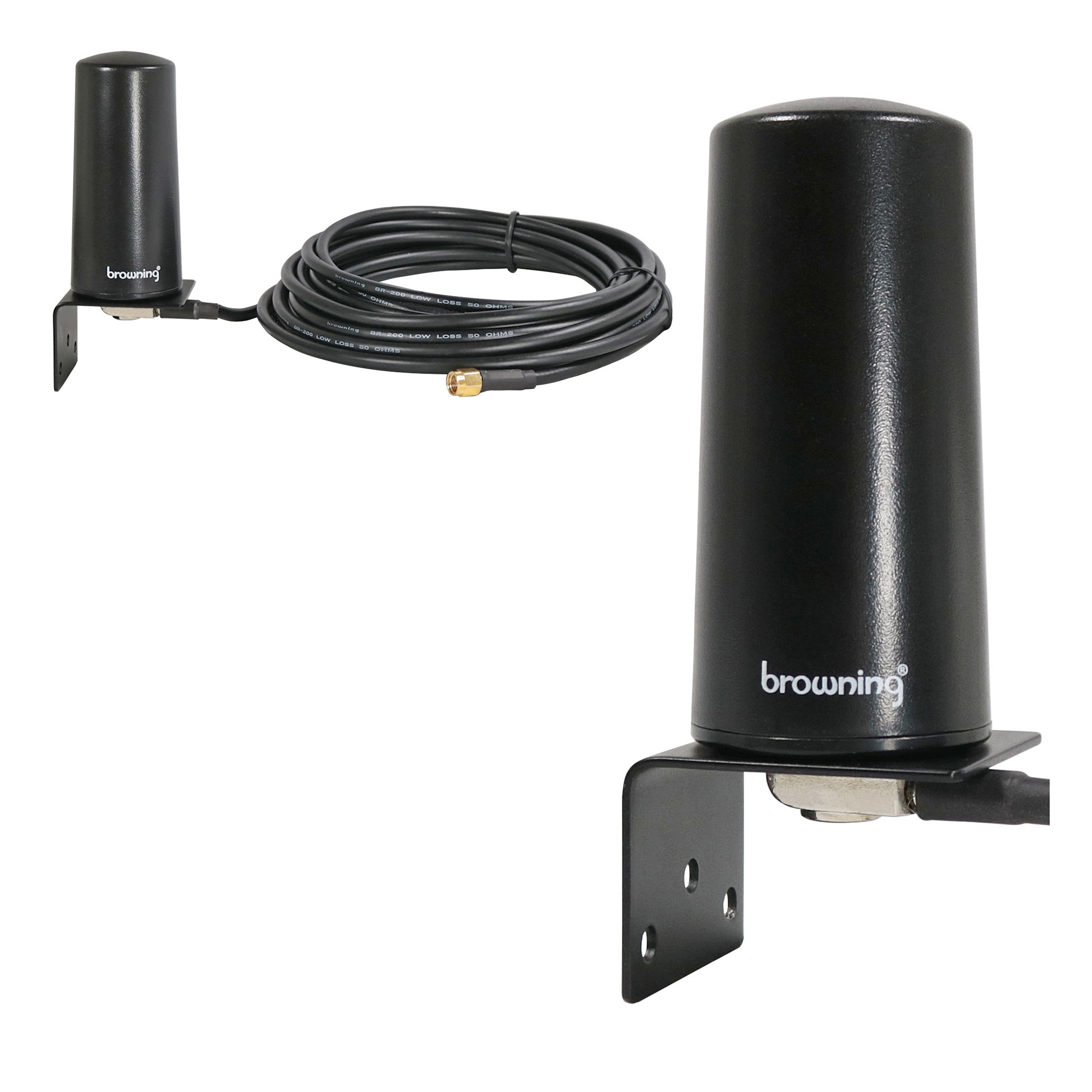

Browning Tri-Band Cellular Antenna Kit — 806 MHz to 2,500 MHz, 4-dBi Gain, 17ft. Low-Loss Cable, SMA Connector, Model# BR-2483-H

Item# 7190901
Browning Tri-Band Cellular Antenna Kit — 806 MHz to 2,500 MHz, 4-dBi Gain, 17ft. Low-Loss Cable, SMA Connector, Model# BR-2483-H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Browning Tri-Band Cellular Antenna Kit — 806 MHz to 2,500 MHz, 4-dBi Gain, 17ft. Low-Loss Cable, SMA Connector, Model# BR-2483-H

Click or Tap image to Zoom

$39.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

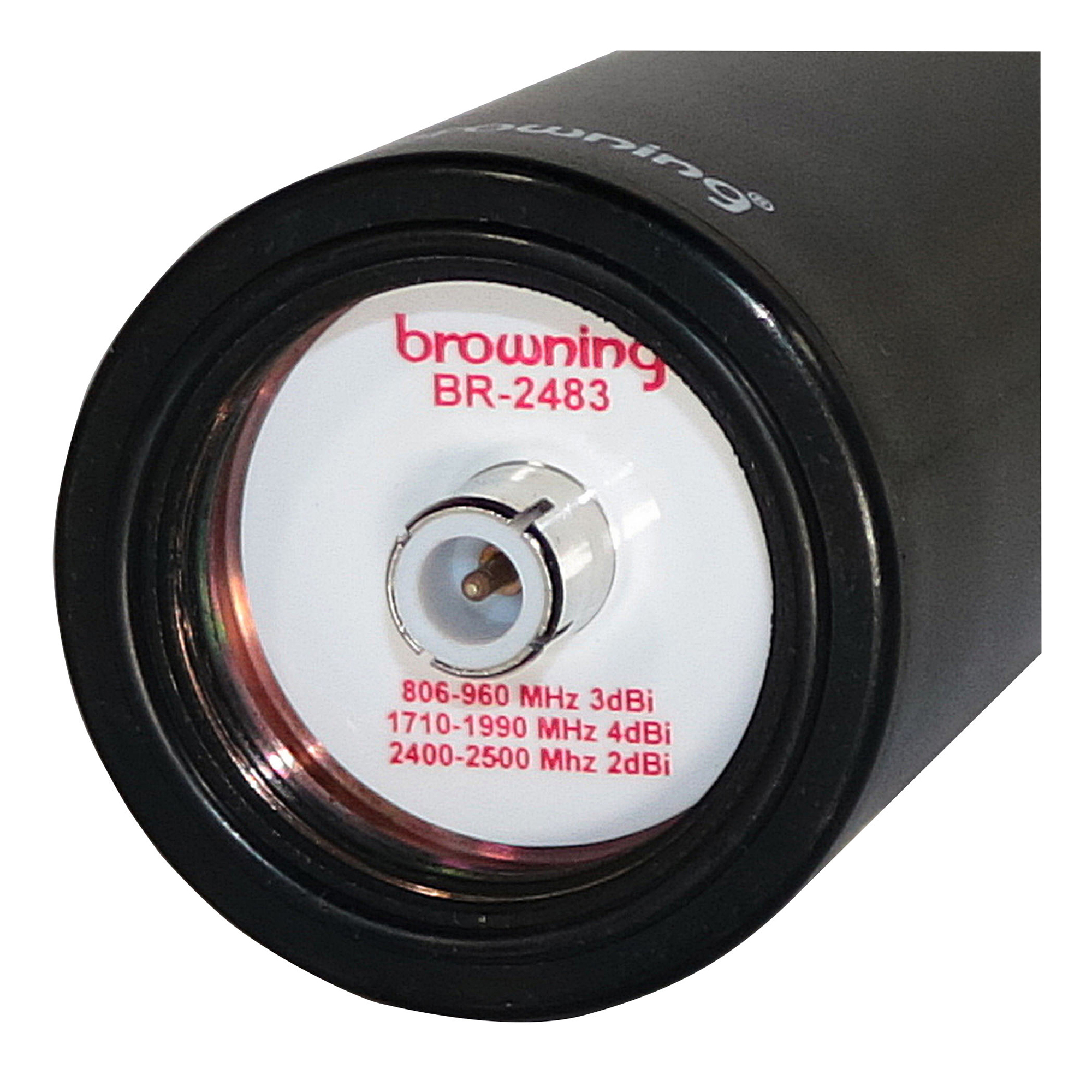

  • 806 to 960 MHz 3-dBi gain
  • 1,710 to 1,990 MHz 4-dBi gain
  • 2,400 to 2,500 MHz 2-dBi gain
  • Wideband - pre-tuned - no tuning needed
  • 3-1/4-in. tall black antenna

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

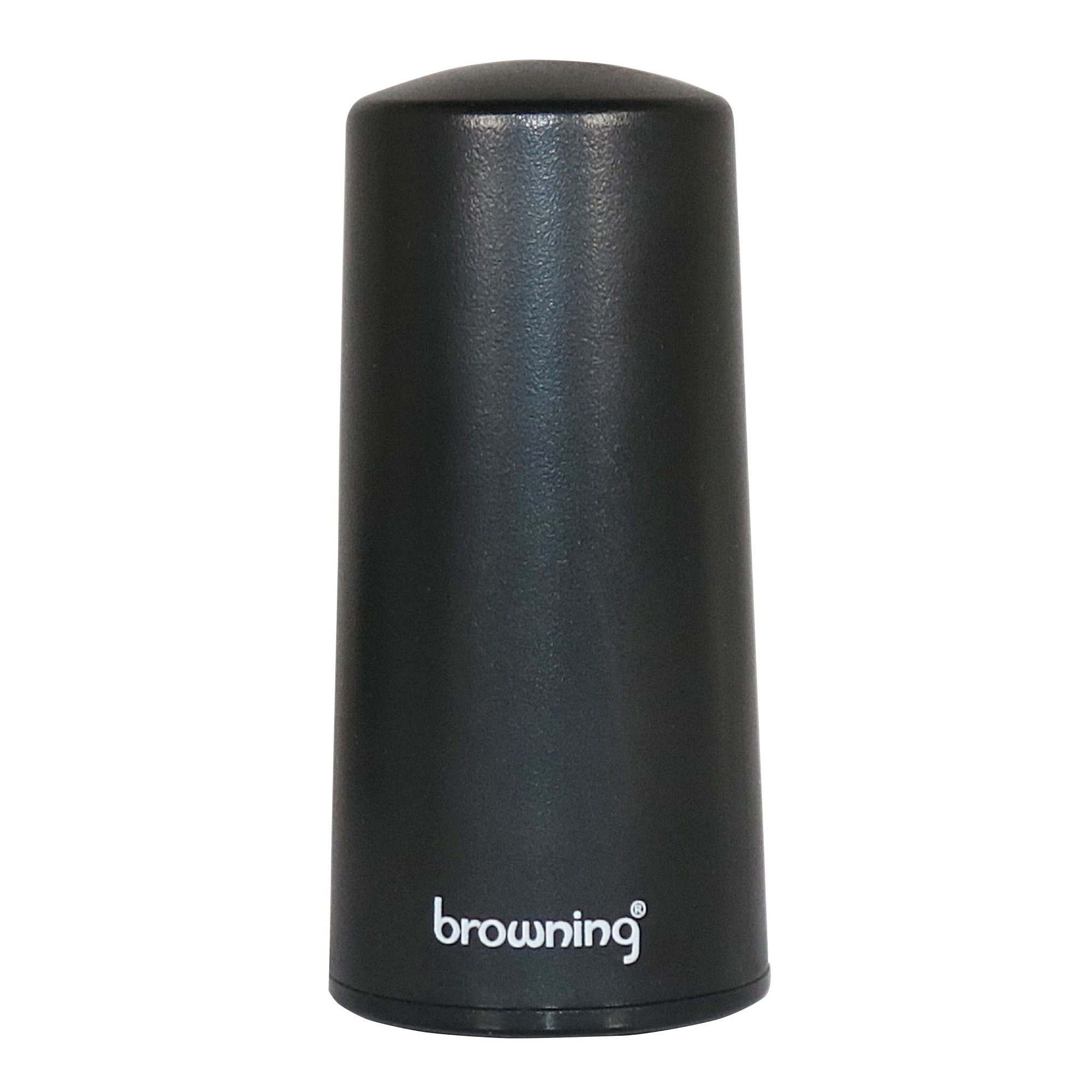

The Browning® BR-2483-H antenna offers impressive performance across multiple frequency ranges, featuring a gain of 3 dBi for 806 to 960 MHz, 4 dBi for 1,710 to 1,990 MHz, and 2 dBi for 2,400 to 2,500 MHz. Designed for convenience, this wideband antenna comes pre-tuned, eliminating the need for any adjustments upon installation. Standing at just 3 1/4in. tall, it boasts a heavy-duty solid-brass construction that ensures durability. The black chrome-plated solid brass NMO base adds to its robust design, supporting a power rating of up to 100 watts. Included with the antenna is a fully enclosed and shielded NMO mount, accompanied by a 17ft. BR-200 precision RF coax cable. This cable features a tinned copper braid with over 95% coverage, bonded aluminum tape, and a solid bare copper center conductor, allowing for extremely low attenuation and low standing wave ratio (SWR) across all frequencies. Additionally, the precision SMA-male connector is already installed for your convenience. For installation flexibility, the antenna can be mounted using a stainless steel L-bracket, which comes in a sleek black finish, making it suitable for trunk groove or side mounting. It can easily fit in a 3/4in. hole, ensuring you can set it up wherever you need. Overall, this antenna combines high performance with practical design, making it an excellent choice for your communication needs.

What's Included

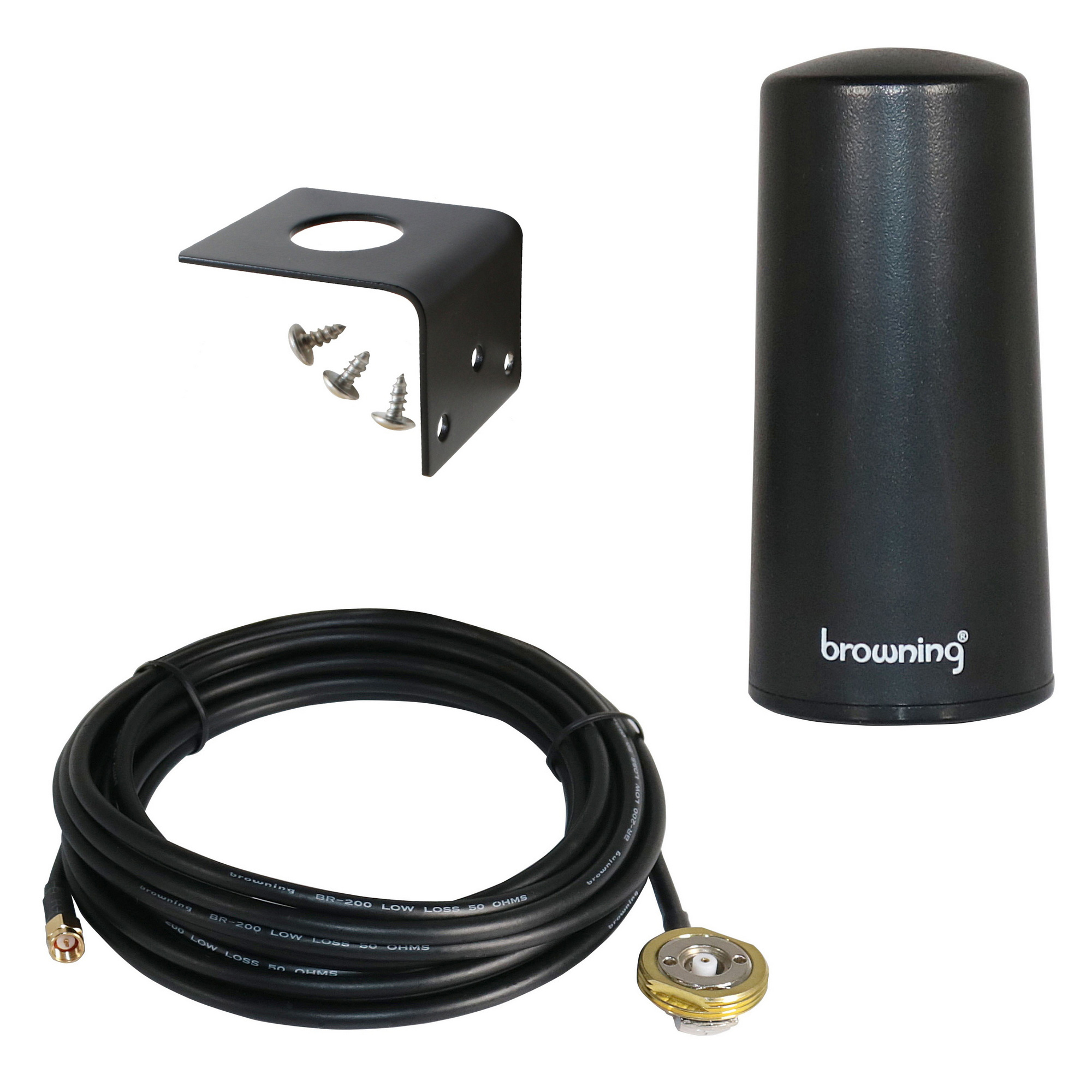

    (1) Antenna (1) 17-ft. cable (1) L bracket

Features + Benefits

  • 806 to 960 MHz 3-dBi gain
  • 1,710 to 1,990 MHz 4-dBi gain
  • 2,400 to 2,500 MHz 2-dBi gain
  • Wideband - pre-tuned - no tuning needed
  • 3-1/4-in. tall black antenna
  • Heavy-duty solid brass construction
  • Black-chrome-plated solid brass NMO base
  • 100 watts power rating
  • Solid brass NMO ring

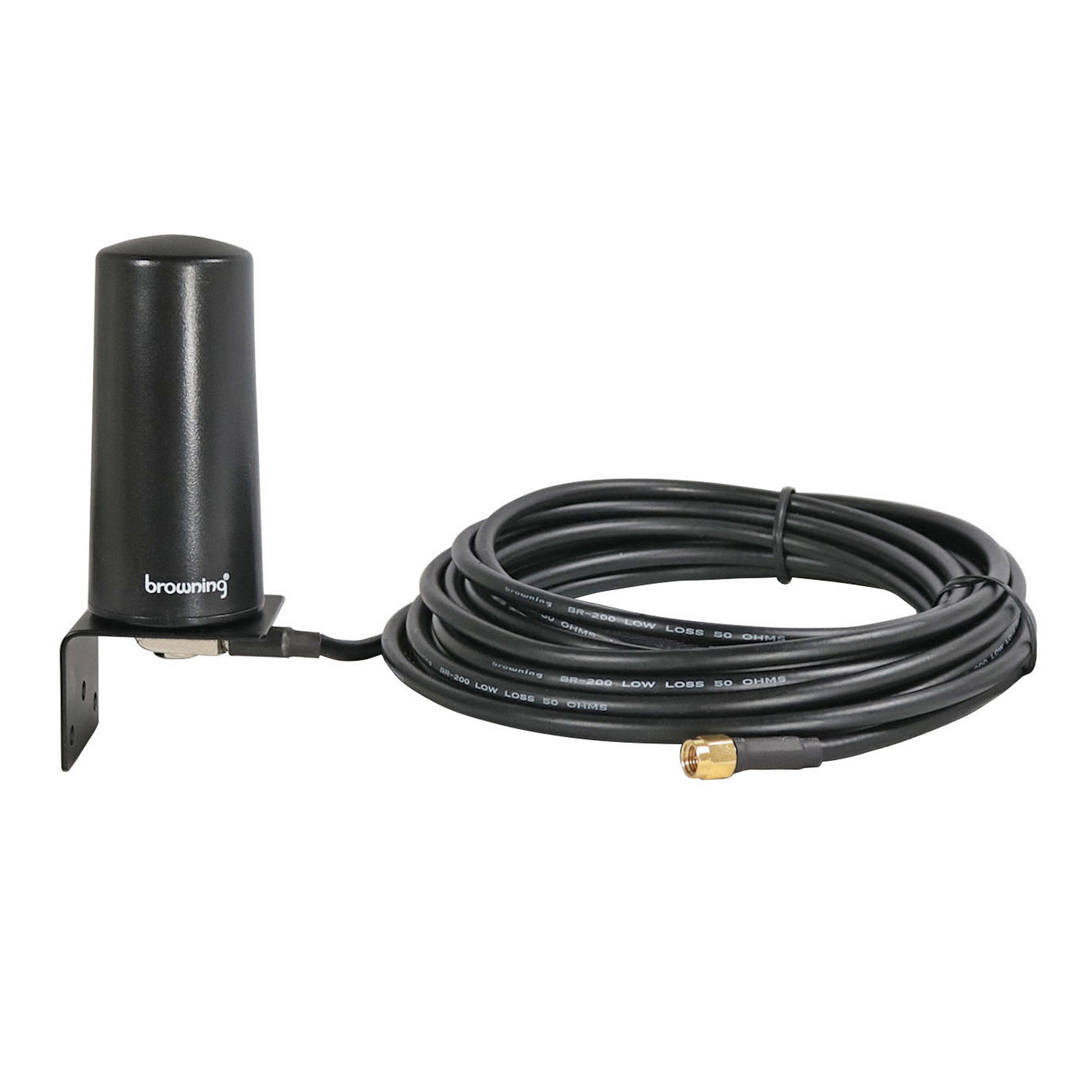

  • Fully enclosed, fully shielded NMO mount with 17-ft. BR-200 precision RF coax cable, tinned copper braid 95% plus bonded aluminum tape, solid bare copper center conductor, extremely high 83% velocity gas injected foam dielectric and extremely low attenuation for low SWR in all frequencies
  • Precision SMA-male connector installed
  • 17-ft. BR-200 coax cable for good high-frequency function
  • Stainless steel L-bracket with black finish for trunk groove or side mounting
  • Can be mounted in 3/4-in. hole

Key Specs

AttributeSpecification

item#

7190901

Brand

Browning

Manufacturer's Warranty

3 month limited warranty

Ship Weight

0.8 LB
AttributeSpecification

Mounting Type

Bracket

Product Type

Magnetic Antenna

Product Weight

0.7500 lb

Dimensions L x W x H (in.)

1.4375 x 3.3125 x 1.4375 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 month limited warranty
