The width of the spray depends on the pressure and the height of the nozzle. I have mine set at 30 pounds of pressure and 40 inches high. I have a good even spray pattern that is 14 feet wide. A little mist goes wider, but not as heave as the 14 feet of coverage. Originally I almost sent the nozzle back, as it is very small and seems as it wouldn't do the job, glad I didn't return it, works great !!

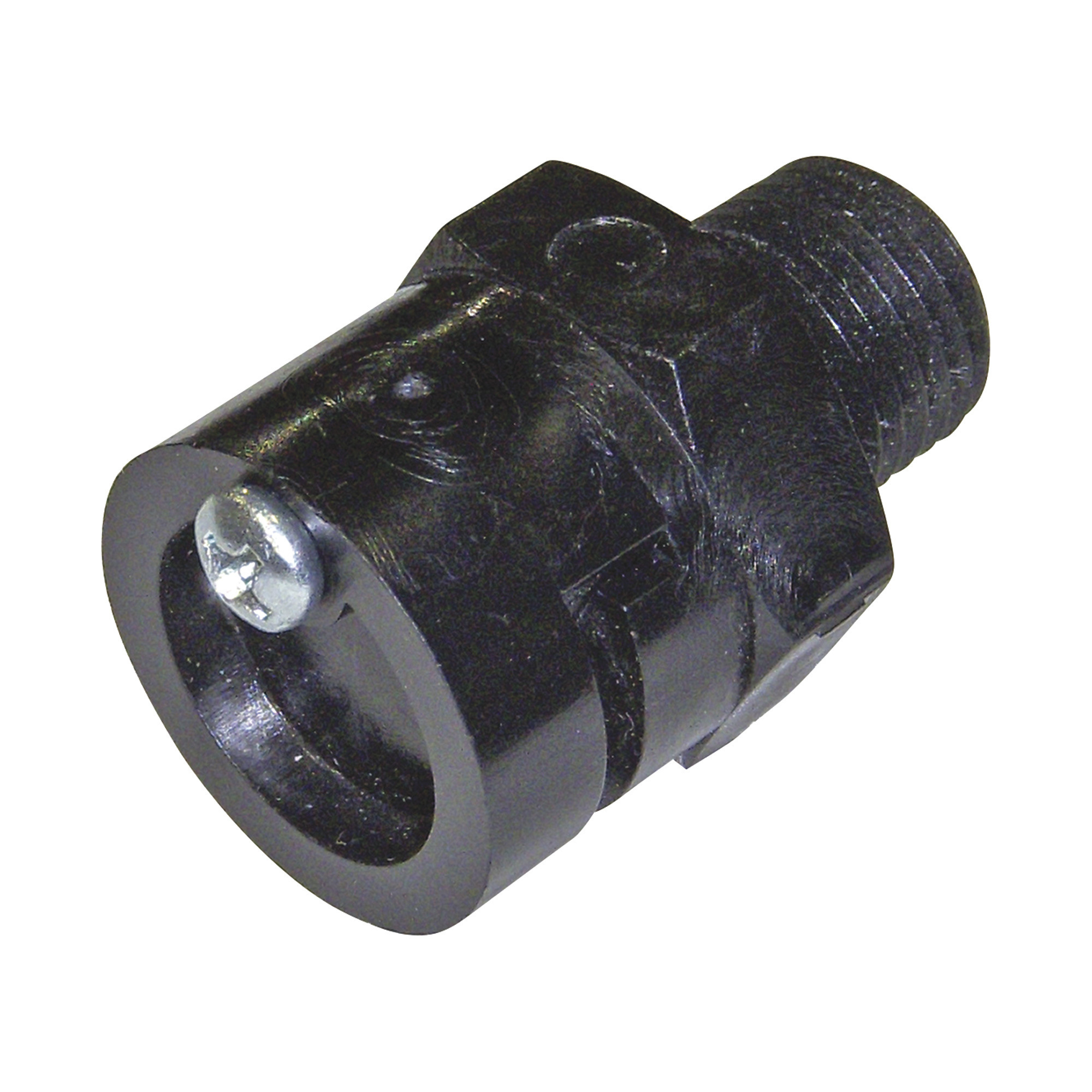

NorthStar Broadcast Sprayer Nozzle, 16ft. Wide Spray, 1/4in. NPT-M, 15 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Free shipping (lower 48 states) - Available nowStore Pickup:
Call Store for Availability
- Eliminates the need for cumbersome boom arms
- 1/4in. NPT-M connection
- Requires minimum 1 GPM and 15 PSI
- Compatible with Item#s 268195, 268852, 2681101, 2681781 and 26812101
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Broadcast nozzle
Features + Benefits
- Eliminates the need for cumbersome boom arms
- 1/4in. NPT-M connection
- Requires minimum 1 GPM and 15 PSI
- Compatible with Item#s 268195, 268852, 2681101, 2681781 and 26812101
Key Specs
| Attribute | Specification |
|---|---|
item# | 275088 |
Brand | NorthStar |
Manufacturer's Warranty | 1 month parts/1 month labor |
Ship Weight | 0.03 LB |
| Attribute | Specification |
|---|---|
Product Type | Sprayer Nozzle |
Product Weight | lb |
Dimensions L x W x H (in.) | 1.875 x 1.5 x 0.875 in |
Reviews
Questions & Answers
Questions
-
· 14 years ago
How do you adjust the width of spary?
At about 4ft high the spray spread is about 7ft; not 15-16ft as advertized
-
JRT2· 9 years ago
Helpful?
-
ProductExpert19· 12 years ago
This broadcast nozzle does not have an adjustment. It is only adjustable by the height and angle. This nozzle does require a minimal of 1 gpm at 15 psi.
Helpful?
-
Raleigh89· 14 years ago
I get a 12 foot wide spray with the nozzle set at 3 feet above ground level attached to a tow-behind sprayer that has a NorthStar 2.2 gallon per minute pump.
I filled my tank with water and did a test pass on dry concrete. I got full saturation 12 feet wide and saw no gaps in coverage.
I used the unit to spray a total-vegetation killer in a pasture and the results were clearly successful. There were no gaps or patches of vegetation that were not dead.
You might want to fill your tank with water, remove the hose right at the nozzle and verify you are getting the volume and pressure you expect right there at the nozzle end of the hose. Mine initially was quite low and I found a fouled in-line screen-type filter at the pump input connection and some thick gunk in my hose lines themselves. Once those were cleaned out I got the results noted above which are quite satisfactory for my purposes.Helpful?
-
-
· 14 years ago
what threads are on it?
-
Westondan· 10 years ago
1/4npt. (Pipe thread)
Helpful?
-
dss995· 10 years ago
1/4 NPT
Helpful?
-
ProductExpert19· 12 years ago
This broadcast nozzle has 1/4" npt male threads.
Helpful?
-
-
· 11 years ago
How big a pump do I need to run 2 of these nozzles?
-
505CID· 8 years ago
2 GPM will work but I used a 3gpm and it is awesome
Helpful?
-
ProductExpert40· 11 years ago
To run two of these nozzles you would need a pump capable of supplying at least 2 GPM and 30 PSI.
Helpful?
-
-
· 12 years ago
Spray head
Is this sprayer designed to spray with the nozzle facing up-or down?I'm not sure which way to position it.
-
wkf1· 6 years ago
mount with screw facing up with slot to rear
Helpful?
-
ProductExpert6· 12 years ago
The sprayer should be mounted so the spray nozzle is at the top.
Helpful?
-
-
· 13 years ago
can you adjust the width of spray nozzle to less than 16'
-
dss995· 10 years ago
Yes by varying the height and pressure from the pump the width of spray can be adjusted.
Helpful?
-
ProductExpert19· 12 years ago
This broadcast nozzle does not have an adjustment. It is only adjustable by the height and angle. This nozzle does require a minimal of 1, GPM at 15 psi.
Helpful?
-
-
· 14 years ago
WHAT IS THE PER ACRE FLOW OUT OF NOZZLE AT 15-20 PSI
-
notentered· 6 years ago
I have a 2.1 gpm pump that I think pumps up to about 60 psi that came on a 25 gallon spot sprayer. I adapted a Y using a cheap water hose connector with on/off on each outlet and plumbed the broadcast nozzle in using the Y connector as the shutoff. I cover roughly 2 acres overlapping slightly traveling about 4 mph. I typically use about an ounce a gallon of roundup to each tank and have good kill. Hope this helps. This is a great little nozzle. Local farm supply store had all fittings needed to plumb in fairly cheap, maybe about $20 of plastic fittings
Helpful?
-
ProductExpert19· 12 years ago
The broadcast nozzle is not rated at a per acre flow. The nozzle will provide 1.5 GPM at 20 PSI.
Helpful?
-
-
· 2 years ago
Is this meant to be used pointing up or down? (The Phillips head screw on top, towards the sky or the ground).
1 answer-
NorthstarExpert12· 2 years ago
When the broadcast nozzle is in use, the screw would be on the top.
Helpful?
-
-
· 2 years ago
i need the wand for this sprayer nozzle
1 answer-
NorthstarExpert7· 2 years ago
The broadcast lance, part number 788410, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.
Helpful?
-
-
· 3 years ago
Is this nozzle adjustable to spray only left or right
1 answer-
NorthstarExpert29· 3 years ago
This nozzle does not have an adjustment to spray left or right.
Helpful?
-
-
· 5 years ago
Is there a pressure vs. width and gpm chart?
1 answer-
NorthstarExpert7· 5 years ago
There is a not a pressure vs width and gpm chart. The spray width will be determined by the height and angle.
Helpful?
-
Warranty
Manufacturer's Warranty
1 month parts/1 month labor
