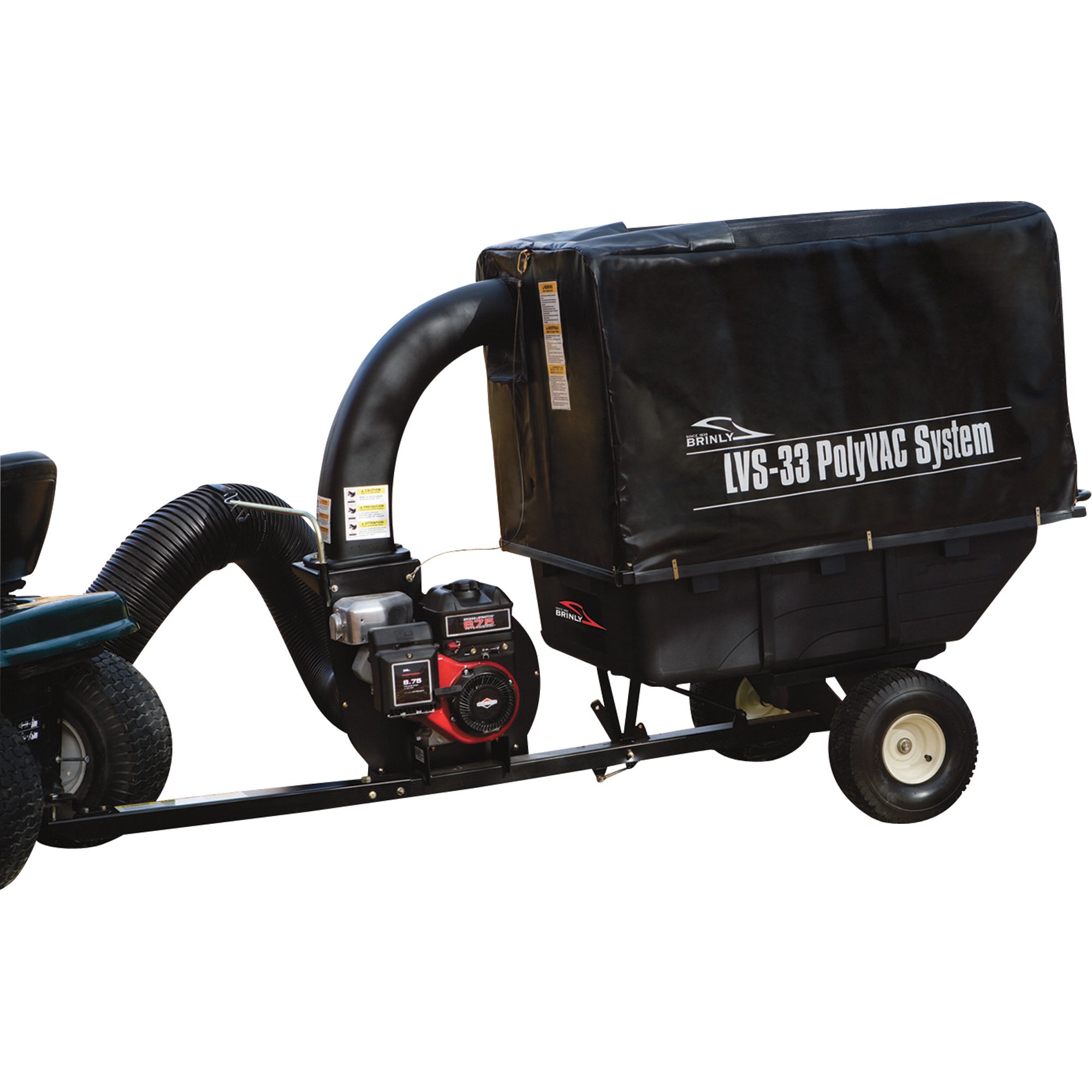

Brinly-Hardy Poly Lawn Vac System — 206cc Briggs & Stratton OHV Engine, 33 Cu. Ft. Capacity, Model# LVS-33BH

Item# 365348
Brinly-Hardy Poly Lawn Vac System — 206cc Briggs & Stratton OHV Engine, 33 Cu. Ft. Capacity, Model# LVS-33BH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Brinly-Hardy Poly Lawn Vac System — 206cc Briggs & Stratton OHV Engine, 33 Cu. Ft. Capacity, Model# LVS-33BH

Click or Tap image to Zoom

  •  Large 8in. dia. hose sucks up debris with minimal clogging
  • Unique clamshell design dumps quickly with no need to remove a tailgate or get on your knees to empty
  • 500-lb., 33 cu. ft. capacity hamper
  • 15in. tires for tow-behind ease
  • Hitch pin included

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The two biggest problems with most lawn vac systems are easy clogging and difficult emptying. This lawn vac system is the solution, thanks to a high-CFM, 206cc Briggs & Stratton I/C™ OHV engine with 9ft.-lbs. gross torque and large-diameter 8in. Spiro-flex hoses that allow high-performance when working with wet grass and leaves.

What's Included

  • (1) Tow bar
  • (1) Hose & deck assembly
  • (1) Upper chute assembly
  • (1) Bed/frame group
  • (1) Canopy assembly
  • (1) Engine assembly
  • Hardware bag
  • (1) Pack of frame tubes

Downloads

Product Manual

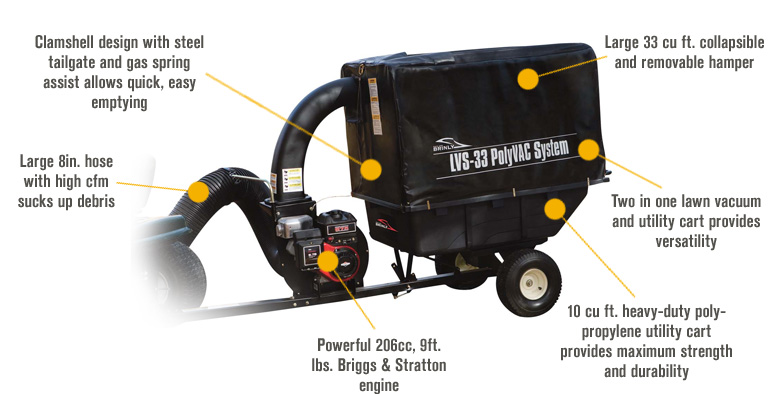

Features + Benefits

  •  Large 8in. dia. hose sucks up debris with minimal clogging
  • Unique clamshell design dumps quickly with no need to remove a tailgate or get on your knees to empty
  • 500-lb., 33 cu. ft. capacity hamper
  • 15in. tires for tow-behind ease
  • Hitch pin included
  • Ventilated mesh top minimizes dust and debris
  •  Heavy-duty molded poly bed won't rust or dent
  •  Vacuum system can be removed to use the cart for other hauling jobs
  • Made of UV-resistant material

Key Specs

AttributeSpecification

item#

365348

Brand

Brinly-Hardy

Manufacturer's Warranty

24 months consumer / 90 day commercial

Ship Weight

270.0 LB

Capacity

33 ft³

Engine Displacement

206 cc
AttributeSpecification

Product Type

Vacuum

Walk or Pull

Pull

Bagger Volume

26.5 bu (US)

Discharge Chute Material

Other

Housing Material

Polyester

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. Is the item shipped assembled? (like the picture above)

    1. No it is not. Instructions are unintuitive and require some degree of mechanical understanding.

      Helpful?

    2. Our Lawn Vac System is not shipped assembled. Assembly is required and takes between 2-4 hours, depending on your mechanical ability.

      Helpful?

    3. This Lawn Vac system does not come assembled. It is shipped in one parcel.

      Helpful?

  2. Does all deck attachment hardware come with this unit? I have a 48" JD deck.

    1. The PolyVac System does include the boot which will fit any right handed side decks as long as the opening is no larger than 20X5.

      Helpful?

    2. The PolyVac System does include the Boot which will fit any right handed side decks as long as the opening is no larger than 20X5 . On your 48" you should be just fine. This unit also includes both the large and small brackets to attach the boot and the hardware needed to mount.

      Brinly-Hardy Company

      Helpful?

  3. can the vac suck up acorns?

    1. It depends on your mower. The majority of the suction is determined by the mower and mower blades used. I have Husky 54" with the hi-lift bagging blades. I have A LOT of acrons and it picked up some, not all. Once again this is a function of mower's suction more than the Brinley.

      Helpful?

    2. The Lawn Vac-System is not designed to pick up acorns. It is made for picking up leaves and grass.

      Helpful?

  4. Can it pick up Oak Acorns?

    Will small branches and acorns hurt the impeller or the fabric?

    1. I have 3+ acres of heavy leaves, twigs/branches and acorns. I encountered no clogging issues when using this product.

      Sharp blades and medium/slow speeds will ensure the debris is chopped appropriately to pass through tubes without clogging. The impeller will do some minimal chopping, but its blades are too large for any serious mincing.

      Helpful?

    2. This lawn vac system is designed for wet or dry grass and leaves. Branches and acorns might not be picked up. Branches could possibly damage the fabric if a sharp end were to poke through the fabric.

      Helpful?

  5. What size mower deck does it fit?

    1. I have a Simplicity 44 & 48 inch deck which was not supplied with instructions. Took my time and cut it out by tracing the deck on the housing supplied and it works flawlessly.

      Helpful?

    2. The Brinly-Hardy Lawn Vac System will work with the following mower deck sizes: John Deere 42", 48", and 54", Murray 40", 42", and 46", Craftsman 42", 48", and 50", Cub Cadet 38", 42", 44", and 50", Husqvarna 48" and 54", MTD 38", 42", and 46", Troy-Bilt 42", Bolens 38" and 42" and Stanley 42" and 46".

      Helpful?

  6. what is the ratio of leaf shredding? eg 10:1

    1. It depends on the size of your mower deck and how well it shreds leaves before it goes into the hose.

      Helpful?

    2. That would depend on the size of your mower deck, and how well it shreds leaves before it goes into the hose. Either way, it will pick up most if not all of your leaves as long as you stay within 3-5 mph. The bigger your mower deck, the more leaves that will be picked up. As long as the opening on your deck is no bigger than 20" X 5", the boot on this unit will fit.

      Helpful?

  7. Does this model (lvs-33bh) work with a zero turn mower?

    1. This will not work on a zero-turn mower.

      Helpful?

    2. Thank you for your question. The LVS-33BH will not work on a zero-turn mower. It is not designed to handle that sharp of a turn.

      Helpful?

  8. do these items offer electric start?

    1. Thank you for your question. There is currently no electric start option for the LVS-33BH.

      Helpful?

    2. The engines that come with these systems are recoil start only.

      Helpful?

  9. DOES THIS MACHINE MULCH LEAVES

    1. This Brinly-Hardy Poly Lawn Vac System can mulch leaves.

      Helpful?

    2. Yes. Our Lawn Vac System will mulch leaves with ease using the steel impellar that comes standard with the machine.

      Helpful?

  10. Is a remote vacuum hose available?

    And if so will it handle twigs that would get sucked up with debris under bushes.

    1 answer

    1. At this time a remote vacuum hose is not available.

      Helpful?
