Not well at all in my experience for the first earth disturbance in years. I had to hire a tractor with a tiller the first time. Since then, I've been able to work it OK.

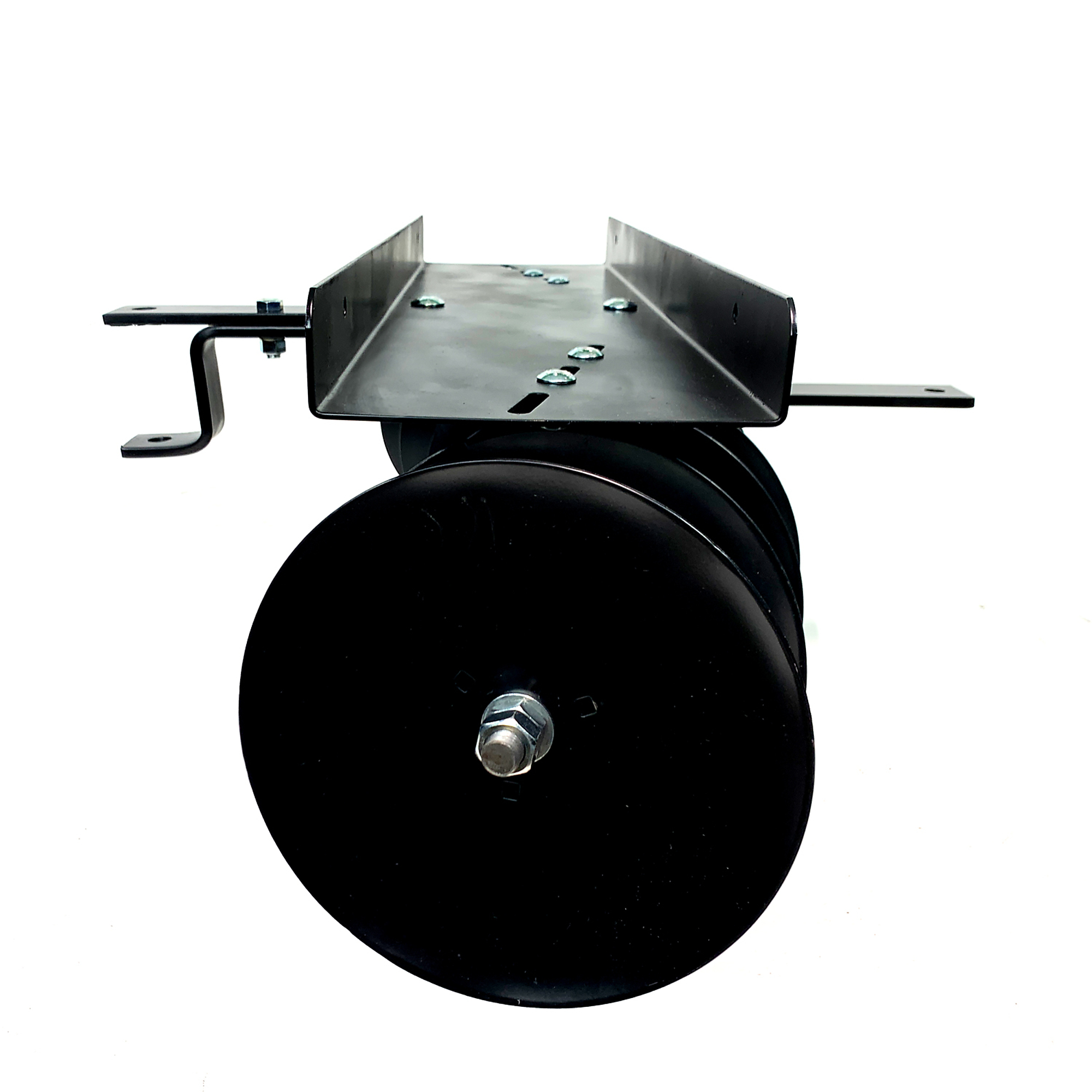

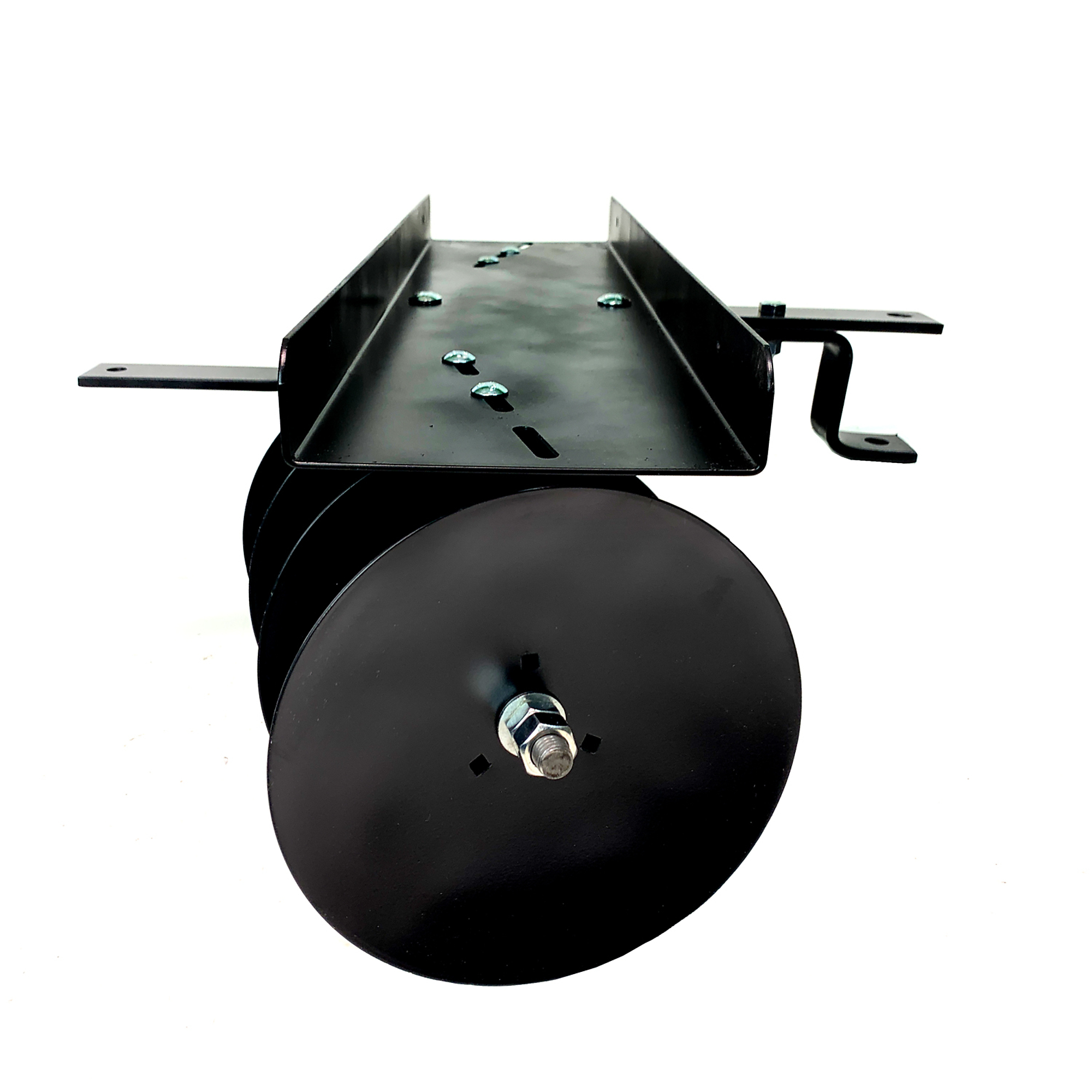

Brinly-Hardy Disk Harrow, 29in.–39in. Working Width, Model# DD-55BH
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$304.00
- Get Plant-Ready Soil: 8 heavy-duty steel discs measuring 11" in diameter break up clods and effortlessly turn rough, plowed ground into uniform soil ready for planting.
- Fits Various Garden Sizes: Adjustable working width from 29" to 39" accommodates gardens both large and small.
- Three Angle Adjustments: Steel discs can be adjusted to deliver the proper force based on size of clods and soil conditions. A 15° angle is recommended for general use, 10° for less aggressive discing, and 20° for more aggressive discing.
- Add Weight for Tougher Discing: Extra weight can be added to the tray to break up larger, hard clods of soil.
- Sleeve Hitch Required for Use with Your Tractor: Blade easily hooks up to any sleeve hitch. Sleeve hitch is not included, but can be purchased through your tractor manufacturer.
Prop 65 Warning: See Details
See full description
What's Included
- (8) Disk blades (2) Disk hangers (1) Tray (1) Pull bar (1) Coupler
Downloads
Features + Benefits
- Get Plant-Ready Soil: 8 heavy-duty steel discs measuring 11" in diameter break up clods and effortlessly turn rough, plowed ground into uniform soil ready for planting.
- Fits Various Garden Sizes: Adjustable working width from 29" to 39" accommodates gardens both large and small.
- Three Angle Adjustments: Steel discs can be adjusted to deliver the proper force based on size of clods and soil conditions. A 15° angle is recommended for general use, 10° for less aggressive discing, and 20° for more aggressive discing.
- Add Weight for Tougher Discing: Extra weight can be added to the tray to break up larger, hard clods of soil.
- Sleeve Hitch Required for Use with Your Tractor: Blade easily hooks up to any sleeve hitch. Sleeve hitch is not included, but can be purchased through your tractor manufacturer.
- Use with your UTV/ATV: Check out the Brinly One-Point Lift (Models: OPL-BH/OPL-BH-A) to easily attach your ground engaging equipment to your UTV/ATV.
- Attach Units for Max Efficiency: Two disc harrows may be assembled together for form a tandem unit, allowing the front disc gang to throw dirt out while the rear disc gang throws in.
- Easy Maintenance: Standard disc hanger zerk grease fittings to help protect discs for lasting durability
- Made in the USA: Trusted Since 1839, Brinly-Hardy Company has been dedicated to providing quality, durable, and innovative Lawn & Garden Products built in the USA
- Product Support: Replacement parts orders can be ordered online at Brinly's website or by calling our toll-free number 877-728-8224. The Brinly Customer Service team is available to assist with questions or concerns.
-
Does this disk work well on hard ground?
-
Helpful?
-
It will not work well on hard ground. You should plow the ground first!!!
Helpful?
-
This Brinly-Hardy Disk Harrow is not designed for use on hard ground.
Helpful?
-
Thank you for your question. Our disc harrow is designed to be used on soil which has been plowed, and is preferably soft. It is not designed to function well on hard clay.
Helpful?
-
-
Would this work in a small sand riding arena?
-
I believe so.
Helpful?
-
Hi Rinb,
Yes this unit would work. You just wanted to make sure that you have a sleeve hitch to raise and lower this attachment and the tractor should be at least 19 hp.
Brinly-Hardy Co.
Helpful?
-
The Brinly-Hardy Disk Harrow would be an excellent option for use on a small sand riding arena.
Helpful?
-
-
can I use Disk Harrow model#DD-55BH with riding mower
-
Depending on the mower power, sure.
Helpful?
-
Thank you for your question. As with all of our ground engaging equipment, the DD-55BH can be pulled behind a riding mower with a sleeve hitch. We recommend that your mower have at least a 19 horsepower engine.
Helpful?
-
This disk harrow can be pulled by an ATV or riding mower.
Helpful?
-
-
Will this work with a 4-wheeler and what type of hitch would I use?
-
Sleeve Hitch. I pull it w/my Kubato tractor.
Helpful?
-
Yes, a 4-wheeler can pull it if you use the right hitch attachment. For your protection, I suggest you get an extension bar to bolt to the disc part to add 12-14 inches between your tool and what ever pulls it. You can use a flat bar and drill holes to attach to the disc connecting piece supplied, and build or bolt a modification to your hitch shelf that would allow a big bolt "drop-in" with locking nut. Watch every turn to see that the disc does not "ride up" on the rear tires during turns. How tight your turns can be will depend on the length of the extension bar you choose to add on. You may consider getting another Brinly-Hardy disk like several other reviewers have stated.
Helpful?
-
It could be pulled behind a 4 wheeler. You would need to have a sleeve hitch installed on your 4 wheeler. These can be purchased from your local tractor supply company.
Helpful?
-
-
is this disk harrow suitable for 15' x 30' garden
-
should work fine for this size. My greenhouse is 20x28 and this is what I use inside.
Helpful?
-
Yes..........
Helpful?
-
This Brinly-Hardy Disk Harrow would be suitable for a 15" x 30' garden.
Helpful?
-
-
Can it be raised by a 3-point hitch?
-
No as configured. It is tow only as sold.
Helpful?
-
Do not attempt to lift the tandem arrangement with the tractor hitch.
Helpful?
-
-
What exactly is a sleeve hitch? Do I have to buy one or can I rig something up to make this work behind my ATV or lawn mower?
-
A sleeve hitch mounts equipment onto the front or back of a tractor and is especially helpful when hauling extra equipment on your tractor. A sleeve hitch is specific to the make and model of your ATV or garden tractor. Please contact your local garden tractor or ATV dealer for pricing and availability of the sleeve hitch.
Helpful?
-
A sleeve hitch is an attachment for your lawn or garden tractor which allows you to raise and lower ground engaging equipment such as a plow, disc harrow, cultivator, and grading blade. They can be operated manually by way of a long handle, or you can purchase one which uses hydraulics. A sleeve hitch can be purchased from the manufacturer of your lawn tractor. There are sleeve hitches available for ATVs, but they are not as common. Consult your ATV's manufacturer for further information.
Helpful?
-
-
Can this be raised with the sleeve hitch and be transported with the additional weights on it?
-
Depending on how much weight it is. How far your going. I usse 2 solid cement blocks. I would not do it with them.
Helpful?
-
As long as the sleeve hitch is capable of raising the total weight of the implement and the additional weights, the disk harrow and weights can be lifted for transportation.
Helpful?
-
-
Can this be pulled effectively with an ATV
-
Yes it can be pulled by an ATV but you'll need a way to get it where you want to disk the ground. You don't want to pull this down your driveway to get where you want to disc up as it will scar your driveway (it is heavy even without added weight). I added a set of homemade wheels that I flip down to transport behind my lawn tractor.
Helpful?
-
It could be pulled with an ATV. You will need to have the proper sleeve hitch installed on your ATV to mount it. These can be purchased from your local tractor supply.
Helpful?
-
-
Do have or can I buy replacement blades or disks.
-
Yes. I've placed two orders for various parts with mo issue. Manufacturers shipping is quick and prices are very reasonable.
Helpful?
-
May we suggest contacting our parts department at 800-222-5381 option 3 for replacement blades or disks.
Helpful?
-
See All Tillers + Cultivators
See All Brinly-Hardy Tillers + Cultivators
Currently Viewing This Product
Specifications
Specifications
Brinly-Hardy Disk Harrow, 29in.–39in. Working Width, Model# DD-55BH
King Kutter Tow-Behind Garden Tractor/ATV Compact Disc, 33in. Working Width, Model# 14-10-CD-YK
Field Tuff ATV Disk Harrow - 51in. Width, 14in. Notched Disks, 3 Gang Settings, Model# ATV-51SGDH
Brinly-Hardy Cultivator, 18in.–40in. Working Width, Model# CC-56BH
Product Type
Same
Disk Harrow
Cultivator
Disk Harrow
Cultivator
Power Source
Same
Hydraulic
Other
Hydraulic
Hydraulic
Working Width (in.)
Same
29–39
33
51
18–40
Max. Working Width
Same
39 in
33 in
51 in
40 in
Overall Width (in.)
Same
39
36
54
32
Disc Diameter (in.)
Same
11
14
14
-
Depth
Same
0.75 in
-
50 in
-
Disc Type
Same
Steel
Notched
Notched
-
Disc Diameter
Same
11 in
14 in
14 in
-
Depth (in.)
Same
3-4
-
50
-
Tine Type
Same
-
Steel Forged
-
Rigid
Tines (qty.)
Same
-
10
-
7
Tire Size
Same
-
16 in
-
-
Tire Size (in.)
Same
-
16 x 6.50
-
-
Height Range (in.)
Same
-
-
22
12
Max. Height
Same
-
-
22 in
12 in
Disc Thickness (in.)
Same
-
-
1/8
-
