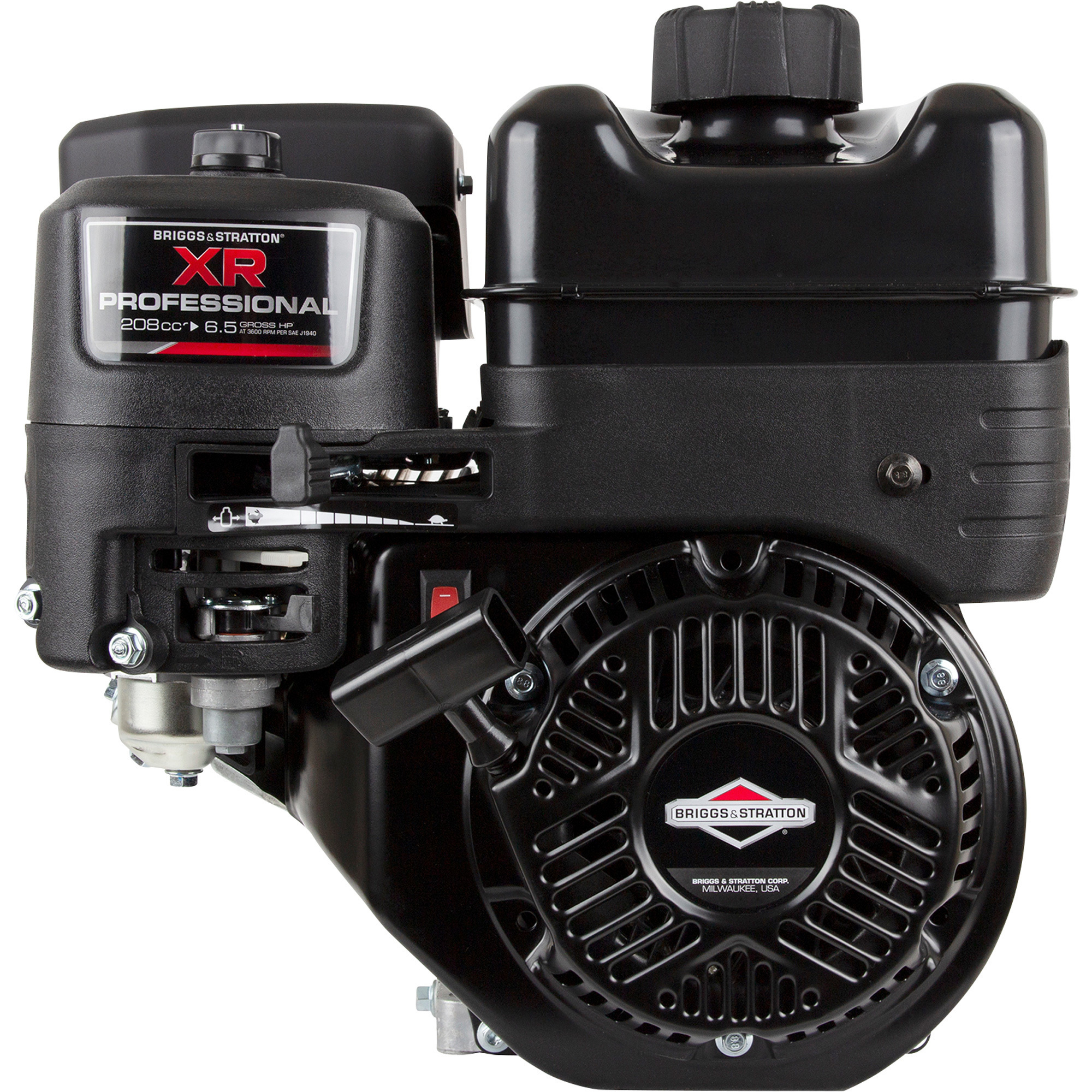

Briggs & Stratton XR 950 Series OHV Horizontal Engine, 208CC, 5/8in. x 2 27/64in. Shaft, Model# 130G32-0244-F1

Item# 107800
Briggs & Stratton XR 950 Series OHV Horizontal Engine, 208CC, 5/8in. x 2 27/64in. Shaft, Model# 130G32-0244-F1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Briggs & Stratton XR 950 Series OHV Horizontal Engine, 208CC, 5/8in. x 2 27/64in. Shaft, Model# 130G32-0244-F1

Click or Tap image to Zoom

  • 9.5 ft./lbs. of torque delivers the power you need
  • Maximum output of 3,800 RPM for hard-working results
  • Maintenance-free Magnetron™ electronic ignition for fast and easy starts
  • Long-lasting Dura-Bore™ cast iron cylinder
  • Overhead valve (OHV) technology operates at cooler temperatures to help extend engine life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 208cc Briggs & Stratton XR 950 Series OHV Horizontal Engine is a reliable, solid-performing choice designed for use in log splitters, pressure washers, compressors, tillers and other general applications. Loaded with options, features and strong components for exceptional operation and long life. The Magnetron ignition coil provides easy starts.

What's Included

    (1) Engine, Model# 130G32-0244-F1

Downloads

Product Manual

Features + Benefits

  • 9.5 ft./lbs. of torque delivers the power you need
  • Maximum output of 3,800 RPM for hard-working results
  • Maintenance-free Magnetron™ electronic ignition for fast and easy starts
  • Long-lasting Dura-Bore™ cast iron cylinder
  • Overhead valve (OHV) technology operates at cooler temperatures to help extend engine life
  • Dual-Clean™ air filter offers maximum protection for exceptional engine protection and longer life
  • Low-oil sensor alert delivers a warning if oil is running low, with low-oil shutdown to help prevent serious damage or engine failure
  • Float-type carburetor and manual choke control
  • Splash lubrication system for smooth operation
  • 5/8in. dia. x 2 27/64in.L shaft
  • 3.2-qt. fuel tank capacity for extended run times
  • Installed muffler for quieter operation

Key Specs

AttributeSpecification

item#

107800

Brand

Briggs & Stratton

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

43.0 LB

Engine Displacement

208 cc

Engine Type

XR 950 Series OHV

Shaft Diameter

5/8 in

Shaft Length

2.42 in

Start Type

Recoil

Shaft Keyway

No - Threaded Shaft in

Net Torque

950 ft-lbs.

Crankshaft

Horizontal

PTO Height

4.17 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Fuel Tank

Yes

Fuel Tank Capacity

3.2 qt

Oil Capacity

0.625 qt
AttributeSpecification

Low Oil Shutdown

Yes

Low Oil Alert

Yes

Grade

87

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

2.68 in

Stroke

2.2 in

Air Cleaner Type

Dual Element

Choke Control

Remote

Throttle Control

Manual

Fuel Filter

No

Muffler Included

Yes
