This item is manufactured in China.

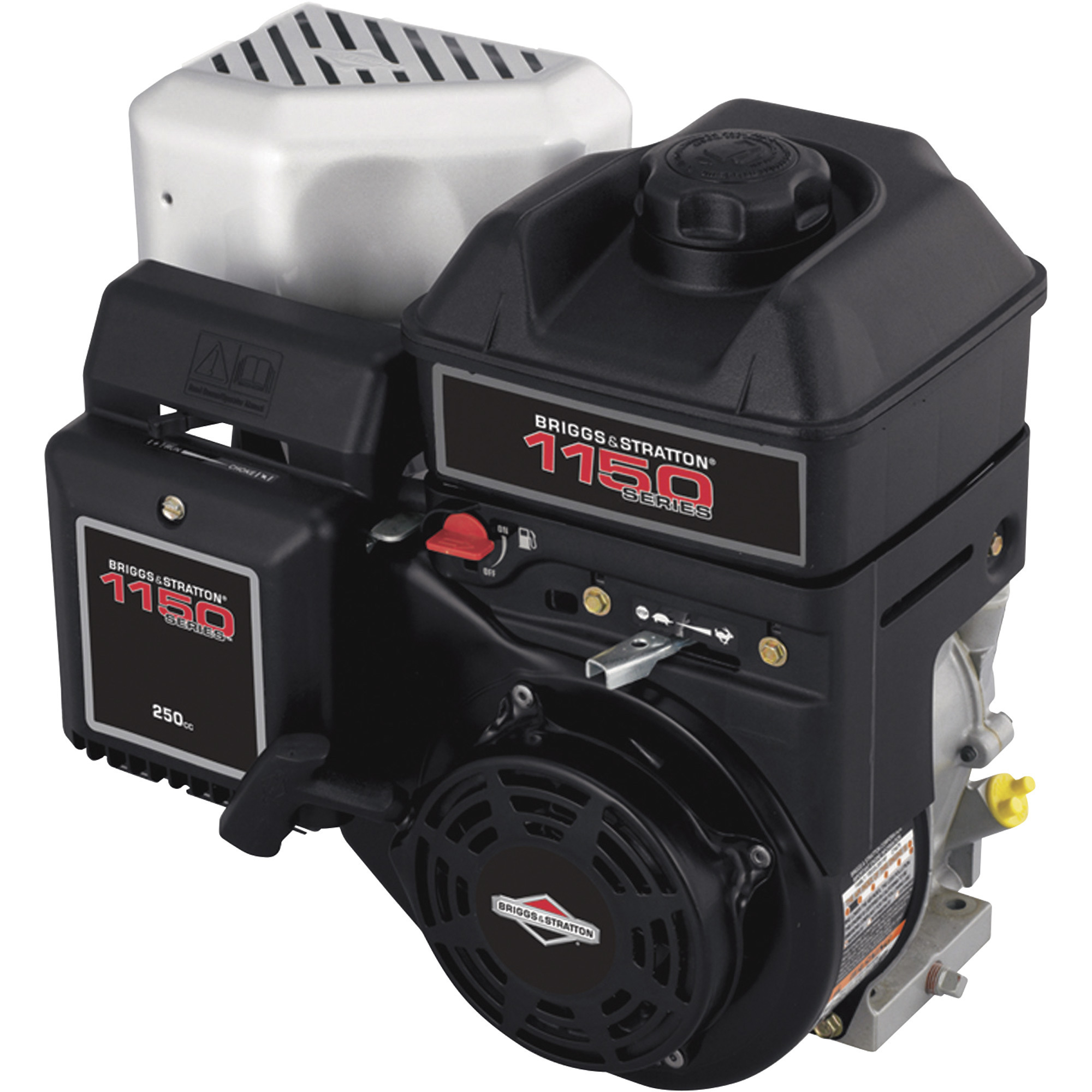

Briggs & Stratton 1150 Series Horizontal OHV Engine, 250cc, 3/4in. x 2 27/64in. Shaft, Electric Start, Model# 15T237-0050-F8
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 11.5 ft.-lbs. gross torque
- OHV design for cooler operation, longer valve life
- Dual-Clean™ air cleaner pleated paper filter with foam pre-cleaner ensures maximum protection for extended engine life
- Maintenance-free Magnetron® electronic ignition for quick, dependable starts
- Kool Bore™ aluminum alloy bore for cooler operation
See full description
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Briggs & Stratton Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Briggs & Stratton 1150 Series Horizontal OHV Engine, 250cc, 3/4in. x 2 27/64in. Shaft, Electric Start, Model# 15T237-0050-F8
Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2
Honda Engines, HONDA 120CC OHV 6:1 ENGINE, Engine Displacement 118 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 3/4 in, Model# GX120T3XHX2
NorthStar c180 Horizontal OHV Engine with Recoil Start, 179cc, 3/4in. x 2-7/16in. Shaft
Engine Displacement
Same
250 cc
118 cc
118 cc
179 cc
Engine Type
Same
1150 Series OHV
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
OHV
Shaft Diameter
Same
3/4 in
3/4 in
3/4 in
3/4 in
Start Type
Same
Electric and Recoil
Recoil
Recoil
Recoil
Shaft Keyway
Same
3/16 in
0.18 in
0.25 in
1-51/64 in
Crankshaft
Same
3/4 x 2 27/64
Q-type
H-type
SAE J609EXT3 Straight Key W/shaft Dia.: 19.050mm (0.750in.) - Nominal
PTO Height
Same
4 3/16 in
4.17 in
4.17 in
4.17 in
Cylinders (qty.)
Same
1
1
1
1
Cylinder Bore
Same
Aluminum
Cast Iron
Cast Iron
2.56
Fuel Tank
Same
Yes
-
-
Yes
Low Oil Shutdown
Same
No
Yes
Yes
Yes
Low Oil Alert
Same
No
Yes
Yes
Yes
CARB Approved
Same
No
-
-
-
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Mechanical
Centrifugal Mechanical
Centrifugal Mechanical
Yes
Ignition System
Same
Electronic
Electronic
Electronic
Transitorical Configuration
Carburetor
Same
Float
Float
Float
Carburated
Lubrication System
Same
Splash
Splash
Splash
Splash
Bearing Type
Same
Ball
-
-
Ball
Auto Compression Release
Same
Yes
Yes
Yes
Yes
Cooling System
Same
Air
Air
Air
Air
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Foam+paper
Choke Control
Same
Manual
Manual
Manual
Manual
Throttle Control
Same
Manual
Remote
Remote
Adjustable
Fuel Filter
Same
No
-
-
-
Charging System Amps
Same
1.5
-
-
No
Muffler Included
Same
Yes
Yes
Yes
Yes
Shaft Length
Same
-
2.43 in
2.09 in
2.43 in
Net Torque
Same
-
5.4 ft-lbs.
5.4 ft-lbs.
9.5 ft-lbs.
Net Power Output
Same
-
3.5 HP
3.5 HP
3.7 HP
Compression Ratio
Same
-
8.5:1
8.5:1
8.5:1
Fuel Tank Capacity
Same
-
2.1 qt
2.1 qt
3.49 qt
Oil Capacity
Same
-
0.59 qt
0.59 qt
0.58 qt
Bore
Same
-
2.4 in
2.4 in
2.55 in
Stroke
Same
-
1.7 in
1.7 in
2.125 in
Shaft Diameter Metric
Same
-
-
-
19.05 mm
Shaft Length Metric
Same
-
-
-
61.7 mm
Bolt Circle
Same
-
-
-
3.625 in
Mounting Base Length
Same
-
-
-
6.378 in
Mounting Base Width
Same
-
-
-
3.15 in
