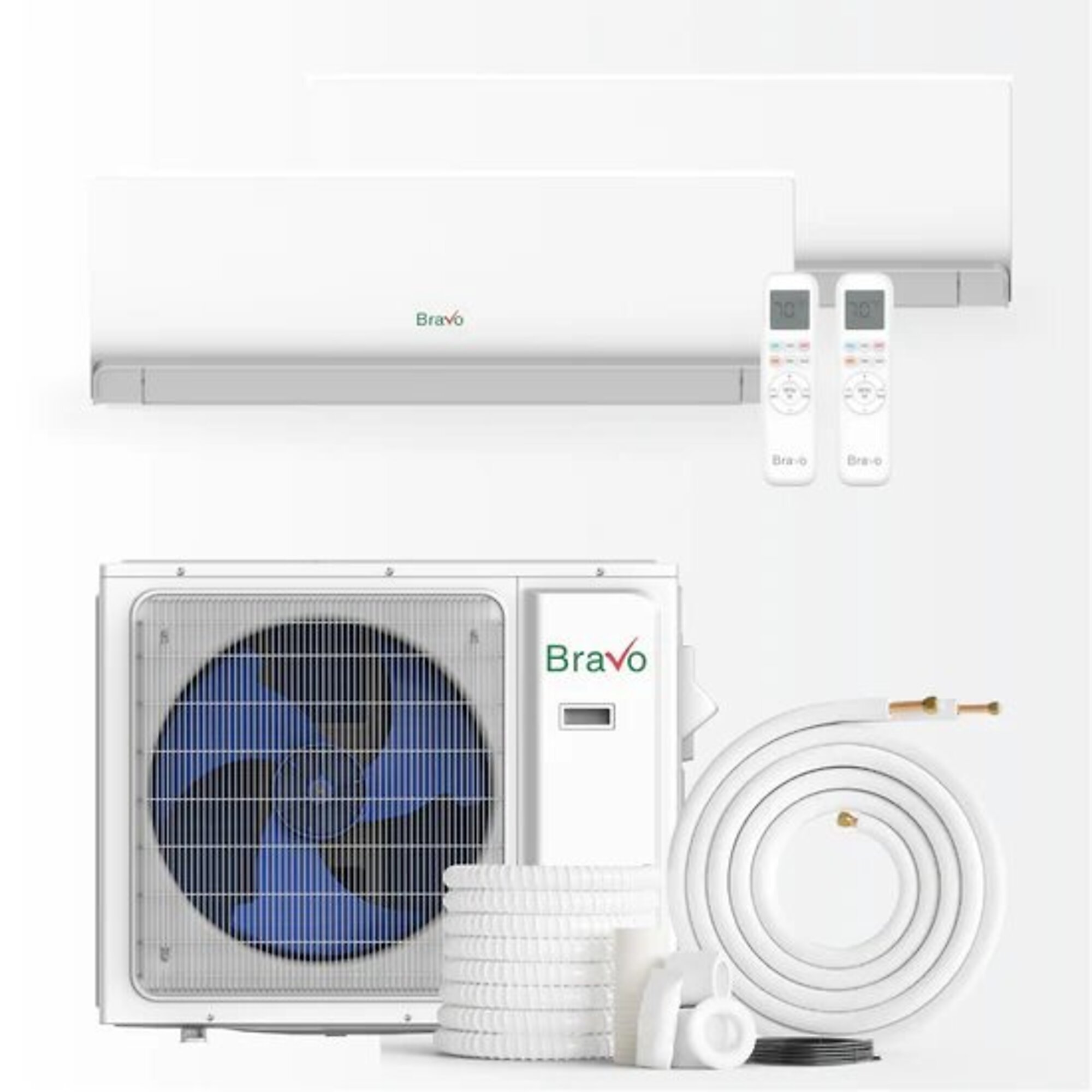

Bravo Milano 2-Zone Mini Split AC & Heat Pump — 24,000 BTU, Wall Mount, 9K+9K, Model# BRV24VO+2BRV09WM+2AB1-25

Item# 7030860
Bravo Milano 2-Zone Mini Split AC & Heat Pump — 24,000 BTU, Wall Mount, 9K+9K, Model# BRV24VO+2BRV09WM+2AB1-25

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bravo Milano 2-Zone Mini Split AC & Heat Pump — 24,000 BTU, Wall Mount, 9K+9K, Model# BRV24VO+2BRV09WM+2AB1-25

Click or Tap image to Zoom

$2149.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Key Features: Remote Control Included Smart App: Connect from anywhere Comfortable Sleep Mode Super Mode Eco Mode Multiple Fan Speeds Timer Sleep Mode Louver Auto Swing Anti-Mildew Mode LED Display

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Bravo Milano Series 2-Zone Ducted Mini Split AC Heat Pump – 24,000 BTU (9K+9K) The Bravo Milano 2-Zone Ducted Mini Split System offers efficient, reliable heating and cooling for residential or light commercial applications. This 24,000 BTU configuration pairs two 9K BTU ducted indoor units with a compatible Bravo Milano outdoor condenser, delivering balanced climate control across two independently managed zones. Ducted indoor units provide discreet, integrated airflow distribution and are ideal for spaces where a concealed installation is preferred. Powered by advanced inverter technology, the system maintains consistent temperatures, operates quietly, and maximizes energy efficiency. Designed for 230V operation, this configuration supports year-round comfort and precise multi-zone environmental control.

What's Included

    (3) Included in your order: 2 Indoor Units BRV-M09WM-230VI (9000 BTU 230V Bravo Milano Indoor Wall Mount Unit) Outdoor Unit BRV-M24-230VO (24,000 BTU 230V Bravo Milano Outdoor Condenser Unit) Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or

Downloads

Safety Data Sheet

Features + Benefits

  • Key Features: Remote Control Included Smart App: Connect from anywhere Comfortable Sleep Mode Super Mode Eco Mode Multiple Fan Speeds Timer Sleep Mode Louver Auto Swing Anti-Mildew Mode LED Display

Key Specs

AttributeSpecification

item#

7030860

Brand

Bravo

Manufacturer's Warranty

84 Months Limited

Ship Weight

124.5 LB

BTU Cooling

24,000

Volts

208/230
AttributeSpecification

Cooling Capacity

550 ft²

Amps

25

Product Type

Air Conditioner

Mini Split

Yes

Product Weight

80.5000 lb

Dimensions L x W x H (in.)

15.04 x 35.55 x 24.21 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

84 Months Limited
