Bravo 3-Zone Mini Split AC & Heat Pump 24000 BTU Wall Mount 9K+9K+18K

Item# 7066897
Bravo 3-Zone Mini Split AC & Heat Pump 24000 BTU Wall Mount 9K+9K+18K

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bravo 3-Zone Mini Split AC & Heat Pump 24000 BTU Wall Mount 9K+9K+18K

Click or Tap image to Zoom

$2729.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Key Features: Remote Control Included Smart App: Connect from anywhere Comfortable Sleep Mode Super Mode Eco Mode Multiple Fan Speeds Timer Sleep Mode Louver Auto Swing Anti Mildew Mode LED Display Sleek matte finish Turbo Function Silent Function Self-Cleaning Function Follow Me Function Activated Carbon Filter

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Bravo 3-Zone Mini Split AC Heat Pump 24000 BTU Wall Mount 9K+9K+18K The Bravo Milano 3-Zone Mini Split System delivers versatile, high-efficiency climate control for residential and light commercial applications. This configuration includes two 9,000 BTU indoor units and one 18,000 BTU indoor unit connected to a 24,000 BTU outdoor condenser, providing targeted comfort with flexible capacity distribution across multiple rooms. Each wall-mounted unit features a slim, modern profile designed to complement a variety of interior spaces. Built for individual room performance, the system automatically adjusts output based on ambient conditions to maintain precise temperatures while optimizing overall efficiency. With integrated SMART APP control, you can conveniently adjust temperature, fan speed, and operating modes from your smartphone or tablet. Rated at 24 SEER2, this system offers quiet operation, enhanced energy savings, and reliable year-round heating and cooling performance.

What's Included

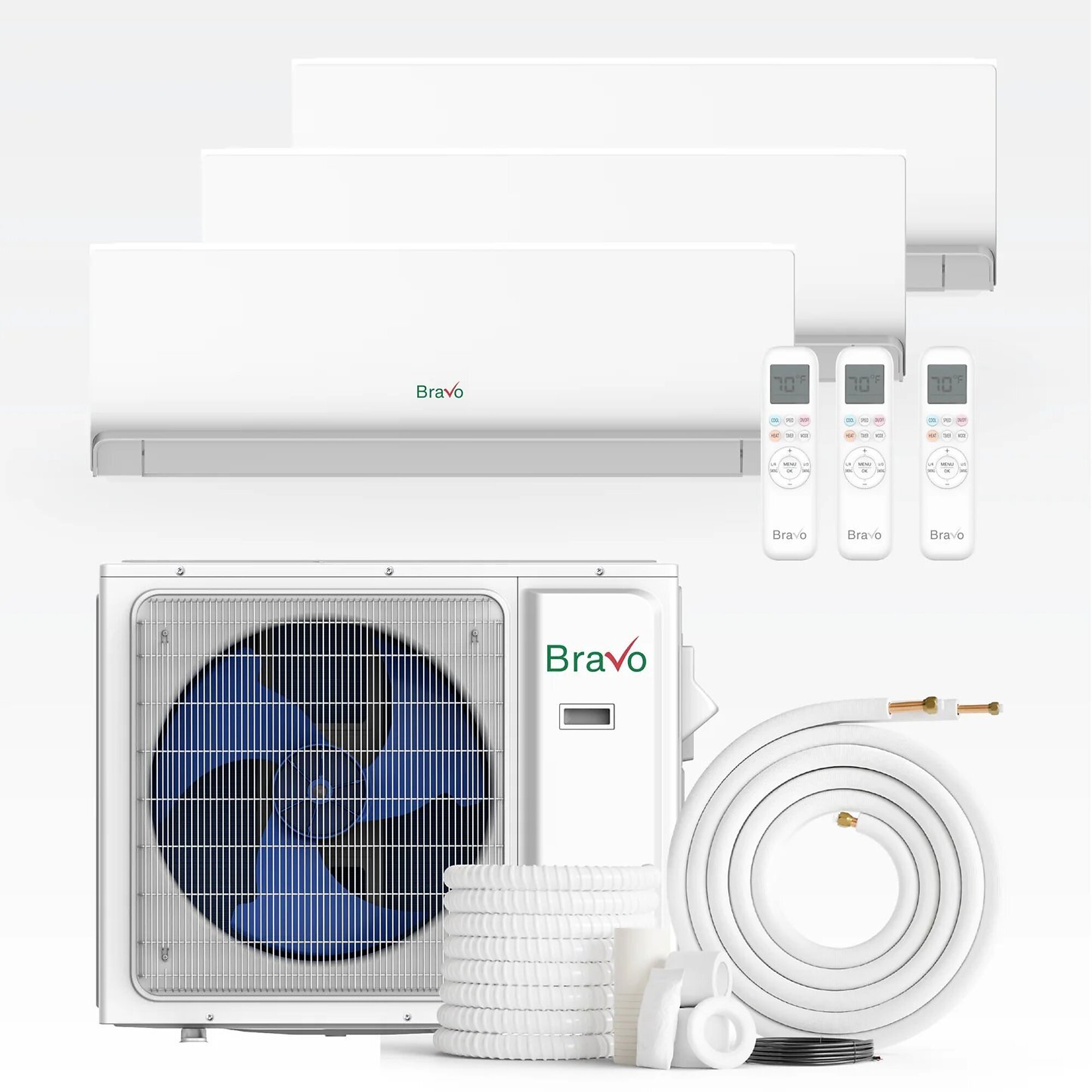

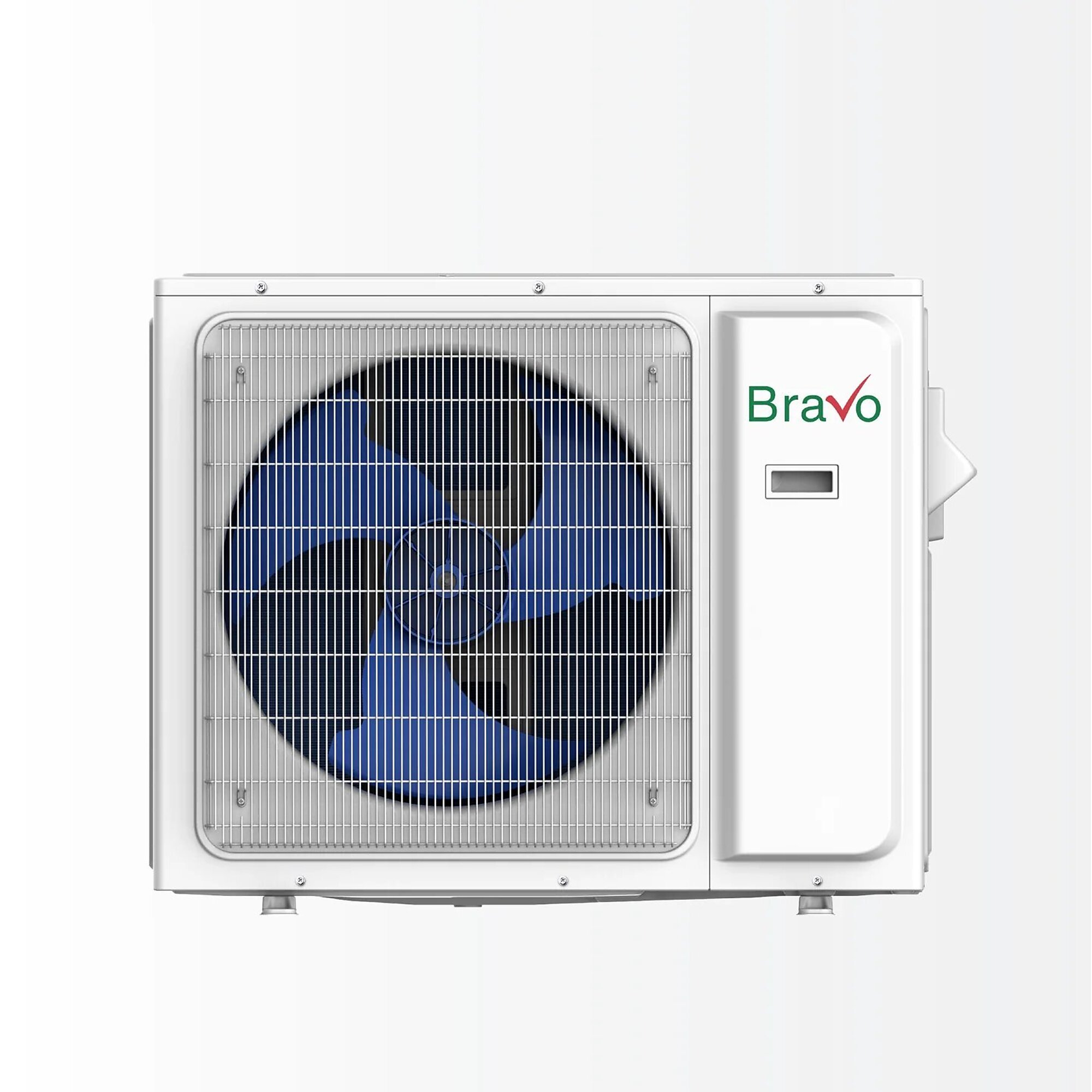

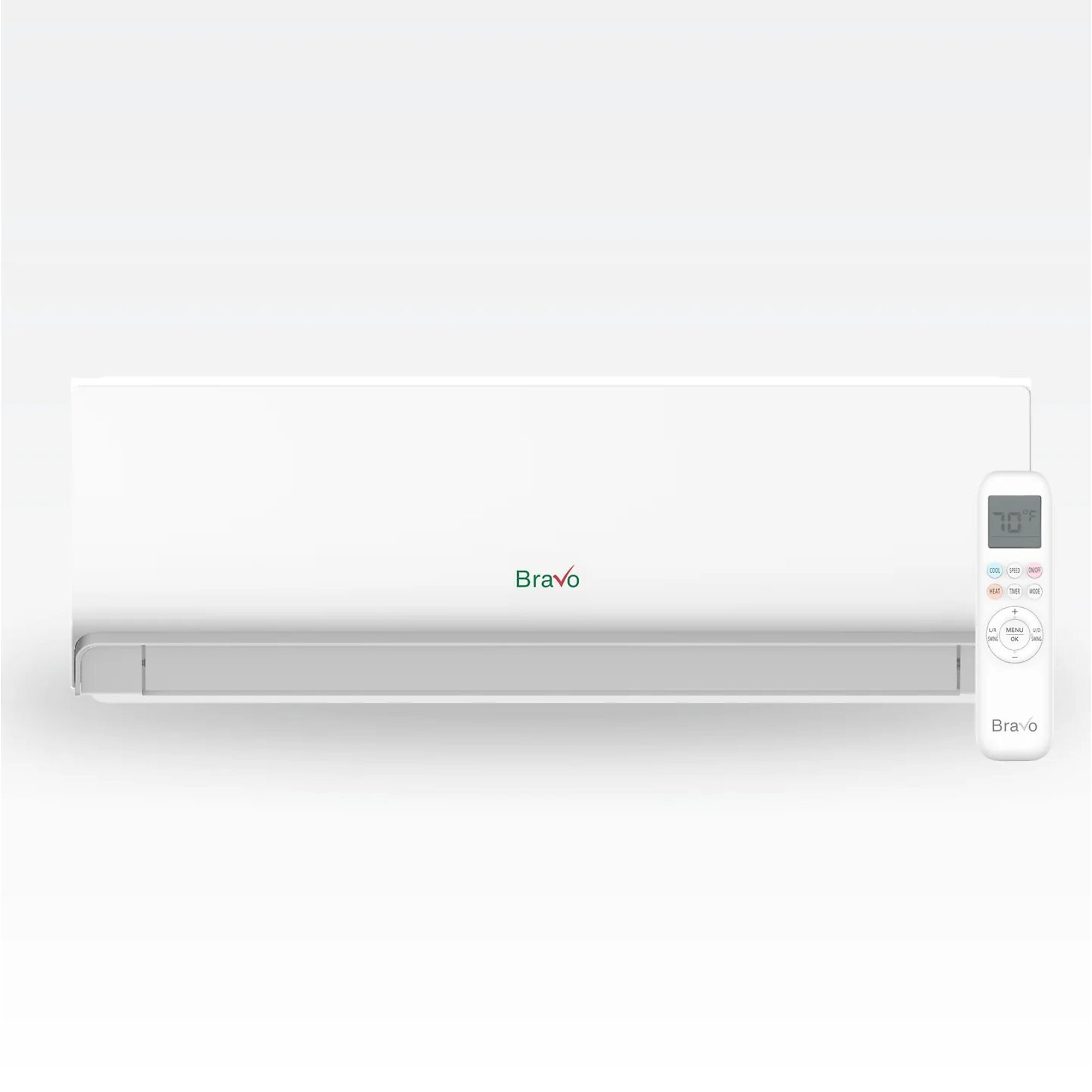

    (3) Included in Your Order: Bravo Milano 3-Zone Mini Split System Outdoor Unit: 24,000 BTU (1pc) – Model: BRV-M24-230VO Indoor Units: - 9,000 BTU (2pcs with remote) – Model: BRV-M09WM-230VI - 18,000 BTU (1pc with remote) – Model: BRV-M18WM-230VI Optional

Downloads

Safety Data Sheet

Features + Benefits

  • Key Features: Remote Control Included Smart App: Connect from anywhere Comfortable Sleep Mode Super Mode Eco Mode Multiple Fan Speeds Timer Sleep Mode Louver Auto Swing Anti Mildew Mode LED Display Sleek matte finish Turbo Function Silent Function Self-Cleaning Function Follow Me Function Activated Carbon Filter

Key Specs

AttributeSpecification

item#

7066897

Brand

Bravo

Manufacturer's Warranty

84 Months Limited

Ship Weight

221.76 LB

BTU Cooling

24,000

Volts

208/230

Cooling Capacity

550 ft²
AttributeSpecification

Amps

15

Product Type

Air Conditioner

Mini Split

Yes

CFM

1,213

Temperature Range

>=62/<=86

Product Weight

145.5000 lb

Dimensions L x W x H (in.)

15.35 x 38.419 x 29.53 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

84 Months Limited
