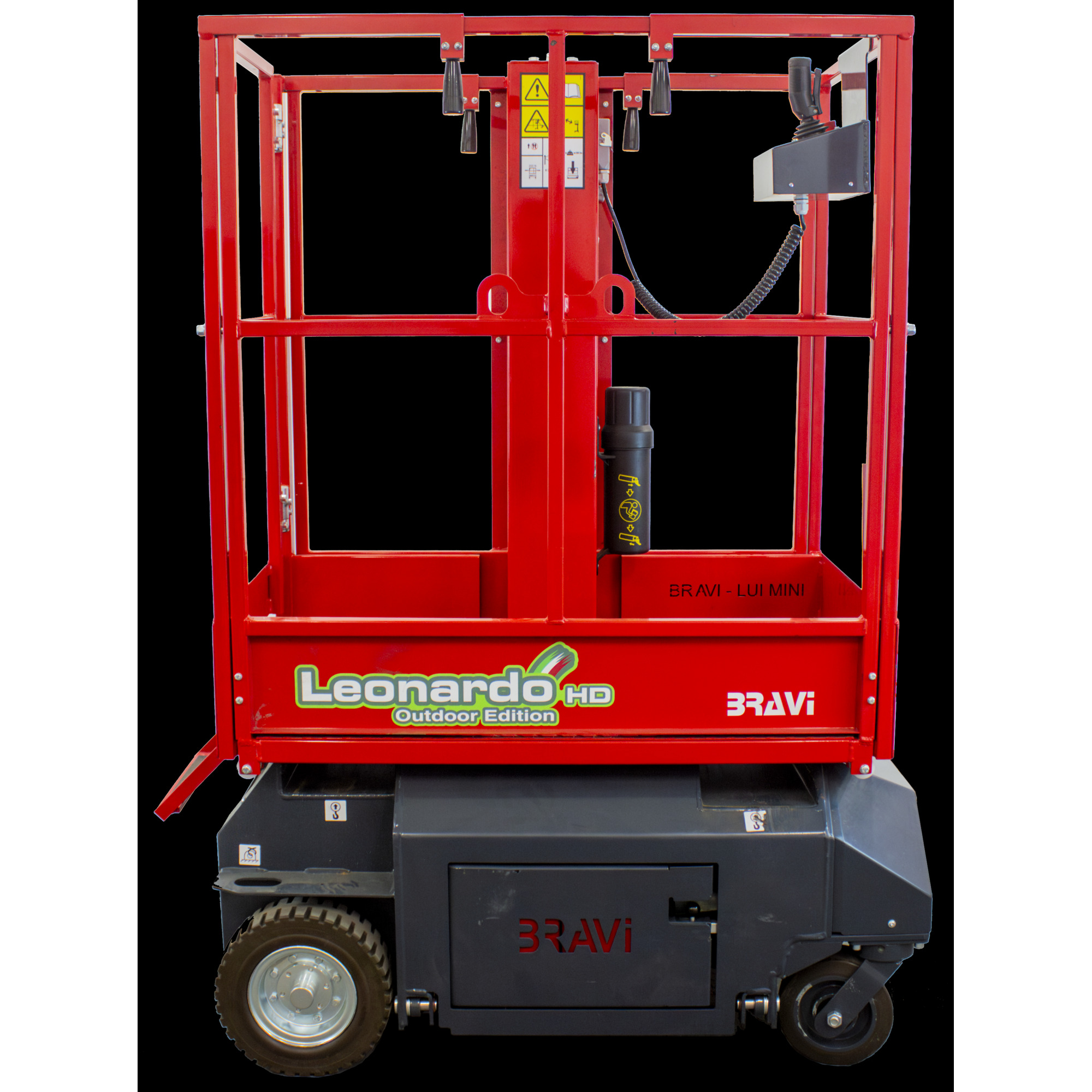

Bravi Leonardo, Leonardo HD Lift | Driveable, Capacity 397 lb, Working Height 192 ft, Platform Height 114 in, Model# 000.01427CF.00035

Item# 6123968
Bravi Leonardo, Leonardo HD Lift | Driveable, Capacity 397 lb, Working Height 192 ft, Platform Height 114 in, Model# 000.01427CF.00035

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bravi Leonardo, Leonardo HD Lift | Driveable, Capacity 397 lb, Working Height 192 ft, Platform Height 114 in, Model# 000.01427CF.00035

Click or Tap image to Zoom

$12,399.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Easily drives through doorways, tight spaces, and passenger elevators
  • Dual rollout decks provide outreach at both ends without sacrificing any platform capacity
  • Wheel locking device allows you to drive forward and backward in a straight line when accessing narrow aisles or driving on ramps
  • Wide drive and steer non-marking tires for reduced ground pressure and increased traction on tough jobs
  • Drivable at full height, fully loaded and with the platform fully extended

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Leonardo HD is the first mobile platform to arrive on site and the last to leave. With a working height of 16ft., the Leonardo can easily be driven through doorways and into tight spaces that would typically require the use of scaffolding or ladders. The compact size, and versatile maneuverability, and a weight of only 1,124 lbs. allows the Leonardo HD to fit into most elevators and reach top floors effortlessly without requiring the operator to leave the platform.

What's Included

    (1) 1 Bravi Platform Lift

Features + Benefits

  • Easily drives through doorways, tight spaces, and passenger elevators
  • Dual rollout decks provide outreach at both ends without sacrificing any platform capacity
  • Wheel locking device allows you to drive forward and backward in a straight line when accessing narrow aisles or driving on ramps
  • Wide drive and steer non-marking tires for reduced ground pressure and increased traction on tough jobs
  • Drivable at full height, fully loaded and with the platform fully extended
  • Unrestricted capacity of 397 lbs. reduces the need to climb up or down to load material
  • Build-in tilt sensor, flashing light, and audible alarm are all standard features
  • Maintenance-free lifting mass
  • Simple design and intuitive component-layout ensures a straightforward experience

Key Specs

AttributeSpecification

item#

6123968

Brand

Bravi

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1300.0 LB

Capacity

397 lb
AttributeSpecification

Working Height

192 ft

Platform Height

114 in

Product Weight

1283.0000 lb

Dimensions L x W x H (in.)

47.0 x 28.8 x 68.7 in
