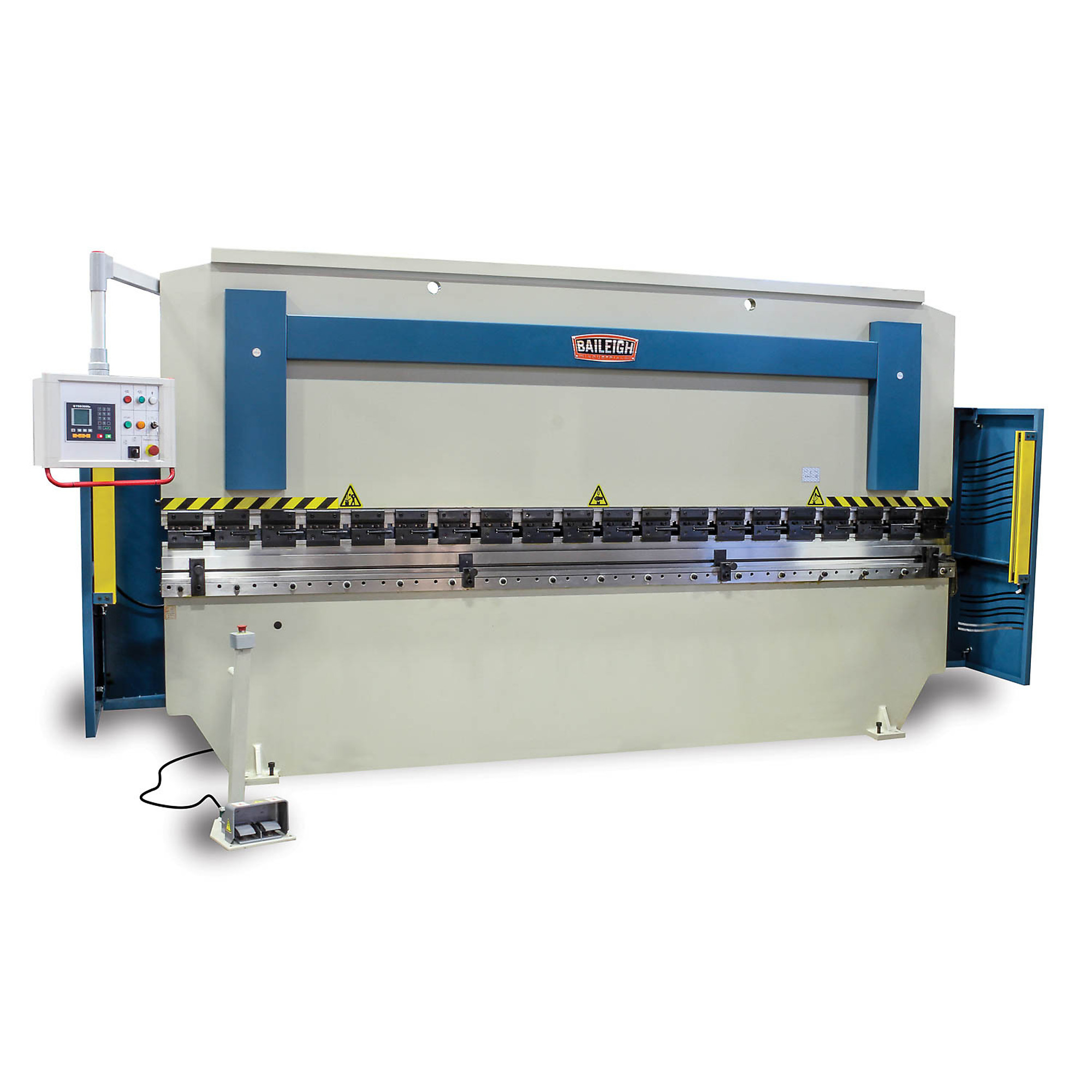

Baileigh Industrial Press Brake — 140 Ton, 157in. Length, 220V 3-Phase, Model# BP-14013CNC

Item# 6665071
Baileigh Industrial Press Brake — 140 Ton, 157in. Length, 220V 3-Phase, Model# BP-14013CNC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Industrial Press Brake — 140 Ton, 157in. Length, 220V 3-Phase, Model# BP-14013CNC

Click or Tap image to Zoom

  • Delivers 14 tons of pressure across its 13-foot length
  • This press brake is also available in a 1-foot version
  • Runs on 22-volt 3-phase power
  • Industrial-grade Rexroth® hydraulic system will last for many years at peak capacity
  • NOK® hydraulic seals from Japan are some of the best in the industry. They’ll keep the hydraulics running smoothly

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

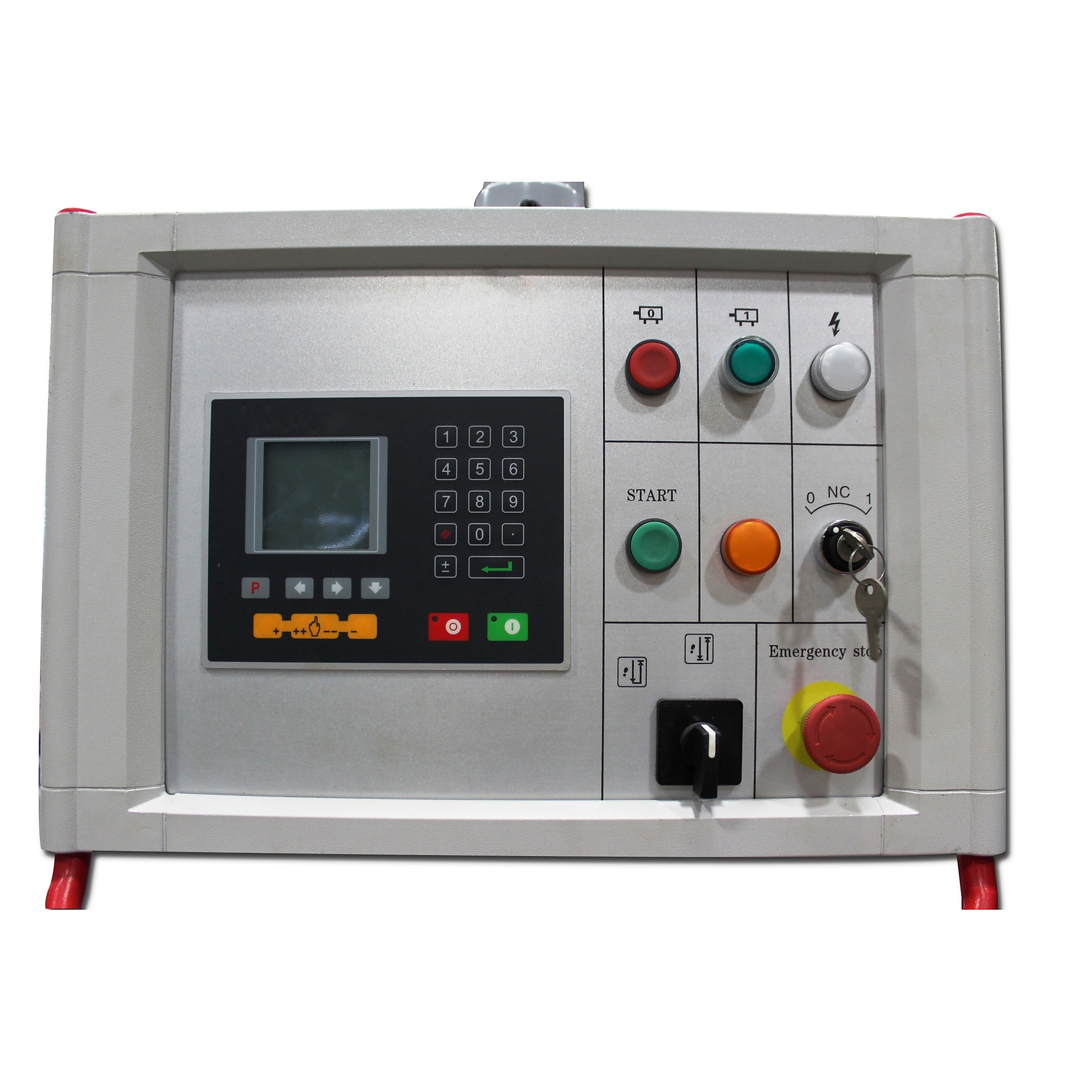

This industrial press brake is built to last with thick steel plate construction. Easy to learn, the Estun® E2 controller lets you program the bend depth and the back gauge.   Accurate, User-Friendly Control System *Runs in single-bend mode or programmable mode. *Comes standard with 2 axes of control: stroke and back gauge distance. *Estun® E2 controller is so simple that you could train someone to use it in 5 minutes. *Programmer stores up to 4 programs with up to 25 bends per program, great for saving time on production. *Bending is accurate to +/- .1mm, ensuring that parts come out right the first time. *Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity. *Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend. *You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal. *Choose between 2 speeds: a rapid approach and retract and a slow bending speed. *Speed option lets you reduce cycle time and make your shop more efficient. *Chain drive back gauge system uses tried-and-true technology that you can maintain easily. *The 23.62in. back gauge can advance or retract according to programmed instructions. Steel Plate Construction and Included Tooling *Fully welded all-steel construction helps prevent deformation and minimize flex during the bending process. *Weighs a robust 19, lbs. for massive structural strength that ensures accurate results. *Includes support arms around 2ft. in length. *Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style). *Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws! *Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across. *Fiessler® safety light curtains prevent the machine from bending when someone is too close. *Light curtains will swing open and get out of the way when you’re doing a tool change. Questions? Not sure which combination machine is right for you? Call us at 1-92-684-499and talk to a Baileigh expert.

What's Included

    (1) BP-14013 CNC

Features + Benefits

  • Delivers 14 tons of pressure across its 13-foot length
  • This press brake is also available in a 1-foot version
  • Runs on 22-volt 3-phase power
  • Industrial-grade Rexroth® hydraulic system will last for many years at peak capacity
  • NOK® hydraulic seals from Japan are some of the best in the industry. They’ll keep the hydraulics running smoothly
  • 2 large counterweights make the bending process easier and reduce physical strain on the operator
  • 1

Key Specs

AttributeSpecification

item#

6665071

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

28400.0 LB

Product Weight

28400.0000 lb

Dimensions L x W x H (in.)

185.0 x 36.0 x 97.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
