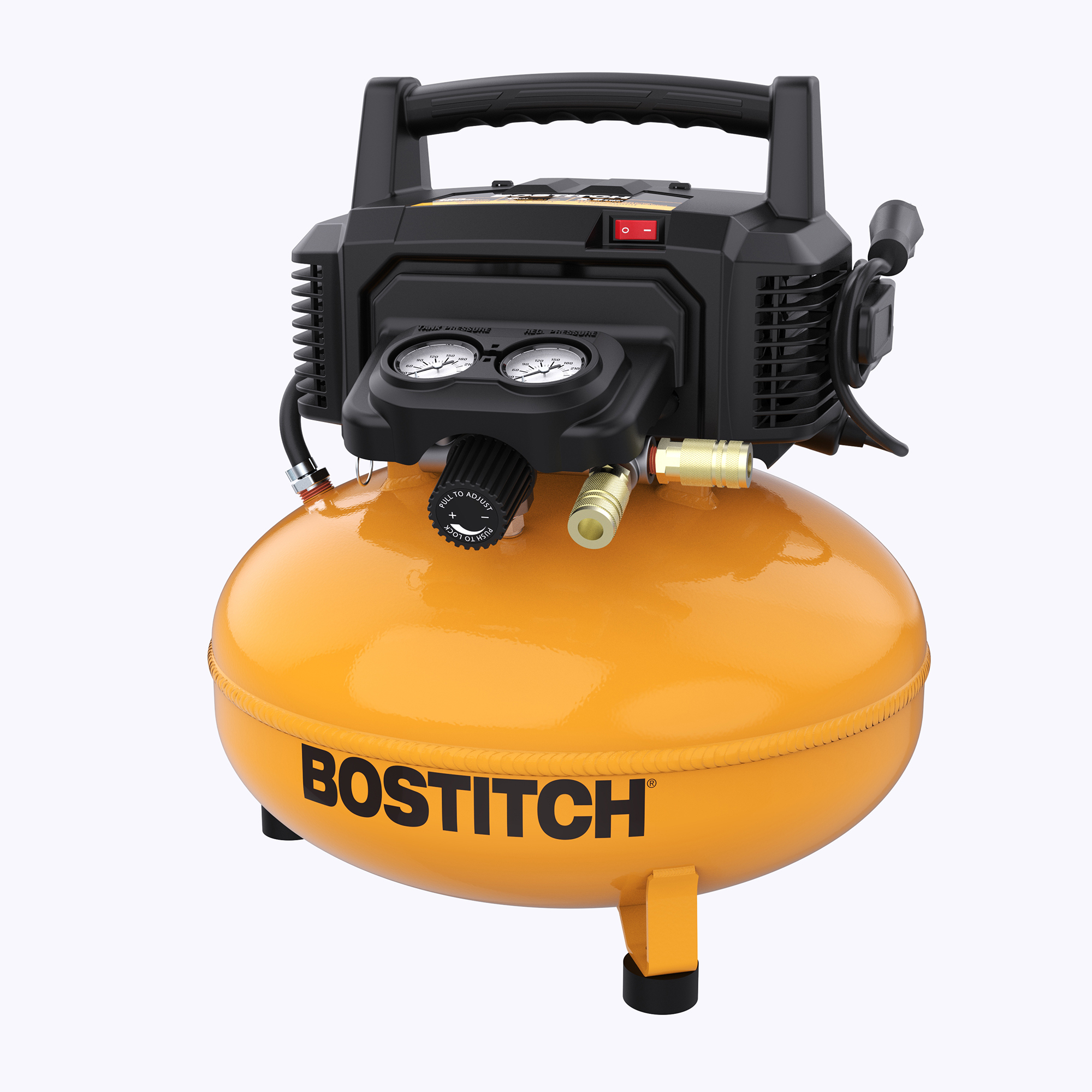

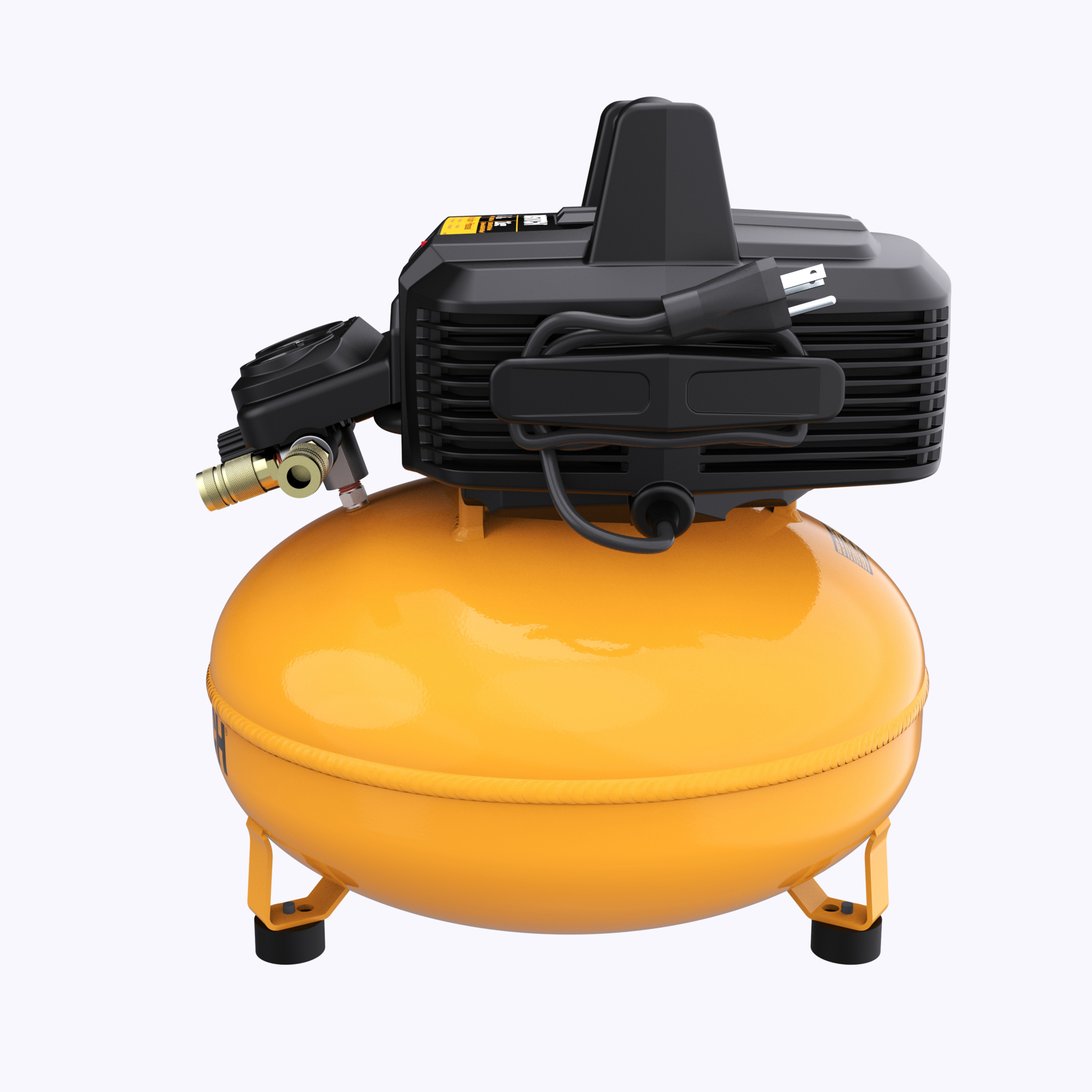

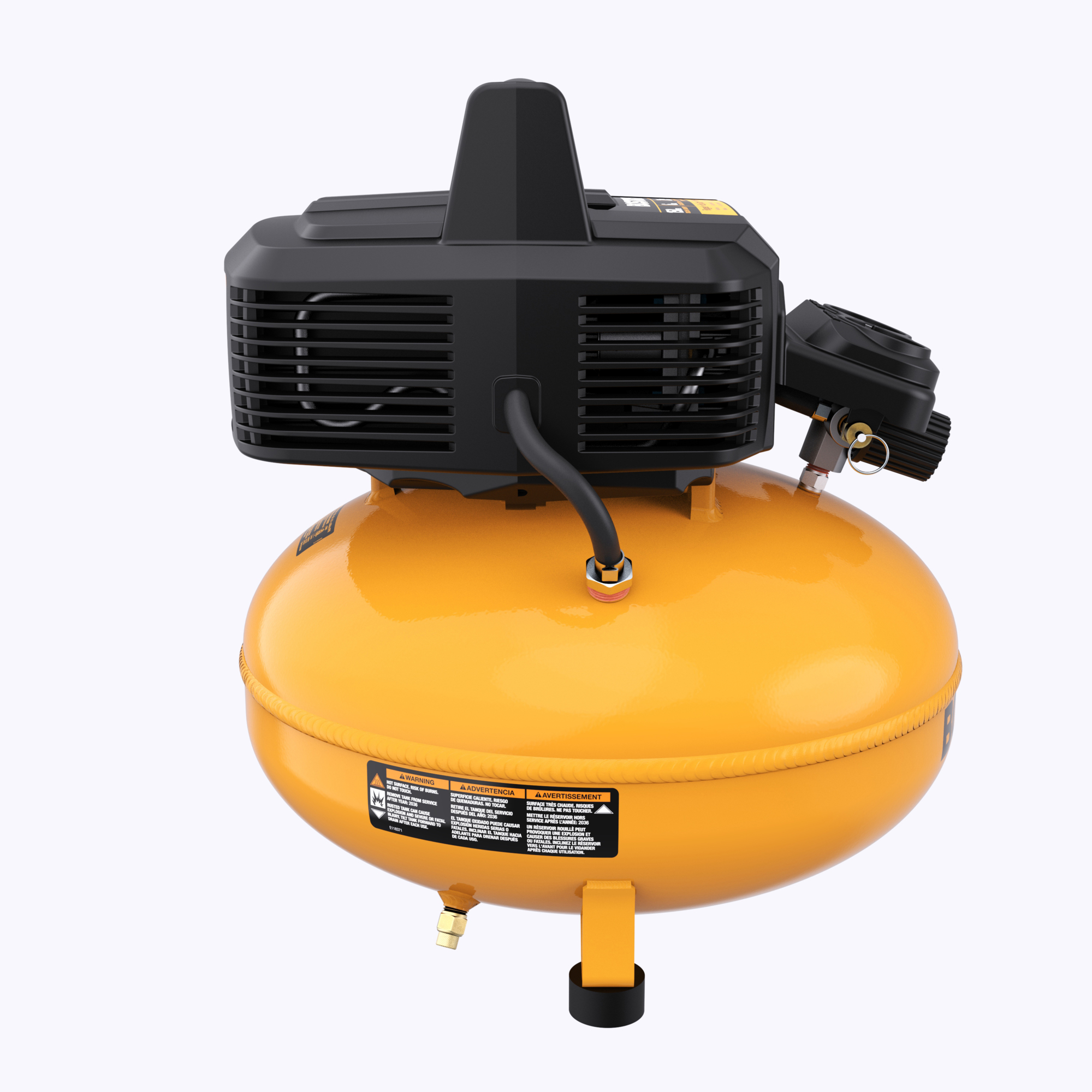

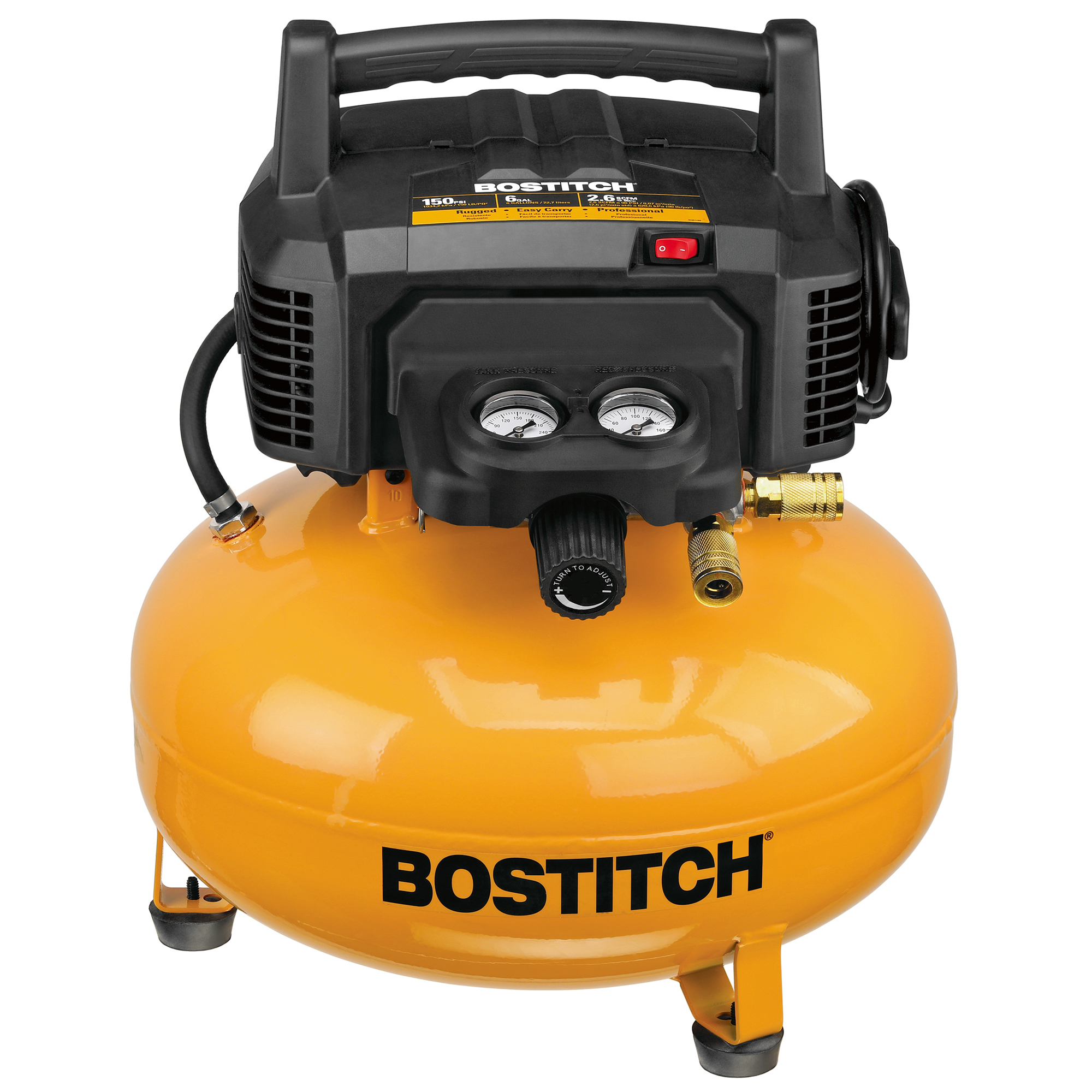

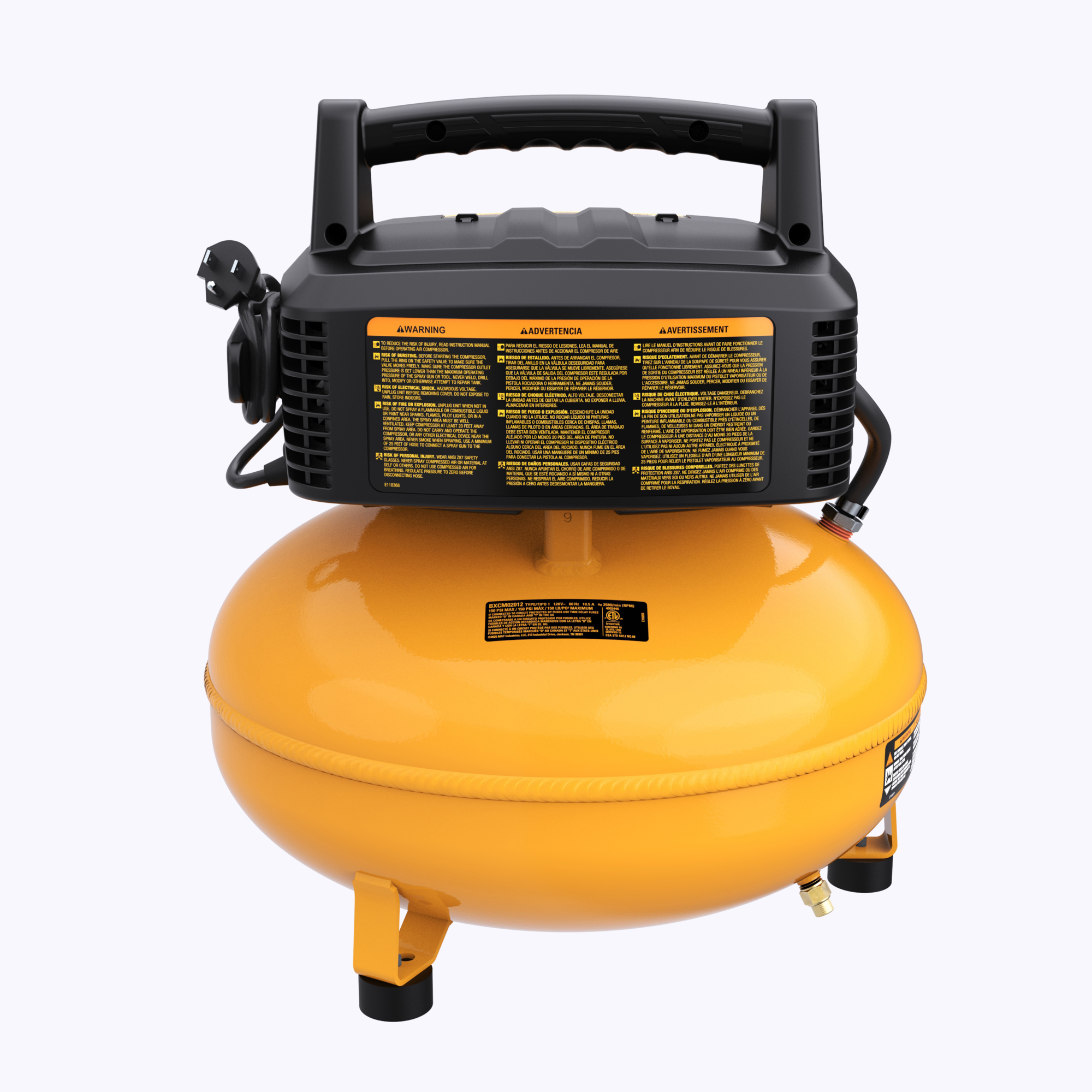

Bostitch 6 Gallon 150 PSI Pancake Air Compressor, Model# BXCM02012

Item# 7463294
New
Bostitch 6 Gallon 150 PSI Pancake Air Compressor, Model# BXCM02012

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bostitch 6 Gallon 150 PSI Pancake Air Compressor, Model# BXCM02012

Click or Tap image to Zoom

$182.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 150 max PSI, 6.0 gallon tank (22.7 L), and airflow of 2.6 SCFM at 90 PSI enable long tool runtime with quick recovery
  • Bostitch high efficiency motor for easy start up in cold weather or extension cord application [14 ga or larger, 50 ft. (15.2 m) or less]
  • 80 dBA operational noise level for a quieter work environment
  • 30 lb lightweight design makes unit easy to carry and store
  • Oil-free, maintenance-free, long-life pump offers convenient use

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Bostitch BXCM02012 6 Gallon Pancake Air Compressor delivers 2.6 CFM 90 PSI and a maximum pressure of 150 PSI, with subtle performance enhancements that trim specialists and cabinetmakers will appreciate during all-day use. Bostitch proprietary high efficiency motor technology sets this unit apart with reliable cold-weather starting and the ability to maintain performance even with extension cords (14-gauge or larger, 50ft. or less). The extended-life, oil-free pump technology reflects the Bostitch focus on tradespeople who measure compressor value by total lifetime performance. With a lightweight and compact design, this air compressor is made for portability, without sacrificing high quality performance. It is equipped with a high flow regulator for maximum tool performance along with two universal couplers to easily support 2 users.

What's Included

    (1) compressor

Downloads

Product Manual

Features + Benefits

  • 150 max PSI, 6.0 gallon tank (22.7 L), and airflow of 2.6 SCFM at 90 PSI enable long tool runtime with quick recovery
  • Bostitch high efficiency motor for easy start up in cold weather or extension cord application [14 ga or larger, 50 ft. (15.2 m) or less]
  • 80 dBA operational noise level for a quieter work environment
  • 30 lb lightweight design makes unit easy to carry and store
  • Oil-free, maintenance-free, long-life pump offers convenient use
  • Two universal couplers to easily support two users
  • Bostitch high flow regulator and couplers to maximize air tool performance

Key Specs

AttributeSpecification

item#

7463294

Brand

BOSTITCH

Manufacturer's Warranty

1 year limited warranty

Ship Weight

34.0 LB

Horsepower

0.8 HP

Air Tank Size

6 Gal

Volts

120

CFM at 90 PSI

2.6

Max. PSI

150

Stage

1

Air Outlets (qty.)

2

Amps

10.5
AttributeSpecification

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

3.7

Noise Level

80 dB

Oil Required

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

No

Air Dryer

None

Drain Type

Manual

Product Weight

34.0000 lb

Dimensions L x W x H (in.)

17.0 x 17.0 x 18.3 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
