Bosch Single-Bevel Slide Miter Saw — 8.5in., Model# CM8S

Item# 45346
Bosch Single-Bevel Slide Miter Saw — 8.5in., Model# CM8S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bosch Single-Bevel Slide Miter Saw — 8.5in., Model# CM8S

Click or Tap image to Zoom

$624.16

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Ultimate portability – Bosch exclusive design delivers a well-balanced saw with a top carry handle, and a weight of only 37 Lbs. easily provides one-handed portability on and off the job
  • Easy access bevel controls – bevel lock lever and bevel turret stops are located on side of tool for quick and easy adjustments
  • Integrated expanding base extensions – expands up to 29 In. left to right for additional work-piece support
  • Large easy-to-read miter and bevel scales – uniform marks from 52? left to 60? right with 10 adjustable miter detents set at most common cuts
  • Adjustable front stabilizing foot – maintains saw stability when performing slide cuts allowing maximum capacity: cross cut 12-1/4” at 0?, 8” at 45?, 2-3/4” upright, 3-1/2 crown

See full description

Complete Your Solution

  • Bosch Single-Bevel Slide Miter Saw — 8.5in., Model# CM8S
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • Ironton Men's High-Dexterity Utility Gloves — 3 Pairs, Assorted Colors, Large, Model# 86225IR-L3P
Price for all four:

$652.13

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

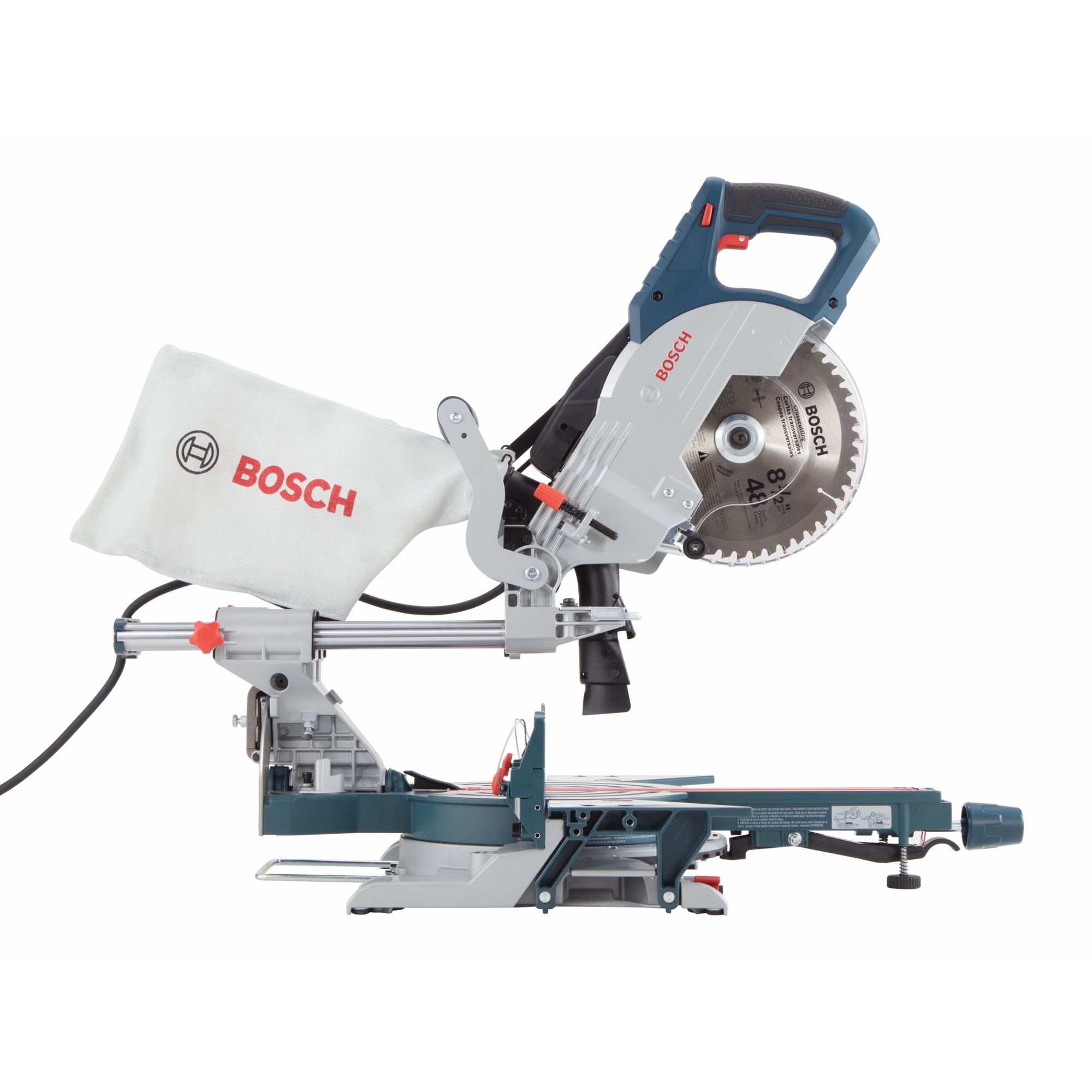

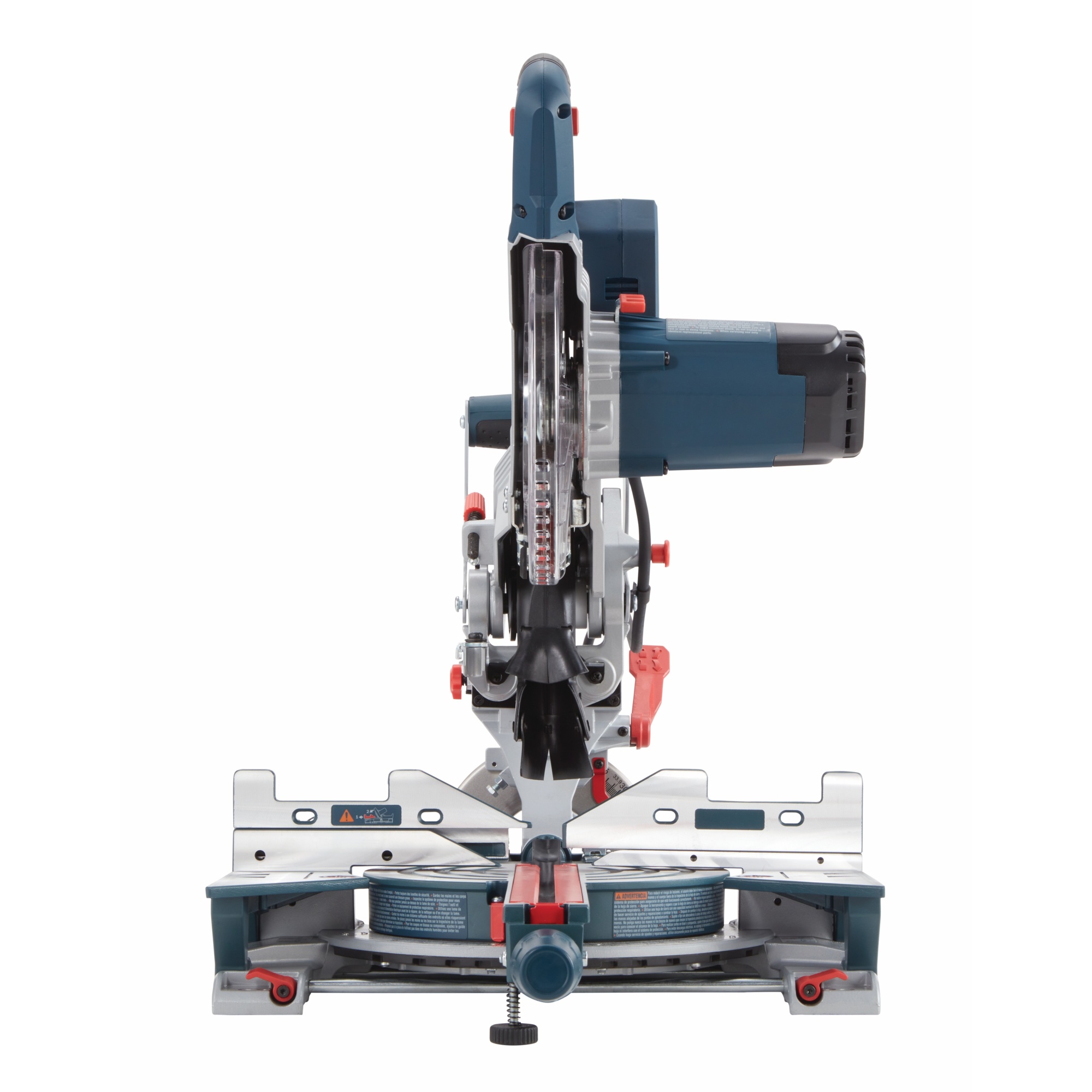

The CM8S 8-1/2in. single bevel sliding compound miter saw features a Bosch exclusive design delivering a well-balanced saw with a top carry handle at the center of gravity and weighs only 37 pounds. These features easily provide one-handed portability on and off the job. Accessible controls make it easy to change bevel settings without reaching behind the saw. The integrated expanding work piece supports, large easy to read miter and bevel scales, and detent system provides quick and accurate cuts. The CM8S also has the same crosscut capacity (12-1/4in.) as a 10in. miter saw, at 30% lighter weight.

What's Included

    (1) 12 Amp 8.5in. single-bevel sliding compound miter saw, Model CM8S (1) 8.5in. blade (1) Blade change wrench (1) Dust bag

Features + Benefits

  • Ultimate portability – Bosch exclusive design delivers a well-balanced saw with a top carry handle, and a weight of only 37 Lbs. easily provides one-handed portability on and off the job
  • Easy access bevel controls – bevel lock lever and bevel turret stops are located on side of tool for quick and easy adjustments
  • Integrated expanding base extensions – expands up to 29 In. left to right for additional work-piece support

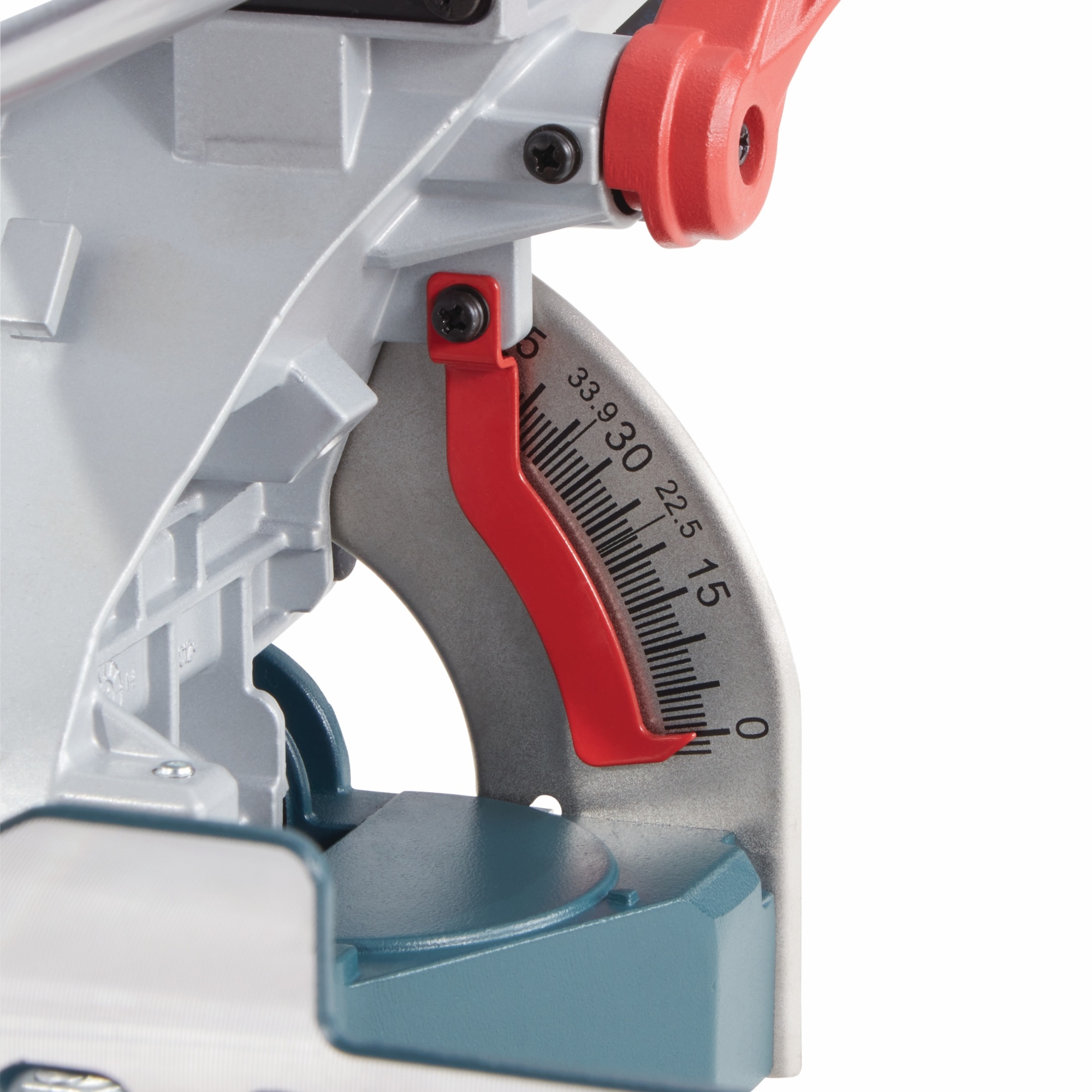

  • Large easy-to-read miter and bevel scales – uniform marks from 52? left to 60? right with 10 adjustable miter detents set at most common cuts
  • Adjustable front stabilizing foot – maintains saw stability when performing slide cuts allowing maximum capacity: cross cut 12-1/4” at 0?, 8” at 45?, 2-3/4” upright, 3-1/2 crown
  • Miter detent override – intuitive easy to access thumb-actuated override
  • Ergonomic ambidextrous trigger handle – form fitting handle provides comfort for all day use
  • Ergonomic ambidextrous form-fitting trigger handle provides maximum comfort for all-day use
  • Clear lower guard for unobstructed view throughout the cut

Key Specs

AttributeSpecification

item#

45346

Brand

Bosch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

45.0 LB

Blade Diameter

8 1/2

Max. Speed

5,600 rpm

Amps

12

Arbor Size

5/8 in

Tool Only

No

Cutting Width

12.25 in

Cutting Height

2.75 in
AttributeSpecification

Left Miter Capacity

52 °

Right Miter Capacity

60 °

Bevel Capacity

47 °

Electric Brake

No

Spindle Lock

Yes

Blade Included

Yes

Laser Guide

No

Tool Weight

37.0

Product Weight

lb

Dimensions L x W x H (in.)

33.25 x 18.5 x 17.25 in
