Bosch Revolve2000 Self-Leveling Rotary Laser Kit — 7in. Length, 0.06in. Accuracy, Model# GRL2000-40HVK

Item# 4973230
"Bosch Revolve2000 Self-Leveling Rotary Laser Kit — 7in. Length, 0.06in. Accuracy, Model# GRL2000-40HVK"
Bosch Revolve2000 Self-Leveling Rotary Laser Kit — 7in. Length, 0.06in. Accuracy, Model# GRL2000-40HVK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bosch Revolve2000 Self-Leveling Rotary Laser Kit — 7in. Length, 0.06in. Accuracy, Model# GRL2000-40HVK

Click or Tap image to Zoom

$1205.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Complete kit – features a laser receiver, tripod, grade rod, remote control, wall mount and all-in-one hard carrying case
  • All-in-one hard carrying case – designed to hold included accessories: receiver with bracket, tripod, grade rod and more
  • Manual Dual Slope – allows the user to adjust the slope angle on the laser on both the X- and Y-axes
  • Electronic self-leveling – allows for easy setup and use on the job
  • Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

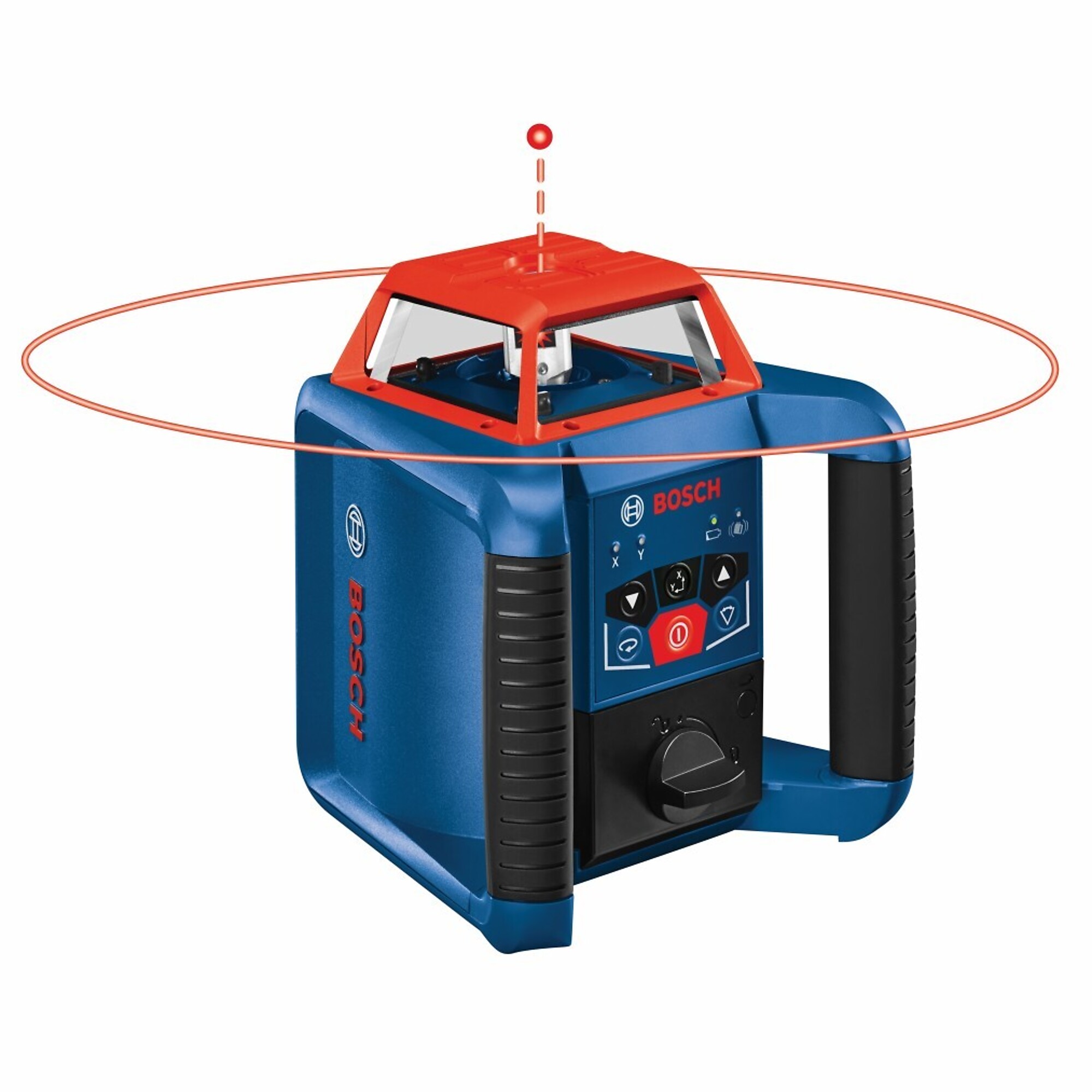

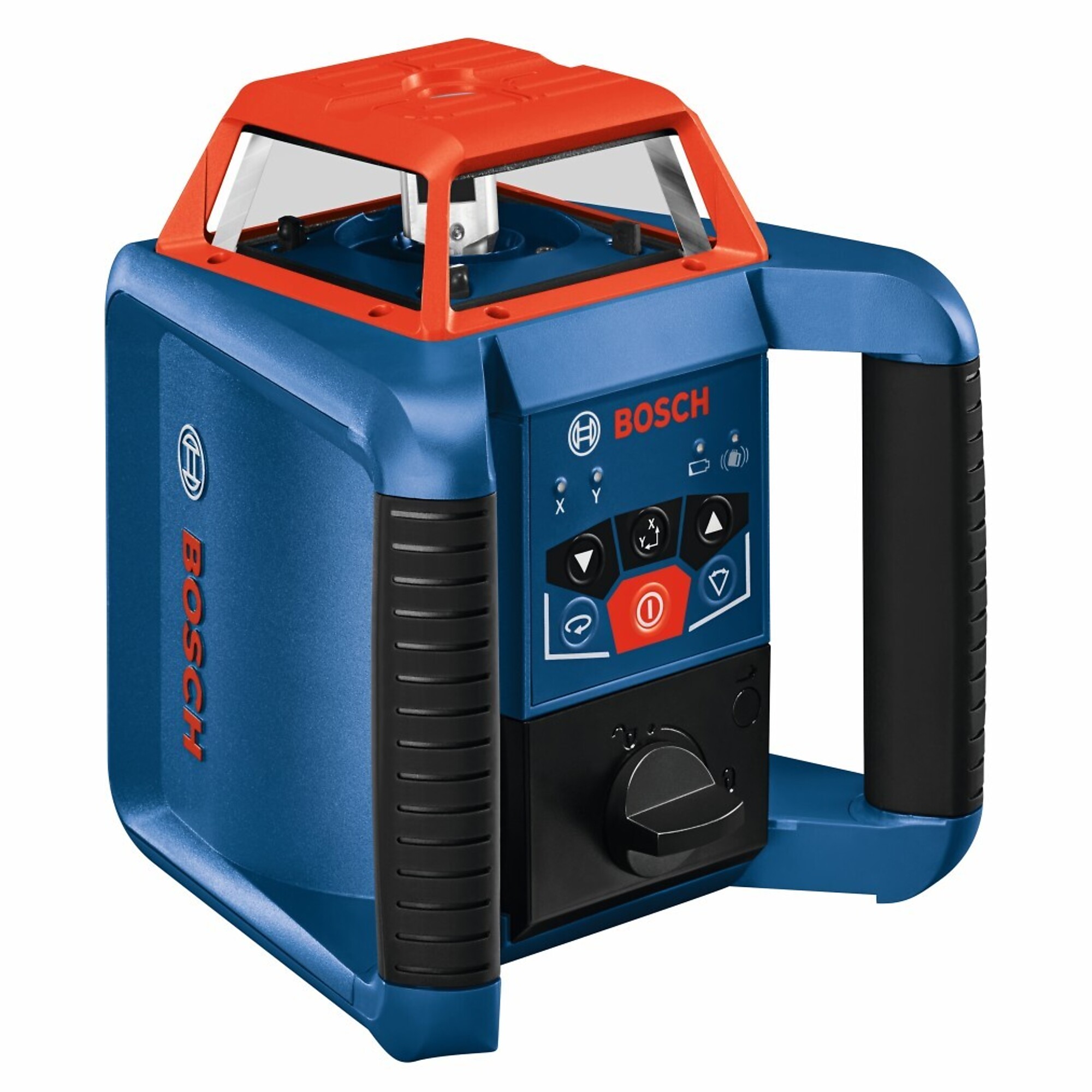

The Bosch REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser Kit delivers a comprehensive solution for precise outdoor and indoor leveling. Manual Dual Slope allows the user to adjust the slope angle on the laser on both the X- and Y-axes. The GRL2000-40HVK features a horizontal/vertical self-leveling laser, suitable for leveling and aligning applications. This kit contains an all-in-one hard carrying case designed to hold all included accessories. The REVOLVE2000 rotary laser delivers ±1/16in. accuracy at 100ft. and a working range of up to 2,000ft. with the included receiver. The laser’s electronic self-leveling system has a disturbance monitor, which indicates to the user if tool position changes, ensuring consistent leveling accuracy on the jobsite. The laser has a red metal cage for durability. Easy to use, the kit includes an all-in-one solution includes an LR20 laser receiver with mounting bracket, aluminum tripod, RC4 remote control, WM4 wall mount and sturdy grade rod.

What's Included

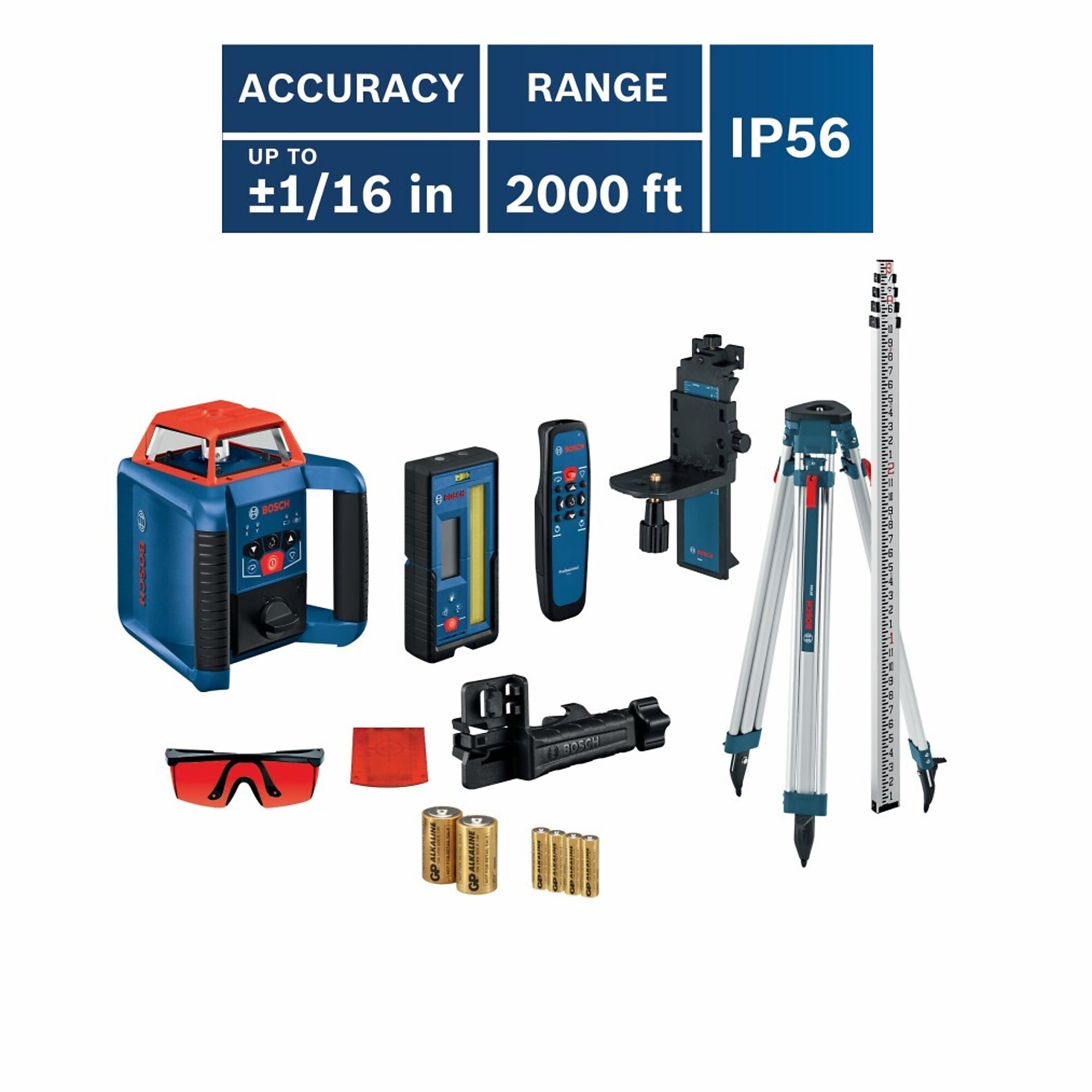

    (1) GRL2000-40HV (1) LR20 Receiver (1) BT160 Tripod (1) GR13 13Ft. Grade Rod (1) Red Laser Glasses

Features + Benefits

  • Complete kit – features a laser receiver, tripod, grade rod, remote control, wall mount and all-in-one hard carrying case
  • All-in-one hard carrying case – designed to hold included accessories: receiver with bracket, tripod, grade rod and more
  • Manual Dual Slope – allows the user to adjust the slope angle on the laser on both the X- and Y-axes
  • Electronic self-leveling – allows for easy setup and use on the job
  • Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy

Key Specs

AttributeSpecification

item#

4973230

Brand

Bosch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

37.62 LB

Level Type

Rotary Laser

Length

7 in

Accuracy

0.06 in

Frame Material

Molded Plastic

Level Indicators (qty.)

2

Display Type

LED
AttributeSpecification

Storage Type

Case

Self-Leveling

Yes

Multi-Plane Leveling

No

Out of Range Alarm

No

Power Source

Battery

Battery Type

D

Laser Color

Red

Indicator Included

No

Product Weight

37.6200 lb

Dimensions L x W x H (in.)

42.25 x 8.5 x 10.15 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

  1. Can this laser be stop rotating, used for straight line use, installing fencing?

    1 answer

    1. It has a point operation setting. To switch to point operation press the rotational operation button until you reach the desired setting. Due to inertia, it is possible for the laser to make a few revolutions before point operation is set.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
