BlueDEF 120 Volt DEF Tote Pump System, 1/3 HP, 8-10 GPM, Stainless Steel Nozzle, Model# DEFTP120SN

Item# 58379
BlueDEF 120 Volt DEF Tote Pump System, 1/3 HP, 8-10 GPM, Stainless Steel Nozzle, Model# DEFTP120SN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BlueDEF 120 Volt DEF Tote Pump System, 1/3 HP, 8-10 GPM, Stainless Steel Nozzle, Model# DEFTP120SN

Click or Tap image to Zoom

$959.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 1/3 HP self-priming diaphragm DEF pump
  • Strong metal housing with stainless steel motor shaft
  • 120V, 60Hz electric motor
  • Factory tested before shipping

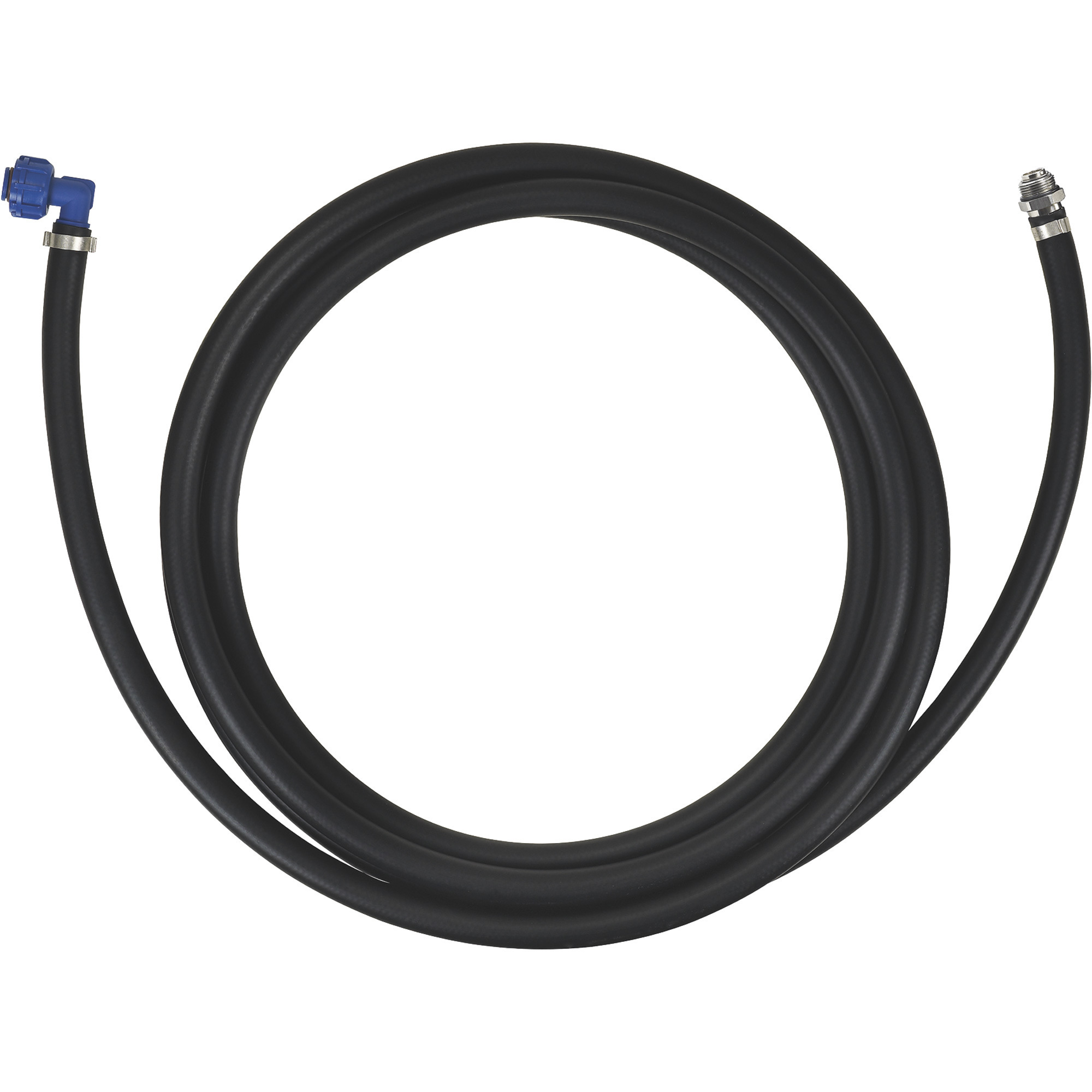

  • System includes diaphragm pump, 3/4in. x 20ft. hose and stainless steel automatic nozzle

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The BlueDEF 1/3 HP self-priming diaphragm DEF pump is constructed with a strong metal housing with a stainless steel motor shaft for dependable performance. This 120V, 60Hz electric diaphragm pump is designed specifically for dispensing diesel exhaust fluid.

What's Included

    (1) 120V 1/3 HP diaphragm pump (1) 3/4in. x 20ft. hose (1) Stainless steel automatic nozzle

Features + Benefits

  • 1/3 HP self-priming diaphragm DEF pump
  • Strong metal housing with stainless steel motor shaft
  • 120V, 60Hz electric motor
  • Factory tested before shipping
  • System includes diaphragm pump, 3/4in. x 20ft. hose and stainless steel automatic nozzle
  • Requires coupler to connect to closed system

Key Specs

AttributeSpecification

item#

58379

Brand

BlueDEF

Manufacturer's Warranty

3 year limited warranty

Ship Weight

35.0 LB

Max. Flow

600 GPH

Volts

120

Horsepower

0.33

Amps

2.8

Watts

320
AttributeSpecification

Max. RPM

3,450

Inlet Port

1 in

Outlet Port

1 in

Max. Suction Lift

10 ft

Max. Total Head

57 ft

Discharge

57 ft

Self-Priming

Yes

Seal Type

EPDM

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Is there a 4 pin cam lock fitting supplied?

    1 answer

    1. The BlueDEF 120 Volt DEF Tote Pump System (Model DEFTP120SN) does not include a 4-pin cam lock fitting. The system comes with a 1/3 HP diaphragm pump, a 3/4-inch by 20-foot hose, and a stainless steel automatic nozzle. If you need a 4-pin cam lock fitting, you will need to purchase it separately.

      Helpful?

  2. 120v= plugs into wall outlet? How long is electric cord?

    1 answer

    1. This has a standard 120 volt plug-in and the power cord is close to 6’ in length.

      Helpful?

  3. Does this come with the pickup tube that goes down into the tank? I see it says “requires coupler” but unclear on what coupler is needed. Any help or a part number would be great

    1 answer

    1. The stainless steel coupling model DEF744-048 and 6"tote cap with suction tube model DEF230248 are not included with the pump kit. Northern Tool currently does not carry these items.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
