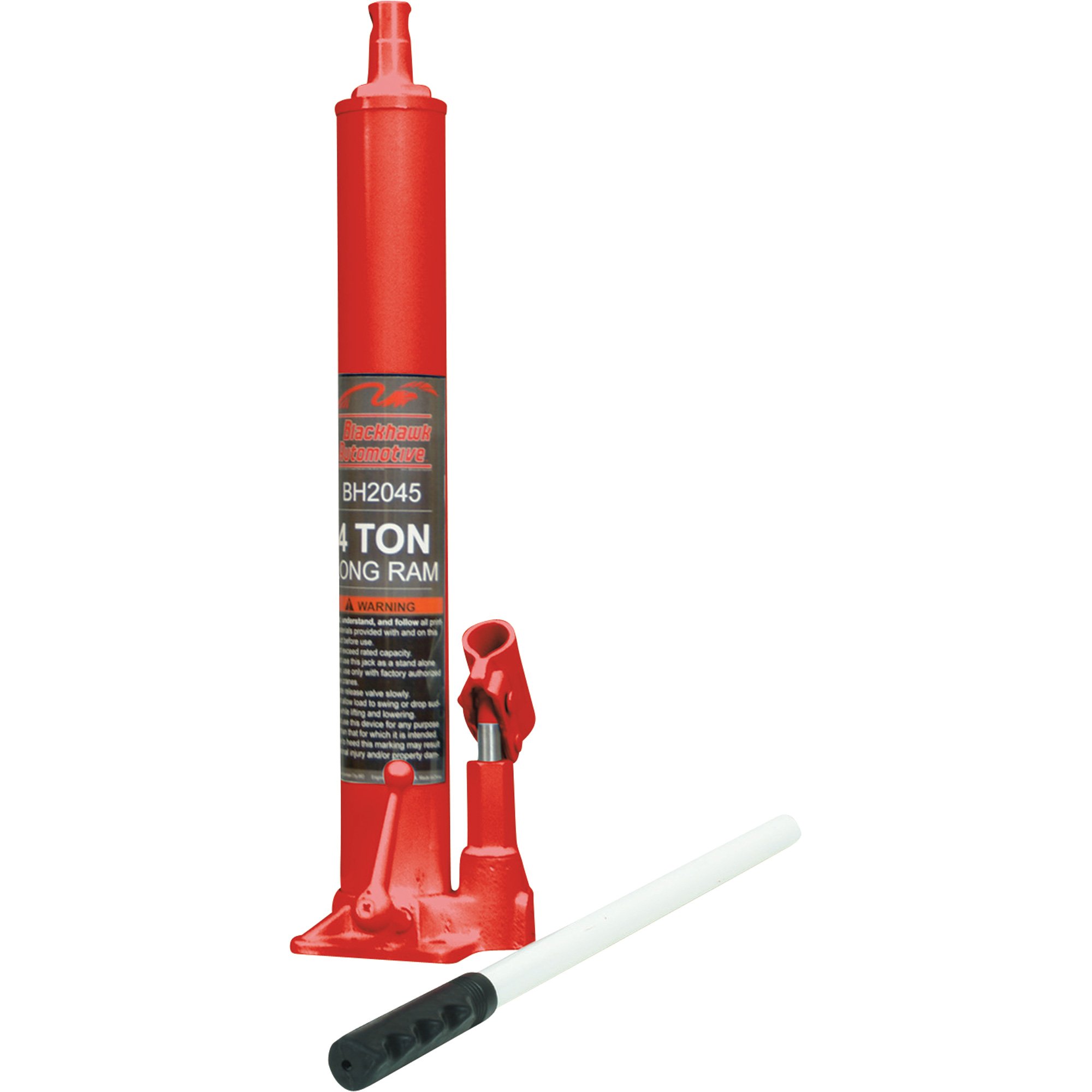

Blackhawk Automotive 4-Ton Long Ram Manual/Hydraulic Jack — Single Piston, Flat Base, Model# BH2045

Item# 144600
Blackhawk Automotive 4-Ton Long Ram Manual/Hydraulic Jack — Single Piston, Flat Base, Model# BH2045

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Blackhawk Automotive 4-Ton Long Ram Manual/Hydraulic Jack — Single Piston, Flat Base, Model# BH2045

Click or Tap image to Zoom

  • Fabricated from hard-cast steel with heat-treated critical stress areas
  • Unique cross-type forged release valve assures positive control
  • Wide, rugged base for strength and stability

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Blackhawk Automotive 4-Ton Long Ram Manual/Hydraulic Jack is protected from internal damage by patented bypass mechanism. Machined and polished cylinders with die-cut threads provide nonabrasive leak-free durable performance.

What's Included

  • (1) Long Ram Manual/Hydraulic Jack

Downloads

Product Manual Product Manual2

Features + Benefits

  • Fabricated from hard-cast steel with heat-treated critical stress areas
  • Unique cross-type forged release valve assures positive control
  • Wide, rugged base for strength and stability

Key Specs

AttributeSpecification

item#

144600

Brand

Blackhawk Automotive

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

18.4 LB

Lift Capacity

4 Tons
AttributeSpecification

Max. Lift Height

34.75 in

Min. Lift Height

19.375 in

Base Dimensions

5.125 in

Pistons (qty.)

1

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. What is the outer diameter of the ram plunger?

    1. One inch.

      Helpful?

    2. The outside diameter of the ram is 1 inch.

      Helpful?

  2. what is the ovreral lenght on jack. base to rod

    1 answer

    1. The Blackhawk Long Ram Jack is 19 7/8 inches from base to top of rod when fully retracted.

      Helpful?

  3. Base is 5 1/8 by 4 1/2 but what are holes center to center?

    I am replacing the jack on my transmission jack and need the exact bolt pattern. Thank you

    1 answer

    1. This jack includes two holes for mounting; they are 3/8'' in diameter.
      Spacing from front to back is 3 5/8'' and from side to side 2''. So, they are 4.14'' apart diagonally.

      Helpful?

  4. what is the distance of holes in the base

    1 answer

    1. The mounting base pattern is 5 1/8” x 4 1/2”.

      Helpful?

  5. Upper mounting point & eye hole

    How wide is the upper mounting point? What is the upper mounting hole diameter?

    1 answer

    1. The upper mounting point would be 1" diameter. The mounting hole diameter is 5/8".

      Helpful?

  6. What is the outside diameter of oil chamber

    1 answer

    1. This Blackhawk Automotive long ram jack has a reservoir cylinder that is approximately 3 inches in diameter.

      Helpful?
